You rely on backshell connectors to ensure electrical systems withstand industrial demands. These connectors protect circular connectors from moisture and dust, which maintains system reliability. When you select the right backshell, you secure strain relief and shield sensitive components from electromagnetic interference.
- Backshell connectors clamp cables, reducing stress and extending the lifespan of M8 connector and Type B connector assemblies.
- They serve as grounding points and boost performance, especially when sourced from a trusted connector factory.
Choosing the Right Backshell Connectors
Selecting the right backshell connectors for your circular connector systems in 2025 requires careful consideration of orientation, size, compatibility, and material. You must evaluate each factor to ensure optimal performance, reliability, and protection in your application.
Orientation and Entry Angle
Straight vs. Angled Backshells
You encounter straight, 45°, and 90° backshells when planning cable routing. Straight backshells offer a direct path for cables, which simplifies installation in open spaces. Angled backshells, including 45° and 90° options, help you manage cables in tight or complex environments. These configurations allow you to route cables around obstacles and minimize stress at the connector interface.
Orientation | Benefits | Typical Use Cases |
---|---|---|
Straight | Simplifies cable routing; easy installation | Open panels, accessible locations |
45° | Balances space savings and cable management | Moderate space constraints |
90° | Maximizes space efficiency; reduces cable bend radius | Confined spaces, equipment racks |
Application-Specific Selection
You must match backshell orientation to your system’s physical constraints. For example, military aircraft harnesses and naval combat vessels often require angled backshells to fit within compact assemblies and withstand vibration. In commercial installations, straight backshells may suffice if space is not limited. Always consider environmental factors such as exposure to vibration, shock, and temperature cycling. Backshell connectors designed for harsh environments use robust locking mechanisms—threaded, bayonet, or quick-disconnect styles—to maintain secure mating under stress.
Tip: Choose the backshell type and entry angle based on cable routing needs and available installation space. This decision directly impacts ease of maintenance and long-term reliability.
Size and Compatibility
Matching Connector and Cable Dimensions
You ensure proper fit and function by matching backshells to connector shell size and cable diameter. Manufacturers design backshells to fit specific connector series, such as M83513 or CPC, and shell sizes like 11. For example, the AMP CPC backshell supports cable diameters up to 8.36 mm and threads directly onto compatible plugs or receptacles. This compatibility maintains strain relief and mechanical protection.
- Always verify the connector series and shell size before selecting a backshell.
- Confirm cable diameter matches the backshell’s clamping range.
- Use manufacturer datasheets to check compatibility.
Thread Types and Standards
Thread types and coupling styles influence how backshells mate with connectors. You encounter threaded, bayonet, push-pull, and latch mechanisms. While formal standards like MIL-SPEC or IEC may not always apply, manufacturers follow established sizing conventions to ensure interchangeability. Glenair Micro-D backshells, for instance, comply with industry norms for metal shell connectors, supporting reliable strain relief and mechanical protection.
Note: Adhering to recognized sizing and compatibility practices prevents installation errors and ensures long-term system integrity.
Material Selection for Backshells
Metal vs. Composite Options
You choose between metal and composite backshells based on durability, weight, and environmental demands. Metal backshells, such as aluminum or stainless steel, provide high strength and superior EMI shielding. Aluminum offers a strong yet lightweight solution, favored in aerospace and military applications. Stainless steel excels in corrosion resistance and mechanical strength, especially in high-vibration or high-temperature environments.
Composite backshells, made from materials like Ultem, deliver up to 50% weight savings compared to traditional metal backshells. These options withstand vibration and corrosive environments, offering impact resistance and flexibility in design. Advanced molding techniques allow for integrated features and multi-directional cable entry.
Attribute | Metal Backshells | Composite Backshells |
---|---|---|
Weight | Heavier, but lightweight options exist | Up to 50% lighter |
Durability | High vibration, high temp qualified | Impact and corrosion resistant |
EMI Shielding | Superior | Available, but less than metal |
Design Flexibility | Standard designs | Advanced molding, integrated features |
Weight and Durability Considerations
You must balance weight and durability when selecting backshells. Aluminum backshells provide excellent thermal conductivity and mechanical protection, making them suitable for aerospace and military systems. Stainless steel backshells offer enhanced corrosion resistance and mechanical strength, ideal for marine or corrosive environments. Composite backshells reduce overall system weight, which supports weight-saving initiatives in modern equipment. Both types undergo rigorous testing for vibration, shock, and thermal aging to ensure reliability.
Callout: In high-vibration or high-temperature environments, select backshells with proven mechanical resilience and corrosion resistance. This choice protects your connectors and cables from premature failure.
Backshell Connectors for Protection
When you design systems for demanding conditions, you must prioritize protection. Environmental backshells play a critical role in shielding your connections from moisture, dust, and corrosive agents. Choosing the right backshell ensures your equipment operates reliably, even in harsh environments.
Environmental Sealing
IP Ratings and Their Role
You need to understand IP ratings when selecting environmental backshells. These ratings indicate the level of protection against dust and water. The table below compares common IP standards for backshells:
Feature | IP67 | IP68 | IP69K |
---|---|---|---|
Dust Protection | Complete | Complete | Complete |
Water Protection | Immersion up to 1m (30 min) | Immersion >1m (duration specified) | High-pressure hot water jets |
Sealing Mechanism | Gaskets, O-rings | Enhanced seals, overmolding | Gaskets + spray shielding |
Common Usage | Outdoor field systems | Submerged sensors | Sanitation environments |
Test Method | Static immersion | Extended immersion | Jet spray/heat tests |
You should select a backshell with an IP rating that matches your application. For example, IP67-rated environmental backshells protect against temporary immersion, making them ideal for outdoor or industrial use. IP68 and IP69K offer even greater protection for submerged or high-pressure cleaning environments.
Gasket and O-Ring Choices
Gaskets and O-rings form the first line of defense in environmental backshells. You use these seals at mating surfaces to block moisture and dust. Overmolding and sealing boots add extra layers of protection, especially at cable exits. Some advanced backshells, like SEAL-D® and NANOOK, integrate modular seals and hardware to achieve IP67 or higher. These solutions work well in robotics, marine, and industrial settings where you face harsh environments daily.
Tip: For extreme conditions, consider multi-stage sealing methods. Combining O-rings, gaskets, and overmolding provides superior protection and extends the life of your backshell.
Corrosion Resistance in Backshells
Material Coatings and Treatments
You must address corrosion when deploying backshells in harsh environments. Standard aluminum shells can corrode quickly, especially in salt spray or chemical processing areas. Manufacturers use advanced coatings and treatments to enhance protection:
- Hard anodizing increases wear resistance but remains porous.
- Conductive metallic plating, such as nickel or cadmium, seals the surface and maintains electrical conductivity.
- Two-layer plating, with nickel as a base and cadmium or gold as a top layer, offers optimal corrosion resistance and durability.
- Stainless steel passivation further boosts protection in aggressive environments.
Coating / Treatment | Key Benefits and Properties | Typical Applications / Product Series |
---|---|---|
Hard Anodizing | Wear and corrosion resistance, improved heat dissipation | Arinc600 Series R042 |
Gold Plating | Superior conductivity, chemical inertness | Micro-D, Nano-D |
Cadmium Plating | Excellent salt spray resistance, galvanic compatibility | D38999 III, Arinc600 |
Nickel Plating (Electroless) | Uniform coverage, corrosion resistance | Micro-D, Nano-D, D38999 Series III |
Stainless Steel Passivation | Enhanced durability and stability in harsh environments | D38999 Series III |
Suitability for Harsh Environments
You gain the most reliable protection in marine or chemical processing applications by choosing stainless steel backshells. These environmental backshells, especially those made from 316 stainless steel, resist corrosion due to their self-healing oxide film and high molybdenum content. Salt spray testing shows these backshells withstand over 96 hours of exposure, far outperforming brass or aluminum options. Stainless steel also delivers superior mechanical strength, reducing the risk of failure from shock or vibration. Although the initial cost is higher, you benefit from reduced maintenance and longer system life in harsh environments.
Note: Custom stainless steel environmental backshells can meet unique requirements, ensuring your system remains protected and reliable even in the most challenging conditions.
Achieving Strain Relief with Backshells
Strain relief is essential for maintaining the integrity and reliability of cable assemblies in demanding environments. You can prevent cable damage and extend system life by choosing the right methods and following best practices.
Strain Relief Methods
Clamping Mechanisms
You often rely on integrated cable clamps within the backshell to secure cables at the connector interface. These clamps, such as saddle bar types, grip the cable jacket and prevent movement that could stress internal contacts. Heat-shrink boots and tie posts also serve as effective strain relief solutions, especially in industrial settings. By using these mechanical supports, you reduce the risk of cable pull-out and overbending, which can lead to premature failure. Clamping mechanisms work well in clean, dry environments, but you may need additional sealing for harsh conditions.
Overmolding and Potting Techniques
Overmolding and backpotting offer advanced strain relief by encapsulating the cable-connector junction with protective materials. Backpotting involves applying epoxy or potting compounds at the rear of the connector. This method reinforces the connection, absorbs mechanical stress, and blocks dust or moisture ingress. Overmolding creates a seamless transition between the cable and connector, providing both mechanical support and environmental protection. These techniques are lightweight compared to traditional backshells and can be combined with other methods for enhanced durability.
Best Practices for Strain Relief
Cable Routing and Bend Radius
Proper cable routing is critical for effective strain relief. You should maintain a minimum bend radius near the connector to avoid excessive stress and fatigue. Tight bends can cause internal wire breakage or signal degradation. Selecting the correct backshell orientation, such as straight or angled exits, helps you route cables efficiently and reduces mechanical strain. Always plan cable paths to minimize sharp turns and ensure smooth transitions.
Preventing Cable Pull-Out
To prevent cable pull-out, you must secure the cable firmly at the backshell entry point. Use cable clamps or heat-shrink boots to distribute forces along the cable jacket rather than concentrating stress at the termination. Regularly inspect assemblies for signs of wear, corrosion, or loosening. Follow manufacturer guidelines for installation and maintenance to ensure long-term strain relief effectiveness. Proper strain relief not only protects cables from damage but also safeguards system performance and safety.
Tip: Neglecting strain relief can lead to loose connectors, broken pins, and even safety hazards like electrical shock or fire. Always prioritize mechanical support at every cable termination.
Addressing EMI/RFI Shielding with Backshell Connectors
Electromagnetic interference (EMI) and radio frequency interference (RFI) can disrupt signal integrity in your electronic systems. You need to select the right backshell to ensure reliable protection and maintain system performance, especially in high-frequency or high-noise environments.
Types of Shielded Backshells
Conductive Backshells
You can choose from several shielded backshells designed to reduce EMI and RFI. Conductive backshells use metal construction to create a continuous conductive path from the cable shield to the connector shell. This design blocks external interference and prevents signal leakage. In harsh environments, environmental backshells combine robust mechanical protection with tightly woven metal braid shielding. These backshells ground the shield at one or both ends, providing superior electromagnetic shielding options for military, aerospace, and outdoor applications.
Braided Shield Termination
Braided shield termination is a common method for achieving effective EMI/RFI protection. You terminate the cable’s metal braid directly to the backshell, ensuring a low-resistance path to ground. This approach is used in both environmental and non-environmental backshells. Non-environmental backshells focus on mechanical strain relief and EMI/RFI protection in controlled settings, such as data centers or telecom rooms. Both types enclose cables in conductive shielding, which you ground through the backshell to prevent external interference.

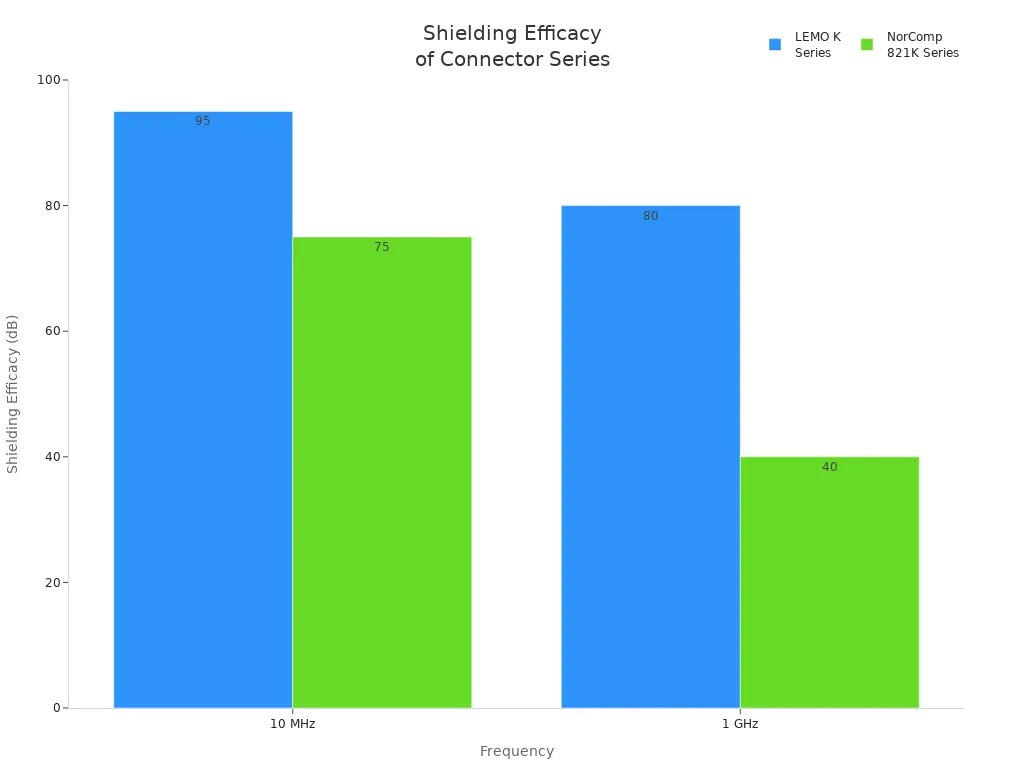

Type of Backshell | Description | EMI/RFI Shielding Features | Application Environment | Cost and Availability |
---|---|---|---|---|
Environmental Backshells | Designed to withstand harsh conditions like dust, moisture, fluids, shock, and sand. | Use tightly woven metal braid terminated to ground potential | Harsh environments (military, outdoor) | Generally higher cost, specialized |
Non-Environmental Backshells | Suitable for climate-controlled environments; provide mechanical strain relief and space. | Also use metal braid shielding terminated to ground | Indoor, controlled environments | Lower cost, widely available |
Mil-Spec Backshells | High reliability, compatible with military connectors, stocked for quick delivery. | High-performance EMI/RFI shielding | Military and high-reliability applications | Higher price point |
COTS Backshells | Commercial off-the-shelf options with broad selection and similar performance to Mil-Spec. | Effective EMI/RFI shielding at lower cost | Commercial and general applications | Lower price, large variety |
Customized Solutions | Tailored designs for complex or specific requirements. | Can optimize EMI/RFI shielding for unique needs | Specialized applications | Variable cost depending on customization |
Tip: Always match the backshell type to your application’s environment and EMI/RFI requirements to maximize protection and performance.
Importance of Shielding
Regulatory Compliance
You must meet strict regulatory standards for EMI/RFI emissions in many industries. Shielded backshells help you comply with these requirements by reducing interference and preventing signal leakage. In aerospace and military sectors, you rely on high-performance backshells to provide strain relief, environmental sealing, and EMI/RFI shielding. These features maintain signal integrity and extend connector life, even in harsh conditions. Proper selection involves considering material finishes, environmental needs, and electromagnetic shielding options.
Performance in High-Noise Environments
You face significant challenges in high-noise environments, such as radar installations, avionics, or industrial automation. Shielded backshell connectors deliver measurable reductions in EMI and RFI. For example, the LEMO K Series achieves over 95 dB shielding efficacy at 10 MHz and over 80 dB at 1 GHz. The NorComp 821K Series provides 75 dB at 10 MHz and 40 dB at 1 GHz. These values demonstrate substantial protection across a wide frequency range.
You should select a backshell that matches your system’s frequency range and shielding requirements. In military and aerospace applications, MIL-DTL-38999 Series III backshells offer excellent EMI shielding and vibration resistance, while Series IV backshells provide fast engagement and modular maintenance. These principles also apply to telecommunications and commercial systems, where EMI/RFI protection ensures reliable data transmission.
Note: Effective EMI/RFI shielding not only protects your equipment but also ensures compliance and long-term reliability in demanding environments.
Installation and Maintenance of Backshell Connectors
Proper installation and regular maintenance of backshell connectors play a vital role in system reliability. You must pay close attention to each step, from cable preparation to final inspection, to avoid costly errors and ensure long-term performance.
Common Installation Mistakes
Over-Tightening or Under-Tightening
You often face challenges when applying the correct torque during installation. Over-tightening can damage threads or deform the connector shell, while under-tightening leads to backshell looseness. Looseness appears in several forms:
- Thread loose: The backshell rotates back 90° to 360° after torque, exposing threads.
- Visually loose: Position markers become misaligned and easily visible.
- Hand loose: You can turn the backshell by hand with little effort.
These conditions increase loop resistance, which degrades electrical continuity and reduces EMI shielding effectiveness. Sensitive wiring becomes more prone to noise, and overall system reliability suffers. You should always follow manufacturer torque specifications and use visual markers, such as wax or permanent ink, to monitor any movement after installation.
Tip: Regularly check backshell tightness during scheduled maintenance. Use physical checks or loop resistance measurements if visual markers are not present.
Improper Cable Preparation
You must prepare cables correctly before attaching backshell connectors. Inadequate stripping, poor shielding termination, or uneven cable jackets can cause improper seating and strain relief. These mistakes lead to exposed conductors, increased risk of short circuits, and compromised environmental sealing. Always use the recommended tools and follow manufacturer guidelines for cable preparation. Inspect each cable for uniformity and proper shield termination before assembly.
Ensuring Longevity and Reliability
Regular Inspection and Testing
You maintain system reliability by performing routine inspections and tests. Check for signs of backshell loosening, corrosion, or wear at every scheduled maintenance interval. Use visual markers to detect movement and perform hand checks for tightness. For inaccessible backshells, measure loop resistance to identify potential issues. Inspect cable jackets for damage and verify that strain relief mechanisms remain secure.
Inspection Task | Frequency | Recommended Method |
---|---|---|
Tightness Check | Quarterly | Visual marker, hand check |
Loop Resistance Test | Annually | Multimeter |
Corrosion Inspection | Semi-annual | Visual, tactile |
Cable Jacket Review | Quarterly | Visual, physical |
Replacement Guidelines
You should replace backshell connectors if you notice persistent looseness, visible damage, or corrosion that cannot be cleaned. Replace any connector showing signs of electrical degradation, such as increased loop resistance or intermittent signal loss. Always use new backshells that match the original specifications for size, material, and environmental rating. Document each replacement and update maintenance records to track system reliability over time.
Note: Proactive replacement of worn or damaged backshell connectors helps prevent unexpected failures and maintains optimal system performance.
Future Trends in Backshell Connectors
Smart Backshells and Integrated Features
You see rapid changes in connector technology as industries demand more from their systems. Smart backshells now offer features that go beyond traditional protection and strain relief. You benefit from integrated sensors, real-time diagnostics, and modular designs that simplify installation and maintenance. These innovations help you monitor temperature, vibration, and electrical continuity directly at the connector interface.
Industries such as aerospace, defense, automotive, and telecommunications drive the adoption of smart backshells. You rely on these sectors to set high standards for durability, EMI resistance, and environmental protection. North America’s investment in aerospace and defense increases demand for high-performance solutions. In Asia-Pacific, the growth of telecommunications, especially in China and India, pushes manufacturers to deliver reliable, advanced connectors. Europe’s focus on electric vehicles and environmental standards also shapes the market.
You notice several trends shaping the future of smart backshells:
- Miniaturization leads to smaller, more efficient connectors that fit compact designs.
- 5G integration and industrial automation require connectors that withstand EMI, temperature shifts, and physical stress.
- Modular backshells allow you to swap components quickly, reducing downtime.
- Advances in materials, such as lightweight composites and corrosion-resistant alloys, improve performance and longevity.
Tip: Choose smart backshells with integrated diagnostics if you need to monitor system health in real time. This feature helps you prevent failures and reduce maintenance costs.
Sustainability and Material Innovations
You face increasing pressure to meet environmental and regulatory standards. Agencies like the EPA, REACH, and RoHS enforce strict limits on hazardous substances. Manufacturers respond by developing eco-friendly, recyclable materials and adopting sustainable manufacturing processes.
You see aluminum, stainless steel, and composite materials used widely in backshell connectors. Aluminum offers a lightweight solution that improves fuel efficiency, especially in aerospace and defense. Stainless steel provides superior strength and corrosion resistance for marine and industrial applications. Composite materials balance strength, weight, and corrosion resistance, making them popular in automotive and aerospace sectors.
Manufacturers invest in research and development to create materials with higher strength, lower weight, and better environmental resistance. You benefit from corrosion-resistant coatings and modular designs that extend product life and reduce maintenance. Advanced sealing technologies and smart solutions further improve durability.
Material | Key Benefits | Typical Applications |
---|---|---|
Aluminum | Lightweight, fuel-efficient | Aerospace, defense |
Stainless Steel | High strength, corrosion-resistant | Marine, industrial |
Composites | Balanced strength and weight | Automotive, aerospace |
Brass/Plastics | Cost-effective, conductive options | General electronics |
You also see strategic partnerships between manufacturers and OEMs in sectors like electric vehicles and renewable energy. These collaborations drive tailored, sustainable product development. As regulations become stricter, you must anticipate future mandates and select backshells that support sustainability goals.
Note: By choosing connectors made from advanced, eco-friendly materials, you help reduce environmental impact and support long-term system reliability.
You ensure system reliability when you select, install, and maintain backshell connectors with care. Focus on proper selection, robust protection, effective strain relief, and strong EMI/RFI shielding. For complex projects, you benefit from expert resources such as:
- Apollo Aerospace Components’ Circular Connector Backshell FAQ
- NYKCS cross-reference tools and direct support
Consulting these guides helps you address environmental exposure, connector type, and performance requirements with confidence.
FAQ
What is the main function of a backshell connector?
You use a backshell connector to protect cable connections from environmental hazards. It provides strain relief, shields against EMI/RFI, and ensures mechanical stability. This protection helps your system maintain reliable performance in demanding conditions.
How do you select the correct backshell size?
You match the backshell to your connector shell size and cable diameter. Always check manufacturer datasheets for compatibility. Using the wrong size can cause poor sealing or strain relief.
Can you reuse backshell connectors after removal?
You should avoid reusing backshell connectors. Removal can damage threads, seals, or clamping mechanisms. For best reliability, always install a new backshell after disassembly.
What materials offer the best corrosion resistance?
Stainless steel and nickel-plated aluminum provide excellent corrosion resistance. You choose these materials for marine, chemical, or outdoor environments where moisture and corrosive agents are present.
How do you ensure proper EMI/RFI shielding?
You select a conductive backshell and ensure the cable shield terminates directly to the shell. Proper installation and grounding maximize EMI/RFI protection. Always follow manufacturer guidelines for shield termination.
What are common signs of backshell connector failure?
You may notice loose fittings, visible corrosion, damaged cable jackets, or intermittent signal loss. Regular inspection helps you catch these issues early and prevent system failures.
Are there backshells designed for high-vibration environments?
You find specialized backshells with locking mechanisms and rugged materials for high-vibration settings. These designs prevent loosening and maintain secure connections in aerospace, defense, and industrial applications.
