You need a 5-pin electrical connector when you want to transmit signals or power between devices in your electronic projects. Selecting the right connector increases project reliability and safety, especially when you avoid issues like mismatched types, poor environmental resistance, or insufficient ratings. If you want to start your selection, review your project’s voltage and current needs, check compatibility with existing equipment such as an M8 connector or Type B connector, and consult a connector factory for expert guidance. Watch for exposed conductors and bent pins, since these often cause short circuits and connection failures.

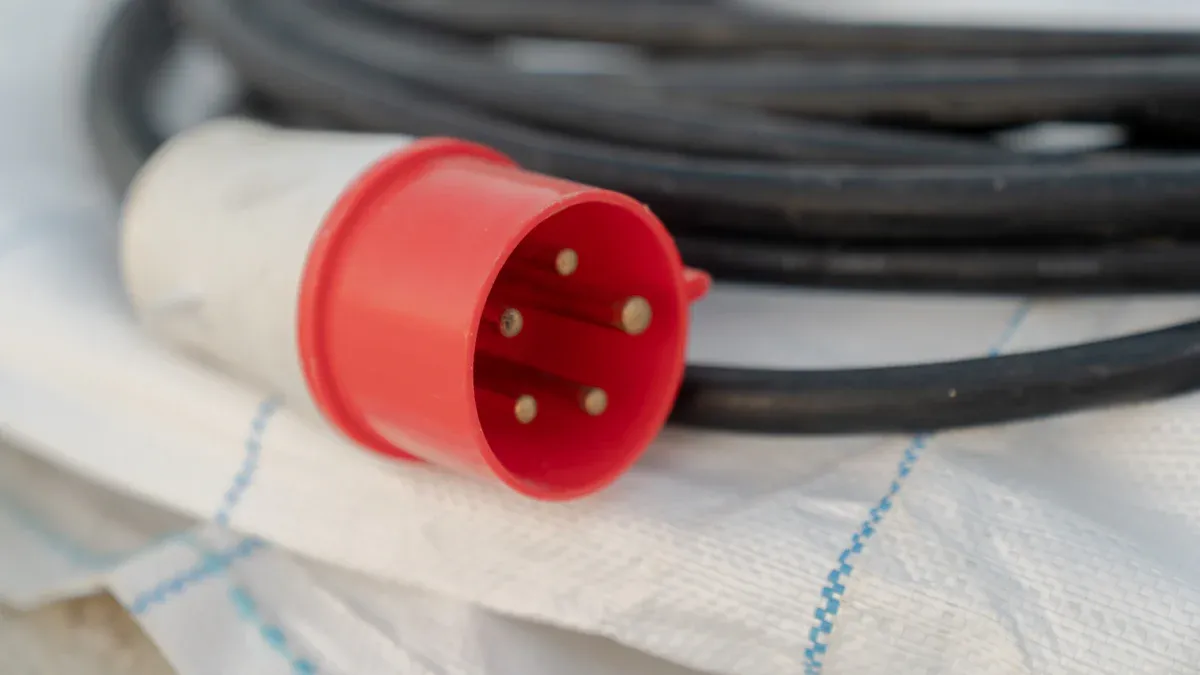

Understanding 5-Pin Electrical Connectors
What Are 5-Pin Electrical Wire Connectors?
Basic Structure and Function
A 5-pin electrical connector allows you to join five separate wires in a single, organized interface. Each pin carries either power or data, depending on your project’s requirements. The connector body insulates and protects the pins, ensuring a stable and secure connection. You will often see these connectors with locking mechanisms or keyed shapes to prevent incorrect mating. This design helps you avoid wiring mistakes and ensures reliable performance in your electronic projects.
Common Applications in Electronic Projects
You will find 5-pin electrical connectors in a wide range of applications. In consumer electronics, miniaturized versions support both power and data transmission in compact devices. Industrial environments use robust connectors, such as M12 connectors, for high-cycle operation and resistance to harsh conditions. Robotics and automation systems rely on these connectors for precise control and signal integrity. You can also use them in audio equipment, lighting controls, and sensor arrays.
Types of 5-Pin Electrical Connectors
Circular Connectors
Circular electrical connectors feature a round housing and are popular in industrial and outdoor settings. You will benefit from their durability and ease of alignment. M12 connectors, for example, are widely used in automation and automotive systems due to their resistance to vibration and moisture.
Rectangular Connectors
Rectangular connectors offer a compact footprint and straightforward panel mounting. You often see them in consumer electronics where space is limited. Their shape allows for easy stacking and integration into circuit boards.
DIN Connectors
DIN connectors use a standardized pin arrangement and are common in audio, video, and control applications. Their design ensures compatibility with many legacy devices. You must pay attention to pin orientation to avoid connection errors.
PCB Mount Connectors
PCB mount connectors attach directly to printed circuit boards. They provide a secure and low-profile solution for internal device connections. You can use them when you need high-performing connectors that save space and simplify assembly.
Wire-to-Board Connectors
Wire-to-board connectors allow you to connect individual wires to a circuit board. This type supports flexible wiring and easy replacement. You will find them useful in prototyping and modular designs.
Tip: When making your selection, consider the environment and mechanical stress your project will face. The best connector type balances durability, size, and ease of installation.
Pin Configurations for the Right Connector
Standard Pin Arrangements
Standard pin configurations, such as those found in DIN connectors, determine how devices connect and communicate. You must match the pin layout to your equipment to ensure compatibility. Incorrect arrangements can cause reversed polarity, signal errors, or even device damage. Some connectors allow you to switch functions, like toggling speakers, based on plug orientation.
Custom Pin Layouts
Custom pin layouts give you flexibility for specialized applications. You can design a unique arrangement to meet specific wiring needs or to prevent accidental cross-connection. However, custom layouts may limit compatibility with off-the-shelf devices and increase the complexity of your selection process.
Note: Always verify the pin configuration before installation. This step helps you avoid costly mistakes and ensures your electrical connectors perform as expected.
Identifying Your Project’s Requirements for the Right Connector
Selecting the right 5-pin electrical connector for your project starts with a clear understanding of your technical and environmental needs. You must evaluate several factors to ensure a secure connection and long-term reliability in your application.
Electrical Needs for Electronic Projects
Current and Voltage Ratings
You need to match the current and voltage ratings of your electrical connectors to your application. Exceeding these ratings can cause overheating, signal loss, or even failure. Most electronic projects use connectors rated for 5V DC and currents from 500mA up to several amperes. For high-power applications, always check the maximum output current and voltage tolerance.
| Specification | Value |
|---|---|
| Nominal Output Voltage | 5V DC |
| Maximum Output Current | 500mA to several Amperes |
| Operating Temperature | -20°C to +60°C |
Tip: Always verify the current rating (amps per circuit) and operating voltage (often between 250V and 600V for industrial uses) before making your selection. This step helps you avoid electrical failures and ensures a stable connection.
Signal vs. Power Transmission
You must identify whether your application transmits power, signals, or both. Signal lines often require shielding and low contact impedance to prevent data loss. Power lines demand higher current capacity and robust insulation. Some applications, such as high-power applications in automation, require connectors that handle both power and signals without interference. Choose a suitable electrical wire connector that matches your signal type—analog, digital, or a combination.
Key electrical requirements for your selection include:
- Current
- Frequency
- Voltage
- Environmental factors
Environmental Considerations for 5-Pin Electrical Connectors
Indoor vs. Outdoor Use
The installation environment plays a major role in connector selection. Indoor applications may only need basic dust protection, while outdoor applications demand resistance to moisture, UV exposure, and temperature swings. If your application involves outdoor use, select electrical connectors with weatherproof ratings such as IP67 or IP68.
Moisture and Dust Protection
Moisture and dust can degrade electrical connectors over time. High humidity leads to corrosion, while dust and particulates cause poor contact and signal loss. For applications exposed to water or chemicals, use connectors with multi-layer lip seals and waterproofing features. Routine inspection and cleaning help maintain a secure electrical connection and extend connector lifespan.
Note: Environmental stress, such as extreme temperatures or chemical exposure, can cause oxidation and material degradation. Always consider these factors in your selection process.
Ambient Temperature and Environmental Conditions
Temperature extremes affect connector performance. Some connectors operate reliably from -20°C to +60°C, but certain applications require even wider ranges. For harsh environments, select connectors made from silicone rubber or similar materials that resist both heat and cold. Regular inspection helps you spot early signs of wear caused by environmental stress.
Common environmental challenges include:
- Corrosion from water or chemicals
- Submerged connections
- Bending and flexing
- Tiny particulates
- Harsh materials contacting the connection
Mechanical Requirements for the Right Connector
Connector Size and Shape
Connector size and shape influence installation and maintenance. Circular connectors suit industrial applications where vibration resistance matters. Rectangular connectors fit compact spaces in consumer electronics. The number of contacts and the pitch must match your application’s requirements for power and signals. Proper size selection ensures compatibility and reduces installation time.
- The size and shape of connectors, such as circular and rectangular types, are tailored for specific applications, influencing installation time and compatibility with other components.
- The number and type of contacts required must align with the application to ensure effective data transmission.
Mounting Options
You must choose a mounting method that fits your application. Through-hole installation offers strong mechanical support for high-vibration environments. Panel-mount options provide easy access for maintenance. Some connectors feature anti-detachment mechanisms, such as magnetic force or structural buckles, to prevent accidental disconnection and maintain a stable connection.
Durability and Material Quality
Material selection impacts connector durability. For demanding applications, use connectors made from silicone rubber that meet IP67 standards and withstand temperatures from -40°C to +125°C. Look for connectors with low contact impedance (≤50mΩ) to reduce signal loss and heat. High-quality connectors offer a life cycle of at least 10,000 insertions and removals, making them ideal for frequent use.
| Requirement | Specification |
|---|---|
| Material Selection | Silicone Rubber meets IP67 standard, temperature resistance -40°C to +125°C. |
| Sealing Structure | Multi-layer lip design for 360° waterproofing, IP67 or IP68 compliance. |
| Pressure Resistance | Withstands pressure in 1 meter underwater for >30 minutes without seepage. |
| Contact Impedance | ≤50mΩ to reduce signal loss and heat generation. |
| Life Cycle | ≥10,000 insertions and removals for high-frequency usage. |
| Size | Pitch 2.50mm, length 26.40mm, width 7.90mm, elasticity 80gf ± 20Gf. |
| Installation Method | Through-hole installation, customizable for panel installation. |
| Anti-detachment Mechanism | Combination of magnetic force and structural buckle to prevent accidental disconnection. |
🛠️ Tip: Regular inspections and cleaning are necessary maintenance practices to ensure connector longevity and performance in any application.
By carefully evaluating these electrical, environmental, and mechanical requirements, you can make a confident selection of electrical connectors that deliver a secure connection and reliable performance for your application.
Application-Specific Needs in Electronic Projects
When you select a 5-pin electrical connector for your project, you must consider several application-specific needs. These factors ensure that your connector performs reliably and supports the unique requirements of your electronic application.
Frequency of Connection/Disconnection
You need to evaluate how often you will connect and disconnect the electrical connector in your application. Frequent mating and unmating cycles demand connectors with high durability and robust locking mechanisms. If your application involves regular maintenance or quick swaps, choose connectors rated for thousands of cycles. This approach prevents wear and tear that can lead to signal loss or physical damage.
- High-frequency connection applications, such as modular lighting systems or sensor arrays, require connectors with reinforced contacts and secure latching features.
- Low-frequency connection applications, like permanent installations, allow you to prioritize compact size and cost efficiency.
💡 Tip: Always check the manufacturer’s rated life cycle for the connector. This information helps you avoid unexpected failures in your project.
Compatibility with Existing Equipment
You must ensure that your connector matches the equipment already present in your application. Compatibility affects both electrical performance and physical fit. For example, when you work with LED strips, you need to match the voltage and wattage requirements of the strips and controllers. Data transfer needs also play a role, especially if your application involves advanced lighting effects or synchronized control.
| Compatibility Factor | Description |
|---|---|
| Pin Layout | Match the pin arrangement to your device |
| Voltage/Wattage | Align with LED strip and controller specs |
| Data Transfer | Ensure support for desired lighting effects |
| Physical Fit | Confirm connector size and mounting options |
If you overlook compatibility, you risk damaging your equipment or causing unreliable operation in your application. Always review datasheets and technical specifications before making your selection.
Wire Gauge Matching
Wire gauge matching is essential for safe and efficient operation in any electronic application. You must select a connector that accommodates the wire size used in your project. If you mismatch the wire gauge, you may experience overheating, poor conductivity, or mechanical failure.
- For high-power applications, such as LED strip installations, use connectors that support thicker wires to handle increased current.
- For signal transmission applications, select connectors designed for smaller gauge wires to maintain signal integrity.
⚠️ Note: Always verify the wire gauge compatibility listed in the connector’s datasheet. This step ensures a secure fit and optimal performance in your project.
When you address these application-specific needs, you create a foundation for reliable operation and long-term success. You improve ease of installation and maintenance, especially in projects that require frequent adjustments or upgrades. By considering wattage, voltage, data transfer, and compatibility, you ensure that your 5-pin electrical connector supports the full range of requirements in your application.
Key Selection Criteria for 5-Pin Electrical Connectors
Selecting the right 5-pin electrical connector for your project requires careful evaluation of several technical factors. You must consider electrical ratings, mechanical durability, and environmental resistance to ensure reliable performance in any application. This section guides you through the most important criteria for making an informed selection.
Electrical Ratings for the Right Connector
Maximum Current Capacity
You need to match the current rating of your connector to the demands of your application. If you exceed the maximum current capacity, you risk overheating and potential failure. The current rating depends on the connector’s design, materials, and thermal properties. Always check the datasheet for the maximum current each pin can handle. For example, circular electrical connectors often provide higher current ratings, making them suitable for industrial applications.
Voltage Tolerance
Voltage tolerance determines the maximum voltage your connector can safely carry. If you select a connector with insufficient voltage tolerance, you may experience insulation breakdown or arcing. The voltage rating must always exceed the highest voltage present in your application. This ensures safety and prevents damage to your electrical connectors.
You can compare key electrical ratings using the table below:
| Electrical Rating | Description |
|---|---|
| Current Rating | Evaluates the maximum current the connector can handle, influenced by various thermal factors. |
| Voltage Rating | Determines the maximum voltage the connector can safely carry without failure. |
| Thermal Rating | Assesses the temperature limits based on the weakest part of the connector’s construction. |
| Intended Application | Considers the specific use case for the connector, which can affect the required ratings. |
Tip: Always select an electrical wire connector with ratings that exceed your application’s maximum requirements. This approach provides a safety margin and extends the lifespan of your electrical connectors.
Mechanical Durability of Electrical Wire Connectors
Material Quality
Material quality plays a critical role in the durability and reliability of your connector. High-quality connector materials ensure stable performance, even in demanding environments. You will find that different metals and coatings offer unique benefits for specific applications. The table below summarizes common materials and their properties:
| Material | Properties | Applications |
|---|---|---|
| Brass | Good conductivity, cost-effective, lower corrosion resistance | General connectors, requires protective coating |
| Bronze | Better mechanical strength and corrosion resistance | High-stress applications |
| Phosphor Bronze | Improved wear resistance and elasticity | Spring-loaded contacts, high-cycling environments |
| Beryllium Copper | Excellent conductivity, high strength, superior corrosion resistance | Precision applications, aerospace, telecommunications |
| Gold Plating | Excellent oxidation and corrosion resistance, low contact resistance | High-end connectors |
| Silver Plating | Better conductivity than gold, less oxidation resistance | High conductivity applications in mild environments |
| Palladium Plating | Highly resistant to corrosion, suitable for industrial environments | Durable connectors in harsh conditions |
When you choose the appropriate connector material, you improve both the mechanical and electrical performance of your application.
Wear and Tear Resistance
Mechanical durability depends on several factors that help your connector withstand repeated use and harsh conditions. You should prioritize the following:
- Contact engagement: Maintains electrical continuity in your application.
- Normal force: Ensures reliable performance and resists wear.
- Environmental resistance: Withstands vibration and temperature swings.
- Mechanical factors: Important for connectors used in harsh environments.
- Material selection: Influences durability and reliability in long-term applications.
If you select a connector with robust wear and tear resistance, you reduce maintenance needs and extend the service life of your electrical connectors.
Environmental Resistance in Electronic Projects
Waterproof and Dustproof Features
Environmental resistance is essential for applications exposed to moisture, dust, or chemicals. You should look for electrical connectors with the following features:
- Durable contacts
- Watertight seals
- Rugged metal or thermoplastic shells
- Firm, secure locking mechanism
Fluid-resistant seals, such as heavy-duty silicone grommets, provide redundant barriers against contamination. These seals fit tightly around wire insulation and the connector interface, protecting your application from environmental hazards.
Temperature Range
You must ensure that your connector can operate reliably within the temperature extremes of your application. Many leading models support a wide operating temperature range, which is crucial for outdoor or industrial use. The table below shows a typical specification:
| Specification | Value | Benefit |
|---|---|---|
| Operating Temperature | -25 °C~+85 °C | Functions across the automotive temperature range |
For applications in even harsher environments, you can select connectors made from advanced materials such as PEEK, PPS, or specialized polyamides. These materials maintain their properties at high temperatures and resist UV exposure, making them ideal for outdoor installations.
🛡️ Note: Always match the environmental resistance features of your connector to the specific challenges of your application. This ensures that your electrical connectors deliver reliable performance, even in the toughest conditions.
By focusing on these key selection criteria, you can identify the best wire connector solutions for your project. You will achieve long-term reliability, safety, and optimal performance in every application.
Ease of Installation for 5-Pin Electrical Connectors
When you plan your selection of a 5-pin electrical connector, you must consider how easily you can install it in your project. The right choice simplifies assembly, reduces errors, and saves time during maintenance.
Solder vs. Crimp Terminals
You will encounter two main terminal types when working with electrical connectors: solder and crimp. Solder terminals require you to melt solder onto the wire and terminal, creating a permanent bond. This method offers strong electrical contact and reliability, but it demands skill and patience. Crimp terminals, on the other hand, use a mechanical tool to compress the wire into the terminal. You achieve a secure connection quickly, and you avoid the need for heat or soldering materials.
- Solder terminals suit applications where you need a robust, vibration-resistant connection.
- Crimp terminals work best when you want fast installation and easy replacement.
💡 Tip: Choose crimp terminals for projects that require frequent connector changes. Select solder terminals for permanent installations where reliability is critical.
Tool Requirements
You must prepare the right tools before you begin installation. Solder terminals require a soldering iron, solder wire, and sometimes flux. You need steady hands and attention to detail. Crimp terminals demand a specialized crimping tool matched to the connector type. Some connectors also need wire strippers, small screwdrivers, or alignment jigs.
| Installation Challenge | Solution |
|---|---|
| Pin Misalignment | Ensure correct alignment using orientation markers and proper assembly tools. Realign if needed. |
| Contamination | Clean contacts with electronic-grade cleaner and lint-free swabs; inspect regularly. |
| Broken or Damaged Connectors | Straighten bent pins or replace damaged connectors as necessary. |
| Loose Connections | Inspect for wear and reattach securely; consider using locking clips for stability. |
| Corrosion | Clean with contact sprays and apply anti-corrosion gel; store in dry environments. |
You can overcome common installation challenges by using the correct tools and following best practices. Always inspect your electrical connectors before and after installation to ensure a secure fit.
Physical Appearance and Footprint
The physical appearance and footprint of your connector affect both installation and overall project design. You need to select a connector that fits your available space and matches your device’s aesthetics. Circular connectors offer a compact, robust profile for industrial settings. Rectangular connectors provide a low-profile solution for tight spaces. You must also consider the color coding, labeling, and orientation markers that help you avoid wiring mistakes.
🛠️ Note: A well-chosen connector with clear markings and a suitable footprint streamlines installation and reduces troubleshooting time.
Cost and Availability of the Right Connector
Your selection process should include a careful review of cost and availability. You want to balance quality, reliability, and budget to achieve the best results for your electronic project.
Budget Considerations
You need to set a realistic budget for your electrical connectors. High-quality connectors may cost more upfront, but they reduce maintenance and replacement expenses over time. You should compare prices across different brands and types, considering factors such as material quality, environmental resistance, and mechanical durability. Bulk purchasing often lowers the unit cost, especially for large projects.
- Prioritize connectors that meet your technical requirements and offer proven reliability.
- Avoid sacrificing quality for cost, as cheap connectors can lead to failures and increased downtime.
Sourcing Reliable Parts
You must source your electrical connectors from reputable suppliers to ensure consistent quality and availability. Reliable vendors offer a wide selection of connector types, technical support, and fast shipping. You can trust the following sources for high-quality 5-pin electrical connector options:
- Jameco Electronics: You find a broad inventory of power jacks and connectors suitable for both hobbyists and professionals. Their long-standing reputation and large selection make them a dependable choice.
- US Digital: You can purchase specialized 5-pin cables and connectors designed for encoder applications. Their products deliver high retention and reliability.
📦 Tip: Always verify the specifications and compatibility before placing an order. Reliable suppliers provide detailed datasheets and technical support to guide your selection.
By focusing on ease of installation and sourcing reliable electrical connectors, you improve your project’s efficiency and long-term performance. Careful selection ensures that your 5-pin electrical connector meets both your technical and budgetary needs.
Common Mistakes to Avoid When Choosing a 5-Pin Electrical Connector
Selecting the right electrical connectors for your application can make or break your project. Many users overlook critical details, leading to failures, safety hazards, or costly repairs. By understanding the most common mistakes, you can avoid setbacks and ensure your 5-pin electrical connector delivers reliable performance.
Overlooking Electrical Ratings in Electronic Projects
You must always check the current and voltage ratings before choosing electrical connectors. If you ignore these specifications, you risk damaging your equipment or creating safety hazards. Exceeding the rated current or voltage can cause overheating, insulation breakdown, or even fire. You also need to consider how many times you will connect and disconnect the connector during your application’s lifecycle. If you exceed the rated mating cycles, contact resistance increases, which leads to intermittent problems and unreliable connections.
- Connectors can fail if subjected to more mating cycles than their ratings allow, leading to increased contact resistance.
- Exceeding voltage and current ratings can result in equipment damage or safety hazards.
- It is crucial to consider how connectors will be used during the debug and evaluation stages to prevent intermittent problems.
Risks of Mismatched Current/Voltage
When you mismatch current or voltage ratings, you expose your application to serious risks. Overloaded electrical connectors may overheat, melt, or cause short circuits. Always select a connector with ratings that exceed your application’s maximum requirements. This approach provides a safety margin and extends the lifespan of your electrical connectors.
Ignoring Environmental Factors for the Right Connector
Environmental conditions play a major role in connector performance. Many users forget to account for moisture, dust, chemicals, or temperature extremes. These factors can degrade electrical connectors, causing failures in demanding environments.
Common environmental factors that are often overlooked during connector selection include exposure to noxious chemicals, thermal cycling, moisture, and solid debris. These factors can lead to significant problems such as connector degradation and failure. For instance, exposure to chemicals can corrode connector materials, while thermal cycling can degrade insulator materials. Additionally, moisture can cause issues in highly humid environments or from direct liquid exposure, and solid debris can interfere with connector mating or infiltrate the assembly, ultimately compromising reliability.
Problems with Moisture and Dust
If you choose electrical connectors with the wrong IP rating, you leave your application vulnerable to moisture and dust. Water ingress can corrode contacts, while dust can block connections or cause shorts. Always select connectors with appropriate sealing for your environment.
Temperature Issues
Neglecting temperature extremes can cause insulation failure and increased contact resistance. Insufficient temperature tolerance leads to circuit issues, especially in outdoor or industrial applications. Select connectors rated for the full temperature range your application will encounter.
Choosing the Wrong Connector Type for Your Project
Selecting the wrong connector type can create compatibility and performance issues. You must match the connector’s mechanical design, electrical parameters, and environmental compliance to your application’s needs.
- Ignoring mating cycles can lead to wear and corrosion, shortening the connector’s lifespan.
- Choosing the wrong IP rating exposes connectors to moisture and dust, causing failures in harsh environments.
- Neglecting temperature extremes results in insulation failure and increased contact resistance.
- Inadequate latching mechanisms can cause accidental disconnections, jeopardizing system integrity.
Compatibility Issues
The wrong connector type can prevent a secure fit or proper function. Review the table below to see how different aspects impact your application:
| Aspect | Importance |
|---|---|
| Mechanical Design | Ensures a secure connection; poor design can lead to mechanical failures. |
| Electrical Parameters | Includes voltage rating, current rating, and contact resistance; critical for signal integrity. |
| Environmental Compliance | Must meet regulations like RoHS; non-compliance can render a connector unsuitable for use. |
Wire Gauge Mismatch
If you select electrical connectors that do not match your wire gauge, you risk poor conductivity, overheating, or mechanical failure. Always verify that the connector supports the wire size used in your application, especially when working with circular electrical connectors or other specialized types.
⚠️ Tip: Double-check all specifications and environmental requirements before finalizing your connector choice. Careful planning prevents costly mistakes and ensures your application runs smoothly.
Skipping Installation Instructions for Electrical Wire Connectors
Safety Hazards
You face serious risks when you ignore installation instructions for 5-pin electrical connectors. Manufacturers design these instructions to protect you and your equipment. Skipping steps or using shortcuts can compromise safety and reliability.
⚠️ Note: Always read and follow the installation guide before you begin. This habit helps you avoid costly mistakes and dangerous situations.
When you skip proper installation, you expose yourself and your project to several hazards:
- Electric Shock: High voltages can pass through exposed or poorly connected wires. You risk severe injury if you touch live conductors.
- Fire Hazard: Faulty connections often generate excess heat. Over time, this heat can ignite surrounding materials and start a fire.
- System Failure: Poor connections reduce efficiency and damage sensitive components. Your project may stop working or behave unpredictably.
You also increase the chance of unreliable performance when you use low-quality connectors or ignore compatibility requirements. Loose connections and overheating become more likely, especially if you select the wrong connector type or skip recommended installation steps.
💡 Tip: Choose connectors that match your project’s specifications. Confirm that each connector fits securely and supports the required voltage and current.
Proper installation ensures that each wire seats correctly and that locking mechanisms engage fully. You prevent accidental disconnections and maintain stable electrical contact. If you rush or skip steps, you may leave wires exposed or pins misaligned. These mistakes can cause short circuits, intermittent faults, or permanent damage to your devices.
Consider the following checklist before you install any electrical connector:
- Inspect connectors for damage or defects.
- Match wire gauge and connector type.
- Follow the manufacturer’s step-by-step instructions.
- Test each connection before powering up your system.
| Hazard Type | Description | Prevention Tip |
|---|---|---|
| Electric Shock | Injury from exposed live wires | Power off before installation |
| Fire Hazard | Heat buildup from faulty connections | Use proper tools and techniques |
| System Failure | Damage to components and reduced efficiency | Verify secure and correct assembly |
🛡️ Alert: Never underestimate the importance of installation instructions. Careful attention to detail protects you, your equipment, and your entire project.
By following installation guidelines and using compatible, high-quality connectors, you create a safer and more reliable electronic system. You reduce the risk of accidents and ensure your project performs as intended.

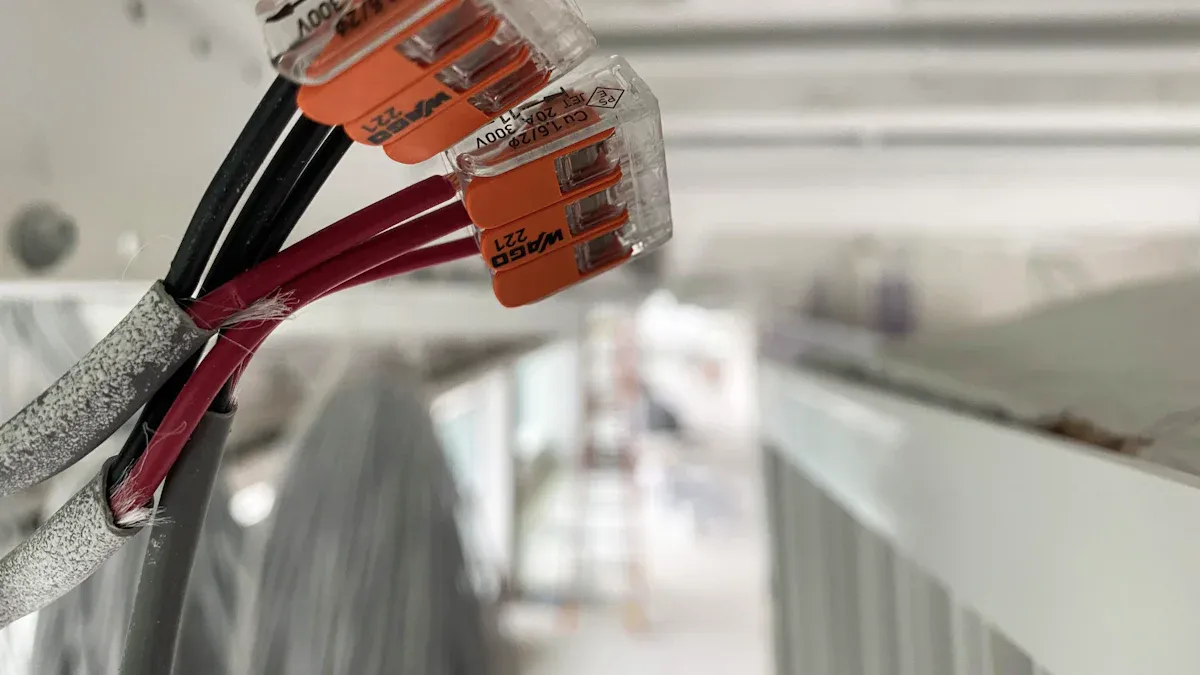

Installation and Safety Tips for 5-Pin Electrical Connectors
Preparing for Installation of the Right Connector
Gathering Tools and Materials
You need to gather all necessary tools and materials before starting the installation. A clean, dry workspace helps prevent contamination and accidents. For most electrical connectors, you should have wire strippers, crimping tools, screwdrivers, and a multimeter. Safety gloves and goggles protect you from sharp wires and accidental shocks. Insulated tools reduce the risk of electrical hazards. Always check that you have the correct type and size of connector for your project.
Checking Connector Orientation
Before you begin, inspect the connector for orientation markers or keying features. These markers help you align the pins correctly and prevent damage during installation. Double-check the pin layout and make sure the connector matches your device’s requirements. A mismatched orientation can cause poor contact or even short circuits. Take a moment to verify the fit before proceeding.
Step-by-Step Installation Guide for Electrical Wire Connectors
Connecting Wires Securely
Follow these steps to achieve a secure connection with your 5-pin electrical connector:
- Turn off all power sources and disconnect any batteries.
- Prepare the wires by trimming damaged ends and stripping about ¼ inch of insulation.
- Identify the correct connector type and match the terminal and seal placement.
- Insert the stripped wire into the terminal. For crimp connectors, use a crimping tool to compress the barrel firmly. For twist-on connectors, align the wires and twist the connector clockwise until tight. For push-in connectors, insert each wire until it clicks.
- Tug gently on each wire to confirm a solid connection.
🛠️ Tip: Always check that no copper is exposed outside the connector. Exposed wire increases the risk of shorts and corrosion.
Testing the Connection
After connecting the wires, you must test the connection for reliability. Use a multimeter to check for continuity across each pin. Perform a gentle tug test on each wire to ensure it remains secure. If you detect any loose wires or poor readings, redo the connection before powering up your system.
Safety Precautions for Electronic Projects
Power Off Before Installation
You must always turn off the circuit breaker or disconnect the power source before working with electrical connectors. Use a non-contact voltage tester to confirm that no electricity is running through the wires. This step protects you from electric shock and prevents accidental damage to your equipment.
Inspecting for Damage
Before and after installation, inspect all connectors and wires for signs of damage. Look for frayed insulation, bent pins, or corrosion. Replace any damaged parts immediately. Keep your workspace free of flammable materials and ensure good ventilation. Wearing rubber gloves and safety goggles adds an extra layer of protection.
⚡️ Note: Never touch electrical wires with bare hands. Always use insulated tools and safety gear to minimize risks.
By following these best practices, you ensure a safe and reliable installation for your electrical wire connector. Careful preparation and attention to detail help you achieve a secure connection and long-lasting performance in your project.
You can select the best 5-pin electrical connector by reviewing your project’s requirements, matching ratings, and checking compatibility. Always inspect electrical connectors before installation. Use manufacturer instructions to avoid errors. Apply this guide to improve reliability and safety.
Remember, careful planning and regular maintenance help you prevent common mistakes with electrical connectors.
- Test electrical connectors after installation.
- Store electrical connectors in a dry, clean place.
FAQ
What is a 5-pin electrical connector used for?
You use a 5-pin electrical connector to transmit power or signals between devices. Common applications include robotics, industrial automation, audio equipment, and sensor arrays.
How do you identify the correct pin layout for your project?
You check the datasheet or manufacturer’s documentation. Match the pin arrangement to your device’s requirements. Incorrect layouts can cause signal errors or damage.
Can you use a 5-pin connector outdoors?
You can use a 5-pin connector outdoors if it has a suitable IP rating, such as IP67 or IP68. These ratings protect against moisture, dust, and temperature extremes.
What tools do you need for installing a 5-pin connector?
You need wire strippers, a crimping tool or soldering iron, and a multimeter. Safety gloves and goggles help protect you during installation.
How do you prevent connector failure in harsh environments?
You select connectors with waterproof seals, corrosion-resistant materials, and robust locking mechanisms. Regular inspection and cleaning help maintain performance.
What is the difference between solder and crimp terminals?
You create a permanent bond with solder terminals using heat. Crimp terminals use mechanical force for a quick, secure connection. Crimping works best for frequent changes.
How do you match wire gauge to your connector?
You check the connector’s datasheet for supported wire sizes. Use the correct gauge to prevent overheating and ensure reliable conductivity.
Where can you buy reliable 5-pin electrical connectors?
You purchase from reputable suppliers like Jameco Electronics or US Digital. Always verify specifications and compatibility before ordering.
