Engineers select circular connectors for harsh environments because these components deliver robust performance and superior reliability. Circular Connector Design features locking mechanisms and specialized materials that withstand vibration, shock, and extreme temperatures. The cylindrical shape and secure seals protect M8 connector and Type B connector installations from moisture and contaminants. Connector factory data shows circular connectors provide cost savings by reducing downtime and maintenance. The table below highlights reliability and application areas across industries:
Aspect | Evidence Summary |
---|---|
Reliability | Circular connectors ensure efficient operation in power transmission, data communication, and signal transmission. |
Application Areas | Extensively used in transportation (including EVs), data centers, and other sectors requiring durability and reliability. |
Circular Connector Design for Harsh Environments
Mechanical Strength and Environmental Resistance
Vibration and Shock Protection
Circular connector design plays a critical role in ensuring reliable performance in harsh environments. Engineers select these connectors for their ability to withstand intense vibration and shock, which are common in industrial, military, and transportation applications. The robust construction of circular connectors, including metal shells and reinforced coupling mechanisms, helps maintain secure electrical connections even under mechanical stress.
Note: Rugged metal shells, such as those found in NorComp’s VULCON™ series, provide enhanced resistance to shock and vibration. These connectors often feature screw fittings or bayonet couplings that prevent accidental disconnection during operation.
The following table highlights typical mechanical strength ratings for circular connectors used in harsh environments:
MIL Standard | Connector Type | Coupling Mechanism | Temperature Range | Mechanical Strength / Durability Highlights |
---|---|---|---|---|
MIL-DTL-26482 | Miniature circular, quick-disconnect | 3-lug bayonet (hermetic versions) | –55°C to +125°C | Environment-resistant, hermetically sealed, designed for avionics and vehicle wiring |
MIL-DTL-26500 | Circular quick-disconnect (plus terminals) | Bayonet or threaded | –65°C to +200°C | Waterproof, fluid-resistant, rugged design suitable for military and telecom |
MIL-DTL-5015 | Heavy-duty circular | Threaded or bayonet | –55°C to +200°C | High current/power applications, robust mechanical coupling |
MIL-DTL-38999 | High-density circular | Bayonet, threaded, breech-lock | –65°C to +200°C | Designed for shock, vibration, blind-mate, high-vibration environments |
Manufacturers design circular connectors to support hundreds or even thousands of mating cycles. For example, Binder’s HEC series achieves over 500 cycles for 12-pole versions and more than 1,000 cycles for 5- and 8-pole versions. This durability ensures long-term reliability in demanding settings.
- Rugged metal shells withstand mechanical impact.
- Locking mechanisms maintain connection integrity.
- Stainless steel options resist corrosion and enhance mechanical robustness.
- High mating cycle durability supports repeated use in industrial and marine environments.
Resistance to Temperature Extremes
Circular connector design addresses the need for reliable operation in extreme environmental conditions. Many connectors meet military and industrial standards that specify wide temperature ranges, from as low as –65°C up to +200°C. This capability allows circular connectors to function in both freezing and high-heat environments, such as aerospace, oil and gas, and outdoor automation systems.
Connectors made from stainless steel or specially coated alloys resist degradation from temperature fluctuations, ensuring stable performance. The use of high-performance plastics and thermoplastics further enhances resistance to thermal stress.
Tip: When selecting connectors for harsh environments, always verify the specified operating temperature range and material composition to ensure compatibility with the application.
Sealing and Ingress Protection
O-Rings, Gaskets, and IP Ratings
Sealing technologies are essential for protecting circular connectors from moisture, dust, and chemical ingress. Manufacturers commonly use O-rings, gaskets, epoxy sealing, and silicone seals to achieve high ingress protection (IP) ratings. These seals work in combination with locking mechanisms—such as bayonet, threaded, or push-pull couplings—to maintain environmental protection even under vibration or movement.
- O-rings and gaskets provide a tight seal at the interface.
- Epoxy and silicone seals offer additional protection for internal components.
- Hermetic sealing is used in aerospace and critical industrial applications.
Circular connectors often achieve IP67, IP68, or even IP69K ratings, indicating resistance to dust, water immersion, and high-pressure cleaning. For example, Amphenol Sine Systems’ DuraMate and ecomate Aquarius series combine high-impact thermoplastic housings with gaskets or O-rings to reach these high protection levels.
The IP rating scale demonstrates the range of protection available:
- No water protection (IPX0)
- Protection against dripping water (IPX1)
- Protection against water sprayed at an angle up to 16° (IPX2)
- Protection against water sprayed at an angle up to 65° (IPX3)
- Protection against water splashing from any direction (IPX4)
- Protection against water jets (IPX5)
- Protection against powerful water jets (IPX6)
- Protection against immersion for a short time (IPX7)
- Protection against continuous immersion (IPX8)
Protection Against Moisture, Dust, and Chemicals
Circular connector design excels in environments where exposure to moisture, dust, and chemicals poses a risk to electrical systems. The cylindrical shape, combined with advanced sealing technologies, creates an effective barrier against contaminants. This design allows circular connectors to outperform rectangular connectors in standardized ingress protection tests.
Metric circular connectors, such as M5, M8, and M12 series, demonstrate robust ingress protection with IP67 and IP68 ratings. These connectors are widely used in outdoor sensor applications and industrial automation, where waterproof and dustproof features are essential.
- High IP ratings prevent water and dust ingress.
- Stainless steel and coated alloys resist oils, solvents, and corrosive materials.
- Compliance with UL, IEC, and DIN standards ensures resistance to chemicals, vibration, and shock.
Note: Circular connectors are favored in harsh environments for their ease of connection, reliability, and superior environmental sealing. Their design protects sensitive electronics from moisture, dust, oils, UV radiation, and electromagnetic interference.
Comparing Circular Connectors to Other Connector Types
Circular vs. Rectangular Connectors
Space Efficiency and Physical Strength
Designers often weigh the benefits of circular and rectangular connectors when selecting components for demanding environments. Circular connectors feature a cylindrical shape with pins arranged in concentric circles. This geometry allows for robust environmental sealing using O-rings or gaskets. The cylindrical body distributes mechanical stress evenly, which enhances resistance to vibration and impact. Rectangular connectors, on the other hand, use a flat, squared-off profile with pins in a grid pattern. This layout supports higher pin density and compactness, making them suitable for applications where space is at a premium.
The following table highlights key design differences:
Design Aspect | Circular Connectors | Rectangular Connectors |
---|---|---|
Shape | Cylindrical, concentric pin arrangement | Flat, grid pin arrangement |
Environmental Sealing | Superior with O-rings/gaskets | More challenging, needs extra engineering |
Mechanical Strength | Even stress distribution, rugged coupling | Corners are stress points, may need reinforcement |
Pin Density | Lower, due to circular layout | Higher, supports compact high-signal applications |
Ease of Mating | Quick, twist or push mechanisms | Latches/levers, more complex |
Typical Use | Aerospace, military, industrial | Automotive, telecom, consumer electronics |
Circular connectors excel in harsh environments due to their robust construction and superior sealing. Rectangular connectors offer advantages in compact, high-density applications but may require additional reinforcement for tough conditions.
Ease of Mating and Unmating
Circular connectors simplify the mating and unmating process. Their cylindrical shape and single-row pin arrangement allow for quick alignment and secure engagement, often using threaded, bayonet, or push-pull mechanisms. This design reduces the risk of misalignment and speeds up installation or maintenance. Rectangular connectors typically require latches or levers, which can complicate the process and increase the time needed for connection or disconnection. In environments where frequent mating cycles occur, circular connectors provide a clear advantage.
Circular vs. Specialty Connectors
Application Flexibility
Circular connectors offer remarkable flexibility across a wide range of applications. Their durable coupling methods, such as threaded and bayonet locks, maintain connection integrity under torque, pull, and shock. Manufacturers select materials for wear and fatigue resistance, which extends the lifespan of these connectors in demanding settings. The cylindrical design supports various sizes and pin configurations, accommodating different signal types, power levels, and data needs. Accessories like sealing gaskets and cable clamps further enhance adaptability.
- Circular connectors support multiple termination options, including crimp, solder, and screw.
- Excellent shielding against RFI and EMI preserves signal integrity.
- Available in many sizes, they fit diverse industrial, military, and outdoor uses.
Cost and Maintenance Considerations
Circular connectors reduce maintenance time and errors due to their easy-to-use locking mechanisms. Their robust construction and superior sealing lower the risk of environmental damage, which translates to fewer replacements and less downtime. Specialty connectors may offer unique features for specific applications, but they often come with higher costs and more complex maintenance requirements. Circular connectors strike a balance between durability, ease of use, and cost-effectiveness, making them a preferred choice for many tough environments.
Key Features of Circular Connector Design
Material Selection for Durability
Metal Shells, Plating, and Corrosion Resistance
Engineers select materials for circular connector shells to maximize durability and reliability in harsh environments. The most common choices include zinc alloy and PBT engineering plastic. Zinc alloy provides robust mechanical strength, making it ideal for applications that demand resistance to impact and vibration. PBT plastic enhances the overall robustness and repeatability of the connector, supporting critical operations in industrial and transportation sectors.
Circular DIN connector shells often use rugged glass-filled PBT and polyamide (PA). These materials withstand mechanical stress and environmental exposure, ensuring stable performance over time. For installations exposed to frequent mechanical stress, connectors with TPU over-molding and zinc alloy coupling nuts offer improved mechanical protection.

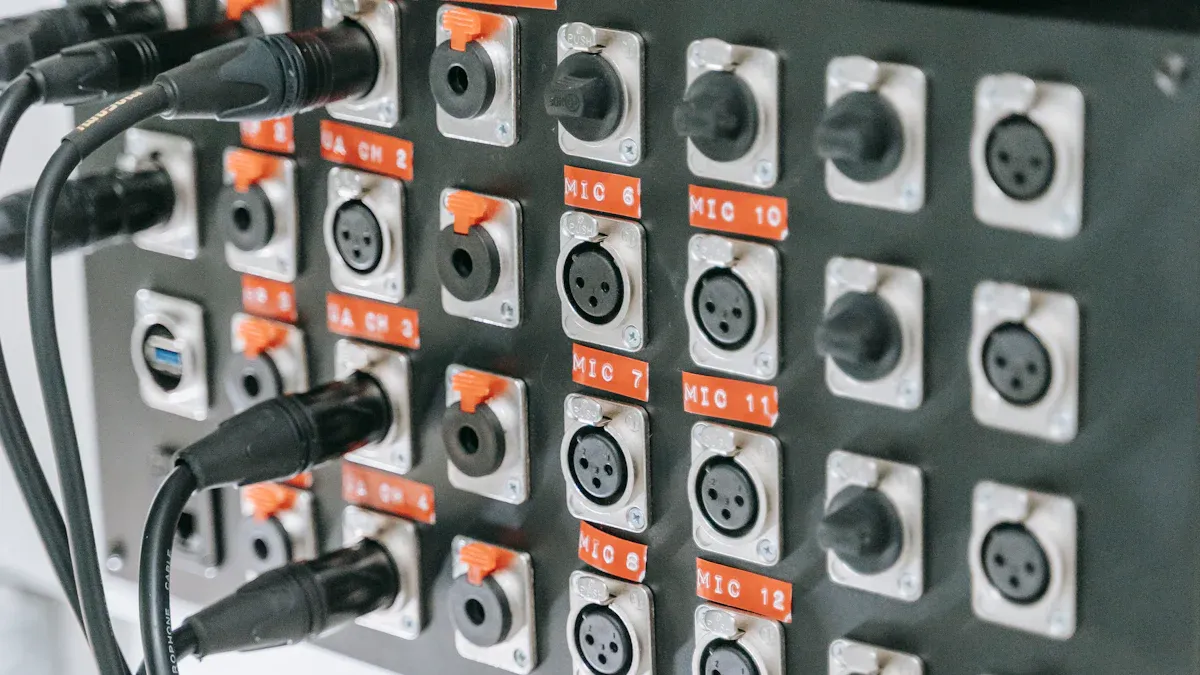

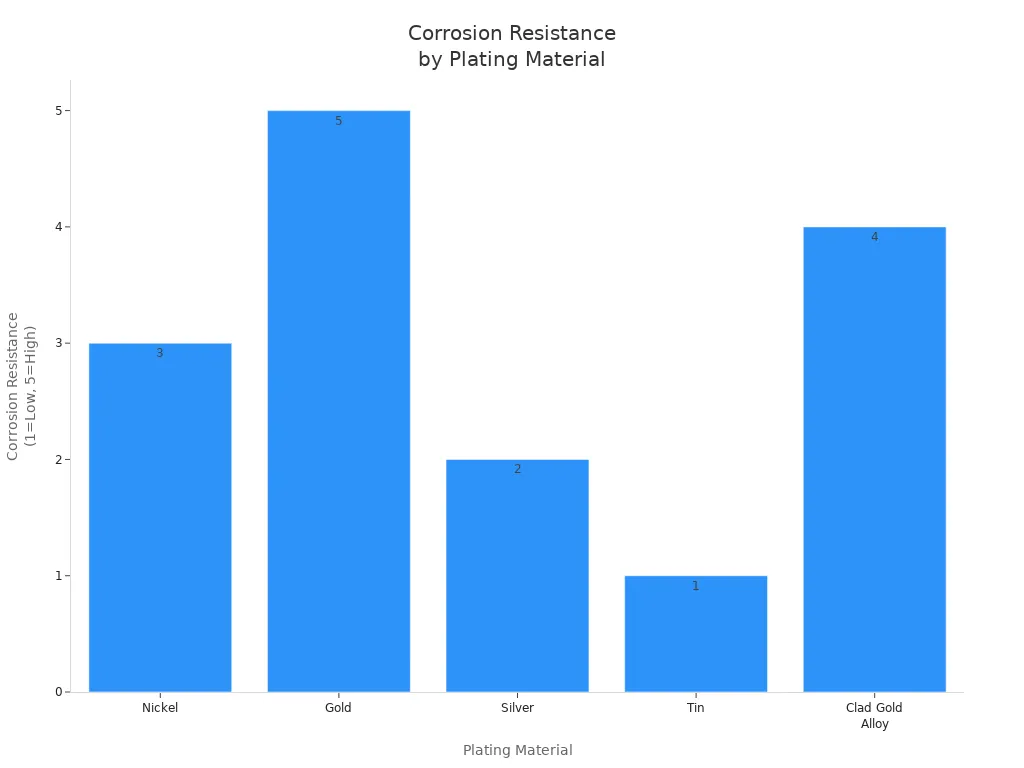

Plating materials play a crucial role in corrosion resistance and electrical performance. The table below compares common plating options:
Plating Material | Corrosion Resistance | Other Relevant Properties | Notes |
---|---|---|---|
Nickel | Good | Tough, durable, decent conductivity | Can form intermetallic compounds over time |
Gold | Excellent | High reliability, excellent conductivity | Expensive, softer, prone to wear in high-friction settings |
Silver | Moderate | Highest conductivity, cost-effective | Susceptible to tarnishing, needs more maintenance |
Tin | Limited | Affordable, good solderability | Less robust, not RoHS compliant |
Clad Gold Alloy | Superior | Effective, less porous than electroplated gold | Especially beneficial for female connectors |
Galvanic corrosion can occur when humidity and chemicals form an electrolyte film on metal surfaces. Gold and other precious metal coatings, applied through electroplating or cladding, help maintain surface stability and prevent oxidation. This approach is essential for long-term reliability in data communication and telecom applications. Careful selection of plating materials and manufacturing processes reduces the risk of galvanic attack and extends connector lifespan.
High-Performance Plastics and Thermoplastics
High-performance plastics and thermoplastics play a vital role in circular connector design. Glass-filled PBT and polyamide (PA) provide excellent mechanical strength and resistance to environmental stress. These materials perform well in extreme temperatures and resist chemical exposure, making them suitable for outdoor and industrial applications. TPU over-molding adds flexibility and impact resistance, protecting connectors from mechanical damage. Engineers rely on these advanced plastics to ensure connectors maintain their performance in demanding conditions.
Coupling Mechanisms for Secure Connections
Threaded, Bayonet, and Push-Pull Coupling
The coupling mechanism determines how securely a circular connector mates and stays connected under stress. Threaded couplings, including multi-start designs, offer the highest reliability in high-vibration environments. These connectors require careful torquing to prevent loosening but provide a secure connection that withstands continuous vibration and shock. Multi-start threads reduce the number of turns needed to mate, improving speed without sacrificing security.
Bayonet-style couplings use a quarter-turn action for quick and easy connection. They provide audible, tactile, and visual feedback, ensuring a positive lock. While bayonet couplings offer moderate vibration resistance, they may require more maintenance in extreme environments.
Push-pull couplings emphasize ease of use. They allow fast, tool-free connections and disconnections, making them ideal for applications that require frequent mating cycles. However, push-pull mechanisms may not provide the same level of security as threaded couplings in harsh conditions.
The table below summarizes the strengths and weaknesses of each coupling type:
Coupling Mechanism | Reliability | Ease of Use | Key Advantages | Key Disadvantages |
---|---|---|---|---|
Bayonet Locking | Moderate | High | Fast, user-friendly, quick connect | Less secure in harsh environments |
Threaded Locking | High | Moderate | Very secure, durable, vibration-proof | Slower, may need tools, tight spaces issue |
Push-Pull Locking | Moderate | Very High | Quick, tool-free, frequent connect | Less secure in extreme vibration |
Tip: For high-vibration or shock-prone environments, engineers often choose threaded or advanced bayonet couplings to ensure connection integrity.
Manufacturers like Omnetics and Cinch Connectivity Solutions demonstrate the effectiveness of twist-lock, tri-start thread, and self-locking mechanisms in military and industrial connectors. These designs keep connector halves tightly mated, preventing damage to internal contacts and maintaining electrical integrity.
Electrical Shielding and Signal Integrity
EMI/RFI Protection
Circular connector design incorporates advanced shielding techniques to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Plating methods such as electroless and electroplating with copper, nickel, gold, or tin create conductive layers that block unwanted signals. Connector backshells provide 360-degree shield termination, maintaining shield continuity and grounding. These backshells often use metal or metalized materials and may include braided metal sheaths for cables.
Material selection for shielding includes gold, zinc-nickel alloys, aluminum, stainless steel, nickel, copper, and tin. Each material offers specific benefits for different environments:
- Gold delivers high electrical conduction and corrosion resistance, ideal for medical and satellite applications.
- Zinc-nickel alloys provide broad frequency shielding and corrosion resistance for aerospace and marine electronics.
- Aluminum and stainless steel offer robust shielding for automotive and industrial uses.
- Nickel and copper maintain signal integrity in telecommunications and computing.
- Tin serves as a cost-effective option for consumer devices.
Proper design, testing, and maintenance ensure that shielding remains effective throughout the connector’s service life.
Grounding and Contact Protection
Effective grounding and contact design are essential for maintaining signal integrity in industrial applications. Grounding and shielding reduce EMI and crosstalk, which can degrade signal quality. Engineers use conductive shielding materials and multiple contact points on the shield plate to divide interference currents and reduce magnetic fields.
Shielded connectors exhibit much lower coupling inductance than unshielded ones, which improves immunity to interference and reduces emissions. Multiple contact points in the shield plate help minimize insertion loss and signal reflections. Low-resistance, high-contact-force designs further protect against signal degradation.
Note: Reliable grounding and shielding are critical for high-speed data transmission in harsh industrial environments. Proper contact design ensures connectors deliver consistent performance and protect sensitive electronics.
Mounting and Termination Options
Panel Mount vs. Cable Mount
Engineers select mounting options based on installation requirements and environmental challenges. Panel mount connectors attach directly to equipment enclosures, control panels, or bulkheads. This method provides a secure mechanical interface and protects sensitive electronics from external hazards. Common panel mount styles include jam nut and flange mounts. Jam nut mounts use a large hex nut to secure the connector threads, making them ideal for space-constrained applications. Flange mounts feature a shell with a square or oval flange and mounting holes, suitable for wall, box, or bulkhead installations. Nutplates, often used with flange mounts, distribute screw tension and prevent loss of nuts, which enhances mounting security and durability.
Cable mount connectors offer flexibility for field installations and repairs. These connectors include housings designed to shield electrical contacts from dust, liquids, and temperature extremes. Ruggedized cable mount designs feature metal locking bodies and sealed interfaces, supporting reliable operation in harsh environments. Engineers often choose cable mount options for applications that require frequent movement or reconfiguration.
Mount Type | Description & Use Case | Durability Impact & Features |
---|---|---|
Jam Nut Mount | Secures connector threads with a hex nut; ideal for tight spaces. | Prevents connector movement, ensuring secure attachment and durability. |
Flange Mount | Shell with flange and mounting holes; used for panels and bulkheads. | Distributes screw tension, enhances mounting security, and increases durability. |
Nutplates | Metal bracket with captive nuts for flange mounts. | Facilitates installation, prevents nut loss, and improves durability in confined spaces. |
Tip: Panel mount options provide robust mechanical attachment and environmental sealing, while cable mount connectors offer adaptability and ease of installation.
Solder, Crimp, and PCB Terminations
Termination methods play a critical role in circular connector design, affecting reliability, installation speed, and long-term performance. Engineers select termination types based on application needs and environmental demands.
- Solder Termination: Soldering creates a permanent bond between the connector contact and the wire. This method delivers excellent electrical conductivity and vibration resistance. Soldered connections suit applications where reliability and signal integrity are paramount, such as aerospace and industrial automation.
- Crimp Termination: Crimping uses a specialized tool to compress the wire and contact together. This technique enables fast, repeatable installations and supports field repairs. Crimped connectors provide strong mechanical stability and resist shock and vibration, making them popular in transportation and outdoor systems.
- PCB Termination: Printed circuit board (PCB) terminations allow direct mounting of circular connectors onto electronic boards. Engineers use this method for compact assemblies and automated manufacturing. PCB terminations support high-density layouts and streamline integration with control systems.
Ruggedized connectors often feature finger proof protection and sealed designs, such as IP67 ratings, to prevent accidental contact and environmental ingress. Engineers select termination methods that match the application’s durability requirements and installation constraints.
Note: Crimp and solder terminations remain the most common choices for circular connectors in harsh environments. Each method offers distinct advantages for reliability, ease of installation, and maintenance.
Custom Circular Connectors for Unique Applications
Tailoring Materials and Sealing Methods
Engineers often require custom circular connectors to address unique environmental challenges. These connectors use specialized materials to withstand harsh conditions. Stainless steel provides corrosion resistance and mechanical durability, making it a popular choice for marine and chemical processing environments. Manufacturers can also select high-performance plastics or overmolded designs to improve impact resistance and flexibility.
Custom circular connectors frequently feature enhanced sealing methods. O-rings, gaskets, and advanced sealing compounds help achieve ingress protection ratings such as IP66 or IP67. These ratings ensure the connectors resist dust and water, even during immersion or high-pressure cleaning. Modular sealing options allow engineers to adapt connectors for specific applications, such as outdoor robotics or oil and gas installations.
Tip: Selecting the right combination of materials and sealing methods increases high reliability and extends the service life of connectors in demanding environments.
Specialized Coupling and Mounting Solutions
Custom circular connectors offer a range of coupling and mounting options to meet unique installation requirements. Threaded, bayonet, and snap-lock couplings provide secure connections that resist vibration and accidental disconnection. Engineers can specify custom keying or retention mechanisms to prevent mismating and ensure proper alignment.
Mounting solutions also adapt to the needs of the application. Panel mount, cable mount, and bulkhead mount options allow for flexible integration into equipment enclosures or control panels. Custom form factors can be designed to fit tight spaces or unique enclosure shapes. The table below highlights common customization features:
Customization Feature | Benefit |
---|---|
Threaded/Bayonet Coupling | High reliability in vibration-prone areas |
Custom Keying | Prevents mismating |
Modular Mounting | Fits unique enclosures |
Overmolding | Enhances durability and sealing |
Enhancing Lifespan and Usability
Custom circular connectors improve both lifespan and usability through tailored design. Engineers can specify custom pinouts and pin counts to consolidate power and signal lines, reducing the number of connectors needed. EMI and RFI shielding options protect sensitive electronics from interference, supporting high reliability in data and power transmission.
Manufacturers can ruggedize connectors to exceed standard operating limits. This includes increasing power ratings, improving resistance to shock and vibration, and ensuring compliance with strict ingress protection standards. Overmolding and modular construction further enhance durability, making these connectors suitable for repeated use in harsh environments.
- Custom circular connectors adapt to specific environmental challenges.
- Enhanced usability features, such as easy-grip housings and quick-release mechanisms, simplify installation and maintenance.
- High reliability results from careful material selection, advanced sealing, and robust coupling solutions.
Standards and Testing for Circular Connector Reliability
Industry Standards and Certifications
MIL-Spec, IEC, and IP/NEMA Ratings
Industry standards play a vital role in ensuring circular connectors deliver high reliability in demanding applications. Manufacturers design connectors to meet strict military and international standards. These standards guarantee performance in corrosive environments and under extreme mechanical stress.
- MIL-5015: Heavy-duty circular connectors with soldered or crimped contacts, engineered for harsh environments.
- MIL-DTL-38999: Subminiature circular connectors with multiple coupling methods and shell sizes, widely used in aerospace and defense.
- MIL-DTL-26482: Connectors with bayonet or quick-disconnect coupling, supporting high current loads and various pin configurations.
Connectors must also comply with ingress protection ratings such as IP67, IP68, and IP69K. These ratings certify resistance to water, dust, and contaminants. Certifications like VDE and UL approvals confirm safety and compliance with electrical and mechanical standards. For installations in explosive or flammable areas, compliance with Class 1, Division 2 (C1D2) standards is essential. Manufacturers test connectors for resistance to chemicals, extreme temperatures, shock, vibration, and corrosion to meet these requirements.
Standard/Certification | Description | Application |
---|---|---|
MIL-5015 | Heavy-duty, solder/crimp contacts | Military, industrial |
MIL-DTL-38999 | Subminiature, multiple couplings | Aerospace, defense |
MIL-DTL-26482 | Bayonet/quick-disconnect | High current loads |
IP67/IP68/IP69K | Ingress protection | Outdoor, corrosive environments |
VDE/UL | Safety/compliance | General industry |
C1D2 | Explosive/flammable environments | Oil & gas, mining |
Tip: Always verify connector certifications to ensure suitability for harsh environment reliability testing.
Environmental and Mechanical Testing
Vibration, Shock, and Thermal Cycling
Manufacturers subject circular connectors to rigorous environmental testing to validate performance in harsh conditions. Commercial off-the-shelf connectors undergo mechanical shock and random vibration tests simulating real-world stresses. These tests include 100G peak shock pulses and vibration levels up to 12 gRMS across multiple axes. Engineers measure low-level contact resistance before and after testing. Stable readings indicate reliable contact performance.
Temperature cycling exposes connectors to extreme ranges, from -65°C to 125°C, for up to 100 cycles. Engineers monitor contact resistance to ensure changes remain within 5 milliohms. These procedures, aligned with VITA 47 standards, confirm that connectors maintain electrical function under severe conditions.
In industrial and HVAC applications, connectors face temperature shock testing per IEC 60512-9-11-4. Rapid transitions between hot and cold verify that functionality remains unimpaired. Vibration testing per IEC 60068-2-6 applies harmonic and sinusoidal vibrations across all axes. Accredited laboratories following ISO/IEC 17025 standards ensure reliable results.
Salt Spray and Corrosion Resistance
Connectors designed for corrosive environments must pass salt spray and corrosion resistance tests. Z-Axis elastomeric circular connectors demonstrate robust performance under vibration, shock, and thermal cycling. After exposure, they maintain electrical continuity, show minimal changes in contact resistance, and retain stable insulation resistance. Thermal cycling over 100 cycles between -55°C and +100°C reveals no degradation in electrical performance. These tests comply with MIL-STD-1344A and IEC standards, validating long-term durability.
Note: Environmental and mechanical testing ensures connectors deliver high reliability in the most demanding settings.
Real-World Applications of Circular Connector Design
Industrial Automation and Robotics
Industrial automation and robotics rely on circular connector design to ensure reliable operation in demanding settings. Engineers use these connectors in industrial robots, collaborative robots (cobots), robotic manipulators, and automated guided vehicles (AGVs). The robust and compact form factor allows seamless integration with sensors, motors, servo drives, and communication interfaces. In factories, these connectors withstand dust, oil, liquids, and temperature extremes. For example, FANUC’s collaborative arc welding robots and ABB’s YuMi cobots use circular connectors to enable precise motion and assembly tasks in automotive and electronics manufacturing.
Circular connectors support the increasing communication needs of the Industrial Internet of Things (IIoT). They provide reliable data and power transmission between robots and control cabinets, which is essential for operational safety. In robotic arms and AGVs, these connectors endure millions of bending cycles, torsional strain, and vibrations. Engineers select locking mechanisms and strain relief features to maintain connection integrity. Miniaturized connectors, such as M8 D-code and Single Pair Ethernet (SPE) M8, deliver fast Ethernet communication and reduce wiring complexity in Industry 4.0 environments.
- Miniaturized circular connectors fit space-constrained automation devices.
- M8 D-code connectors enable reliable Ethernet data for miniature sensors.
- SPE M8 connectors combine data and power, streamlining industrial wiring.
- These connectors withstand dust, moisture, and mechanical stress, supporting cost-effective and energy-efficient automation.
Aerospace and Defense Systems
Aerospace and defense systems demand connectors that perform under extreme conditions. Hermetic circular connectors, such as EN2997 Y and MIL-DTL-38999 Class Y, feature airtight seals that block liquids, gases, dust, and debris. These seals protect sensitive electronic signals and ensure long-term reliability. Engineers use these connectors in avionics, control systems, and power distribution, where secure electrical connections are critical.

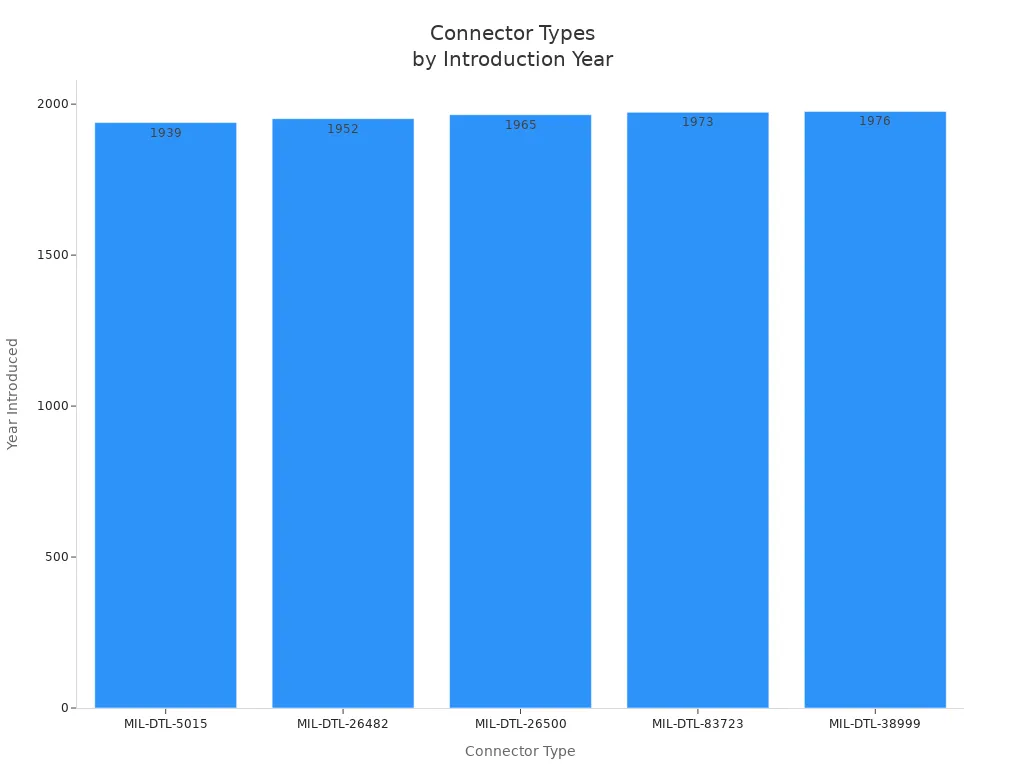

The table below highlights key connector types and their reliability features in aerospace:
Connector Type | Introduced | Typical Aerospace Use | Key Reliability Features |
---|---|---|---|
MIL-DTL-5015 | 1939 | Military vehicles, aircraft | Rugged, threaded coupling; basic EMI protection |
MIL-DTL-26482 | 1952 | Avionics, military electronics | Quick coupling; moderate contact density |
MIL-DTL-26500 | 1965 | Military and commercial aviation | Sealed/unsealed variants; vibration resistant |
MIL-DTL-83723 | 1973 | Aerospace harnesses, engines | EMI shielding; environmental sealing |
MIL-DTL-38999 | 1976 | Defense, aerospace, space | High contact density; EMI protection; triple-start threads |
Standardized circular connectors ensure interoperability, mechanical durability, EMI shielding, and vibration resistance. These features maintain system integrity and real-time response in aerospace and defense. The cylindrical design and ease of use make them essential for harsh environment applications.
Transportation and Rail Infrastructure
Transportation and rail infrastructure present unique challenges for connector reliability. Engineers deploy circular connectors in signaling systems, control units, and power distribution networks. These connectors resist vibration, shock, and exposure to dust, oil, and moisture. In rail systems, connectors must endure constant movement and temperature fluctuations. The robust locking mechanisms and environmental sealing prevent accidental disconnection and protect against contaminants.
Circular connectors support high-speed data transmission for modern train control and monitoring systems. Their durability and ease of maintenance reduce downtime and ensure safe, continuous operation. The ability to withstand harsh environments makes these connectors a preferred choice for transportation and rail projects worldwide.
Oil, Gas, and Marine Environments
Oil, gas, and marine sectors present some of the most demanding conditions for electrical connectivity. Engineers face constant exposure to saltwater, corrosive chemicals, vibration, and extreme temperatures. Circular connectors play a vital role in maintaining reliable signal and power transmission in these settings.
Operators in offshore drilling platforms, subsea exploration vehicles, and marine vessels rely on connectors that resist corrosion and mechanical stress. Stainless steel and nickel-plated shells provide robust protection against salt spray and chemical attack. High-performance thermoplastics add impact resistance and flexibility, supporting installations in confined or moving spaces.
Tip: Engineers should verify connector compliance with standards such as MIL-DTL-5015, IEC 60529, and IP68/IP69K to ensure suitability for harsh environment applications.
Circular connectors in oil and gas environments often feature advanced sealing technologies. O-rings, gaskets, and epoxy compounds block water ingress and prevent contamination. These seals maintain integrity during pressure changes and immersion, which occur frequently in subsea operations. Connectors with hermetic sealing withstand high-pressure differentials and protect sensitive electronics from moisture and particulate intrusion.
The following table highlights key connector features for oil, gas, and marine environments:
Feature | Benefit |
---|---|
Stainless Steel Shells | Corrosion resistance in saltwater exposure |
Hermetic Sealing | Prevents water and gas ingress |
High IP Ratings (IP68/69K) | Endures immersion and high-pressure washdowns |
Vibration Resistance | Maintains connection during equipment movement |
Modular Mounting Options | Fits diverse marine and offshore equipment |
Marine environments demand connectors that operate reliably in wet, corrosive, and high-vibration conditions. Engineers select circular connectors for underwater sensors, navigation systems, and propulsion controls. These connectors support repeated mating cycles and resist wear from constant movement and shock.
Oil and gas installations require connectors that function in explosive atmospheres and withstand temperature extremes. Compliance with ATEX and IECEx standards ensures safe operation in hazardous zones. Circular connectors with flame-retardant materials and secure locking mechanisms reduce the risk of accidental disconnection and electrical faults.
Note: Proper connector selection and installation extend equipment lifespan and reduce maintenance costs in oil, gas, and marine environments.
Engineers prioritize circular connector designs that deliver robust sealing, corrosion resistance, and mechanical durability. These features ensure reliable performance in the most challenging environments.
Choosing the Right Circular Connector for Tough Environments
Assessing Environmental and Mechanical Requirements
Temperature, Moisture, and Contaminant Exposure
Selecting the right circular connectors for harsh environments begins with a careful evaluation of environmental and mechanical demands. Engineers must consider the full range of temperature fluctuations, moisture levels, and potential contaminant exposure. In transportation and rail infrastructure, connectors face continuous vibration, repeated impacts, and exposure to dust, oil, and chemicals. These conditions require robust sealing, such as IP67 or higher, to prevent water and debris ingress. Secure mating mechanisms help maintain reliable connections, even when subjected to mechanical shock or vibration. Metal circular connectors with mechanical keying and cable clamps provide additional protection, ensuring safe operation during emergencies and routine use.
- Connectors must withstand vibration, shock, and temperature extremes.
- Water and ingress protection is essential for exposed installations.
- Shielding against EMI/RFI interference preserves signal integrity.
- Materials should offer corrosion resistance and long lifecycle durability.
Pin Count, Current Rating, and Durability
Pin count and current rating play a critical role in connector selection for harsh environments. Multi-pin connectors must maintain adequate separation between terminals to prevent short circuits, especially in marine and oil applications. The current rating must meet or exceed system requirements to avoid resistance, voltage drops, or failures. Durability is vital; connectors should resist vibration, moisture, salt corrosion, and mechanical stress. Standards compliance, such as ABYC and MIL-STD, ensures connectors include features like strain relief and locking mechanisms. Products like AMP Superseal and Amphenol ATP/ATM Series demonstrate these qualities, supporting safe wiring and reliable operation.
- Pin size affects power capacity and voltage support.
- Durable materials, such as brass with plating or stainless steel, extend connector life.
- High IP ratings and secure locking mechanisms prevent accidental disconnection.
- Application-specific requirements guide the choice of rugged connectors.
Balancing Performance, Cost, and Maintenance
Total Cost of Ownership
Engineers must balance performance, cost, and maintenance when choosing connectors for harsh environments. While circular connectors often have a higher upfront cost, their superior mechanical strength and environmental resistance reduce long-term expenses. The table below compares total cost of ownership between circular and rectangular connectors:
Aspect | Circular Connectors | Rectangular Connectors |
---|---|---|
Upfront Cost | Generally higher due to complexity and ancillary parts | Typically lower, modular and space-efficient |
Mechanical Strength | Superior due to cylindrical shape, better withstands mechanical turbulence and impact | Less robust, corners can create vulnerabilities |
Environmental Resistance | Better sealing, higher IP ratings, reduced risk of corrosion and moisture ingress | More prone to debris and moisture accumulation, especially in close proximity configurations |
Maintenance and Reliability | Longer lifespan, fewer failures, reduced downtime and maintenance costs | Potential contact quality issues, higher risk of oxidation and cable failure |
Overall Total Cost of Ownership | Higher initial investment but lower long-term costs due to durability and reliability | Lower upfront cost but potentially higher maintenance and replacement costs over time |
Note: Investing in connectors with proven durability and performance can lower maintenance costs and reduce downtime over the product lifecycle.
Maintenance and Replacement Strategies
Maintenance strategies should focus on minimizing downtime and ensuring reliable operation in harsh environments. Engineers prefer connectors that allow field repairs with common tools, avoiding methods that require heat or flame. Connectors must endure repeated mating and unmating cycles without damage. Material choices, such as titanium or plated steel, influence both durability and ease of maintenance. Selecting connectors with modular designs and replaceable inserts supports future expansion and simplifies repairs. By prioritizing repairability and serviceability, organizations can extend equipment life and maintain high performance standards.
Future Trends in Circular Connector Design
Miniaturization and High-Density Solutions
Engineers continue to push the boundaries of circular connector design by reducing size and increasing contact density. Miniaturized connectors conserve space and weight, supporting the growth of portable and wearable devices. Manufacturers like Omnetics produce micro and nano connectors with EMI shielding and IP sealing, ensuring durability in harsh environments. Mill-Max offers miniature receptacles with fine-pitch contacts, suitable for high-density applications down to 1mm pitch. Fischer Connectors collaborates on wearable connectivity solutions, integrating sensors and communication devices directly into garments.
Advances in manufacturing, such as CNC machining and design software, accelerate the development of smaller connectors. These innovations maintain signal integrity and low resistance, even as connectors shrink. Hybrid pin/socket designs combine power and signal transmission in a single footprint. Binder’s M8 12-pin circular connector exemplifies miniaturization, fitting 12 pins into a compact form factor while maintaining IP67 protection. The connector supports future standards and uses symmetrical contact arrangements for secure polarization.
- Miniaturized connectors support space-constrained wearables and IIoT devices.
- Increased bandwidth standards enable faster data transmission.
- Cost-effective, energy-efficient solutions drive adoption in medical, automotive, and industrial automation.
- Integration with wireless technologies enhances flexibility.
Feature | Benefit |
---|---|
High Pin Density (Up to 24) | Combines data, signal, and power in a compact form factor |
IP67/IP68 Protection | Suitable for harsh outdoor, industrial, and medical environments |
Modular Design | Customizable pin layouts for specific device needs |
Quick/Thread Lock Systems | Secure, vibration-resistant connections |
Reduced Dimensions | Saves up to 40% space compared to legacy connectors |
A wearable medical sensor connector demonstrates a 35% footprint reduction and tripled device life by using a hybrid layout with IP67 sealing, illustrating practical miniaturization and high-density application.
Smart Connectors and Integrated Electronics
Circular connectors now incorporate smart features and integrated electronics to meet evolving industry demands. Engineers design connectors with built-in LED indicators, such as LEMO’s HALO connectors, which provide visual feedback for connection status. Magnetic mating systems, like those from Onanon, simplify the connection process in medical devices and reduce wear on contacts.
Smart connectors integrate sensors, memory chips, and communication modules, enabling real-time monitoring and diagnostics. These features support predictive maintenance and enhance system reliability. In industrial automation, connectors with embedded electronics facilitate data exchange between machines and control systems. The integration of wireless technologies further increases flexibility and scalability, allowing devices to communicate without physical connections.
Smart connectors improve usability, reduce maintenance time, and support advanced data transmission in modern applications.
Sustainability and Eco-Friendly Materials
Manufacturers prioritize sustainability by adopting eco-friendly materials and processes in circular connector design. Tin zinc and zinc nickel plating offer high conductivity and corrosion resistance, replacing traditional cadmium-based coatings. Black zinc nickel provides long-lasting protection for aerospace and marine applications. Epoxyurethanic varnish plating delivers superior corrosion resistance for railroad systems.
Connector housings increasingly use recycled plastics, such as post-industrial regrind, reducing virgin material consumption. Bio-based polyamides, derived from renewable sources like castor beans, offer mechanical strength and moisture resistance. Nanocrystalline nickel alloy and nanostructured silver reduce reliance on gold, lowering environmental impact and supporting high-reliability connectors.

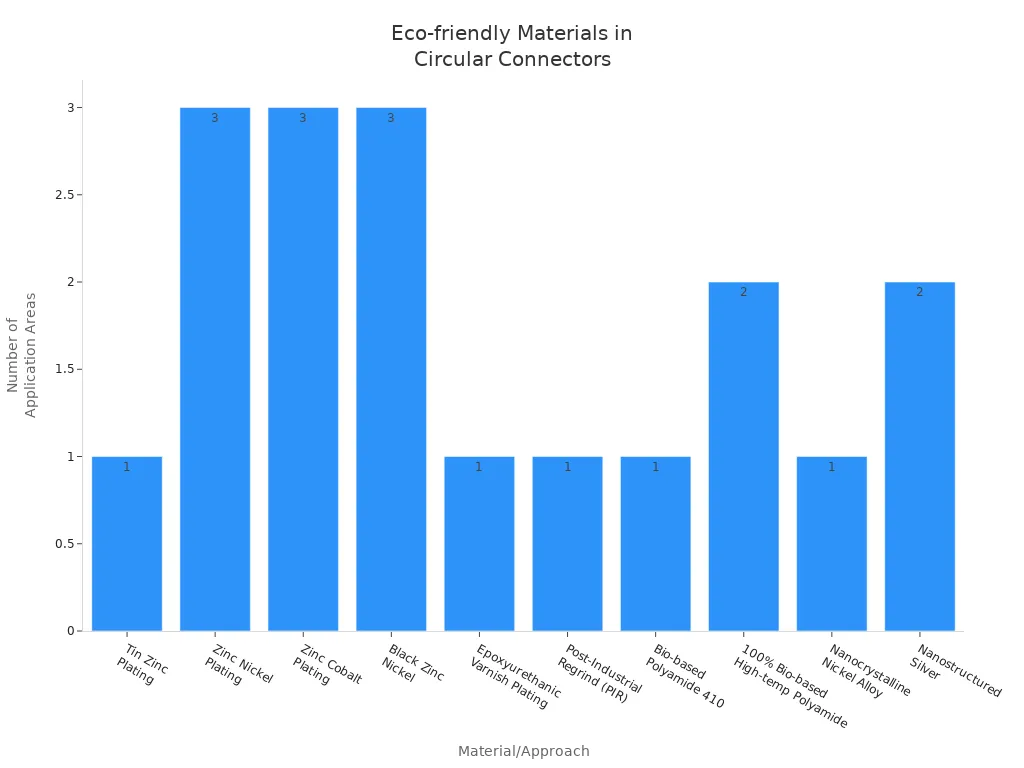

Sustainable Material/Approach | Description & Benefits | Applications/Notes |
---|---|---|
Tin Zinc Plating | High conductivity, corrosion resistant, matt grey finish; cadmium-level protection | Military applications in extreme environments |
Zinc Nickel Plating | High EMI shielding, 500 hours static salt spray corrosion resistance | Industrial, construction, transportation |
Black Zinc Nickel | Cost-effective, long-lasting corrosion resistance, same performance as cadmium | Aerospace, ground transportation, marine |
Post-Industrial Regrind (PIR) | Recycled manufacturing waste plastics, reduces virgin material use and manufacturing waste | Used in connector housings (up to 40% regrind content) |
Bio-based Polyamide 410 | At least 70% renewable from castor beans, superior mechanical and moisture resistance | Sealed/unsealed connectors meeting USCAR 050 standards |
Nanocrystalline Nickel Alloy | Reduces gold use, lower environmental impact, uses recycled tungsten | High-reliability connectors, thinner plating, electrodeposition process |
Walmart’s Circular Connector platform highlights the industry’s shift toward circularity and sustainability, encouraging the use of recyclable materials and reducing environmental impact. These efforts align with broader trends in connector development, promoting eco-friendly solutions for future applications.
Circular connector design provides unmatched performance in harsh environments. Custom solutions increase reliability and lower costs by addressing unique challenges. Engineers should evaluate temperature, moisture, and contaminant exposure before selecting a connector. They must also consider pin count and durability. Prioritizing connector design ensures long-term system reliability in harsh conditions.
Careful connector selection protects equipment and reduces maintenance in harsh settings.
FAQ
What makes circular connectors suitable for harsh environments?
Circular connectors use robust materials, secure locking mechanisms, and advanced sealing. These features protect against vibration, moisture, dust, and chemicals. Engineers rely on them for reliable performance in demanding industrial, military, and outdoor applications.
How do IP ratings affect connector selection?
IP ratings indicate protection against solids and liquids. Higher ratings, such as IP67 or IP68, ensure connectors resist dust and water ingress. Engineers select connectors with appropriate IP ratings based on the specific environmental hazards present in each application.
Can circular connectors handle high data transmission rates?
Many circular connectors support high-speed data transmission. Shielded designs and advanced contact layouts maintain signal integrity. Engineers use these connectors in applications requiring reliable data transfer, such as industrial automation and transportation systems.
What are common coupling mechanisms for circular connectors?
Engineers choose from threaded, bayonet, and push-pull coupling mechanisms. Threaded couplings provide maximum security in vibration-prone environments. Bayonet and push-pull options offer quick and easy connections, supporting frequent mating cycles.
How do engineers ensure long-term reliability of circular connectors?
Engineers select corrosion-resistant materials, high-quality plating, and robust sealing. Regular inspection and maintenance further extend connector lifespan. Compliance with industry standards and rigorous testing confirm long-term reliability in harsh conditions.
Are custom circular connectors available for unique requirements?
Manufacturers offer custom circular connectors tailored to specific needs. Customization includes material selection, sealing methods, pin configurations, and mounting options. These solutions address unique challenges in specialized industries.
What maintenance practices help maximize connector performance?
Routine inspection, cleaning, and proper handling prevent contamination and wear. Engineers replace damaged seals or contacts promptly. Using connectors within specified ratings ensures optimal performance and reduces the risk of failure.
How do circular connectors compare to rectangular connectors in tough environments?
Circular connectors provide superior sealing and mechanical strength. Their cylindrical design distributes stress evenly and resists vibration. Rectangular connectors may offer higher pin density but often require additional reinforcement for harsh conditions.
