Connectors form the backbone of every electronic system. They support the power supply and signal transfer in electronics, enabling devices to function reliably. Each connector, from the M8 connector to the Type B connector, links components and maintains stable connections. The right connector ensures safety and efficiency in any power supply setup. Connector factory standards focus on durability, making connectors vital for both power supply and data in electronic devices. Power supply demands in electronics highlight the need for robust connector solutions.
Connector Fundamentals
What Is a Connector?
Definition and Core Purpose
A connector serves as a critical interface in electronic systems. It creates a reliable path for electrical current and signals between different components. In every device, connectors enable the transfer of power supply and data, supporting the operation of circuits and systems. Manufacturers design connectors to provide both mechanical stability and electrical continuity. The core purpose of a connector is to allow easy assembly, maintenance, and replacement of parts without the need for permanent soldered joints. This flexibility supports rapid upgrades and repairs, which are essential in modern electronics.
Connectors use a combination of materials to achieve their function. Contacts, the parts that touch and carry current, are usually made from copper or copper alloys. These metals offer high electrical conductivity and mechanical strength. Manufacturers often plate contacts with gold or tin to reduce corrosion and maintain low resistance over time. The housing, which protects the internal parts, is typically made from molded plastics or metals like aluminum. Plating on metal housings, such as nickel or cadmium, increases durability and shields against environmental hazards. The table below summarizes common connector materials and their advantages:
| Connector Part | Common Materials | Advantages |
|---|---|---|
| Contacts | Copper alloys, phosphor bronze, beryllium copper, silver plating | High electrical conductivity, reduced contact resistance, improved durability |
| Insulators | High-temperature thermoplastics, glass-filled resins, ceramics | Electrical isolation, mechanical support, resistance to physical stress and vibration |
| Housings | Molded plastics, aluminum, die-cast metals | Protection of internal components, mechanical strength, corrosion resistance, environmental protection |
How connectors differ from simple wires
Connectors and simple wires both play roles in electrical systems, but their functions and designs differ significantly.
- Connectors create separable connections, allowing users to join or disconnect circuits easily.
- They come in various types, such as board-to-board, wire-to-board, and wire-to-wire, each suited for specific applications.
- Connectors often use crimping or insulation displacement contact (IDC) methods to secure wires, ensuring stable power supply and signal transfer.
- Board-to-board connectors save space by linking printed circuit boards directly, which is not possible with simple wires.
- Simple wires act only as conductors. They lack the structured interfaces and mechanical features that connectors provide.
- Connectors offer durability, reliability, and ease of use, while simple wires do not support easy disconnection or modularity.
Note: Connectors enable quick assembly and maintenance, which is essential for complex electronic circuits and systems.
How Connectors Work
Mechanical and electrical connection principles
Connectors function through a blend of mechanical and electrical principles. The housing provides stability, insulation, and protection against environmental stress. Contacts, made from conductive metals, ensure a low-resistance path for current and signals. Manufacturers use precision engineering to maintain tight tolerances, which guarantees a secure fit and consistent electrical performance.
Locking mechanisms, such as levers or bayonet systems, prevent accidental disconnection. These features maintain the integrity of power supply and signal paths, even in environments with vibration or movement. Insulating inserts separate conductive paths, preventing short circuits and electrical faults.
The following table highlights the main mechanical and electrical principles behind connector reliability:
| Principle Type | Key Mechanical Principles | Key Electrical Principles |
|---|---|---|
| Structural | Connector housing design and material selection provide stability, protection, and insulation. | Contacts made from conductive metals with coatings (gold, tin) to reduce resistance and corrosion. |
| Connection | Locking mechanisms ensure secure mating and prevent accidental disconnection. | Insulating inserts or housings separate conductive paths to prevent electrical faults. |
| Contact Quality | Precision manufacturing of contacts maintains reliable physical and electrical contact. | Mechanical force and surface asperities maintain consistent electrical conductivity at contact interfaces. |
| Quality Control | Plating inspection, dimensional verification, and environmental testing ensure durability and reliability. | Coatings enhance conductivity and corrosion resistance, reducing contact resistance and improving long-term performance. |
Ensuring signal integrity and power delivery
Connectors play a vital role in maintaining signal integrity and delivering a stable power supply. High-quality contacts reduce electrical resistance and prevent signal loss. Plating with gold or tin protects against corrosion, which can degrade performance over time. Insulators with high electrical resistance keep circuits isolated, preventing shorts and interference.
Mechanical features, such as locking mechanisms, ensure that connections remain secure during operation. This stability is crucial for circuits that handle sensitive data or high-frequency signals. In power supply applications, connectors must handle high currents without overheating or causing voltage drops.
Common failure modes, such as mechanical damage or wear from repeated use, can increase resistance and cause intermittent connections. Debris accumulation or loss of contact spring force may lead to overheating or signal interruptions. These issues can disrupt circuits, especially in high-frequency or high-power supply environments. Regular inspection and proper material selection help prevent such failures, ensuring reliable operation of electronic systems.
Why Connectors Are Essential in Electronic Systems
Enabling Modularity and Flexibility
Simplifying assembly, repair, and upgrades
Electronic connectors play a pivotal role in modern electronics by enabling modularity. Designers use connectors to create systems that can be assembled, repaired, or upgraded with ease. Board-to-board connectors allow direct connections between printed circuit boards, eliminating the need for complex cabling and reducing assembly time. Box header connectors feature plastic guides and keying, which ensure proper alignment and prevent mismating. This design supports reliable modular equipment swaps and minimizes errors during repairs.
Backplane connectors serve as the backbone for connecting multiple PCBs, supporting modular upgrades and high-speed data transfer. Keying, locking mechanisms, and strain relief features provide secure, vibration-resistant connections. These features simplify maintenance and reduce the risk of repair mistakes. Termination methods such as crimping, soldering, and push-in terminals offer reliable, field-serviceable connections, supporting quick assembly and modifications. Standardized connectors like USB and Molex provide plug-and-play compatibility, making upgrades and device interoperability straightforward. Strain relief components protect connectors from mechanical stress, enhancing durability and ease of repair, especially in demanding environments.
Supporting system scalability
Connectors support system scalability by allowing designers to expand or modify electronic systems without extensive redesign. The HARTING Han-Modular series demonstrates this flexibility. This modular connector system lets engineers combine different contact types and numbers within a single frame, supporting a wide range of electrical, data, and pneumatic connections. Pre-engineered cable harnesses can be assembled off-site, which simplifies installation and maintenance. Designers can add modules to accommodate evolving requirements, enhancing flexibility and scalability.
Industry-standard modular platforms such as AXIe and PXI show how modularity in electronic systems enables flexible integration of multiple instruments in a compact form factor. This flexibility supports complex applications that require multiple channels or functions, improving scalability and adaptability. Wire-to-board connectors act as critical interfaces between wires and circuit boards, offering customizable configurations for diverse applications. These connectors simplify manufacturing by removing the need for soldering and improve reliability. They enable modularity by allowing components to be easily disconnected and replaced, supporting scalable and flexible product designs.
Tip: Modular connectors allow engineers to future-proof electronic systems, making upgrades and expansions more cost-effective.
Ensuring Safety and Reliability
Preventing accidental disconnections
Safety and reliability remain top priorities in electronic system design. Connectors incorporate locking mechanisms, keying, and strain relief features to prevent accidental disconnections. These features ensure that electrical and power supply connections remain stable, even in environments with vibration or movement. Secure connections reduce the risk of intermittent faults, which can disrupt the operation of critical systems.
ANSI C119.0-2022 defines test methods for connector qualification, focusing on aluminum and copper conductor connections. Tests include current cycle, submersion, contact resistance, insulation resistance, dielectric strength, insertion and withdrawal force, vibration, shock resistance, and durability. These tests verify that connectors maintain secure electrical connections under environmental and mechanical stresses. Standardized testing improves repeatability and reliability assurance before market release.
Protecting against environmental hazards
Electronic connectors must withstand a variety of environmental hazards, especially in industrial and automotive applications. Corrosion from water or chemicals, submerged connections, bending, flexing, extreme temperatures, tiny particulates, and harsh materials all pose risks. Connectors used in industrial settings are designed to resist extreme temperatures, shock, vibration, explosion risk, rough handling, corrosion from chemicals and salt spray, dust, humidity, and moisture.
Temperature extremes cause thermal stress and can degrade seals and plastics. Shock and vibration lead to mechanical fatigue and loosening of components. Explosion risk is critical in environments with flammable gases, vapors, or dust, where sparks from connector contacts can cause catastrophic events. Rough handling from frequent connecting and disconnecting can damage internal parts, and corrosion from industrial chemicals and salt fog can deteriorate connector materials. These hazards require connectors to be customized with specific materials, seals, and structural features to ensure reliable operation in harsh environments.
Commonly applied safety standards for connectors include ISO, SAE, and IEC standards. These standards specify requirements for electrical performance, mechanical strength, and environmental resistance. Quality assurance involves rigorous testing such as electrical performance, mechanical strength, and environmental resistance tests. Compliance with these standards ensures connectors meet safety and performance requirements, especially in automotive applications.
Real-World Impact of Connectors
Consumer electronics examples
Connectors have a significant impact on the reliability and performance of consumer electronic devices. Physical wear and tear from frequent mating and unmating cycles can cause mechanical stress, deformation, or breakage of pins. Corrosion and oxidation from exposure to moisture and contaminants lead to increased resistance or complete signal loss. Poor contact pressure, vibration, shock, improper handling, electrical overload, and environmental factors such as extreme temperature or humidity can all degrade connector performance.
| Cause of Connector Failure | Description | Consequences in Consumer Electronics |
|---|---|---|
| Physical Wear and Tear | Frequent mating/unmating cycles cause mechanical stress, deformation, or breakage of pins. | Increased resistance, intermittent connectivity, signal loss |
| Corrosion and Oxidation | Exposure to moisture and contaminants leads to corrosion of metal surfaces. | Increased resistance, complete signal loss |
| Poor Contact Pressure | Wear or misalignment reduces contact pressure, affecting pin connectors. | Intermittent connectivity, signal degradation |
| Vibration and Shock | Physical stress loosens connectors or damages contacts, especially in board-to-board types. | Increased wear, potential disconnects |
| Improper Handling or Installation | Excessive force or misalignment causes bent/broken pins. | Connection failure, degraded performance |
| Electrical Overload | Exceeding current/voltage ratings causes overheating and damage. | Deformed housing, damaged contacts, system failure |
| Environmental Factors | Extreme temperature, humidity, chemicals degrade materials over time. | Discoloration, cracking, increased resistance |
| Insufficient Connector Quality | Low-quality materials and design lead to premature failure. | Early failure, unreliable connections |
| Mating Misalignment | Improper alignment causes bent pins and damage. | Premature failure, intermittent or lost connectivity |
Connector failures in high-voltage applications can result from contamination, physical damage, and electrical arcing. Contaminants inside connectors may increase or decrease resistance, causing noise, cross-circuit activation, or shorting. Electrical arcing typically leads to complete connector loss, posing significant safety risks. Physical damage from mishandling or improper insertion can cause bent pins or broken housings, leading to connection problems or total failure. These failure modes highlight the critical need for proper connector selection, handling, and maintenance to prevent hazardous conditions.
Industrial and automotive applications
In industrial and automotive environments, electronic connectors ensure stable and secure electrical and signal connections, even under harsh conditions. Automotive connectors maintain the integrity of vehicle electronic systems by ensuring accurate and efficient signal transmission. They connect sensors, control modules, actuators, ADAS, infotainment, and powertrain systems, contributing to overall vehicle safety. Connectors must withstand extreme temperatures, moisture, vibrations, dust, and dirt. Selection criteria include environmental resistance, electrical performance, and mechanical strength.
Industrial connectors endure mechanical forces such as vibration and shock from heavy machinery. Humidity can cause oxidation or static issues, requiring moisture protection. Temperature extremes cause thermal stress leading to cracking and poor connections. Corrosive atmospheres from acids or salt spray necessitate specialized coatings or sealing. Dust and dirt from machining can impair connector contacts and reliability. UV exposure outdoors demands UV-resistant materials to prevent material degradation. Explosive atmospheres require connectors designed to eliminate ignition risks.
Solutions include high IP ratings for water and chemical resistance, metal shells for EMI shielding and mechanical strength, and locking mechanisms to resist vibration. Sturdy shells, enhanced locking, environmental sealing, and shock resistance protect contact points and maintain system integrity. Quality assurance, compliance with standards, and regular maintenance further enhance safety and reliability. Emerging technologies focus on miniaturization, high-speed data transmission, and fail-safe mechanisms to meet evolving demands in electronic connectors.
Types of Connectors and Their Applications
Electronic connectors come in many forms, each designed for specific roles in modern systems. Engineers classify connectors by application, structure, frequency, and power. The table below summarizes the main categories and their classification criteria:
| Classification Basis | Categories / Levels |
|---|---|
| Application (Hierarchy of Interconnections) | 1. Internal connections of chip packages 2. Connections between IC package pins and PCBs 3. Connections between printed circuits and wires or boards 4. Connections between backplanes 5. Connections between devices |
| External Structure | Circular connectors Rectangular connectors |
| Working Frequency | Low frequency connectors (below 3 MHz) High frequency connectors (above 3 MHz) |
| Connector Types | Low frequency circular connectors Rectangular connectors Printed circuit connectors RF connectors Fiber optic connectors |
Power Connectors
AC and DC power connectors
Power connectors transmit electrical energy safely and efficiently. Household devices use connectors rated between 1A and 5A, operating at 110V or 220V. These connectors withstand voltages up to 250V. Industrial power connectors handle higher demands, supporting dozens of amps and voltages up to 600V. NEMA standards define many types, from common residential plugs to locking connectors for heavy machinery.

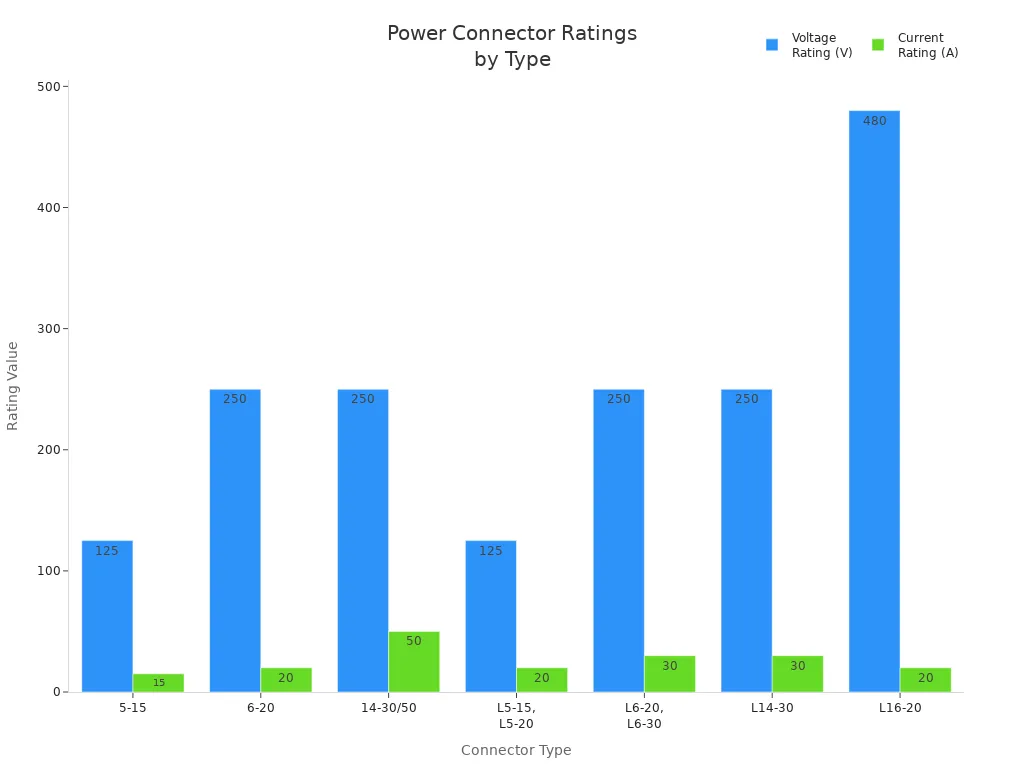

| Connector Type | Voltage Rating (V) | Current Rating (A) | Typical Application |
|---|---|---|---|
| 5-15 | 125 | 15 | Standard residential household appliances |
| 6-20 | 250 | 20 | Appliances like air conditioners, large machinery |
| 14-30/50 | 125/250 | 30 / 50 | High-wattage appliances such as electric dryers, stoves |
| L5-15, L5-20 | 125 | 15 / 20 | Locking connectors for 125V devices (industrial, HVAC) |
| L6-20, L6-30 | 250 | 20 / 30 | Locking connectors for industrial and HVAC applications |
| L14-30 | 125/250 | 30 | Generators, transfer switches, heavy-duty portable equipment |
| L16-20 | 480 | 20 | Locking connectors for 3-phase 480V industrial systems |
High-current and low-current uses
Power connectors serve both high-current and low-current applications. Household connectors support small appliances, while industrial connectors power heavy equipment. Locking mechanisms prevent accidental disconnection in demanding environments. Engineers select terminals and electrical connectors based on current and voltage requirements to ensure safety and reliability.
Signal and Data Connectors
USB, HDMI, and audio connectors
Signal and data connectors enable communication between devices. USB connectors dominate the market due to their versatility. USB 2.0 supports up to 480 Mbps, while USB 3.0 reaches 5 Gbps. USB 4.0 delivers speeds up to 40 Gbps and uses a reversible USB-C design. HDMI connectors transmit high-definition video and audio, supporting 4K and 8K resolutions. Audio connectors, such as XLR and TRS, provide balanced connections to minimize noise.
| Connector Type | Data Transfer Rate / Capability | Signal Integrity / Features |
|---|---|---|
| USB 2.0 | Up to 480 Mbps | Digital data transfer optimized for devices; supports power delivery |
| USB 3.0 | Up to 5 Gbps | Improved speed and power delivery; backward compatible |
| USB 4.0 | Up to 40 Gbps | High-speed data and power transfer; reversible USB-C connector |
| HDMI Type A | Supports 4K and 8K video | Transmits high-quality digital video and audio; supports features like variable refresh rate |
| Audio Connectors (XLR, TRS) | N/A (analog or digital audio) | Balanced audio connections to minimize noise and interference; shielding and grounding important |
USB connectors also deliver power, making them essential for charging and data transfer. HDMI connectors excel in multimedia systems, while audio connectors ensure clear sound in professional setups.
RF and coaxial connectors
RF and coaxial connectors transmit high-frequency signals with minimal loss. These connectors maintain signal integrity in communication systems, broadcast equipment, and wireless networks. Engineers use specialized terminals to ensure reliable connections and reduce interference.
Board-to-Board and Wire-to-Board Connectors
Pin headers and sockets
Board-to-board connectors, such as pin headers and sockets, create dense interconnections between printed circuit boards. These connectors support high-speed data transmission and robust mechanical connections. Pin headers allow flexible device design and easy assembly.
Board-to-board connectors offer high pin density, customizable features, and support for miniaturization. They ensure reliable performance in compact electronic assemblies.
Edge connectors
Edge connectors provide direct connections to the edge of a circuit board. These connectors simplify installation and support rapid upgrades. Edge connectors and wire-to-board connectors use terminals to secure wires, enabling modular and scalable designs.
| Advantage Category | Details |
|---|---|
| Physical Structure | Plug-socket flattened design reduces space; double-row pins or spring contacts enable high-density connections; supports miniaturization, thinness, and lightness. |
| Signal Transmission | Short signal paths with minimal attenuation; supports high-frequency and high-speed transmission above 10Gbps; suitable for servers and communication devices. |
| Technical Parameters | Minimum pitch can reach 0.4mm, enabling extremely high connection density; trend towards <0.3mm pitch supports compact, portable, thin, and light devices. |
Tip: Board-to-board and wire-to-board connectors play a key role in supporting the miniaturization and reliability of modern electronic connectors.
Specialized Electronic Connectors
Waterproof and ruggedized connectors
Engineers design waterproof and ruggedized connectors to ensure reliable performance in harsh environments. These connectors protect sensitive electronic connectors from dust, moisture, vibration, and extreme temperatures. Manufacturers often use robust materials such as stainless steel, aluminum, brass, and high-performance polymers like PEEK and PTFE. Rubber and silicone seals further enhance resistance to water and chemical ingress.
Many ruggedized connectors meet strict standards, including MIL-DTL-38999 for military and aerospace applications. These connectors feature composite shells that reduce weight while maintaining strength, which is essential for aircraft and portable devices. Ingress protection ratings such as IP67, IP68, and IP69K guarantee resistance to water and dust. Engineers also adapt commercial connectors like USB, HDMI, and D-sub for use in transportation, marine, and heavy equipment sectors. These adaptations allow connectors to withstand thermal shock, UV exposure, and chemical hazards.
Note: Ruggedized connectors often support high-speed data transmission. Quadrax, Twinax, and Triax contacts enable bandwidths up to 1.25 GHz and data rates exceeding 2.5 Gbps, making them suitable for demanding industrial and military systems.
Miniature and micro connectors
Miniature and micro connectors play a vital role in modern compact devices. Designers use these electronic connectors in smartphones, wearables, medical instruments, and aerospace systems where space is limited. These connectors offer high pin density and support advanced features such as high-speed data transfer and EMI shielding.
Manufacturers select materials that balance miniaturization with durability. High-performance plastics and gold-plated contacts ensure reliable connections despite repeated use. Many miniature connectors comply with industry standards for signal integrity and environmental resistance. Engineers often choose edge connectors and micro versions of USB or HDMI for applications that require both small size and robust performance.
Tip: Miniature connectors enable the ongoing trend toward smaller, lighter, and more powerful electronic devices.
Application-Based Connector Examples
Automotive connectors
Automotive connectors must meet rigorous requirements to ensure safety and reliability in vehicles. Manufacturers design these connectors to comply with international standards such as UL, VDE, USCAR, and LV214. These standards address mechanical factors like insertion and extraction force, as well as electrical criteria such as contact resistance and dielectric strength.
Automotive connectors must withstand temperature extremes, moisture, and vibration. Engineers select plastics for housings due to their insulation and heat resistance, while metals provide conductivity and corrosion resistance for contacts. The manufacturing process includes design, molding, assembly, and extensive testing. Quality control ensures that connectors meet performance and safety standards. As vehicles adopt electric powertrains and advanced driver-assistance systems, connectors must support high-speed data transmission and increased reliability.
- Automotive connectors support technologies such as high-speed data links for infotainment and ADAS.
- Regional differences exist, with crimp technology common in the US and insulation displacement contact (IDC) technology prevalent in Europe.
- Global standards like ISO/AK interfaces promote compatibility across markets and support emerging vehicle electronics.
Medical device connectors
Medical device connectors require precision, reliability, and compliance with strict regulatory standards. These connectors must maintain stable electrical connections in environments where failure can impact patient safety. Engineers select biocompatible materials and design connectors to resist sterilization processes, moisture, and repeated mating cycles.
Medical connectors often feature color coding, keying, and locking mechanisms to prevent misconnection. Many designs support quick disconnection for emergency situations. Manufacturers test these connectors for electrical performance, mechanical durability, and resistance to cleaning agents. As medical devices become smaller and more sophisticated, miniature connectors play an increasingly important role in supporting advanced diagnostic and therapeutic equipment.
Medical device connectors help ensure that life-saving equipment operates safely and reliably, even under demanding conditions.
Key Features and Terminology of Connectors
Connector Specifications
Current and voltage ratings
Engineers rely on current and voltage ratings to select the right connector for any application. These ratings define the maximum electrical load a connector can safely handle. Exceeding these limits can cause overheating, arcing, or even failure in circuits. For example, MIL-SPEC connectors must maintain electrical durability and signal integrity under extreme temperatures, ranging from -65°C to 175°C. The choice of plating material, such as gold or tin, also impacts performance. Gold plating offers excellent conductivity and corrosion resistance, making it ideal for low-level signals and frequent mating cycles. Tin plating provides good conductivity but is more prone to oxidation over time, which can affect electrical performance in demanding environments.
- Engineers analyze application parameters, including the number of terminals, contact type, and protective shells.
- Current and voltage ratings must match the requirements of the circuits to ensure safe and reliable operation.
- Specialized filters and shielding help resist EMI, RFI, and ESD, protecting sensitive electrical signals.
Contact resistance and insulation
Contact resistance measures the electrical resistance at the interface between two contact surfaces within a connector. Low contact resistance is essential for efficient power transmission and stable device operation. High contact resistance generates heat at contact points, which can degrade components or cause failure, especially in high-power circuits. In data connectors, increased resistance impairs signal integrity, leading to delays or data loss. Engineers maintain low contact resistance through careful design, material selection, and quality control. Insulation between terminals prevents short circuits and ensures that electrical signals remain isolated, supporting the reliability of complex circuits.
Maintaining low contact resistance and proper insulation enhances the long-term reliability and efficiency of electronic connectors.
Mechanical Features of Connectors
Locking mechanisms
Mechanical features play a crucial role in connector durability and ease of use. Locking mechanisms, such as threaded couplings, bayonet locks, and push-pull latches, prevent accidental disconnection and ensure secure mating. For example, circular connectors distribute force evenly and use durable coupling methods, while rectangular connectors often feature latch locks and strain relief. The table below highlights common mechanical features and their benefits:
| Mechanical Feature | Description and Benefit |
|---|---|
| Mounting and Mating Methods | Push-pull, quick disconnect, bayonet, screw mating; ergonomic design and light weight |
| Blind Mating | Enables use without line of sight, ideal for gloved hands and varied operator skill levels |
| High Mating Cycle Rating | Up to 10,000 cycles for durability, especially in medical and industrial equipment |
| Overmolding | Enhances durability in high mating cycle applications |
Polarization and keying
Polarization and keying prevent incorrect mating of connectors. These features ensure that connectors only fit in the correct orientation, reducing the risk of damage to electrical circuits. Color-coding and physical guides further assist users in matching plugs to the correct receptacles, supporting safe and efficient assembly.
Environmental Ratings for Connectors
IP ratings and sealing

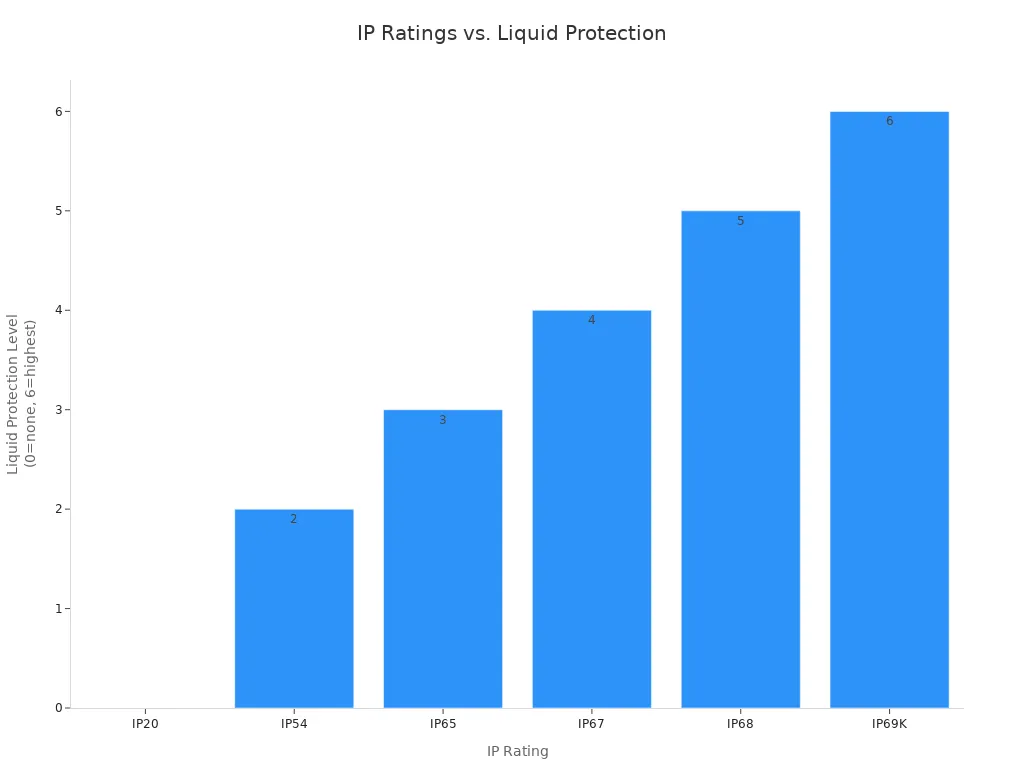

Environmental ratings, such as IP codes, indicate the level of protection a connector provides against dust and water. The IEC 60529 standard defines these ratings. Selecting the correct IP rating involves assessing exposure to dust, debris, and water. For example, connectors with IP67 or higher ratings are preferred in outdoor or industrial environments to prevent failures caused by contamination or moisture. The table below summarizes common IP ratings:
| IP Rating | Protection Against Solids | Protection Against Liquids | Typical Use Cases |
|---|---|---|---|
| IP20 | Limited solid object protection | No water protection | Indoor electronics, control panels |
| IP65 | Dust-tight | Water jets | Automation, conveyors |
| IP67 | Dust-tight | Temporary immersion | Outdoor devices, robotics |
| IP68 | Dust-tight | Continuous immersion | Submersible sensors, irrigation |
Understanding these ratings helps engineers select connectors that maintain electrical performance and durability in harsh conditions.
Temperature and vibration resistance
Connectors used in industrial and outdoor settings must withstand extreme temperatures and vibration. Materials such as gold or nickel plating, along with robust shells, provide resistance to wear, corrosion, and mechanical stress. Specialized designs ensure that connectors maintain electrical integrity and protect circuits, even during temperature fluctuations or heavy vibration. This attention to environmental factors supports the long-term reliability of electrical systems.
Understanding Connector Standards
Industry standards and compliance
Industry standards form the foundation for safe, reliable, and consistent connector performance. Organizations such as the International Electrotechnical Commission (IEC), Underwriters Laboratories (UL), and the Canadian Standards Association (CSA) define requirements for connector design, electrical ratings, and safety. These standards specify voltage and current ratings, physical dimensions, and environmental tolerances. For example, IEC 60320 outlines appliance couplers for general electronics, while IEC 62196 addresses connectors for electric vehicle charging. The table below summarizes common connector types and their associated standards:

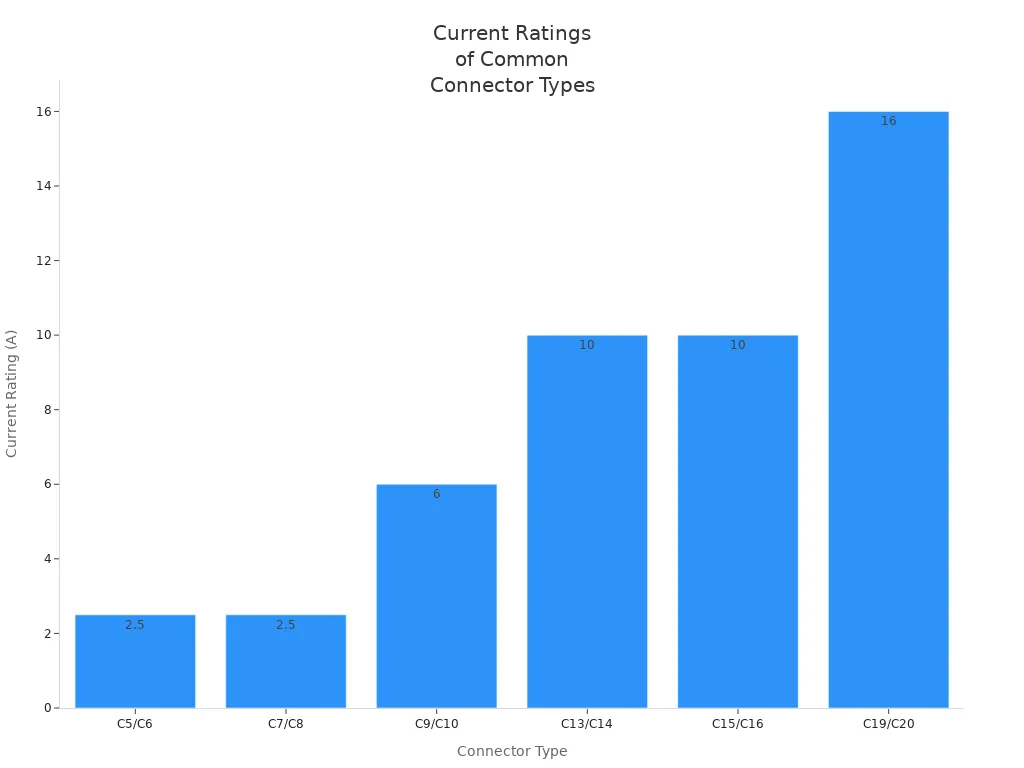

| Connector Type | Voltage Rating | Current Rating | Typical Use | Special Features |
|---|---|---|---|---|
| C5/C6 | Up to 250 V | 2.5 A | Laptops, small appliances | “Cloverleaf” or “Mickey Mouse” connectors |
| C7/C8 | Up to 250 V | 2.5 A | DVD players, game consoles | “Figure-eight” connectors, non-polarized |
| C9/C10 | Up to 250 V | 6 A | Office equipment | Moderate current rating |
| C13/C14 | Up to 250 V | 10 A | Computers, monitors | Standard computer power cords |
| C15/C16 | Up to 250 V | 10 A | Kettles, high-temp devices | Rated for 120°C |
| C19/C20 | Up to 250 V | 16 A | Servers, data centers | High current for demanding equipment |
IEC standards such as IEC 60320, IEC 62196, IEC 60169, and IEC 60603 cover a wide range of connector applications, from appliance couplers to radio frequency and board-to-board connectors. Regional safety standards also play a critical role. North America relies on UL and CSA standards to prevent fire hazards, while Europe uses EN/IEC standards to ensure insulation and shock protection. China enforces CCC certification for safety compliance.
Connector-specific standards, such as DIN 41612 for board-to-board connectors and MIL-C-83503 for flat cable connectors, ensure that products meet strict performance and safety criteria. Certification programs, including those from the Global Certification Forum (GCF), verify compliance with international standards. These programs confirm that wireless and electronic devices operate safely and reliably across different networks and regions.
Compliance with recognized standards reduces integration risks, supports market access, and ensures that connectors perform as intended in diverse environments.
Interchangeability and compatibility
Interchangeability and compatibility represent essential goals in connector design. Standardized connectors allow products from different manufacturers to connect seamlessly. For example, the USB standard defines both the physical connector and the communication protocol, enabling universal compatibility across countless devices. Communication standards such as RS-232C and VME Bus adopt standard connectors, further promoting interoperability.
Certification and adherence to standards support consistent data exchange and safe operation. In medical devices, the FDA emphasizes that compliance with connector standards manages risks and ensures reliable performance when devices from multiple manufacturers interface. Certification programs, such as those for wireless products, confirm that devices meet radio frequency and protocol requirements, enabling safe and effective communication.
- Standardization enables:
- Easy replacement and upgrades
- Reduced risk of mismatched connections
- Simplified maintenance and repair
Connector standards also require rigorous testing for electrical and mechanical hazards. This process ensures that connectors maintain compatibility and safety throughout the product lifecycle. As technology evolves, adherence to global standards remains vital for supporting the growing complexity and interconnectedness of electronic systems.
Tip: Selecting connectors that comply with international standards ensures long-term compatibility and simplifies future upgrades.
Choosing the Right Connector
Application Requirements for Connectors
Electrical and mechanical needs
Selecting the right connector begins with a clear understanding of the system’s electrical and mechanical requirements. Engineers must evaluate current and voltage ratings to ensure safe operation. The number of contacts should match the signals or power lines in the application. Mechanical constraints, such as available space and mounting style, influence connector size and shape. Early selection in the design process helps prevent costly redesigns and mechanical interference.
Connectors must also support the system’s complexity. High-density connectors suit advanced electronics, while simpler designs fit basic circuits. Shielding and material choice play a role in mitigating electromagnetic interference (EMI), which preserves signal integrity. The termination method—whether soldered, crimped, or press-fit—affects reliability and manufacturability.
Tip: Engineers should always verify that connectors meet the system’s power handling, signal integrity, and mechanical durability needs.
Environmental considerations
Environmental factors can significantly impact connector performance. Temperature extremes, humidity, and vibration all challenge connector durability. Industrial environments often expose connectors to high vibration, requiring robust designs. Moisture and dust demand sealed connectors with appropriate IP ratings. Material selection matters; metals, composites, or plastics offer different levels of protection, weight, and conductivity. Plating choices, such as gold or tin, affect corrosion resistance and cost.
A connector’s ability to withstand harsh conditions ensures long-term reliability. Engineers must consider future-proofing by selecting connectors that can adapt to evolving application demands.
Evaluating Connector Options
Cost vs. performance trade-offs
Connector selection often involves balancing cost and performance. Engineers may choose between military-specification (mil-spec) connectors and commercial off-the-shelf products. Mil-spec connectors offer superior reliability, gold-plated contacts, and oil-tight enclosures, but they come at a premium price. Commercial connectors reduce costs but may lack the durability and compliance of mil-spec options.
The SWaP-C framework—Size, Weight, Power, and Cost—guides connector choices. High-density and miniaturized connectors save space and weight, while low-loss contacts improve power efficiency. However, reducing size can increase thermal challenges, and lightweight materials may compromise ruggedness. Engineers must weigh upfront costs against long-term performance and maintenance.
Availability and sourcing
Connector availability and sourcing influence project timelines and costs. Reliable manufacturers with proven quality and certifications ensure dependable products. Engineers should consider lead times, supply chain stability, and customer support. Choosing connectors from reputable sources reduces the risk of delays and compatibility issues.
Note: Early engagement with suppliers helps secure the right connectors and avoids last-minute design changes.
Common Mistakes When Selecting Connectors
Overlooking compatibility
One common mistake involves overlooking compatibility with existing systems. Engineers sometimes select connectors that do not match the required number of contacts or fail to fit within enclosure layouts. This oversight can lead to mechanical interference, signal loss, or costly redesigns. Ensuring that connectors align with system standards and protocols prevents mismatched connections.
Ignoring long-term reliability
Another frequent error is ignoring long-term reliability. Undersized connectors may overheat or degrade under high loads. Inadequate material selection can result in corrosion or mechanical failure. Skipping abuse testing or neglecting environmental suitability exposes systems to premature failure. Engineers should integrate simulations, quality control, and thorough testing to ensure connectors endure real-world conditions.
Engineers who prioritize compatibility and reliability in connector selection help safeguard system performance and longevity.
Best Practices for Mounting and Termination of Connectors
Proper Installation Techniques
Soldering vs. crimping
Engineers often choose between soldering and crimping when terminating connectors. Soldering creates a permanent bond by melting solder around the wire and connector pin. This method works well for low-volume, high-density applications where precision matters. Crimping, on the other hand, uses a specialized tool to compress the connector onto the wire. This technique suits mass production and delivers consistent results with less skill required. Clamp terminations provide quick, secure connections with minimal tools, making them ideal for environments with high vibration or frequent maintenance.
Tip: Crimped connections resist vibration and thermal cycling better than soldered joints. Soldering remains valuable for prototypes or repairs, but crimping dominates in automated assembly lines.
Ensuring secure connections
Reliable connections depend on careful preparation and attention to detail. Installers should select the correct wire gauge and connector size for the application. Gold-plated contacts and proper crimping pressure help maintain stable contact resistance over time. Shielded cable terminations require grounding drain wires to the connector’s metal shell and using strain relief to protect against electromagnetic interference (EMI) and mechanical stress.
Follow these steps for secure terminations:
- Fully insert and align conductors in connector pin channels before crimping.
- Avoid excessive untwisting of cable pairs—keep untwisting under 13mm to reduce crosstalk and maintain signal integrity.
- Install strain relief to prevent mechanical stress on connections.
- Double-check color sequencing and pin alignment before finalizing the termination.
Improper termination can cause increased insertion loss, packet loss, and reduced throughput, especially in mission-critical systems.
Maintenance and Inspection of Connectors
Cleaning and care
Routine maintenance extends connector life and prevents failures. Technicians should regularly inspect connectors, wiring harnesses, and terminals for corrosion, dirt, or debris. Protective coverings help shield connectors from moisture and friction. Cleaning contacts with approved solutions removes oxidation and ensures reliable conductivity.
Detecting and addressing wear or damage
Early detection of wear or damage prevents costly downtime. Teams should perform visual and functional checks of connectors and wiring. Infrared thermographic inspections, conducted every few years, reveal abnormal heat from loose or dirty connections. Technicians must tighten electrical connections and replace worn or damaged parts promptly. Maintaining detailed records of inspections and repairs supports ongoing reliability and compliance with industry standards.
Note: Preventive maintenance, including redundancy testing and systematic troubleshooting, helps maintain connection integrity in critical systems.
Safety Considerations for Connectors
Preventing shorts and failures
Safety starts with proper installation and regular inspection. Secure all cable joints, terminals, and adapters to avoid loose connections. Use high-quality insulation and strain relief to protect against moisture, heat, and mechanical stress. Follow manufacturer guidelines and electrical codes to minimize the risk of shorts and failures.
Handling high-voltage connectors
High-voltage connectors require extra caution. Only qualified personnel should handle these components. Always de-energize circuits before working on connectors. Use insulated tools and wear appropriate personal protective equipment. Regularly inspect high-voltage connectors for signs of arcing, overheating, or insulation breakdown. Address any issues immediately to ensure safe operation.
Safety Tip: Never ignore environmental factors such as humidity or vibration, as these can accelerate connector degradation and increase safety risks.
The Future of Electronic Connectors
Trends in Miniaturization and Performance
High-speed data connectors
The demand for high-speed data connectors continues to shape the landscape of electronic design. Engineers now create connectors that support rapid data transfer and robust power management within compact footprints. Miniaturization has become essential for electronic systems in consumer electronics, medical equipment, and industrial automation. Smaller, lighter connectors allow electronic devices to become thinner and more portable, yet still deliver advanced functionality.
Modern high-speed connectors must maintain signal integrity, especially in applications like 5G networks and automotive electronics. EMI shielding plays a critical role in preventing interference, ensuring that electronic signals remain clear and reliable. Material innovations, such as advanced alloys and composites, improve conductivity and reduce weight. These improvements help electronic connectors withstand harsh environments, including dust, water, and vibration.
Technologies like single-pair Ethernet and miniaturized circular connectors, such as M8 connectors, enable high-speed data and power transmission in rugged, space-saving packages. These connectors often feature high-precision locking and enhanced durability, supporting thousands of mating cycles. Modular connector systems further simplify maintenance and customization, allowing engineers to combine power, data, and signal lines within a single housing. This approach saves space and streamlines electronic system architecture.
Connectors for IoT and wearable devices
The rise of IoT and wearable devices has accelerated the push for even smaller and more efficient electronic connectors. Engineers must fit connectors into limited PCB and panel space, increasing design complexity. Despite their reduced size, these connectors must deliver industrial-grade durability and maintain reliable performance in challenging conditions.
Miniaturized connectors support the mobility and lightweight requirements of wearable electronic devices and automated guided vehicles. Integrated solutions now combine power and data transmission, simplifying electronic system design and improving reliability. High-density connectors, such as those found in medical electronic devices, enhance patient safety and enable advanced monitoring features.
Digital transformation tools, including AI-based design and 3D printing, have shortened development cycles and enabled rapid customization. Products like Harwin’s Gecko and Datamate series demonstrate how miniaturized connectors can balance size, ruggedness, and performance. These trends allow electronic devices to become more compact, efficient, and capable of handling complex, high-speed communication demands.
Sustainability and Material Innovations in Connectors
Eco-friendly connector materials
Sustainability has emerged as a key focus in the development of electronic connectors. Manufacturers now explore eco-friendly materials that reduce environmental impact without sacrificing performance. New alloys and composites offer improved conductivity and durability while minimizing the use of hazardous substances. Some electronic connectors incorporate recycled plastics or biodegradable materials, supporting global efforts to reduce electronic waste.
Engineers also consider the entire lifecycle of electronic connectors, from raw material sourcing to end-of-life disposal. By selecting sustainable materials, manufacturers help lower the carbon footprint of electronic devices and promote responsible production practices.
Designing for recyclability
Designing electronic connectors for recyclability ensures that components can be easily separated and processed at the end of their useful life. Modular designs allow for straightforward disassembly, making it easier to recover valuable metals and plastics. Clear labeling and standardized materials further support recycling efforts.
Manufacturers increasingly adopt design strategies that prioritize minimal environmental impact. These strategies include reducing the number of mixed materials in electronic connectors and using adhesives that do not hinder recycling. As electronic devices continue to proliferate, designing connectors with recyclability in mind will play a crucial role in managing electronic waste and supporting a circular economy.
Note: The future of electronic connectors will depend on balancing miniaturization, high performance, and sustainability to meet the evolving needs of electronic devices across industries.
Connectors remain essential in every electronic system. They enable safe, reliable, and flexible connections that support both power and data transfer. Engineers should focus on:
- Matching connector specifications to application needs
- Prioritizing durability, compatibility, and environmental resistance
- Following best practices for installation and maintenance
As technology evolves, connectors will continue to drive innovation and ensure the seamless operation of future electronic devices.
FAQ
What is the main function of an electronic connector?
An electronic connector joins two or more electrical circuits. It enables the transfer of power or signals between components. Engineers use connectors to simplify assembly, maintenance, and upgrades in electronic systems.
How do engineers choose the right connector for an application?
Engineers evaluate current, voltage, size, and environmental requirements. They consider durability, compatibility, and industry standards. Proper selection ensures safety, reliability, and long-term performance.
Why do some connectors have gold-plated contacts?
Gold plating resists corrosion and maintains low contact resistance. This feature ensures reliable signal transmission, especially in environments with frequent mating cycles or exposure to moisture.
What does an IP67 rating mean for a connector?
An IP67 rating indicates complete protection against dust and temporary immersion in water up to 1 meter for 30 minutes. This rating suits outdoor, industrial, and harsh environments.
Can connectors affect signal quality?
Yes. Poor-quality connectors or improper installation can cause signal loss, interference, or data errors. High-quality materials and precise manufacturing help maintain signal integrity.
How often should connectors be inspected or maintained?
Technicians should inspect connectors during routine equipment checks. In critical systems, inspections may occur quarterly or after exposure to harsh conditions. Regular cleaning and prompt replacement of damaged parts extend connector life.
Are all connectors interchangeable between brands?
Not always. Many connectors follow industry standards, but differences in design, pin layout, or materials can prevent interchangeability. Always verify compatibility before connecting components.
What safety precautions should be taken when handling high-voltage connectors?
Only trained personnel should handle high-voltage connectors. Always de-energize circuits before work. Use insulated tools and wear protective equipment. Inspect connectors for damage before use.
