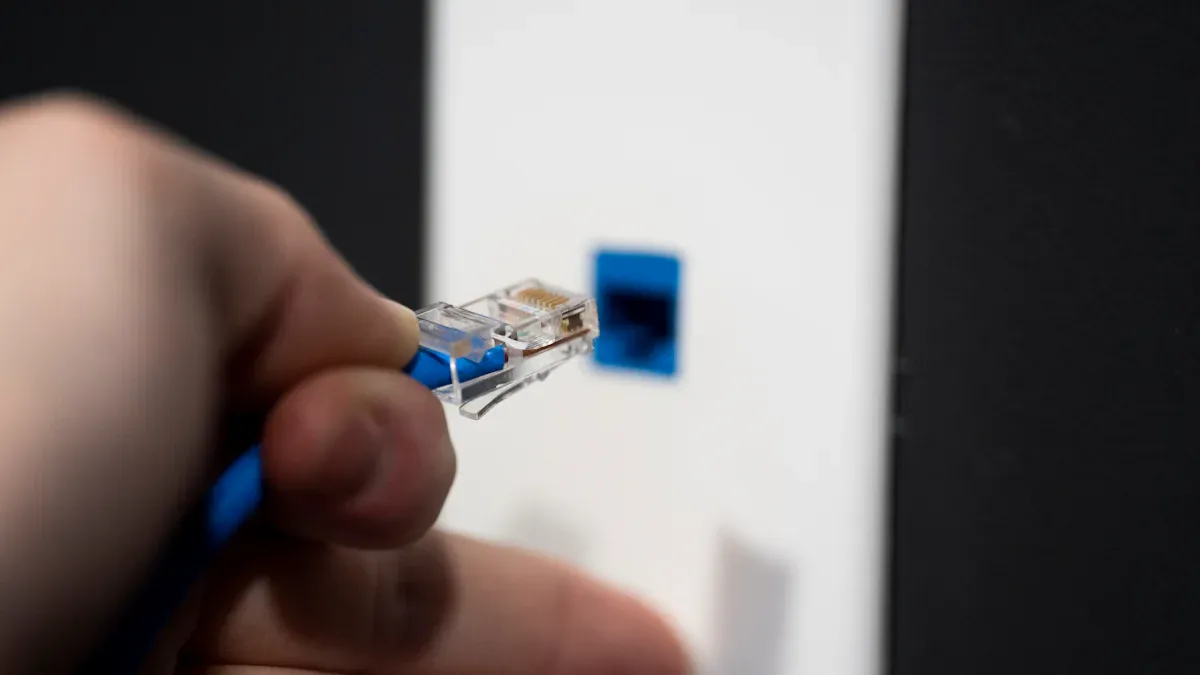

You rely on robust connectivity for your network, and that starts when you terminate rj45 plugs with precision. Even a minor error in rj45 termination can disrupt reliability, as nearly 5% of Category 6A jacks fail to meet standards after the first attempt. Consistent reliability requires correct wire seating, testing, and the use of professional tools. When you follow best practices for rj45 and select quality components from a Connector factory, you ensure long-term network performance and minimize costly issues. Reliable network performance depends on proper standards—whether you work with an M8 connector, Type B connector, or other solutions.
Tools and Materials for RJ45 Termination
A successful rj45 termination starts with the right tools and materials. You need to select each component carefully to ensure reliable network performance and minimize costly failures.
Essential Tools for Terminate RJ45 Plugs
Industry professionals and ICT standards recognize several tools as essential for rj45 plug termination, especially when working with Cat5e and Cat6 cables. You should keep these tools in your toolkit:
- Cable stripper: This tool removes the outer sheath of the ethernet cable without damaging the internal wires. Proper cable preparation depends on precise stripping.
- RJ45 crimping tool: You use this tool to fasten rj45 connectors to the cable. Modern crimpers often feature adjustable handles and replaceable dies, which help you achieve uniform pressure and secure connections.
- Wire cutter: Clean cuts are crucial for proper wire alignment and insertion into rj45 connector plugs.
- Cable tester: After you terminate ethernet cable, a cable tester verifies wiring correctness, checks for continuity, and detects faults such as shorts or opens. This step is vital for network reliability.
- Speed termination tools and pass-through connectors: These optional tools can speed up the rj45 termination process and help you verify wire order visually.
Tip: Investing in a high-quality kit, such as the Platinum Tools EZ-RJ45 CAT5e Kit, can improve your efficiency and reliability. This kit combines crimping and trimming in one step and allows you to verify wire order before crimping. Although it costs more upfront, it reduces waste and increases long-term performance.
You can see that permanent link terminations (jack to jack) provide the highest reliability and best network performance. RJ45 plug-to-plug terminations, on the other hand, often fail strict certification tests and are less reliable for critical networks.
Materials Needed to Terminate Ethernet Cable
Choosing the right materials is just as important as using the correct tools. Quality components help you avoid common failures and ensure long-term reliability.
RJ45 Plugs
You attach rj45 connectors to the ends of your ethernet cable to create a secure connection. Always select plugs made with proper gold plating and phosphor bronze pins. Substandard rj45 connector plugs can cause signal loss, poor data transfer speeds, and frequent disconnections.

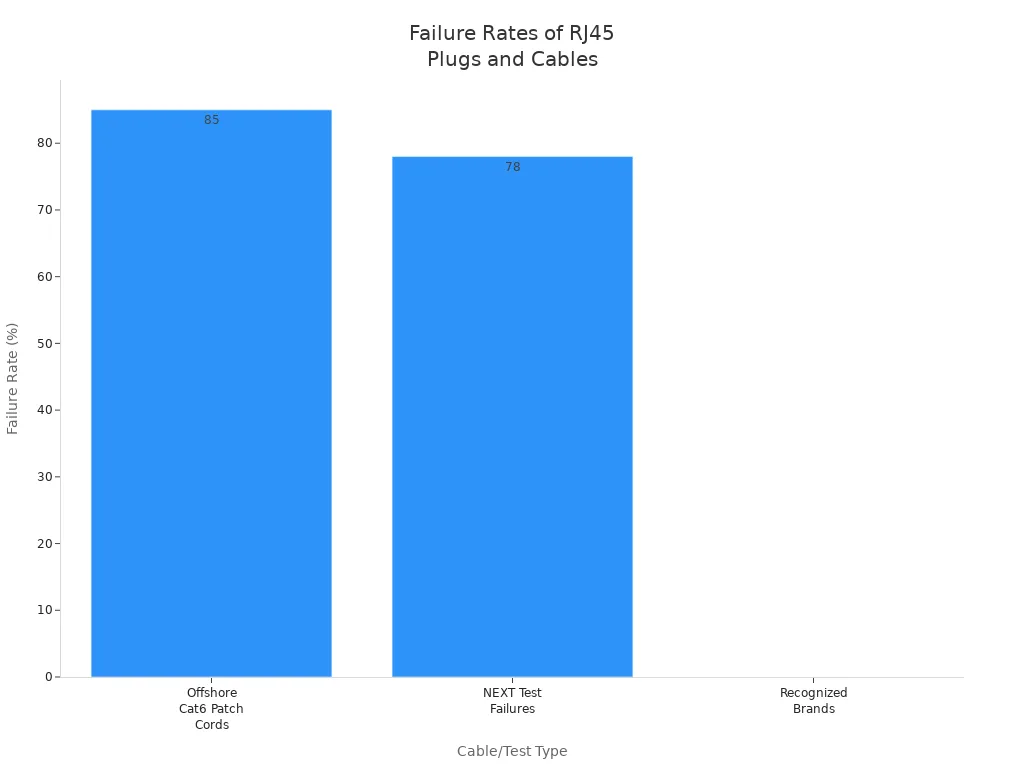

| Failure Aspect | Details |
|---|---|
| Failure Rate | 85% failure rate in offshore-produced Category 6 copper patch cords |
| NEXT Test Failures | 78% of failing samples failed NEXT tests by 3 dB or more |
| Comparison with Recognized Brands | 0% failure rate in cables from well-recognized manufacturers |
| Manufacturing Deficiencies | Poor gold plating, incorrect pin materials, improper polishing leading to corrosion |
| Dimensional Issues | Poor fit causing intermittent connections and link loss |
| Consequences | Signal loss, poor data transfer speeds, loose connections, durability problems |
| Overall Impact | Network performance degradation and increased replacement costs |
Ethernet Cable Types (Cat5e, Cat6, etc.)
You must match your rj45 connectors to the type of ethernet cable you use. Cat5e and Cat6 cables are the most common choices for modern networks. Cat6 cables offer higher performance and better resistance to interference. Always check compatibility between your cable and connectors to avoid installation issues.

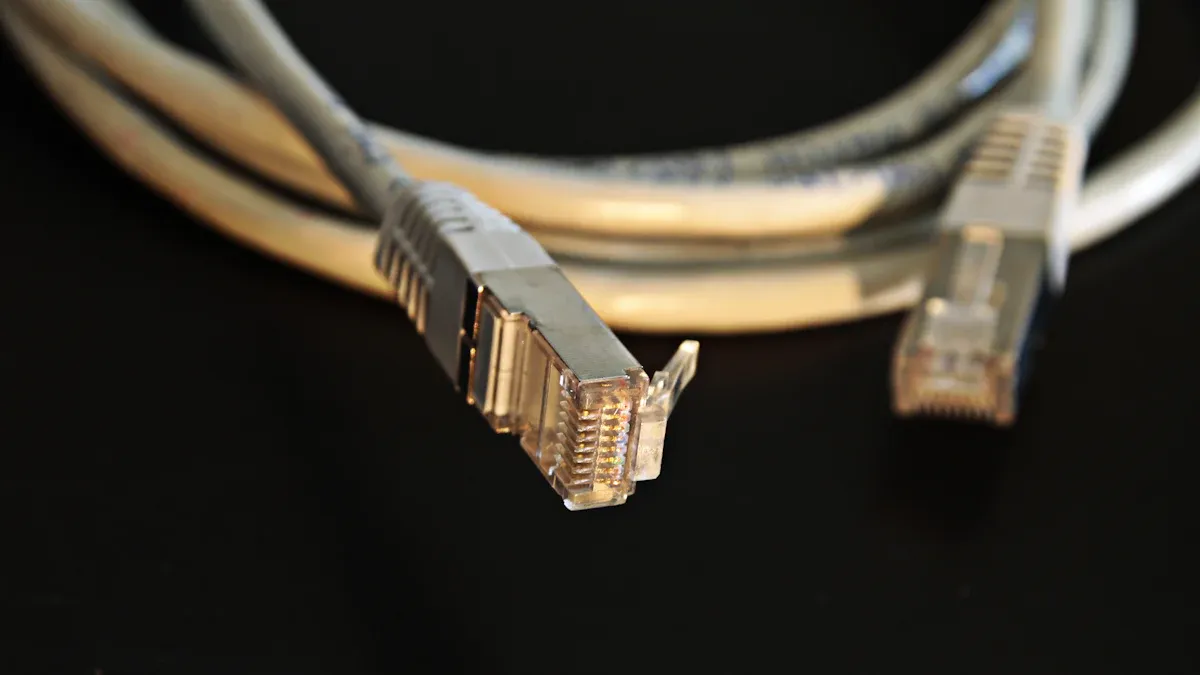

Connector Boots and Accessories
Cable boots protect your rj45 connectors by reducing strain and preventing sharp bends. This protection helps you avoid cable breakage and connector damage. You should also consider using shielded patch panels and grounding kits if your network faces electromagnetic interference. These accessories enhance long-term stability and reliability.
Note: Always use a cable tester after rj45 termination. Testing ensures that your connections are correct and functional, reducing the risk of network downtime.
By selecting quality tools and materials, you lay the foundation for a reliable rj45 termination. Careful preparation, proper crimping, and thorough testing will help you achieve dependable network performance.
RJ45 Wiring Standards and Reliable Connectivity
When you work with RJ45 termination, understanding wiring standards is essential for network reliability. The correct standard ensures that your connections deliver consistent performance and minimize troubleshooting.
T568A vs. T568B for RJ45 Termination
Key Differences
You encounter two main wiring standards for RJ45: T568A and T568B. Both standards use the same eight wires, but they arrange the green and orange pairs differently. This difference affects compatibility, not performance.
- The only distinction lies in the order of the green and orange wire pairs on pins 1, 2, 3, and 6.
- Both standards support identical Ethernet protocols and deliver the same transmission performance.
- T568A provides backward compatibility with older USOC wiring, making it a requirement for U.S. federal government contracts.
- T568B is more common in commercial installations and aligns with the AT&T 258A color code.
- Mixing T568A and T568B in the same network can cause signal issues and complicate troubleshooting.
| Wire Pair | T568A Pin Assignment | T568B Pin Assignment |
|---|---|---|
| Green | Pins 1 and 2 | Pins 3 and 6 |
| Orange | Pins 3 and 6 | Pins 1 and 2 |
| Blue | Same in both | Same in both |
| Brown | Same in both | Same in both |
Choosing the Right Standard
You should select a wiring standard based on your installation environment and compatibility needs. T568A is preferred for residential and government projects because it supports legacy wiring. T568B dominates in commercial settings and matches most existing network equipment. Both standards offer the same performance, so your main priority should be consistency. Always use the same standard on both ends of a cable to maintain connectivity and avoid network failures. If you mix standards, you risk intermittent connectivity and increased troubleshooting time.
Tip: Use T568A for new residential installations and government projects. Choose T568B for commercial networks unless a specific requirement dictates otherwise.
Color Coding and Wire Pair Arrangement
Wire Pair Functions
Each wire pair in an RJ45 cable serves a specific function. The arrangement of these pairs follows strict color coding to ensure reliable data transmission and minimize interference.
| Pin Number | T568A Color | T568B Color |
|---|---|---|
| 1 | Green/White | Orange/White |
| 2 | Green | Orange |
| 3 | Orange/White | Green/White |
| 4 | Blue | Blue |
| 5 | Blue/White | Blue/White |
| 6 | Orange | Green |
| 7 | Brown/White | Brown/White |
| 8 | Brown | Brown |
You must follow this arrangement to ensure each pair carries the correct signals. The blue and brown pairs remain the same in both standards, while the green and orange pairs swap positions.
Importance of Consistent Wiring
You maintain network reliability by keeping the same wiring standard throughout your installation. Incorrect wire pair arrangement, such as splitting pairs or not following the TIA/EIA 568 standard, leads to increased crosstalk and electromagnetic interference. This interference degrades signal integrity and can cause intermittent failures, especially as cable length increases. Ethernet cables use twisted pairs to reduce noise and maintain signal quality. If you untwist or misarrange these pairs, you risk data loss, signal drops, and reduced network performance. Consistent and correct RJ45 termination ensures your network delivers dependable connectivity and high reliability.
Step-by-Step Guide to Terminate RJ45 Plugs
A reliable network starts with precise cable preparation and careful attention to detail. This step-by-step guide will help you terminate RJ45 plugs with confidence, ensuring each connection meets industry standards for performance and durability.
Preparing to Terminate Ethernet Cables
Measuring and Cutting the Cable
You begin the cable termination process by measuring the Ethernet cable to the required length. Use a tape measure for accuracy. Cut the cable cleanly with a wire cutter to avoid frayed ends or uneven conductors. Improper cable cutting can lead to poor fitment in RJ45 connector plugs and may cause signal loss.
Tip: Always cut the cable slightly longer than needed. This allows for adjustments during installation and prevents unnecessary waste.
Stripping the Outer Jacket
Next, strip about 1 to 1.5 inches of the outer jacket using a cable stripper. Position the stripper carefully to avoid nicking or damaging the internal wires. Rotate the tool gently around the cable, then slide off the jacket. If you cut too deeply, you risk damaging the insulation or shielding, which can compromise the integrity of the connection.
Common mistakes during this phase include:
- Removing too much or too little insulation
- Damaging the shielding or conductor insulation
- Over-twisting or kinking the cable
You should always inspect the exposed wires for any nicks or cuts before proceeding.
Arranging Wires for RJ45 Termination
Untwisting and Aligning Wire Pairs
After exposing the internal wires, untwist each pair only as much as necessary—no more than half an inch. Excessive untwisting increases crosstalk and degrades signal quality, especially in high-frequency applications. Straighten each conductor gently, working one at a time to avoid breaking or over-bending them.
You must keep the twists as close to the plug as possible to minimize crosstalk.
Arrange the wires in a flat, parallel row. Use a load bar if available to help maintain alignment and order. This step ensures the wires fit smoothly into the RJ45 plug and reduces the risk of misalignment.
Following T568A/B Standard
Choose either the T568A or T568B wiring standard before you terminate RJ45 plugs. Consistency is critical—use the same standard on both ends of the cable. Arrange the wires according to the chosen color sequence. Double-check the order to prevent errors that can cause data transmission issues or intermittent connectivity.
| Pin | T568A Color | T568B Color |
|---|---|---|
| 1 | Green/White | Orange/White |
| 2 | Green | Orange |
| 3 | Orange/White | Green/White |
| 4 | Blue | Blue |
| 5 | Blue/White | Blue/White |
| 6 | Orange | Green |
| 7 | Brown/White | Brown/White |
| 8 | Brown | Brown |
Incorrect wire arrangement is a common cause of failed RJ45 termination. Always verify the sequence before moving forward.
Inserting Wires and Terminate RJ45 Plugs
Ensuring Proper Wire Order
Trim the wires to a uniform length, about half an inch from the jacket. This ensures each conductor reaches the end of the plug and makes proper contact. Ovalize the last half-inch of the cable jacket gently to help it fit into the rectangular opening of the RJ45 plug. Insert the wires into the plug, maintaining the correct order and alignment. Push the cable jacket into the rear of the plug as far as possible to provide strain relief and prevent kinks.
Best practices for this step include:
- Confirm compatibility between the Ethernet cable and RJ45 plug.
- Shape the cable end to fit the plug without flattening or damaging it.
- Insert the cable promptly after shaping to maintain the fit.
- Ensure each wire reaches its designated pin and the jacket sits inside the plug.
Checking Wire Lengths and Placement
Before crimping, inspect the plug visually. All wires should reach the front of the plug and sit flush against the contacts. The cable jacket must extend into the plug to provide strain relief. If wires are uneven or not fully inserted, remove and realign them. Incomplete insertion can cause poor signal integrity, intermittent connections, or even damage to connected devices.
Common issues from improper insertion include:
- Poor mechanical contact and signal loss
- Conductor bunching or irregular contacts
- Crossed wires or incorrect sequences
- The ‘orange peel’ effect, where insulation covers contacts
- Microfractures in the plug body
You avoid these problems by taking your time and double-checking each step. Proper wire placement ensures your RJ45 termination delivers reliable performance and long-term durability.
Crimping and Securing RJ45 Termination
Using the Crimping Tool Effectively
You achieve reliable network performance when you use the crimping tool with precision. Proper technique ensures that you terminate rj45 plugs securely and maintain high termination quality. Follow this step-by-step guide to maximize your results:
- Place the cable in a hobby vise to hold it steady. This approach flattens the wire bundle and improves alignment, reducing the risk of misaligned conductors.
- Strip the cable jacket back 2–3 inches using a dedicated stripping tool. Avoid nicking the wires, as even small cuts can weaken the connection.
- Untwist and splay the wires only as far as the stripped jacket length. Keep the wires flat and tightly grouped to maintain signal integrity.
- Arrange the wires in the correct order for your chosen standard. Use tweezers or forceps to keep them aligned and prevent crossing.
- Flex the wires gently to seat them. This step helps the wires stay lined up when you release them.
- Trim the wires in a single, straight cut to about half an inch. Ensure all wires are even for a flush fit in the plug.
- Insert the wires fully into the RJ45 connector. Push until the cable jacket sits under the strain relief block.
- Use a strong light to check that all wires reach the end of the plug and sit in the correct order.
- Crimp the plug using a high-quality tool, such as the trueCRIMP V3. This tool trims conductors flush and uses the plug body as an anvil, ensuring clean cuts and secure connections. For shielded cables, crimp the ground collar first to provide strain relief and grounding.
- Test the terminated cable with a cable tester. This step confirms proper wiring and connection before you deploy the cable.
Tip: Feed-thru connectors simplify the process by letting you confirm wire order visually before crimping. Cat6-style connectors also make wire insertion easier and reduce the risk of kinks.
You should avoid excessive jacket stripping, as this can cause wire kinks and compromise rj45 termination quality. Always use sharp, well-maintained blades in your crimping tool to prevent incomplete cuts and dangling conductors.
Verifying Secure Connection and Strain Relief
You must verify that your rj45 termination is both electrically sound and mechanically secure. High termination quality directly impacts the durability and performance of your network.
- Properly crimped RJ45 8P8C connectors use 3-prong contact pins to pierce the insulation and establish a reliable electrical path. However, these do not create an air-tight seal, so conductor movement can occur if the crimp is weak.
- Poor crimping quality leads to conductor shifting, loss of contact, and unreliable connections. These issues degrade both durability and network performance.
- Always check that the cable jacket extends into the plug and sits under the strain relief tab. This placement prevents tension on the conductors and protects against cable pull-out.
- For shielded cables, ensure the ground collar is crimped first. This step provides both strain relief and proper grounding, which are essential for stable operation in environments with electromagnetic interference.
Note: Use a cable tester after every rj45 termination. This device detects wiring errors, shorts, and opens, helping you catch problems before they affect network reliability.
You improve long-term performance when you understand the differences between solid and stranded cable types and select the right termination method for each. IDC terminations offer superior mechanical and electrical stability by creating an air-tight seal, but most rj45 plugs rely on proper crimping technique for lasting results.
Consistent attention to detail during the crimping process ensures that you terminate rj45 plugs with maximum reliability. High-quality tools, careful inspection, and thorough testing all contribute to superior termination quality and dependable network connectivity.
Testing RJ45 Termination for Network Connectivity
After you complete RJ45 plug termination, you must verify the quality of your work. Proper testing ensures that your network delivers reliable connectivity and maintains high signal integrity. This process helps you catch wiring errors, detect faults, and confirm that your installation meets industry standards.
Using a Cable Tester to Verify Terminate Ethernet Cable
Operating the Cable Tester
You begin testing by connecting both ends of the terminated Ethernet cable to the cable tester. Most testers feature labeled ports for easy identification. Power on the device and select the appropriate test mode. The tester will send electrical signals through each wire pair, checking for continuity and correct wiring order. Some advanced testers also measure signal loss and detect split pairs.
Always use a cable tester after every termination. This step helps you identify issues before they affect network connectivity.
Interpreting Test Results
Once the test completes, review the results displayed on the tester. A successful test shows all wire pairs connected in the correct order, with no open circuits or shorts. If the tester indicates a wiring fault, such as a miswired pair or a short, you must re-terminate the plug. Pay close attention to split pairs, as these can cause significant signal integrity problems and degrade network performance.
A typical cable tester result table might look like this:
| Pin Pair | Status | Issue Detected |
|---|---|---|
| 1-2 | Pass | None |
| 3-6 | Pass | None |
| 4-5 | Pass | None |
| 7-8 | Pass | None |
If you see a “Fail” or “Open” status, inspect your termination for errors. Consistent testing ensures that your network remains robust and free from connectivity issues.
Checking Network Performance After RJ45 Termination
Signal Loss and Connectivity Issues
You must evaluate network performance after termination to ensure optimal operation. Key indicators include throughput, latency, jitter, and packet loss. Physical checks remain important. Inspect the wiring order, confirm secure crimping, and look for any visible damage. Use a cable tester to detect wiring faults, such as open circuits or split pairs, which can lead to signal loss and intermittent connectivity.
Network devices often display link lights. These lights provide a quick visual cue about connection status. If you notice no light or a blinking pattern, investigate further for possible signal integrity issues.
Ensuring Reliable Data Transmission
To guarantee reliable data transmission, you should perform end-to-end system testing. Use a network analyzer to measure impedance stability and return loss across the entire channel. This approach checks every component, including patch cords, wall plates, and patch panels. Consistent impedance and minimal return loss indicate strong signal integrity and high network performance.
You should also schedule regular testing and maintenance. Follow industry standards to maintain optimal connectivity and prevent future signal problems. By prioritizing thorough testing, you ensure your network supports dependable data transfer and minimizes downtime.
Common Mistakes in RJ45 Termination and How to Avoid Them
Incorrect Wire Order in RJ45 Termination
Incorrect wire order remains one of the most frequent mistakes you encounter during rj45 termination. When you misplace conductor pairs or reverse wires, you risk network errors and reduced data rates. Ethernet standards such as TIA-568A and TIA-568B exist to ensure consistent wiring. Deviating from these standards can cause connectivity issues, slow speeds, and even hardware damage, especially in networks using Power over Ethernet.
Maintaining correct pairings is essential. Gigabit Ethernet uses all four pairs, so any wiring error affects performance more severely than older 10/100 Mbps systems.
Double-Checking Wire Arrangements
You can avoid wire order mistakes by adopting a systematic approach:
- Always compare your wire arrangement to a known-good plug.
- Keep the connector orientation consistent throughout the process.
- Use a cable tester to verify wiring before final deployment.
- Double-check color sequences before crimping.
| Mistake Type | Impact on Network |
|---|---|
| Conductor reversal | Errors, reduced speeds |
| Crossed wires | Faulty connections |
| Upside-down wiring | Device failures |
You improve termination quality by checking your work at each step. Consistent attention to detail helps you prevent costly troubleshooting later.
Incomplete Crimping When Terminating Ethernet Cables
Incomplete crimping can undermine your rj45 termination efforts. Poor crimping leaves loose connections, damaged shielding, or poor grounding, which leads to degraded network reliability and performance. You may notice “danglers,” which are conductor ends left hanging after the trimming blade cuts the wires. These usually appear on conductors 1 and 8 due to less contact with the crimping tool’s anvil.
Signs of Poor Crimping
Look for these signs to identify incomplete crimping:
- Loose or intermittent connections when testing with a cable tester.
- Visible “danglers” inside the plug after crimping.
- Raised contact pins or conductors not fully seated.
- Signal loss or frequent disconnections during operation.
If you spot danglers, use a second press with the crimping tool or remove them manually. Replace worn trimming blades to maintain high termination quality.
You ensure reliable rj45 performance by inspecting each plug after crimping and testing every cable before installation.
Excessive Untwisting of Wire Pairs
Excessive untwisting of wire pairs during rj45 termination can degrade signal integrity. Ethernet cables rely on twisted pairs to balance electromagnetic fields and minimize crosstalk. Untwisting more than 0.5 inch exposes wires to interference, which increases bit error rates and reduces network speeds.
Impact on Connectivity and Performance
When you untwist pairs too much, you disrupt differential signaling. One wire may sit closer to interference sources, causing imbalance and increased crosstalk. This leads to:
- Reduced signal-to-noise ratio.
- Increased susceptibility to noise and packet loss.
- Connection speeds limited to 100 Mb/s instead of 1 Gb/s.
Always keep twists as close to the plug as possible. Proper technique preserves termination quality and ensures your network delivers reliable performance.
You maintain high termination quality by minimizing untwisting and handling cables gently. Avoid excessive pulling or tight bundling, which can compress cables and further increase interference.
Insufficient Strain Relief in RJ45 Termination
Preventing Cable Damage
You protect your network investment when you prioritize strain relief during RJ45 termination. Strain relief prevents cable damage, maintains signal integrity, and extends the lifespan of your connections. If you neglect this step, you risk physical stress on the wires, which can lead to intermittent connectivity, broken conductors, and costly downtime.
Strain relief boots serve as the first line of defense against cable stress. You must select boots that match your cable type and diameter, such as Cat5e or Cat6. Flexible rubber or PVC materials offer durability and resist wear, making them ideal for both indoor and outdoor installations. When you work in harsh environments, choose boots with UV resistance and waterproofing to withstand moisture and sunlight.
Tip: Always slide the strain relief boot onto the cable before you begin termination. Attaching it afterward can damage the connector or compromise the connection.
Best practices for ensuring sufficient strain relief during RJ45 termination include:
- Prepare the cable by removing the outer jacket and exposing about 1 to 1.5 inches of individual wires. Avoid nicking or cutting the conductors.
- Slide the strain relief boot onto the cable, aligning the wider opening toward the cable end. This step must happen before you start arranging wires or crimping.
- Arrange and trim the wires according to the T568A or T568B standard. Keep wire lengths even for a flush fit.
- Insert the wires into the RJ45 connector, making sure each wire reaches its terminal.
- Crimp the connector firmly to secure the wires and ensure a solid electrical connection.
- Position the strain relief boot over the back end of the connector. This reduces stress on the cable and prevents movement that could loosen the wires.
You avoid common mistakes by following these steps:
- Do not use a boot that fails to fit the cable diameter. Loose boots can cause movement and damage.
- Never forget to slide the boot onto the cable before crimping. Retrofitting a boot risks damaging the connection.
- Avoid over-tightening or misaligning the boot. Excessive force reduces flexibility and can stress the cable.
- Reject low-quality boots that crack or deteriorate. Flexible PVC or rubber materials provide better protection.
- Consider environmental factors. Moisture, heat, and UV exposure require boots rated for those conditions.
- Practice proper cable management. Even with strain relief boots, poor routing or excessive force can damage connections.
| Strain Relief Feature | Benefit |
|---|---|
| Proper fit | Prevents movement and damage |
| Flexible material | Resists cracking and wear |
| Environmental rating | Protects in harsh conditions |
| Correct installation | Maintains connection quality |
You ensure reliable RJ45 termination when you use high-quality strain relief boots and follow best practices. Careful attention to strain relief protects your cables from damage and supports long-term network performance.
Troubleshooting RJ45 Plug Termination Issues
When you encounter network problems, you need a systematic approach to identify and resolve issues with rj45 plug terminations. Reliable troubleshooting helps you maintain strong signal quality and dependable connectivity.
Identifying Faulty RJ45 Termination
Visual Inspection Techniques
Start by examining the physical condition of your rj45 connectors and cables. Hold the connector with the flat side facing you and check the color of pin 1. Confirm that the wire order matches the T568A or T568B standard. Look for visible damage such as cuts, frays, or bent pins. Inspect the cable for kinks or excessive bends, which can weaken the signal and cause intermittent failures.
Tip: Always verify that the connector is fully seated and that the cable jacket extends into the plug for proper strain relief.
Using Diagnostic Tools
You can use diagnostic tools to confirm the integrity of your cable termination. A cable tester checks for continuity, correct wiring order, and split pairs. Connect both ends of the cable to the tester and review the results. If the tester shows a fault, you may have a miswired pair or an open circuit. Some advanced testers also measure signal loss, helping you pinpoint weak spots in your network. If the cable passes the tester but issues persist, try a different Ethernet port or device to rule out hardware problems.
Effective troubleshooting steps include:
- Verify all connections are properly plugged in.
- Inspect for visible physical damage.
- Use a cable tester to check connectivity and wiring order.
- Consider faulty ports or devices if the cable tests fine.
- Ensure wires are fully inserted and arranged correctly before crimping.
- Replace damaged or worn connectors.
- Address loose connectors by reseating or replacing them.
- Avoid improper stripping or incompatible connectors.
- Always test the cable after termination.
Fixing Problems with Terminate Ethernet Cables
Re-terminating the Plug
If you discover a faulty rj45 termination, you often need to re-terminate the plug. Use the correct tools: a cable stripper, crimping tool, and new rj45 connector. Strip the cable jacket carefully, untwist the wires, and arrange them according to the T568B or T568A standard. Cut the wires to equal length and insert them into the connector with the clip facing down. Crimp the connector firmly to ensure a solid electrical connection. Slide a connector boot onto the plug for strain relief. Test the cable with a LAN cable tester to confirm proper wiring and signal continuity.
Addressing Intermittent Connectivity
Intermittent connectivity often points to unstable rj45 connections or signal interference. Make sure the cable is fully plugged in and the connector is secure. Check for excessive cable bending or physical damage. Use shielded cables and connectors in environments with high electromagnetic interference. Keep cable lengths within recommended limits to prevent signal degradation. If problems persist after re-termination, replace the cable or try different network ports. Update network drivers and use operating system troubleshooting tools to rule out software issues.
Note: Consistent use of proper tools and adherence to wiring standards ensures reliable cable termination and strong signal performance.
Best Practices for Reliable RJ45 Termination
Consistent Technique for Terminate RJ45 Plugs
Standardizing Procedures
You achieve the highest reliability in your network when you standardize your termination procedures. Consistency in your technique ensures every cable meets performance expectations and reduces troubleshooting time. Start by selecting the correct RJ45 connectors for your cable type and manufacturer. Always use the right tools, such as a cable cutter, flush cutters, and a high-quality crimping tool. Remove any spline in the cable with care, then untwist and straighten the conductors gently. Arrange the wires in the correct T568B sequence, then flush cut them evenly for smooth insertion.
Follow these steps for every termination:
- Insert the conductors fully into the RJ45 connectors, pushing the cable jacket into the rear for strain relief.
- Use the crimping tool to secure the plug, ensuring all contacts are seated and the strain latch engages.
- Slide a strain relief boot over the plug to stabilize the termination.
- Complete testing after every termination to confirm proper connectivity and performance.
Tip: Practice on scrap cable before working on your main installation. This habit helps you refine your technique and avoid costly mistakes.
Quality Materials for Terminate Ethernet Cable
Choosing Reliable Components
You support long-term network reliability by choosing quality materials. Avoid using crimp-style RJ45 connectors on solid core CAT5 or CAT6 cables, as this can lead to wire breakage and poor performance. For solid core cables, prefer IDC punchdown jacks, such as keystone jacks or field-terminated RJ45s. These options provide superior reliability, especially in permanent installations.
Stranded cables work best for patch cables because they offer flexibility and resist breakage. Always ensure compatibility between your cable and connectors. Reliable components reduce the risk of signal loss and minimize maintenance needs. When you select trusted brands and avoid substandard parts, you protect your network investment.
| Cable Type | Recommended Connector | Application |
|---|---|---|
| Solid Core | IDC Punchdown Jack | Permanent Install |
| Stranded | Crimp-style RJ45 Connectors | Patch Cables |
Note: Proper termination practices and tool use remain critical for successful RJ45 terminations, regardless of cable type.
Regular Testing for Network Connectivity
Scheduled Maintenance and Checks
You maintain network reliability by implementing regular testing and scheduled maintenance. After each termination, use a cable tester to verify wiring order and continuity. Testing helps you catch errors early and ensures every connection performs as expected. Schedule periodic checks for all critical network links. This routine allows you to identify potential issues before they disrupt service.
Create a maintenance log to track testing results and cable replacements. Consistent documentation supports long-term reliability and simplifies future troubleshooting. By prioritizing regular testing, you ensure your network delivers stable performance and minimizes downtime.
Callout: Minimize conductor untwist length to half an inch or less. This practice preserves signal quality and enhances overall reliability.
You achieve reliable RJ45 plug termination by following each step with precision. Careful preparation, correct wiring, and thorough testing help you build a strong network foundation. Consistent technique ensures every connection supports lasting network performance. When you use best practices and quality materials, you protect your network from common issues. Stay committed to these standards to maintain dependable connectivity in every installation.
FAQ
What is the most common mistake when terminating RJ45 plugs?
You often see incorrect wire order as the top mistake. Always double-check the color sequence before crimping. This step prevents connectivity issues and saves you time during troubleshooting.
Can you reuse an RJ45 plug after a failed termination?
You should not reuse RJ45 plugs. Crimping deforms the metal contacts. Reusing a plug can cause poor connections and unreliable performance. Always use a new plug for each termination.
How much of the cable jacket should you strip before termination?
You should strip about 1 to 1.5 inches of the outer jacket. This length gives you enough room to arrange the wires without exposing too much, which helps maintain signal integrity.
Do you need a cable tester for every terminated cable?
Yes, you need to test every cable. A cable tester helps you catch wiring errors, shorts, or open circuits. This step ensures your network runs reliably and meets industry standards.
What is the difference between solid and stranded Ethernet cables?
Solid cables use a single copper wire per conductor. Stranded cables use multiple thin wires twisted together. You use solid cables for permanent installations and stranded cables for flexible patch cords.
How do you choose between T568A and T568B wiring standards?
You select the standard based on your environment. Use T568A for residential or government projects. Choose T568B for most commercial networks. Always keep the same standard on both ends of the cable.
Why is strain relief important in RJ45 termination?
Strain relief protects your cable from physical stress. It prevents the wires from pulling out of the connector. You extend the lifespan of your network cables by using proper strain relief boots.
