Female ethernet connectors play a vital role in modern networking environments. Common applications include:
- Acting as physical interfaces in LANs for devices like computers, routers, and switches
- Supporting structured cabling in business settings to boost organization and scalability
- Enabling Power over Ethernet for devices such as IP cameras and wireless access points
- Streamlining high-density cable management in data centers
- Providing reliable connections in frequent-use areas with panel mount options
Selecting the right RJ45 female connector ensures dependable physical and electrical connections. High-quality connectors, compliant with industry standards, reduce signal degradation and electromagnetic interference. These factors support high-speed ethernet and extend connector longevity. Connector factory standards also matter for performance. When paired with specialized solutions such as an M8 connector or Type B connector, networks achieve even greater reliability and versatility.
Understanding Female Ethernet Connectors
What Is a Female Ethernet Connector?
Female ethernet connectors serve as the primary interface for network cables in both residential and commercial environments. These connectors, often referred to as rj45 female connector, act as modular jacks designed to receive the male rj45 connector plug. The rj45 female connector follows the 8P8C standard, which means it has eight positions and eight contacts. This design ensures compatibility with a wide range of ethernet cables and devices.
Note: The housing of a rj45 female connector typically uses high-performance polycarbonate plastic, sometimes transparent for inspection. Inside, eight gold-plated contacts provide corrosion resistance and stable signal transmission. Some connectors feature two-prong contacts, while others use three-prong contacts for improved wire retention and connection stability. Retaining latches secure the plug, preventing accidental disconnection. Shielded versions include a metal housing to reduce electromagnetic interference, which enhances data integrity in environments with high electrical noise.
A typical rj45 female connector appears in device housings, wall panels, and server racks. The secure fit between the male and female connectors ensures a tight physical and electrical connection, which is essential for reliable data communication.
| Specification | Details |
|---|---|
| Dimensions | 16 x 21 x 13 mm |
| Main Material | Plastic, Metal |
| Connector Type | RJ45 |
| Color | Black, Silver Tone |
| Weight | 0.1 Kg |
The Role of RJ45 Connectors in Networking
Rj45 connectors play a central role in ethernet networking. Each rj45 connector contains eight pins that correspond to the eight wires inside an ethernet cable. These pins ensure proper data transmission and power delivery, especially in networks that use Power over Ethernet (PoE) technology. The rj45 female connector, when paired with a male plug, enables stable and secure connections for devices such as computers, routers, and switches.
| Component | Function/Role |
|---|---|
| Pins | 8 pins correspond to 8 wires in ethernet cables, ensuring proper data transmission. |
| Color-Coded Wires | Facilitate correct wiring, crucial for network functionality and compatibility. |
| Protective Sheath | Protects wires from damage, ensuring durability and stable connections. |
| Latching Mechanism | Secures the connector to maintain a stable and secure connection during use. |
| Contacts | Connect pins to wires, providing stable electrical connections for data transfer. |
Rj45 connectors follow wiring standards such as T568A and T568B, which define the arrangement of the eight wires. These standards ensure compatibility and signal integrity across different network installations. Modular connectors, including the rj45 female connector, support high bandwidth and secure connections, making them suitable for both home and industrial networks.
Types of RJ45 Female Connectors
Several types of rj45 female connector exist to meet diverse application needs. The most common types include shielded (STP), unshielded (UTP), and industrial-grade waterproof connectors. Each type offers unique features and benefits.
| Connector Type | Key Features | Typical Applications |
|---|---|---|
| Shielded (STP) | Protects against electromagnetic interference; suitable for high EMI environments | Data centers, factories, industrial settings |
| Unshielded (UTP) | Cost-effective; suitable for standard office or residential networks | Office networks, smart home systems |
| Industrial-grade Waterproof | Rugged, corrosion-resistant, IP67-rated for dust and water protection | Outdoor installations, industrial automation |
All rj45 female connector types use gold-plated contacts for enhanced durability and signal integrity. They comply with international standards, such as TIA/EIA-568, and support ethernet categories like Cat6 and Cat6a for high-speed data transmission. Modular connectors offer flexibility in mounting styles, including panel, board, and surface mount options, making them adaptable to various installation requirements.
Modular Connectors and Their Advantages
Modular connectors have become a standard choice in networking due to their versatility and practical benefits. These connectors support a wide range of applications, from home networks to industrial automation. Their design allows engineers and installers to address various networking challenges with efficiency and reliability.
One of the main advantages of modular connectors lies in their cost-effectiveness. Manufacturers can source these connectors at low prices, and they remain widely available off-the-shelf. This availability reduces lead times for projects and ensures that replacements or upgrades can occur without delay.
Tip: Modular connectors often require minimal tooling for assembly, which helps technicians complete installations and repairs quickly.
The plug-in and unplug design of modular connectors simplifies both installation and maintenance. Users can easily upgrade or replace components, which increases system reliability and reduces downtime. Field assembly does not require soldering, making customization and cable management straightforward.
Many modular connectors feature ruggedized versions for industrial environments. These models withstand harsh conditions, such as exposure to dust, moisture, or vibration. Their durability ensures stable performance in factories and outdoor installations.
Key features of modular connectors include:
- Solderless assembly for easy customization and repair
- Ruggedized options for harsh environments
- Integrated magnetics for improved EMI shielding and connection reliability
- Standardized pinouts and multiple mounting styles for design flexibility
- Support for Power over Ethernet (PoE), enabling both data and power delivery
- Keying and color coding to prevent improper connections
- LED indicators for connection status and troubleshooting
The integration of magnetics within RJ45 modular connectors enhances electromagnetic interference (EMI) protection. This feature proves critical in environments with high electrical noise, such as data centers or manufacturing plants. Standardized pinouts and mounting options allow designers to adapt modular connectors to various devices and enclosures.
Support for Power over Ethernet (PoE) expands the application scope of modular connectors. Devices like IP cameras and wireless access points can receive both power and data through a single connection, reducing cable clutter and simplifying network design.
Color coding and keying features help prevent incorrect connections. These features also allow network administrators to restrict access to certain ports, improving security and organization. LED indicators built into some modular connectors provide real-time feedback on connection status, which aids in troubleshooting and monitoring.
Applications of Female Ethernet Connectors

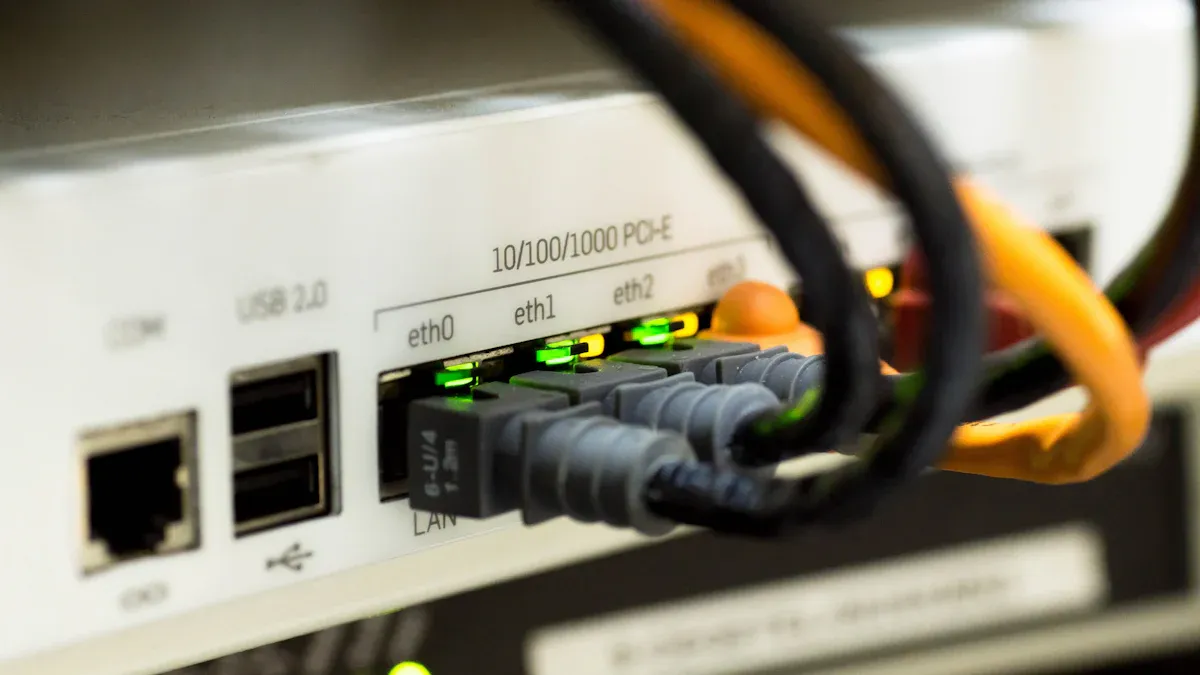

Home Networking with RJ45 Female Connectors
Internet Access Points
Home networks rely on the rj45 female connector to establish stable wired connections between routers, switches, and end devices. These connectors serve as the backbone for internet access points throughout residential spaces. By using rj45 connectors, homeowners achieve fast and reliable ethernet connections that minimize lag and signal loss. The rj45 female connector supports high-speed data transfer, which is essential for streaming, gaming, and remote work.
A closer look at primary use cases and market trends highlights the growing importance of these connectors in home networking:
| Category | Description | Impact on Home Networking and Adoption |
|---|---|---|
| Use Cases | Connecting routers, switches, and devices for stable wired networks | Ensures fast, reliable Ethernet; reduces lag and signal loss |
| Smart home integration linking smart hubs, security cameras, and automation controllers | Avoids wireless interference; improves control and security | |
| Home offices with reliable Ethernet connections | Supports stable bandwidth for streaming, gaming, and work-from-home | |
| Market Trends | Increased bandwidth support up to 10 Gbps | Enables high-speed data transfer; future-proofs home networks |
| Smart networking with AI and machine learning | Improves routing efficiency and reduces latency | |
| Power over Ethernet (PoE) | Simplifies device installation; reduces wiring complexity | |
| Cybersecurity enhancements | Reduces vulnerabilities; requires updated security policies | |
| Cloud networking facilitating remote management | Enables cloud-based network control and monitoring |
The rj45 female connector also enables Power over Ethernet, which simplifies device installation by delivering both data and power through a single cable. This feature reduces wiring complexity and supports the growing number of smart devices in modern homes.
Smart Home Device Integration
Smart home systems depend on the rj45 female connector to connect automation hubs, security cameras, and other IoT devices. Wired ethernet connections provide stable bandwidth for 4K streaming, online gaming, and home automation hubs. These connections avoid wireless interference, ensuring consistent performance for critical devices.
Homeowners benefit from easy installation and visual link/activity indicators on many rj45 connectors. The rj45 female connector supports cloud networking, enabling remote management and monitoring of smart home devices. As smart networking technologies advance, the application of rj45 connectors in home environments continues to expand.
Tip: For smart home installations, using shielded rj45 connectors can further reduce electromagnetic interference and improve overall network reliability.
Office and Commercial Use of Modular Connectors
Workstations and Desk Connections
Modern offices use rj45 female connector solutions to provide reliable ethernet access at every workstation. These connectors support high-bandwidth data communication, which is essential for business operations. The rj45 connector’s keyed design prevents incorrect mating, while twisted-pair cabling cancels electromagnetic interference. This design enables data rates up to 10 Gbps, supporting demanding applications such as video conferencing and large file transfers.
Key benefits of rj45 connectors in office environments include:
- Compact size and low cost
- Global availability and backward compatibility with legacy systems
- Solderless assembly for easy cable customization and repair
- Support for Power over Ethernet, reducing infrastructure needs
Modular connectors also offer ruggedized and sealed versions for environments that require additional protection. These features make the rj45 female connector a critical component in scalable and power-efficient business networks.
Conference Room and AV System Integration
Conference rooms and AV systems rely on the rj45 female connector for seamless integration of audio, video, and control signals. The rj45 connector supports managed switches, VLANs, and advanced features such as LED status indicators and integrated magnetics. These features enhance reliability and simplify troubleshooting.
In commercial settings, modular connectors reduce downtime and increase system reliability. Field personnel benefit from simple training, easy upgrades, and multiple wiring options. The rj45 female connector’s flexibility and performance make it indispensable for modern office and commercial network infrastructures.
Note: Shielded rj45 connectors with panel mount options provide additional protection and stability for high-traffic conference room installations.
Industrial Applications for RJ45 Connectors
Factory Automation Systems
Industrial environments impose strict requirements on rj45 connectors. Factory automation systems demand connectors that maintain signal integrity, support high data rates, and comply with international standards. The rj45 female connector must withstand temperature swings, oils, chemicals, moisture, abrasion, vibration, and electromagnetic interference.
| Requirement/Feature | Industrial RJ45 Connectors | M12 Connectors (Industrial Standard) | Standards for Factory Automation |
|---|---|---|---|
| Environmental Resistance | Must be ruggedized to withstand temperature swings, oils, chemicals, moisture, abrasion, vibration, EMI | IP67 rated, circular design, robust locking, EMI resistant | Must comply with IEC and ISO standards |
| Durability | Rugged housings to protect against dust, dirt, liquids; specialty versions reduce micro-fretting but are costly and sensitive to interference | Designed for harsh environments, resistant to vibration and EMI | Support industrial protocols like PROFINET, EtherNet/IP |
| Data Transmission Speed | Supports up to 1 Gbps in controlled environments | Supports standard industrial Ethernet protocols with maintained signal integrity | Protocol compatibility critical for factory automation |
| Connector Design | Standard RJ45 connectors are rectangular and widely compatible but less rugged | Circular connectors with locking threads (12 mm), multiple pin configurations | Must ensure reliable communication and interoperability |
| Application Suitability | Suitable for controlled environments, high-speed data needs | Preferred in harsh industrial environments for sensors, actuators, Fieldbus | Adherence to international standards ensures reliability |
The rj45 female connector remains relevant in controlled industrial environments and for high-speed data transmission. However, harsh conditions may require the use of M12 connectors or adapters to bridge different protocols and environments. Compliance with IEC and ISO standards ensures interoperability and reliability in factory automation.
Harsh Environment Installations
Industrial rj45 connectors must be ruggedized to protect against dust, dirt, liquids, and other harmful substances. These connectors often feature robust housings, locking mechanisms, and EMI resistance. In harsh environments, M12 connectors with IP67 ratings provide additional protection and secure connections to prevent accidental disconnections.
Industrial Ethernet solutions use rj45 female connector options with strain reliefs, gaskets, and locking flanges. These features ensure reliable signal integrity and prevent unplanned disconnects in demanding environments. The application of rj45 connectors in industrial settings supports protocols such as PROFINET and EtherNet/IP, which are critical for automation and process control.
Callout: Use of M12 to rj45 adapters allows flexible integration of different devices and protocols, supporting the evolving needs of modern factory automation systems.
Data Center Solutions Using Female Ethernet Connectors

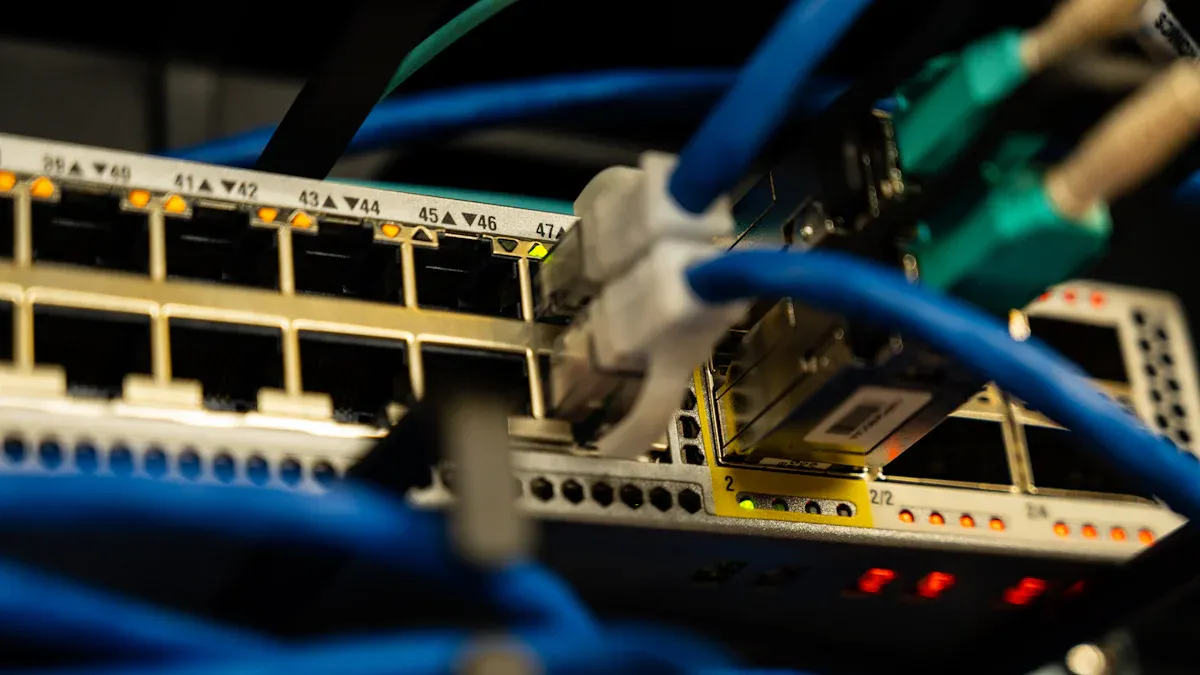

Server Racks and Patch Panels
Data centers depend on the rj45 female connector to create organized, scalable, and high-performance network infrastructures. Server racks and patch panels use these connectors to manage hundreds or even thousands of connections efficiently. The rj45 connector provides a secure interface for ethernet cables, ensuring stable data transmission between servers, switches, and storage devices.
Multi-port rj45 connectors, available in ganged (1xN) and stacked (2xN) configurations, allow engineers to maximize port density within limited rack space. These modular designs combine several rj45 female connector ports into a single compact unit, saving valuable PCB and panel space. The connectors support a wide range of ethernet speeds, from 10/100 Mbps to 10 Gbps, making them suitable for both legacy and modern equipment.
| Feature Category | Description |
|---|---|
| Connector Types | Multi-port female RJ45 connectors in ganged (1xN) and stacked (2xN) configurations |
| Space Efficiency | Combine multiple Ethernet ports into compact modules to save PCB space |
| Port Density | Support up to 16 ports in stacked dual-row (2×8) modules |
| Speed Compatibility | Support Ethernet speeds from 10/100 Mbps up to 10 Gbps |
| Integrated Features | Include magnetics, PoE support, Auto-MDIX, LED indicators |
| EMI Protection | EMI finger grounding and fully shielded metal shells for noise immunity |
| Mounting Options | Through-hole (THT), surface-mount (SMT), vertical or side-entry configurations |
| Environmental Durability | Industrial-grade designs withstand wide temperature ranges and mechanical stress |
| Use Cases | Network switches, servers, routers, embedded devices, industrial control systems, NAS boards |
Patch panels equipped with rj45 female connector modules simplify cable management and troubleshooting. Technicians can quickly identify, replace, or reroute connections without disrupting the entire network. Integrated features such as LED indicators, PoE support, and built-in magnetics enhance reliability and streamline maintenance. EMI shielding and robust metal shells protect sensitive data from electrical noise, which is critical in high-density environments.
Tip: Using stacked rj45 connectors in server racks increases port density and reduces the physical footprint, allowing data centers to scale up without expanding their infrastructure.
High-Density Networking
High-density networking presents unique challenges in data centers. The rj45 female connector addresses these challenges by offering compact, modular solutions that enable efficient use of space and resources. Ganged connectors arrange ports in a single horizontal row, simplifying cable routing and reducing clutter. Stacked connectors place two rows of ports vertically, doubling the number of available connections within the same footprint.
These rj45 connectors support advanced features such as Auto-MDIX for automatic crossover detection, PoE for combined data and power delivery, and LED indicators for real-time status monitoring. Fully shielded designs with EMI finger grounding ensure stable performance, even in environments with significant electrical interference.
Network engineers rely on these high-density rj45 connector modules to build scalable, reliable, and space-efficient infrastructures. The flexibility in mounting options—through-hole, surface-mount, vertical, or side-entry—allows seamless integration into a variety of devices and enclosures. Industrial-grade versions withstand temperature extremes and mechanical stress, making them suitable for both enterprise and industrial data centers.
Outdoor and Specialized Uses for RJ45 Female Connectors
Security Camera Installations
Security systems require robust and reliable connections to ensure continuous monitoring and data integrity. The rj45 female connector plays a crucial role in connecting IP cameras to network video recorders and monitoring stations. These installations often use Power over Ethernet, allowing a single cable to deliver both data and power, which simplifies setup and reduces wiring complexity.
Outdoor security cameras face harsh conditions, including moisture, dust, vibration, and electromagnetic interference. Waterproof rj45 connectors with high IP ratings, such as IP67 or IP68, protect against dust ingress and water submersion. Durable materials like ABS or nylon provide impact resistance, while gold-plated contact pins maintain stable electrical conductivity and minimize signal loss. Silicon rubber grommets create tight seals around cables, and screw-lock mechanisms prevent accidental disconnections.
Note: Proper installation practices—such as correct crimping, strain relief, and thorough testing—are essential to maintain connection integrity in outdoor security systems.
Field rj45 connectors with heavy-duty shielding and vibration dampening ensure reliable operation in industrial and outdoor environments. Selecting connectors rated for Cat6 or Cat6a guarantees sufficient bandwidth and speed for high-resolution video transmission.
Outdoor Access Points and Waterproof Applications
Outdoor access points extend network coverage to exterior spaces, such as campuses, stadiums, and industrial sites. The rj45 female connector enables these devices to maintain high-speed ethernet connections despite exposure to challenging environmental conditions. Waterproof rj45 connectors with robust sealing and shielding features protect against rain, dust, and temperature fluctuations.
Engineers select rj45 connector solutions with high IP ratings and ruggedized housings to ensure long-term durability. Gold-plated contacts and silicon grommets prevent corrosion and maintain signal quality. Screw-lock or bayonet-style mechanisms secure the connection, even in areas subject to vibration or accidental pulling.
In specialized applications, such as outdoor kiosks or industrial control panels, the rj45 female connector provides a reliable interface for ethernet connectivity. Proper installation and regular maintenance help prevent common issues like poor crimping, excessive wire untwisting, or lack of strain relief, which can compromise network performance.
Outdoor and specialized rj45 connectors support PoE, enabling the deployment of devices without separate power lines. This feature streamlines installation and reduces infrastructure costs, making it ideal for large-scale outdoor networks.
Key Design Features of Female Ethernet Connectors
Shielding and EMI Protection in RJ45 Connectors
Shielding plays a crucial role in the performance of rj45 connectors. Shielded rj45 connector designs protect sensitive data signals from electromagnetic interference (EMI) and radio frequency interference (RFI). This protection ensures stable data transmission and reduces the risk of data loss or corruption. The shield acts as a barrier, improving signal quality and consistency. Electrical isolation within connectors prevents faults and reduces noise, while signal balancing minimizes errors in communication.
| Feature | Benefit |
|---|---|
| EMI Shielding | Protects against electromagnetic interference for stable data transmission. |
| Electrical Isolation | Prevents faults by isolating different circuit parts, reducing noise and interference. |
| Signal Balancing | Reduces errors in data communication, improving signal quality. |
| ESD Protection | Guards against electrostatic discharge, enhancing device longevity. |
| Integration Options | Integrated magnetics filter noise and maintain signal integrity in harsh environments. |
Proper grounding with low loop inductance and low impedance connections between the connector shield, chassis, and system ground maximizes EMI protection. Shielded rj45 connectors require a low impedance path to chassis ground to stabilize DC offset and minimize voltage differences. Careful PCB floorplanning and return path design further enhance shielding effectiveness and signal integrity. Ground fills and thoughtful return path planning reduce common-mode noise and improve isolation after the common-mode choke.
Unshielded rj45 connector options remain suitable for environments with minimal electrical noise, but shielded versions provide superior reliability in demanding settings.
Mounting Styles for Modular Connectors
Modular connectors offer several mounting styles, each supporting flexible installation and system design.
Panel Mount Options
Panel mount connectors attach directly to device enclosures or wall plates. This style provides a secure interface for frequent plug-and-unplug scenarios, such as patch panels or workstation outlets. Panel mounting enhances durability and accessibility, making it ideal for high-traffic environments.
PCB Mount Solutions
PCB mount connectors integrate directly onto printed circuit boards. Engineers use through-hole or surface-mount techniques to secure these connectors. Board mounting supports compact device designs and allows vertical or horizontal orientation, which increases layout flexibility.
Surface Mount Choices
Surface mount connectors attach to the surface of a PCB without passing through it. This method enables low-profile designs and supports automated assembly processes. Surface mounting reduces labor costs and wiring errors, while allowing quick reconfiguration and easy component replacement.
- Common mounting styles for modular connectors include panel mount, board mount, through-hole, and surface mount.
- Modular jacks can be oriented vertically or horizontally.
- These mounting options allow integration in various environments and orientations, enhancing installation flexibility.
Modular connectors enable plug-and-play installation, reducing wiring errors and labor costs. Their design allows easy disconnection and swapping of components or sub-systems without rewiring, increasing system adaptability and reducing downtime.
IP Ratings and Environmental Protection for RJ45 Female Connectors
IP ratings indicate the environmental protection level of rj45 connectors. In industrial and outdoor settings, connectors rated IP67 or higher provide dust-tight and water immersion protection. These shielding and waterproof options suit harsh conditions, while lower ratings like IP20 fit indoor or controlled environments. Materials such as ABS or nylon housings and silicon rubber grommets enhance durability and sealing, preventing dust and water ingress.
Connectors with higher IP ratings maintain data integrity and operational reliability under challenging conditions. Factories, marine environments, and outdoor surveillance systems rely on these features to ensure stable Ethernet connections despite moisture, dust, and vibration. Selecting connectors with appropriate IP ratings at each connection point ensures overall system resilience.
In cable assemblies, the contrast between an M12 connector side rated IP67 and an RJ45 side rated IP20 highlights the necessity of choosing connectors with suitable protection for each environment. Engineers must match the IP rating to the installation site to guarantee long-term reliability.
Power over Ethernet (PoE) Support in Modular Connectors
Power over Ethernet (PoE) has become a critical feature in modern modular connectors. Network designers rely on PoE to deliver both data and electrical power through a single cable, streamlining installations for devices such as IP phones, smart lighting, and industrial sensors. The evolution of PoE standards, from IEEE 802.3af (15.4W) to 802.3at (30W) and now IEEE 802.3bt (up to 90W), supports a broad range of powered devices. A recent Ethernet Alliance survey found that 33% of organizations plan to deploy PoE devices requiring more than 51W within the next year, highlighting the growing demand for higher power delivery.
Connectors designed for PoE must meet strict technical requirements to ensure reliable operation. High-quality shielded cables, such as Cat6a or Cat7, are recommended for continuous 90W power delivery. Shielded connectors prevent electromagnetic interference and cross-talk, which is essential in industrial environments with heavy machinery. Locking or sealed RJ45 jacks help maintain signal integrity in areas subject to vibration. Industrial-grade connectors, including M12 models with IP67 ratings, provide durability and environmental protection.
Tip: OEM switches often feature advanced power management, surge protection, and thermal design to support PoE++ deployments in smart factories and IoT edge environments.
Thermal management, power negotiation, and compliance with surge and EMC standards are vital for PoE switch design. Rugged form factors, such as DIN-rail or rack-mounted switches, tolerate high ambient temperatures and offer high mean time between failures (MTBF), ensuring long-term reliability.
- Shielded connectors and cables are essential for high-wattage PoE.
- Locking mechanisms and environmental sealing protect against vibration and moisture.
- Advanced switch features support dynamic power management and device safety.
Connector Materials and Durability
The choice of materials in connectors directly influences their durability and lifespan. RJ45 connectors typically use polycarbonate housings, valued for low thermal expansion and excellent stability. This material adapts well to complex environments and ensures a long service life. Shielded connectors include a metal layer that protects against electromagnetic interference, enhancing both signal integrity and durability.
Industrial ruggedized connectors feature strong enclosures designed to resist dust, water, and shock. These properties make them suitable for harsh environments and extend their operational lifespan. High-impact fire retardant plastics contribute to longevity and resistance to wear. Shielded couplers use superior-quality materials to withstand industrial conditions, improving reliability.
| Component | Material Used | Influence on Durability and Lifespan |
|---|---|---|
| Housing | Polycarbonate or high-impact fire retardant plastics | Provides durability, resistance to wear, and long service life. Adapts to complex environments. |
| Contact Pins | Bronze or phosphor bronze, gold-plated | Gold plating prevents corrosion, ensures conductivity, and maintains signal integrity over many cycles. Bronze alloys offer toughness for reliable contact. |
| Shielding Layer | Metal layer in shielded connectors | Protects against EMI, enhancing performance and durability in noisy environments. |
| Couplers/Keystone Jacks | Metal or high-quality plastic | Improves robustness, allowing connectors to withstand harsh conditions and extend lifespan. |
Connectors made from these materials resist physical damage and environmental factors, ensuring reliable performance in both office and industrial settings.
Compatibility with Cable Types and Ethernet Standards
Connectors must ensure compatibility with various cable types and Ethernet standards to maintain network performance. RJ45 connectors follow physical standards that guarantee backward compatibility across Cat5e, Cat6, and Cat6a cables. Cat6 connectors have stricter specifications, including separation of twisted pairs to reduce crosstalk. Many Cat6 cables include a plastic insert shaped like a plus sign to keep pairs separated, and connectors must accommodate this feature.
- Category-rated connectors match the cable type (Cat5e, Cat6, Cat6a) for electrical and performance compatibility.
- Internal printed circuit boards in couplers maintain signal integrity.
- Shielded and unshielded versions allow matching with cable shielding.
- Adherence to RJ45 standards ensures universal fit.
- Internal design features, such as plastic inserts and precise conductor spacing, maintain twisted pair separation for higher categories.
Shielding and PCB tuning in couplers help prevent alien crosstalk, preserving signal quality. Best practices include using the highest category-rated connector available, minimizing the number of couplers per channel, and matching shielded cables with shielded connectors. Staggered load bar plugs for Cat6a reduce crosstalk and maintain 10Gbps performance. Factory pre-terminated patch cords offer consistent quality for solid copper cables. Strain relief boots stabilize connections, reducing cable movement and signal degradation.
Connectors that match conductor diameter ranges to cable specifications optimize fit and performance. Proper crimping techniques and minimizing hand terminations help avoid faulty connections that can impair compatibility and network reliability.
How to Select the Right Female Ethernet Connector
Assessing Application Requirements for RJ45 Connectors
Selecting the optimal rj45 female connector begins with a clear understanding of the application environment. Network designers must evaluate several factors to ensure reliable performance and long-term durability.
Data Speed and Bandwidth Considerations
Network speed requirements drive the choice of connectors. High-speed ethernet networks, such as those supporting 10 Gbps, demand connectors compatible with Cat6A cables. The rj45 female connector must support the necessary bandwidth to prevent bottlenecks and maintain data integrity. When comparing cat6 vs. cat5e, Cat6A connectors offer superior performance for demanding applications, while Cat5e connectors suit basic networking needs.
Tip: Always match the connector’s rated speed with the intended network speed to avoid limiting overall system performance.
Environmental and Installation Conditions
Environmental factors play a critical role in connector selection. Installations in harsh environments require ruggedized connectors with resistance to moisture, dust, and physical stress. Shielded connectors reduce electromagnetic interference, ensuring stable data transmission in areas with high electrical noise. Strategic placement of connectors on circuit boards optimizes network performance and minimizes interference. Compliance with wiring standards, such as T568A and T568B, guarantees compatibility across devices.
- Standard connectors suit office and residential settings.
- Shielded connectors excel in environments with significant EMI.
- Ruggedized connectors withstand industrial and outdoor conditions.
- Miniaturized connectors fit applications with space constraints.
- Magnetic jacks enhance signal integrity in mission-critical systems.
Integration of Power over Ethernet (PoE) capabilities influences connector choice. PoE-enabled rj45 female connectors simplify installations by allowing power and data transmission over a single cable, supporting flexible device placement.
Ensuring Compatibility with Modular Connectors
Compatibility between connectors and network components ensures stable and reliable data transmission. The rj45 female connector provides a standardized interface that matches wiring standards and cable specifications. Proper wiring and secure connections prevent common network issues, such as poor or lost connections, incorrect wiring, and signal interference.
Cable and Plug Type Matching
Matching the connector to the correct cable type and plug is essential for optimal performance. The rj45 female connector must align with the cable type and compatibility requirements of the network. For example, Cat6 connectors accommodate the thicker conductors and tighter tolerances of Cat6 cables, while Cat5e connectors work with standard office wiring. When comparing cat6 vs. cat5e, Cat6 connectors provide enhanced shielding and support higher speeds.
Network designers should inspect connectors for features such as gold-plated contact pins and robust latching mechanisms. These features contribute to durability and consistent performance. Regular inspection and proper installation help avoid issues like loose connections and damaged contacts.
Network Standards (Cat5e, Cat6, Cat6a, etc.)
Adhering to network standards ensures reliable operation and future-proofing. The rj45 female connector must comply with wiring standards, such as T568A or T568B, and match the cable category in use. Cat6A connectors support higher speeds and improved shielding compared to Cat5e connectors. Using connectors with appropriate materials and features, such as EMI shielding, safeguards data integrity in environments with electromagnetic interference.
Note: Compatibility directly influences the ability of the network to sustain high-speed, stable, and reliable operation.
Evaluating Performance Features in RJ45 Female Connectors
Performance features determine the suitability of the rj45 female connector for high-speed or mission-critical networks. Engineers must assess several attributes to ensure consistent and reliable operation.
Shielding and Crosstalk Prevention
Shielding protects sensitive data signals from electromagnetic interference. The rj45 female connector with integrated shielding maintains signal integrity and reduces the risk of data loss. Color-coded wires inside the connector facilitate correct wiring, supporting network functionality. A protective sheath encases wires, enhancing durability and preventing damage. The latching mechanism secures the connector, providing stable and reliable connections.
- Shielded connectors excel in environments with high EMI.
- Unshielded connectors suit low-noise office or residential settings.
- Proper grounding and installation minimize crosstalk and signal degradation.
PoE Capability Assessment
Power over Ethernet (PoE) compatibility expands the application scope of the rj45 female connector. PoE-enabled connectors support both data and power transmission, simplifying device installation and reducing cable clutter. Engineers should verify PoE support when selecting connectors for devices such as IP cameras, wireless access points, and smart lighting.
| Performance Feature | Description |
|---|---|
| Data Transmission Speed | Supports up to 10 Gbps with Cat6A cables, suitable for high-speed Ethernet networks. |
| EMI Shielding | Provides protection against electromagnetic interference to ensure stable data flow. |
| Durability | Designed for frequent plugging/unplugging in industrial and outdoor environments. |
| Environmental Protection | IP67 rating ensures dust and water resistance for harsh conditions. |
| Industry Standards Compliance | Meets TIA/EIA-568-B.2 and ISO/IEC 11801 standards for reliable network performance. |
| Secure Locking Mechanism | Lock bayonet mechanism for stable and easy installation, preventing accidental disconnections. |
| Ease of Installation | Pre-assembled kits and field-installable options reduce handling time and errors. |
| PoE Compatibility | Supports Power over Ethernet for powering devices through the network cable. |
Network designers who choose the right rj45 female connector for their application ensure robust performance, minimal downtime, and long-term reliability. Careful evaluation of cable type and compatibility, shielding, and PoE support leads to a network infrastructure that meets current and future demands.
Installation and Maintenance of Female Ethernet Connectors
Ease of Installation
Proper installation of female Ethernet connectors forms the foundation for a reliable network. Installers should select high-quality keystone jacks with gold plating to prevent corrosion and ensure consistent conductivity. Choosing Cat5e or Cat6 cables with 23 or 24 AWG strikes a balance between flexibility and performance. Shielded cables, such as F/UTP, offer additional protection in environments with bundled cables or high-wattage PoE devices, reducing interference and improving heat dissipation.
Tip: Avoid using zip ties for cable bundling. Velcro straps allow for easier adjustments and prevent cable damage, which supports long-term reliability.
Installers should always power down PoE ports before connecting or disconnecting cables. This practice helps prevent accidental damage to both the connector and the device. Selecting cables with proper fire safety ratings, such as plenum-rated options, ensures compliance with building codes and enhances safety. Opting for higher category cables, like Cat6a or Cat7, future-proofs the installation and supports higher data rates and power delivery.
Best practices for maintaining an rj45 female connector include careful cable selection and adherence to structured cabling standards. These steps help prevent damage, corrosion, and interference, ensuring the connector remains reliable over time.
Accessibility for Repairs and Upgrades
Network environments often require changes, whether for expansion or troubleshooting connection issues. Planning for accessibility during the initial installation simplifies future repairs and upgrades. Technicians should install extra cabling and conduit to accommodate future growth, reducing the need for disruptive work later.
Following structured cabling standards, such as TIA/EIA and ISO, ensures proper labeling, layout, and spacing. This organization streamlines troubleshooting connection issues and makes replacing damaged connectors more efficient. Proper cable management, including the use of trays, ties, labels, and color coding, prevents accidental disconnections and supports quick identification of network segments.
A thorough approach to testing and certification is essential. Technicians should use professional equipment to verify signal integrity, attenuation, and continuity. Maintaining distance from power cables or using shielded twisted pair cables helps avoid electromagnetic interference, which can complicate repairs and degrade performance.
When replacing damaged connectors, technicians should select components that match the original specifications. This practice maintains network integrity and minimizes downtime. Regular inspections and adherence to best practices for maintaining an rj45 female connector extend the lifespan of the network infrastructure.
Cost vs. Value in Modular Connector Selection
Organizations often weigh the initial cost of modular connectors against their long-term value. Modular connectors may have higher upfront costs due to raw material prices, skilled labor, and investments in research and development. However, these costs are balanced by enhanced performance and durability, especially in demanding sectors such as defense and automotive.
Regulatory requirements in the United States, including cybersecurity and environmental standards, drive the development of more secure and sustainable connectors. These regulations increase R&D and compliance costs but result in connectors that offer greater reliability and longevity. The rapid adoption of 5G and IoT technologies has increased the demand for connectors that support high-frequency signals and smart features, such as embedded sensors for predictive maintenance. While these advancements raise initial costs, they significantly improve performance, durability, and adaptability to evolving digital infrastructure.
- Modular connectors enable faster installation and simplified maintenance, reducing labor costs and downtime.
- Standardized components allow reuse across multiple projects, leading to long-term savings.
- Design features such as scalability and customization support future expansions and technology upgrades.
- Durable materials and compliance with industry standards ensure reliability and longevity.
- Smart connectors with real-time diagnostics enhance performance and reduce failures.
- Avoiding common design mistakes improves overall system durability and cost-effectiveness.
The value of modular connectors extends beyond their purchase price. Their ability to reduce downtime, optimize system integration, and support future upgrades justifies the investment. Organizations that prioritize quality and compliance benefit from reliable, scalable, and future-proof network solutions.
Practical Use Cases for Female Ethernet Connectors
Home Office Networking with RJ45 Female Connectors
Home office environments demand stable and easy-to-install ethernet connections. RJ45 female connectors provide a reliable interface for connecting computers, printers, and other network devices. Many users prefer pass-through RJ45 connectors for home installations. These connectors simplify wire insertion and make termination easier, especially for those new to networking. Users can verify correct wire alignment and color sequence before crimping, which helps reduce wiring errors. This process increases the success rate of termination and results in more stable network connections.
- Pass-through RJ45 connectors support efficient installation.
- They allow users to check wire order before crimping.
- These connectors help prevent common wiring mistakes.
- Home offices benefit from reliable ethernet connections for daily tasks.
A well-installed RJ45 female connector ensures consistent data communication and minimizes downtime. Home offices that use these connectors experience fewer connectivity issues and enjoy smoother performance for video calls, file transfers, and online collaboration.
Industrial Automation Lines Using Modular Connectors
Industrial automation lines require robust and adaptable connectivity solutions. Modular connectors enable flexible system designs, allowing quick installation, maintenance, and expansion. These connectors support easy customization, which is essential for adapting to changing production needs. Engineers select modular connectors that maintain signal integrity by minimizing signal loss, electromagnetic interference, and noise.
Mechanical requirements include the right connector size and shape, proper insertion and extraction force, and high durability. Electrical requirements focus on voltage and current ratings, contact and insulation resistance, surge current capacity, and EMI shielding. Environmental resistance is also critical. Connectors must withstand temperature extremes, humidity, dust, water, corrosion, shock, and vibration.
- Mechanical durability ensures long-term reliability.
- Electrical performance maintains safe and stable operation.
- Environmental resistance protects against harsh conditions.
- Modular connectors support flexible and scalable automation systems.
Proper installation, regular inspection, and adherence to industrial standards guarantee reliable performance in demanding environments. These practices help maintain efficient ethernet networks on the factory floor.
Data Center Expansion with RJ45 Connectors
Data centers rely on RJ45 connectors to support organized and scalable ethernet networks. These connectors link computers, switches, routers, patch panels, and network interface cards. Their design ensures consistent performance and secure physical connections, supporting data speeds from 100 Mbps to 1 Gbps or higher. RJ45 connectors make expansion straightforward by enabling organized cabling, quick reconfiguration, and clean cable management.
- Plan cabling infrastructure with future growth in mind.
- Keep detailed documentation of all cabling, including location and type.
- Follow a cable management plan with standardized procedures.
- Use consistent naming conventions for cables and equipment.
- Maintain and update visual diagrams of the cabling layout.
- Implement change management to track modifications.
- Apply color coding and clear labeling for easier troubleshooting.
- Preserve proper cable bend radius to prevent damage.
- Select cable types based on distance, bandwidth, and environmental needs.
Modular and standardized RJ45 connectors allow for interchangeable components, which simplifies upgrades and maintenance. Data centers that use these connectors achieve efficient ethernet expansion and maintain high standards for network reliability.
Outdoor Security Systems and Waterproof RJ45 Female Connectors
Outdoor security systems demand robust and reliable network connections. Surveillance cameras, access control panels, and monitoring devices often operate in environments exposed to rain, dust, and temperature extremes. Engineers select waterproof RJ45 female connectors to ensure these systems maintain stable data transmission and power delivery.
Outdoor connectors must meet several unique requirements to perform effectively in harsh conditions:
- Connector housings use durable materials such as ABS or nylon. These materials resist environmental wear, impact, and UV exposure.
- Internal contact pins feature gold plating. This design improves electrical conductivity and reduces signal loss, which is critical for high-resolution video streams.
- Silicon rubber grommets or similar sealing elements prevent water and dust from entering the connector. These seals maintain a secure fit, even during heavy rain or wind.
- Connectors support Cat6 or Cat6a Ethernet standards. This compatibility allows high bandwidth and fast speeds, which are essential for Power over Ethernet (PoE) devices like IP cameras.
- Waterproof RJ45 connectors meet or exceed IP67 standards. Some models achieve IP68 ratings for protection against prolonged water immersion.
- Secure locking mechanisms, such as screw-locks or latching clips, prevent accidental disconnections. These features also help preserve the environmental seal.
Tip: Installers should always verify the IP rating of connectors before deploying them in outdoor security systems. Higher ratings provide better protection against dust and water.
The following table summarizes the key features required for outdoor RJ45 female connectors:
| Feature | Purpose |
|---|---|
| ABS/Nylon Housing | Resists impact, UV, and environmental wear |
| Gold-Plated Contact Pins | Ensures stable data and power transmission |
| Silicon Rubber Grommets | Blocks water and dust ingress |
| Cat6/Cat6a Support | Handles high-speed data and PoE |
| IP67/IP68 Rating | Provides dust-tight and waterproof performance |
| Secure Locking Mechanism | Prevents accidental disconnects and maintains seal |
Outdoor security systems benefit from shielding and waterproof options that protect sensitive electronics from environmental hazards. These features ensure reliable operation, reduce maintenance needs, and extend the lifespan of surveillance equipment. By selecting connectors with the right materials, sealing, and standards compliance, engineers build networks that withstand the challenges of outdoor deployment.
Selecting female ethernet connectors that match specific application requirements ensures network reliability and compatibility. Features such as gold-plated contacts, proper shielding, and ruggedized designs support stable connections in diverse environments.
For best results, users should consider the following quick tips:
| Tip Category | Recommendation Summary |
|---|---|
| Shielding | Use shielded connectors in high EMI areas; unshielded for low-noise environments. |
| Ruggedization | Choose rugged or waterproof connectors for harsh or outdoor conditions. |
| Standards Compliance | Match connector category and pinout to system and cable requirements. |
Prioritizing durability, environmental protection, and adherence to modular connector standards reduces downtime and extends network lifespan.
FAQ
What is the main difference between shielded and unshielded RJ45 female connectors?
Shielded connectors use a metal layer to block electromagnetic interference. Unshielded connectors do not have this protection. Shielded connectors work best in environments with high electrical noise, such as factories or data centers.
Can a female Ethernet connector support Power over Ethernet (PoE)?
Yes. Many RJ45 female connectors support PoE. These connectors deliver both data and electrical power through a single cable. Devices like IP cameras and wireless access points often use this feature.
How does IP rating affect connector selection?
IP rating measures protection against dust and water. Higher ratings, such as IP67, indicate better sealing. Outdoor and industrial applications require connectors with high IP ratings to ensure reliable operation in harsh conditions.
Are all RJ45 female connectors compatible with Cat6 and Cat6a cables?
Not all connectors fit every cable type. Cat6 and Cat6a cables have thicker conductors and stricter tolerances. Always check the connector’s specifications to ensure compatibility with the intended cable category.
What mounting options exist for female Ethernet connectors?
Manufacturers offer panel mount, PCB mount, and surface mount options. Panel mount connectors attach to enclosures or wall plates. PCB and surface mount connectors install directly onto circuit boards for compact device designs.
How can users prevent signal loss in Ethernet connections?
Users should select connectors with gold-plated contacts and proper shielding. Correct installation, including secure crimping and strain relief, also helps maintain signal quality and reduces the risk of data loss.
When should a waterproof RJ45 female connector be used?
Waterproof connectors are necessary for outdoor installations or environments exposed to moisture and dust. Security cameras, outdoor access points, and industrial equipment often require these connectors for reliable performance.
Do modular connectors require special tools for installation?
Most modular connectors use simple tools, such as a punch-down tool or crimping tool. Some pass-through connectors simplify the process further. Proper tools ensure secure connections and reduce installation errors.
