The IP65 rating stands as a benchmark for reliable protection in harsh environments. Devices with IP65 resist dust entry and withstand water jets from any direction. Engineers often select the IP65 rating for outdoor equipment, including M8 connector and Type B connector systems. This level of protection helps manufacturers, such as a connector factory, deliver products that maintain performance despite exposure to challenging conditions.
IP Protection Rating System
What Is an IP Protection Rating?
An IP protection rating provides a standardized way to describe how well an electrical enclosure resists environmental hazards. The system uses two digits to indicate the degree of protection against solids and liquids. The first digit shows the level of defense against solid objects like dust, while the second digit measures resistance to water. This system helps engineers, manufacturers, and buyers compare products and select the right protection level for specific environments.
The International Electrotechnical Commission (IEC) introduced the IP rating system in 1976. The goal was to create a uniform method for rating electrical enclosures against environmental conditions. Over time, the system evolved to include more detailed protection ratings and improved testing methods. The IP standard ensures safety and reliability by preventing accidental contact with live components and by certifying devices for use in challenging conditions. The significance of IP ratings lies in their ability to help users choose equipment that matches their needs for dust and water resistance.
How the IP65 Rating Is Defined
The IP65 rating stands out as a common choice for outdoor and industrial applications. According to international standards, specifically IEC 60529, the IP65 rating requires two key protections: complete dust tightness and resistance to water jets.
Dust Ingress Protection Level 6
The first digit, “6,” represents the highest level of protection against solid objects. Devices with this rating prevent any dust from entering the enclosure. This dust-tight design ensures that sensitive electronics remain safe and operational, even in environments with heavy dust exposure.
Water Ingress Protection Level 5
The second digit, “5,” indicates protection against water jets from any direction. To meet this requirement, the device must withstand water projected by a 0.25-inch nozzle at a pressure of 30 kPa and a flow rate of 3.3 gallons per minute, from a distance of three yards, for at least fifteen minutes. This test confirms that the enclosure can resist multi-directional, low-pressure water jets, making it suitable for outdoor use where rain or water spray may occur.
Who Sets Ingress Protection Standards?
Several organizations define and update ingress protection standards to ensure global consistency:
- The International Electrotechnical Commission (IEC) serves as the primary global authority for IP protection rating standards.
- The IP rating system forms part of the IEC 60529 standard.
- Technical Committee 70 within the IEC creates and updates the rules for IP ratings.
- Regional standards, such as BS EN 60529 in the UK and EN 60529 in Europe, align with the IEC 60529 standard.
Note: These organizations work together to maintain and improve protection standards, ensuring that protection ratings remain reliable and relevant for manufacturers and users worldwide.
IP65 Rating: Dust and Water Ingress Protection
Complete Dust Tightness of IP65
The IP65 rating guarantees complete protection against dust and other solid particles. This level of ingress protection ensures that no dust can enter the enclosure, even in environments with high concentrations of airborne debris. Manufacturers achieve this by designing enclosures that seal all potential entry points, creating a dust-tight barrier.
How IP65 Prevents Dust Entry
Testing for the dust ingress protection level 6 involves a rigorous process. Laboratories place the product inside a chamber filled with fine dust particles of a specific size. The enclosure remains exposed for an extended period, longer than lower-level tests. After exposure, inspectors thoroughly examine the product to confirm that no dust has penetrated the enclosure. Any presence of dust inside the device results in a failed test. This strict procedure ensures that devices with the IP65 rating meet the highest standard for protection against small solids and maintain reliable performance in dusty environments.
Note: The first digit in the IP65 rating, “6,” represents the highest level of defense against solid particles. This means the enclosure is completely dust-tight, providing full protection for sensitive electronics.
Water Jet Protection with IP65
The IP65 waterproof rating also provides robust water resistance. Devices with this rating can withstand water jets projected from any direction. This feature makes IP65-rated products suitable for outdoor use, where exposure to rain or cleaning with a hose may occur.
Limits of Water Resistance in IP65
Laboratories verify the water protection of IP65 enclosures through a series of controlled tests. Technicians use a fan jet nozzle to deliver 15 liters of water per minute at the product for three minutes per spray position. They ensure the temperature difference between the water and the product remains within 5 Kelvin to avoid thermal shock. Sometimes, a water-sensitive colorimetric developer is placed inside the enclosure to detect any water ingress. After testing, inspectors visually examine the product and perform functional checks to confirm the integrity of the enclosure.
Despite the strong water resistance, the IP65 waterproof rating does not mean the device is fully watertight. The rating only covers protection against low-pressure water jets. It does not guarantee safety against submersion or high-pressure cleaning. Prolonged exposure to moisture or high humidity can still pose risks. For applications requiring complete watertightness or underwater use, higher ingress protection ratings, such as IP68, are necessary.
What IP65 Does Not Cover
While the IP65 rating offers excellent dust and water resistance, it has clear limitations:
- IP65 enclosures do not protect against submersion in water.
- The rating does not cover high-pressure water jets or steam cleaning.
- Devices may not withstand prolonged exposure to moisture or high humidity, which can eventually compromise seals.
- The IP65 waterproof rating does not make a product fully waterproof; it only ensures resistance to water jets.
- Regular maintenance, such as cleaning and inspection, remains essential to preserve the integrity of the ingress protection.
Tip: For environments that require protection against immersion or more severe water exposure, consider products with higher ingress protection ratings, such as IP67 or IP68.
Benefits and Limitations of IP65 Protection Rating
Advantages of IP65 for Devices
Enhanced Durability and Longevity
Devices with an IP65 protection rating deliver robust performance in demanding environments. Manufacturers design these products with environmental-resistant materials that block dust and withstand water jets. This dust-tight construction prevents even the smallest particles from entering and damaging internal components. The IP65 waterproof rating ensures that devices resist water jets from any direction, making them suitable for outdoor use during rain, cleaning, or accidental splashes.
- Complete protection against dust ingress keeps sensitive electronics safe.
- Resistance to water jets supports reliable operation in wet conditions.
- Enhanced durability allows devices to function in harsh weather, including extreme temperatures and UV exposure.
- Improved safety reduces risks of short circuits or fires by preventing water contact with electrical parts.
- Extended longevity results from reduced wear and tear caused by dust and water.
Outdoor digital signage, traffic equipment, and industrial applications often rely on IP65 certification for consistent performance. The advantages of IP65 certification include reliable operation in challenging environments and compliance with industry standards.
Reduced Maintenance Needs
IP65-rated devices require less frequent maintenance due to their sealed design. The protection rating guards against dust and water, which can cause corrosion, short circuits, or component failures. By blocking these hazards, IP65 enclosures help owners avoid costly repairs and replacements. Over time, this leads to lower total cost of ownership.
Systems with IP65 protection rating show resilience to environmental damage. Owners benefit from fewer failures and less downtime. The reduced need for maintenance also supports safety for personnel by minimizing exposure to electrical hazards during repairs. Devices such as outdoor LED displays and industrial controllers maintain performance with minimal intervention, saving both time and resources.
Tip: Choosing devices with IP65 protection rating can result in significant cost savings over the product’s lifespan.
Limitations of IP65 Protection
Not Suitable for Submersion
While the IP65 protection rating offers strong defense against dust and water jets, it does not protect against submersion. Devices with this rating cannot withstand immersion in water, even for short periods. Higher protection ratings, such as IP67 and IP68, provide protection against moisture and allow for temporary or continuous submersion. IP65 enclosures also remain vulnerable to high-pressure water jets, which can breach seals and cause internal damage.
- IP65 blocks dust and low-pressure water jets but fails to protect from moisture during submersion.
- Higher ratings like IP67 and IP68 support immersion and offer advanced water ingress protection.
- IP65 enclosures may be bulkier and more expensive than lower ratings but lack the full water resistance of higher-rated products.
Common Misconceptions
Many users misunderstand the capabilities of IP65-rated products. Some believe that IP65 means complete waterproofing or dustproofing. In reality, the rating only covers resistance to low-pressure water jets and dust ingress under standard conditions. Extreme environments may still allow minimal dust entry. The protection rating does not guarantee safety against chemicals, UV exposure, or mechanical impacts.
- Higher IP ratings are not always better; the chosen rating should match the environment’s needs.
- Passing one IP test (such as water jets) does not mean passing another (such as submersion).
- IP ratings from different manufacturers may vary in reliability, especially if not independently tested.
- The rating only covers protection from moisture and solids, not other hazards.
- Over time, seals can degrade, reducing the effectiveness of the IP65 protection rating.
Note: Regular inspection and maintenance remain essential to preserve the integrity of IP65-rated devices.

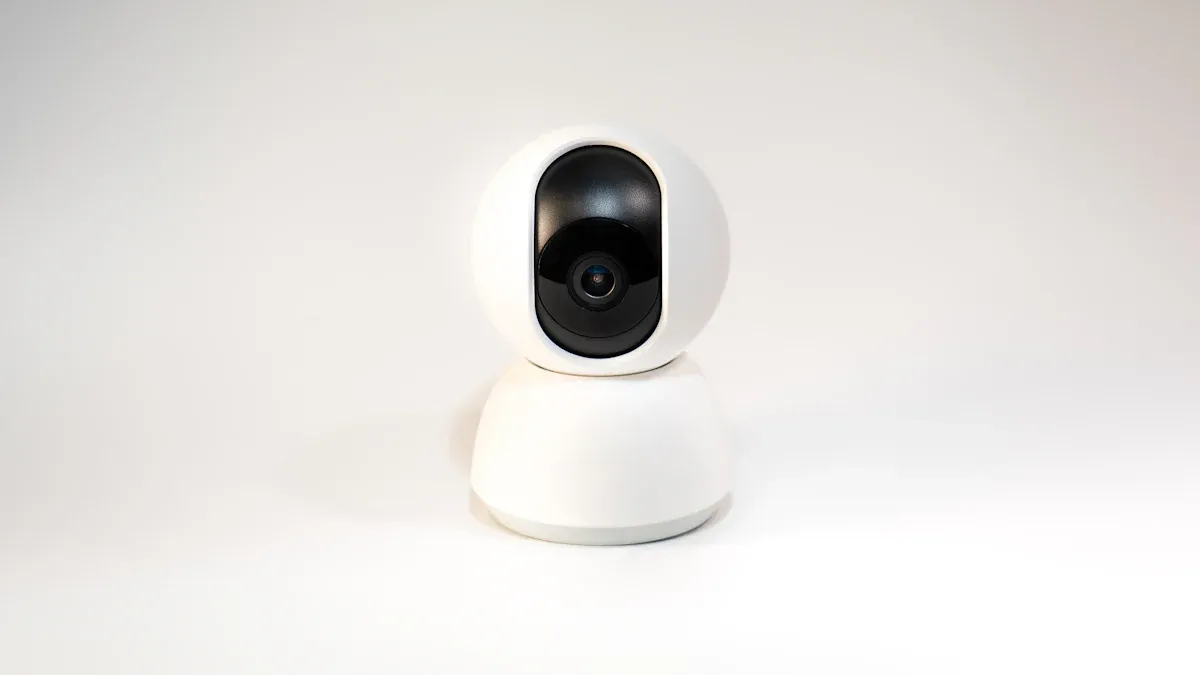

Real-World Applications of IP65
Outdoor Electronics and Security Devices
Many outdoor electronics rely on the ip65 rating to ensure reliable operation in unpredictable environments. Manufacturers design these devices to withstand dust, rain, and water jets, making them ideal for outdoor use. Security cameras and surveillance equipment often feature ip65 enclosures. These enclosures protect sensitive components from dust and water, allowing cameras and sensors to function without interruption during storms or heavy winds. Weather-sealed housings and durable materials further enhance the longevity of these systems.
Outdoor lighting solutions also benefit from ip65 protection. Products such as LED lights, solar lights, and LED tapes maintain performance even when exposed to rain or dust. Agricultural electronics, including sensors for temperature and humidity, use ip65-rated enclosures to operate reliably in fields and greenhouses. Industrial controls and IoT devices deployed outdoors depend on this rating for consistent performance.
Devices with ip65 protection offer dust-tight and water-resistant features, making them suitable for harsh weather conditions. This ensures security systems and outdoor electronics remain functional and reliable.
Common outdoor electronics with IP65 enclosures include:
- Outdoor security cameras and surveillance equipment
- Waterproof LED lights, solar lights, and LED tapes
- Agricultural sensors and controls
- Industrial forklift readers for warehouses and construction sites
- IoT devices and environmental sensors
Industrial Equipment with IP65
Industrial environments present unique challenges, including dust, moisture, and frequent cleaning. Equipment with ip65 protection withstands these hazards, ensuring uninterrupted operation. Manufacturers use sealed enclosures to protect industrial controls, sensors, and machinery from dust and water jets. This level of protection reduces the risk of equipment failure and extends service life.
Industrial forklift readers, temperature and barometric pressure sensors, and control panels often feature ip65-rated housings. These devices operate in warehouses, processing plants, and construction sites where dust and water exposure are common. The ip65 rating helps maintain accuracy and reliability, even in demanding settings.
Tip: Selecting ip65-rated industrial equipment minimizes downtime and maintenance, supporting productivity in harsh environments.
Consumer Products Using IP65
The ip65 rating appears in many consumer products designed for outdoor or rugged use. Portable speakers, such as the JC5WI model from MISCO, advertise ip65 protection. These speakers use features like acrylic impregnated cloth cones, rubber gaskets, and sealed enclosures to block dust and resist water jets. This makes them suitable for poolside parties, camping, or use in dusty workshops.
Manufacturers also offer waterproof enclosures for computers, printers, and rack-mounted equipment. These products protect electronics in wet or washdown areas, ensuring safe operation in kitchens, laboratories, and clean rooms.
| Product Category | Product Description | Product Code |
|---|---|---|
| Compact Waterproof Enclosures | For small computers and TFT screens up to 17 inches in wet or washdown areas. | SENC-300-US |
| Waterproof Computer Enclosures | Sealed to NEMA 4X, protects desktop and tower PCs and TFT screens up to 19 inches. | SENC-700-US |
| Waterproof Rack Mount Cabinets | NEMA 4X protection for 19″ rack mount equipment up to 18U. | SPRI-770R-US |
| Stainless Steel PC Enclosures | Ideal for wash or wipe down environments with NEMA 4X rating. | SENC-800-US |
| Waterproof Printer Enclosures | Enables reliable printer use in wet, washdown, and harsh environments. | SPRI-100-US |
| Clean Room Printer Enclosure | Compact enclosure for wet and sanitary locations, jet washable with NEMA 4X rating. | SPRI-100C-US |
| Zebra ZT411 Printer Enclosure | Protects printers on processing floors with NEMA 4X rating against daily pressure washing. | SPRI-200Z-US |
The common applications of ip65 rated devices span outdoor electronics, industrial equipment, and consumer products. This versatility demonstrates the importance of the ip65 rating in protecting technology across multiple industries.
Comparing IP65 to Other IP Protection Ratings
IP65 vs. IP54, IP66, and IP67

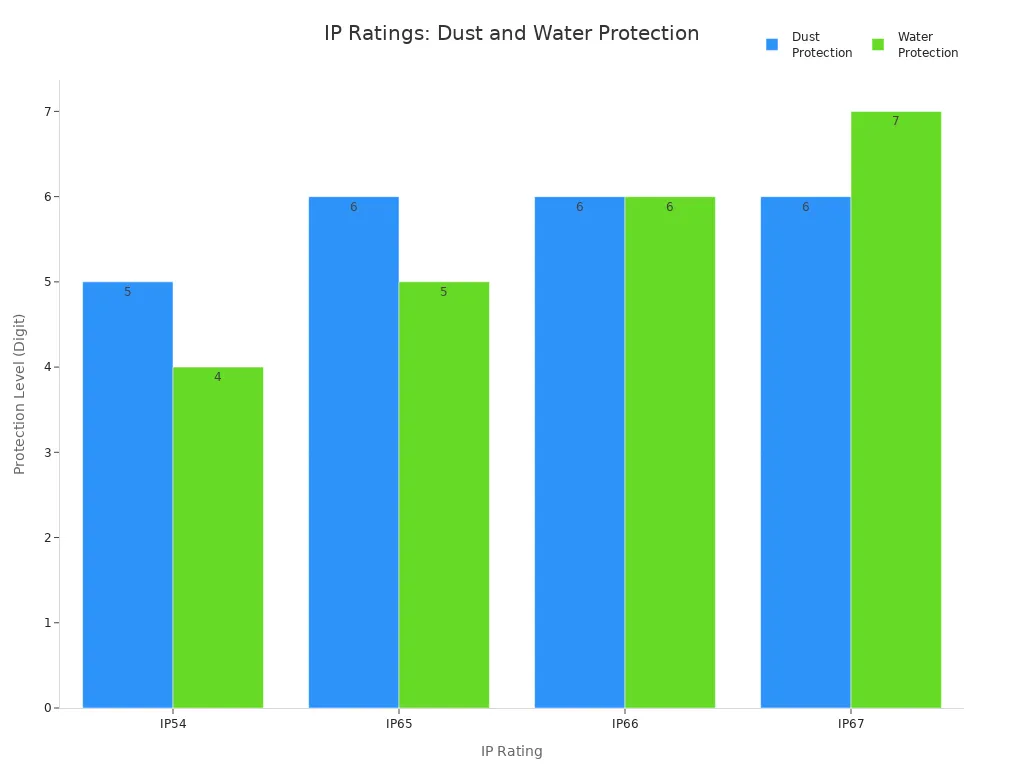

Manufacturers and engineers often compare IP65 with other common protection ratings to determine the best fit for specific environments. Each rating provides a different level of defense against dust and water, which impacts device durability and maintenance needs.
Dust Protection Differences
IP65, IP66, and IP67 all deliver the highest dust protection level, ensuring enclosures remain completely dust-tight. Devices with these ratings block all dust particles, safeguarding sensitive electronics in harsh conditions. In contrast, IP54 offers only limited dust ingress protection. Some dust may enter an IP54 enclosure, but it will not interfere with normal operation.
| IP Rating | Dust Protection (First Digit) | Water Protection (Second Digit) |
|---|---|---|
| IP54 | Limited dust ingress | Protection from water splashes from any direction |
| IP65 | Completely dust-tight | Protection from low-pressure water jets from any direction |
| IP66 | Completely dust-tight | Protection from powerful/high-pressure water jets from any direction |
| IP67 | Completely dust-tight | Protection from immersion in water up to 1 meter depth |
Devices rated IP65, IP66, and IP67 provide full dust-tight protection, making them suitable for outdoor, industrial, and construction environments.
Water Protection Differences
Water resistance varies significantly among these protection ratings. IP54 protects against water splashes, making it suitable for indoor or sheltered outdoor use. IP65 withstands low-pressure water jets from any direction, which suits outdoor panels and signage exposed to rain or cleaning. IP66 offers defense against powerful, high-pressure water jets, ideal for environments with frequent washdowns. IP67 stands out by protecting devices from immersion in water up to 1 meter for 30 minutes, making it essential for flood-prone or marine applications.
Testing procedures reflect these differences. IP65 testing exposes devices to water jets from a 6.3 mm nozzle at low pressure for 15 minutes. IP67 testing immerses the enclosure in water up to 1 meter deep for 30 minutes. Both ratings require dust-tight protection, but only IP67 guarantees safety during temporary submersion.
Choosing the Right Ingress Protection Rating
Selecting the appropriate ip rating depends on the environment and application. Engineers consider several factors:
- Outdoor locations, such as gardens, courtyards, and hotel entrances, benefit from IP65 for full dust protection and resistance to water jets.
- Industrial and agricultural settings often require IP65 or higher for frequent exposure to dust and water.
- Devices installed in flood-prone or coastal areas need IP67 or even IP68 for protection against immersion.
- Indoor or semi-outdoor environments with less exposure may use IP54 or IP55, which offer moderate protection.
- The chosen protection ratings influence device durability, maintenance frequency, and installation flexibility.
Tip: Always match the protection rating to the specific hazards present in the installation environment. Higher ratings like IP67 and IP68 provide advanced water resistance, while IP65 offers a balance of dust and water protection for most outdoor applications.
Selecting the Best IP65-Rated Products
Certification and Testing for IP65
Selecting reliable IP65-rated products starts with understanding the certification process. The International Electrotechnical Commission (IEC) sets the global standard for ingress protection through IEC 60529. This standard defines the requirements for dust-tight and water-resistant enclosures. Certification bodies such as CDG and CIL play a crucial role in verifying compliance. CDG, an ISO 17025 and ILAC-accredited laboratory, and CIL, accredited under ISO 17020 and ISO 17025, both offer comprehensive IP testing and certification services. Their accreditations ensure that ip65 certification follows strict international guidelines.
Manufacturers seeking ip65 certification must submit their products for rigorous testing. The process includes dust chamber exposure and water jet testing, simulating real-world conditions. These tests confirm that devices meet the criteria for dust-tightness and resistance to water jets. Consistent methodology, based on IEC 60529 and ISO 20653, ensures that ip65 certified devices deliver reliable protection in demanding environments.
Tip: Always look for products tested and certified by recognized laboratories to ensure genuine ip65 protection.
Evaluating Manufacturer Claims
Not all ip65 claims guarantee the same level of protection. Buyers should request detailed compliance documentation and test reports from manufacturers. These documents provide evidence that the product has undergone proper ip testing and meets the required standards. For critical applications, third-party verification by independent laboratories adds another layer of assurance.
Manufacturers may self-declare compliance after testing a sample or a statistically significant batch. However, some may skip thorough testing, which increases the risk of product failure. Ongoing quality control, such as periodic sampling, helps maintain consistency in production. Standard procedures for verifying ip65 protection include dust chamber tests and water jet exposure, following IEC 60529 and ISO 20653-2014. These tests simulate real-life hazards like rain and dust, validating the manufacturer’s claims.
- Request compliance certificates and test reports.
- Confirm testing to IEC 60529 or ISO 20653 standards.
- Seek third-party verification for high-risk or mission-critical uses.
Maintenance Tips for IP65 Devices
Proper maintenance preserves the integrity of ip65 certified devices. Regular inspections help detect early signs of wear or damage. Gaskets and seals should be checked every 6 to 12 months and replaced every 2 to 3 years. Cable glands require annual inspection and replacement if loosened. UV-exposed parts need checks every 6 months, with replacement upon aging. Enclosure screws should be re-tightened yearly.
| Component | Inspection Frequency | Action/Replacement |
|---|---|---|
| Gaskets & Seals | 6–12 months | Replace every 2–3 years |
| Cable Glands | 12 months | Replace if loosened |
| UV-exposed Parts | 6 months | Replace if aging is visible |
| Enclosure Screws | 12 months | Re-tighten annually |
Owners should inspect rubber gaskets for cracks or shrinkage, ensure cable entries remain tight, and clean surfaces gently to prevent dust buildup. Avoid using solvents or high-pressure sprays unless the enclosure is rated for such cleaning. In harsh environments, select UV-resistant and corrosion-resistant materials. Monitoring for thermal expansion in areas with temperature swings helps prevent seal compromise. Avoid submersion and high-pressure cleaning to maintain the ip65 certification.
Regular maintenance extends the lifespan and reliability of ip65 devices, especially in outdoor or industrial settings.
The IP65 rating delivers complete dust protection and resists water jets from any direction. Devices with this rating suit open spaces, semi-open areas, and industrial environments where dust and light water exposure occur.
- IP65-rated products offer a balance of protection and cost for electronics in parks, campuses, and factories.
- Higher ratings like IP66 or IP67 fit harsher conditions with heavy rain or immersion.
Tip: Assess the installation environment and select the IP rating that matches actual exposure risks. Proper selection ensures device longevity and minimizes unexpected expenses.
FAQ
What does the IP65 rating mean?
The IP65 rating indicates complete protection against dust and resistance to water jets from any direction. Devices with this rating operate reliably in dusty or wet environments, such as outdoor installations or industrial settings.
Can IP65 devices be submerged in water?
IP65 devices cannot withstand submersion. The rating only covers protection against low-pressure water jets. For underwater use, select devices with higher ratings, such as IP67 or IP68.
Is IP65 suitable for outdoor use?
Yes, manufacturers design IP65-rated products for outdoor environments. These devices resist dust and rain, making them ideal for security cameras, lighting, and industrial controls exposed to the elements.
How often should IP65 enclosures be inspected?
Inspect IP65 enclosures every 6 to 12 months. Check gaskets, seals, and cable entries for wear or damage. Replace components as needed to maintain protection.
What is the difference between IP65 and IP66?
IP65 protects against low-pressure water jets. IP66 offers protection against more powerful, high-pressure water jets. Both ratings provide complete dust-tightness, but IP66 withstands harsher cleaning or washdown conditions.
Do all manufacturers test IP65 products the same way?
Not all manufacturers follow identical testing procedures. Reputable companies use accredited laboratories and comply with IEC 60529 standards. Always request certification or test reports to verify claims.
Can IP65 devices resist chemicals or UV exposure?
The IP65 rating does not guarantee resistance to chemicals or UV light. For environments with chemical exposure or strong sunlight, choose products with additional material certifications or UV-resistant construction.
