You need reliable waterproof connectors for safe electrical installations. IP67 standards matter because dust and moisture can damage devices and cause electrical accidents. Waterproof connectors like the M8 connector and Type B connector protect against harsh environments, including mining and transportation. Ingress protection keeps out contaminants, reducing the risk of overheating, corrosion, and arcing. If you ignore waterproof standards, device failure and costly maintenance may follow. A connector factory can help you select the right waterproof solution for your needs.
- Waterproof connectors prevent dust ingress, overheating, and electrical arcing.
- IP67 waterproof connectors resist moisture, prolonging device life in tough conditions.
Understanding Ingress Protection Standards for Waterproof Connectors
What Are Ingress Protection Standards?
You need to understand ingress protection standards to ensure safe and reliable electrical connections. These standards, defined by the International Electrotechnical Commission (IEC), set clear criteria for how well an enclosure or connector resists dust and water. The IEC 60529 standard introduces the IP rating system, which classifies the level of protection against solid objects and liquids.
Note: The IP rating system is internationally recognized and helps you compare different waterproof connectors for your application.
- The IP code uses two digits: the first for solid object protection, the second for water ingress.
- Testing methods specify how to measure protection, such as dust ingress, water jets, and immersion.
- For example, Level 7 water protection means submerging the enclosure 1 meter below water for 30 minutes.
- If only one type of protection is specified, an “X” replaces the other digit (e.g., IPX7).
- The United States uses NEMA ratings, which include additional criteria like corrosion resistance.
By following these standards, you can select waterproof connectors that meet your safety and performance needs.
The IP Rating System Explained
The IP rating system gives you a simple way to compare the protection levels of different connectors. Each IP code consists of the letters “IP” followed by two digits. The first digit shows protection against solids, and the second digit shows protection against liquids.
Decoding the IP Code

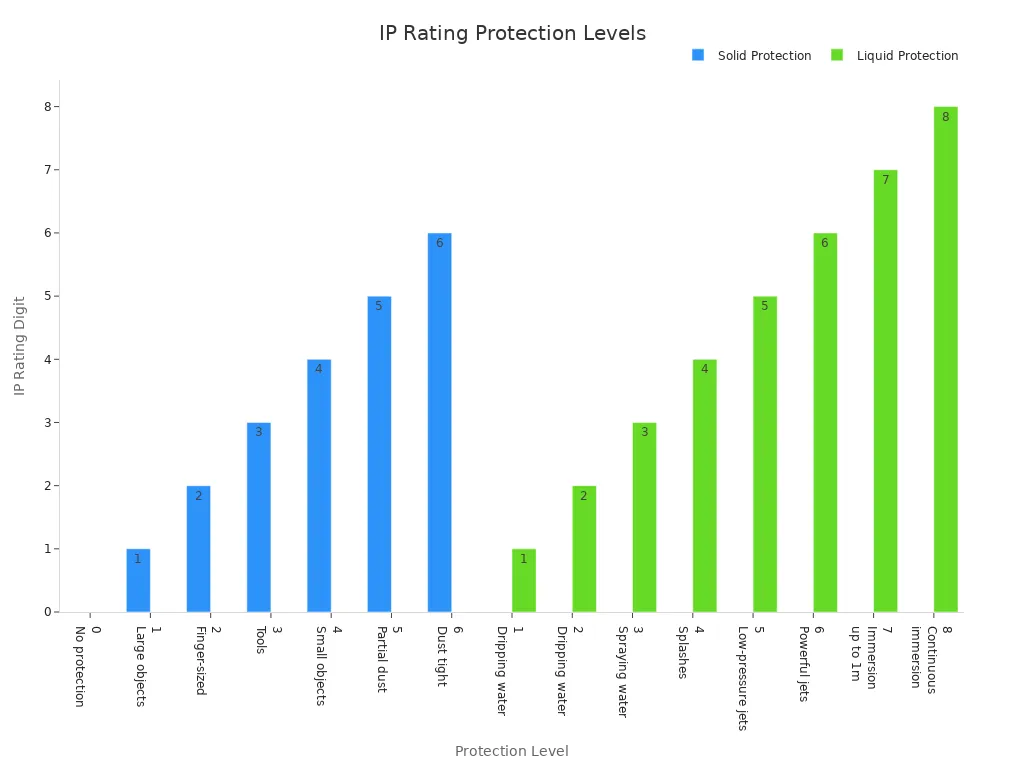

You can use the following table to understand what each digit in the IP code means for waterproof connectors:
| IP Digit | Protection Against Solids | Protection Against Liquids |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Large objects (≥50 mm) | Dripping water |
| 2 | Finger-sized objects (≥12.5 mm) | Dripping water (tilted up to 15°) |
| 3 | Tools, thick wires (≥2.5 mm) | Spraying water |
| 4 | Small objects (≥1 mm) | Splashing water |
| 5 | Partial dust protection | Water jets |
| 6 | Dust tight | Powerful water jets |
| 7 | — | Immersion up to 1 meter for 30 minutes |
| 8 | — | Continuous immersion beyond 1 meter |
When you choose a waterproof connector, look for sealing mechanisms like o-rings or gaskets. These features help maintain the IP rating, especially when connectors are mated.
Common IP Ratings for Waterproof Connectors
You will often see the following IP ratings for waterproof connectors in commercial and industrial settings:
- IP67: Dust tight and protected against temporary immersion up to 1 meter for 30 minutes.
- IP68: Protected against continuous submersion at manufacturer-specified depths and durations.
- IP69K: Protected against high-pressure, high-temperature water jets, ideal for environments like food processing.
A waterproof connector with at least an IP68 rating usually includes sealing elements such as EPDM or silicone gaskets. M12 connectors, popular in industrial sensor applications, often provide IP68 protection. Always ensure proper installation and use matched connector pairs to maintain the IP rating.
Why IP Ratings Matter for Safer Electrical Connections
You reduce the risk of electrical hazards by choosing connectors with the right IP rating codes. Higher IP ratings mean better protection against dust and water ingress, which helps prevent electrical malfunctions. In harsh environments, such as factories or outdoor installations, dust and moisture are leading causes of electrical failures.
- Devices with IP64 or higher ratings protect sensitive components from dust and splashes, reducing the risk of short circuits.
- Medical equipment with IP64 ratings withstands regular cleaning, maintaining safety and reliability.
- Consumer electronics with IP64 or higher ratings resist everyday spills and dust, lowering the chance of electrical hazards.
The IP rating system allows you to select waterproof connectors that match your environment. By maintaining the integrity of seals and gaskets, you ensure long-term protection. Regular inspection and proper cleaning help preserve the waterproof rating and keep your electrical connections safe.
Tip: Always match the IP rating of your connector to the demands of your application. Higher ratings mean fewer electrical failures and safer, more reliable performance.
IP67 Waterproof Connectors: Meaning and Benefits
IP67 Defined: Dust and Water Protection
When you select IP67 waterproof connectors, you choose a solution that delivers robust protection against both dust and water. The IP67 rating means your connector will withstand challenging environments, keeping your electrical systems safe and operational.
Solid Particle Protection
IP67 connectors provide complete protection against dust. The enclosure is tested in a dust-filled environment to confirm that no particles can enter. This dust-tight design ensures that sensitive electrical contacts remain clean and functional, even in harsh industrial or outdoor settings.
Note: The IEC 60529 standard specifies that for a connector to achieve IP67, it must pass a dust-tight test under controlled laboratory conditions. No dust particles can penetrate the enclosure, guaranteeing full protection against dust.
Water Ingress Protection
You can trust IP67 waterproof connectors to resist water during accidental submersion. The standard requires that the connector withstands immersion in water at a depth of 1 meter for at least 30 minutes. This level of protection ensures that your connections remain secure, even if exposed to temporary flooding or heavy rain.
Common test methods for water ingress include:
- Temporary immersion test: The connector is submerged in water at 1 meter for 30 minutes to verify no water enters.
- Pressure decay leak test: Detects small leaks by monitoring pressure changes.
- Vacuum leak test: Uses negative pressure to check for seal integrity.
- Tracer gas leak test: Identifies leaks using specialized gases.
These tests confirm that the waterproof connector maintains a tight seal, preventing water from reaching internal components.
How IP67 Waterproof Connectors Ensure Reliability
IP67 waterproof connectors stand out for their ability to maintain performance and safety over time. You benefit from fewer electrical failures and longer equipment life, even in demanding environments.
Preventing Electrical Failures
Waterproof connectors with an IP67 rating protect your systems from dust and water ingress, two leading causes of electrical malfunctions. By blocking dust, you prevent short circuits and corrosion. The waterproof design shields your connections from water exposure, reducing the risk of arcing and electrical faults during submersion or heavy rain.
| Feature | IP65 Protection | IP67 Protection |
|---|---|---|
| Dust Protection | Completely dust-tight (level 6) | Completely dust-tight (level 6) |
| Water Protection | Resistant to low-pressure water jets | Resistant to temporary immersion (1m/30min) |
| Water Exposure Use | Suitable for rain, splashes, humidity | Suitable for accidental submersion scenarios |
| Cost & Construction | Less expensive, standard sealing | More robust sealing, higher cost |
| Practical Use | Outdoor devices needing weatherproofing | Devices requiring swim-proof or submersion protection |
You see a clear advantage with IP67 connectors when accidental submersion in water is possible. Lower ratings like IP65 or IP66 do not provide this level of protection.
Enhancing Longevity
You extend the lifespan of your equipment by choosing IP67 waterproof connectors. These connectors undergo rigorous testing, including over 10,000 insertion and extraction cycles with minimal wear. Optimized designs can reach up to 200,000 cycles. They also withstand temperature cycling from -40℃ to +85℃ and resist corrosion after 96 hours in a salt spray environment.
- IP67 waterproof connectors maintain stable electrical performance after 30 minutes of submersion at 1 meter.
- Plug and unplug life tests show less than 0.5mΩ increase in contact resistance after 5,000 cycles.
- Field data indicates about 20% improvement in equipment stability and longer maintenance intervals.
- On-site failure rates remain below 0.01% when you use connectors with high manufacturing quality and proper installation.
Tip: Always verify that your waterproof connector uses high-quality materials and multi-layer sealing. This ensures the integrity of the seal and reliable performance in harsh conditions.
With IP67 waterproof connectors, you gain confidence that your electrical connections will endure dust, water, and mechanical stress. You reduce downtime, lower maintenance costs, and improve overall system reliability.
Comparing IP65, IP66, IP67, and IP68 Waterproof Ratings
Overview of IP Ratings for Waterproof Connectors
When you select waterproof connectors, you need to understand the differences between IP ratings. These ratings help you determine the level of protection against dust and water. In marine environments, choosing the right rating ensures your equipment withstands harsh conditions and reduces the risk of failure.
You often see IP65, IP66, IP67, and IP68 on waterproof connectors. Each rating offers a specific level of dust and water protection. For marine electronics, the right rating can mean the difference between reliable performance and costly downtime.
- IP65: Dust-tight and protected from splashes or low-pressure water jets.
- IP66: Dust-tight and protected from strong water jets.
- IP67: Dust-tight and protected from temporary submersion in water up to 1 meter for 30 minutes.
- IP68: Dust-tight and protected from continuous submersion in water under more severe conditions.
Note: The higher the IP rating, the greater the protection against water and dust. In marine and outdoor applications, you should always consider the environment and exposure risks before choosing a connector.
Differences Between IP65, IP66, IP67, and IP68
You need to match the waterproof rating to your application’s demands. Each rating provides a different level of defense against water ingress and dust.
| IP Rating | Dust Protection | Water Protection Description |
|---|---|---|
| IP65 | Dust-tight (6) | Protection against low-pressure water jets from any direction; withstands water from a 0.25-inch nozzle |
| IP66 | Dust-tight (6) | Protection against high-pressure water jets; withstands water from a 0.50-inch nozzle |
| IP67 | Dust-tight (6) | Protection against temporary immersion in water between 5.9 inches and 39.37 inches (up to 1 meter) for 30 minutes |
| IP68 | Dust-tight (6) | Protection against continuous immersion in water beyond 1 meter under manufacturer-specified conditions |
If you use IP65 connectors in marine or outdoor environments, you risk higher failure rates during heavy rain or accidental submersion. IP66 connectors improve water resistance and are suitable for harsh marine conditions, especially when you need corrosion protection. IP67 and IP68 connectors provide the best defense against water ingress. You should use these ratings in flood-prone or submerged marine applications to minimize failures.
In coastal environments, IP66 or ip67 requirements combined with corrosion-resistant materials like stainless steel can reduce maintenance costs and prevent downtime. You gain long-term reliability and lower the risk of environmental failures.
Table: IP Ratings for Marine Electronics and Other Applications
You can use the following tables to compare common IP ratings and their typical applications in marine electronics and other industries.
| IP Rating | Protection Description | Typical Marine Electronics Application |
|---|---|---|
| IP65 | Protection from splashes at all angles and low-pressure water jets | Weatherproof connectors and assemblies exposed to rain and spray |
| IP66 | Protection from high-pressure water jets | Connectors requiring resistance to more intense water exposure |
| IP67 | Withstands submersion up to 1 meter for 30 minutes | Connectors and devices needing temporary immersion protection |
| IP68 | Withstands long-term submersion | Devices and connectors designed for continuous underwater use |
| IP Rating | Protection Level | Common Marine Electronics Application |
|---|---|---|
| IP54 | Limited dust protection and protection against splashing water | Suitable for environments with minimal water exposure |
| IP65 | Protection against low-pressure water jets from any direction | Outdoor use where exposure to rain and water jets occurs |
| IP67 | Dust-tight and can withstand immersion in water up to 1 meter for 30 minutes | Recommended for marine two-way radios requiring high water and dust resistance |
| IP68 | Highest protection, allowing continuous immersion beyond 1 meter (manufacturer specified) | Ideal for marine electronics needing robust waterproofing for extended submersion |
You should always consider the specific needs of your marine or outdoor application. If your equipment faces frequent water exposure or submersion, select ip67 or ip68 waterproof connectors. For less demanding environments, IP65 or IP66 may suffice, but always assess the risk of water ingress and corrosion.
Applications Requiring IP67 Waterproof Connector Solutions
Industrial and Manufacturing Environments
You face demanding conditions in industrial and manufacturing environments. Dust, moisture, and vibration can threaten the reliability of your electrical systems. IP67 waterproof connectors provide a robust solution for these challenges. The global market for IP67 connectors reached about USD 4.8 billion in 2023 and is expected to grow to USD 7.9 billion by 2032. This growth reflects the increasing need for durable connectivity as industries automate and expand.
- IP67 rating ensures your devices resist dust and water, which is critical for maintaining reliability.
- You benefit from reduced maintenance costs because these connectors withstand harsh environments.
- Equipment downtime decreases, and safety improves, as IP67-rated devices operate reliably even in hazardous or high-moisture areas.
- Industrial networking devices, such as outdoor wireless access points, often require IP67 protection to ensure stable connectivity.
You can trust waterproof connectors to keep your systems running, even when exposed to dust, water, or mechanical stress. These waterproof connector solutions help you maintain uptime and safety in your facility.
Outdoor and Harsh Weather Installations
When you install electrical systems outdoors, you encounter extreme weather, UV radiation, and temperature swings. IP67 waterproof connectors use rugged housings and advanced gaskets to block water and dust, even during sudden weather changes. Many designs feature UV-resistant materials and secure locking mechanisms, which help maintain a tight seal and prevent accidental disconnections.
IP67 magnetic connectors offer additional benefits. Their magnetic coupling allows for quick, self-aligning connections, reducing installation errors. The break-away feature protects your equipment and personnel by disconnecting safely under excessive force. Pogo pin technology in some waterproof connectors ensures stable electrical contact, even when exposed to vibration or movement.
You see these connectors in outdoor LED lighting, wind energy systems, and power distribution. Their robust construction and reliable sealing make them ideal for wet environments and locations with frequent storms or temperature changes.
Tip: Choose connectors with proven waterproof performance and durable materials to maximize safety and reliability in outdoor installations.
IP Ratings for Marine Electronics
Marine environments present some of the toughest challenges for electrical connections. Saltwater, humidity, and constant vibration can quickly degrade standard connectors. You need marine electronics connectors with high IP ratings to ensure safe and reliable operation.
Regulatory standards require marine electronics to comply with IEC 60529. Testing includes water temperature control, leak detection, and coordination with marine class societies. Most marine applications demand IP66 or IP67 ratings to protect against high-pressure water jets or temporary submersion. Corrosion resistance is also essential, so manufacturers often use stainless steel or specialized plastics.

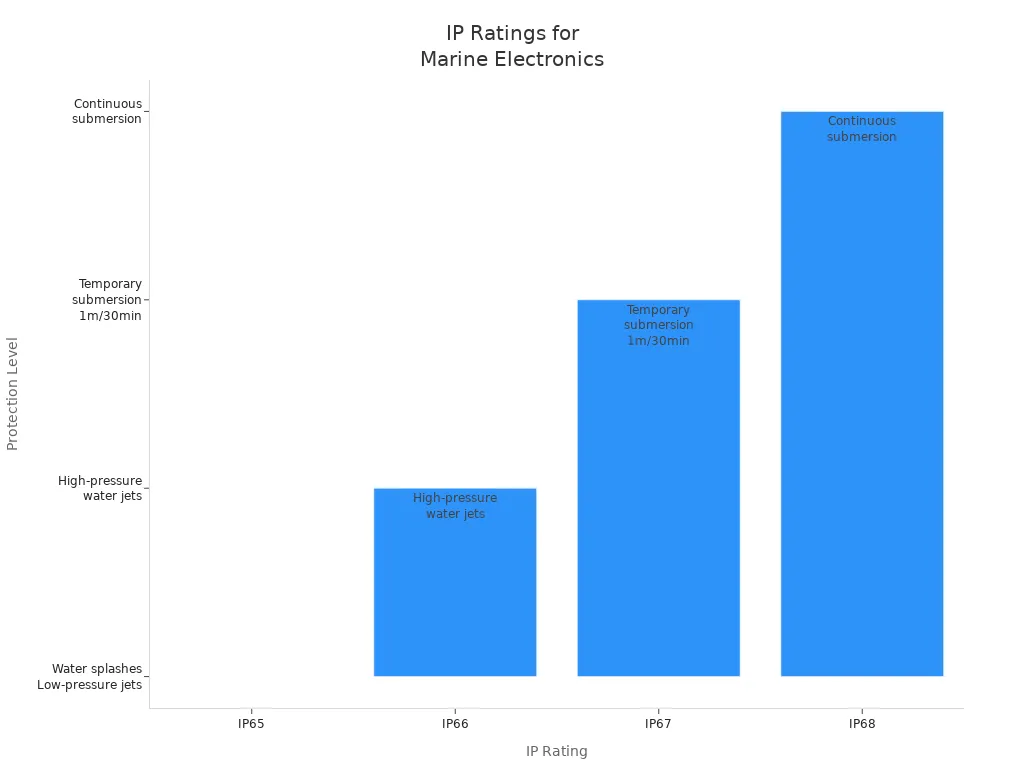

| IP Rating | Protection Description |
|---|---|
| IP65 | Protection against water splashes and low-pressure jets |
| IP66 | Protection against high-pressure water jets |
| IP67 | Protection against temporary submersion (up to 1 meter for 30 minutes) |
| IP68 | Protection against continuous, long-term submersion |
You should select waterproof connectors with at least an IP67 rating for marine electronics. These connectors prevent water ingress and corrosion, ensuring your systems remain operational in harsh environments. By choosing the right waterproof connector, you meet regulatory requirements and protect your investment in marine technology.
Automotive and Transportation Uses
You encounter demanding conditions in automotive and transportation environments. Dust, moisture, vibration, and temperature extremes challenge the reliability of every connector in your vehicle or system. IP67 waterproof connectors address these challenges by providing complete protection against dust and temporary water immersion. Their robust sealing prevents dirt, sand, and small particles from entering, which keeps internal electrical components safe and reliable.
Automotive connectors face constant exposure to water from weather, frequent car washing, and road debris. You need waterproof connectors that withstand vibration and abrasion. Manufacturers design waterproof fiber connectors with features like terminal position assurance mechanisms, which give you tactile and audible feedback during assembly. These mechanisms help you confirm secure and correct connections, reducing the risk of electrical faults.
You benefit from anti-vibration features such as stiffening ribs, recessed sealing ribs, and preloaded springs. These design elements allow waterproof fiber connectors to resist vibration, shock, and temperature extremes. Assembly and retention features, including lock fingers and spring-loaded locking collars, ensure that each connector remains secure even in harsh conditions. Visual and audible confirmation mechanisms further enhance reliability, so you can trust your connections to perform under pressure.
Tip: Choose waterproof connectors that meet automotive standards like USCAR-2 for maximum durability and safety in transportation applications.
Consumer Electronics and Wearables
You expect your consumer electronics and wearables to perform reliably, even when exposed to dust, water, and sweat. Modern connectors in devices such as smartphones, gaming consoles, and laptops have evolved to meet your demand for lightweight, compact, and user-friendly designs. Manufacturers prioritize durability and simplicity, moving away from bulky designs to rugged, reliable waterproof connectors.
The fastest-growing segment in the market includes consumer electronics like smartphones, speakers, and wearable devices. You see a rising demand for waterproof fiber connectors that ensure durability and longevity. Asia-Pacific leads regional growth due to a strong manufacturing base and rapid industrialization. Industry standards now favor IP67 and IP68 rated connectors, especially in premium and outdoor markets.
| Trend Aspect | Description |
|---|---|
| Device types | Smartphones, wearables, speakers |
| Connector features | Miniaturization, high-speed data transfer, ruggedness against water, dust |
| Market outlook | Steady growth with focus on cost-effective, versatile, reliable connectors |
You prefer devices with waterproof, dustproof connectors, especially for outdoor use. USB Type-C and IP68 standards have become common in premium electronics. Manufacturers focus on small size, reliability, and aesthetics preservation. Wearable medical equipment and electric vehicles increasingly require multifunctional, space-saving waterproof fiber connectors.
Note: Select waterproof connectors with proven performance to ensure your devices remain functional and protected in everyday and extreme conditions.
How to Choose the Right Waterproof Connectors
Assessing Your Application’s Needs
Environmental Conditions
You must evaluate the environment where your connector will operate. Moisture, rain, snow, saltwater, and temperature swings all impact your choice. A connector with a tight seal prevents water ingress and maintains electrical performance in harsh conditions. Materials like rubber or silicone provide sealing integrity and insulation. For marine electronics, you need resistance to saltwater corrosion. Outdoor lighting requires connectors that withstand rain and temperature changes. Locking mechanisms and corrosion-resistant materials help maintain the integrity of the seal under vibration and mechanical stress. Industry standards and certifications guide you to the right solution for safety and longevity.
Mechanical and Electrical Requirements
You should match the connector to your system’s voltage, current, and wire gauge. Consider the physical impacts, vibration, and installation method. Some connectors use soldered, crimp, or screw-on designs to suit different environments. Check compatibility with your existing equipment and ensure the connector fits securely. Evaluate the need for robust protective features to prevent moisture and debris from entering. Plan for future changes in environmental conditions to avoid costly replacements.
Tip: Always balance initial cost with long-term reliability. A connector that meets your mechanical and electrical needs will reduce maintenance and downtime.
Key Features of Waterproof Connector Solutions
Material and Build Quality
Choose connectors made from high-grade materials such as polycarbonate, nylon, or stainless steel. These materials resist temperature extremes, UV radiation, and corrosion. Gold-plated contacts offer extra protection in marine environments. Internal components should resist oxidation and wear, ensuring consistent performance.
Sealing Mechanisms
Look for connectors with advanced sealing mechanisms. O-rings, gaskets, and potting compounds create a tight seal that blocks water, dust, and chemicals. Multi-layered sealing systems, such as compression gaskets and double-lock housings, enhance waterproofing. These features maintain sealing integrity even after repeated use.
Ease of Installation and Maintenance
Select connectors that are easy to install and maintain. Features like keyed designs and locking mechanisms prevent accidental disconnections. Modular designs allow for future upgrades. Choose connectors that support repeated mating cycles without losing their waterproof properties. Regular inspection and proper cleaning help preserve the seal and ensure long-term reliability.
| Feature | Benefit |
|---|---|
| High-grade materials | Withstand harsh environments |
| Advanced sealing | Maintain waterproof integrity |
| Locking mechanisms | Prevent accidental disconnections |
| Modular design | Support upgrades and easy maintenance |
Benefits of Selecting the Correct IP Rating
Selecting the right IP rating protects your equipment from dust and water ingress. You prevent damage to sensitive internal components and reduce the risk of malfunction. Proper IP ratings maintain system reliability and lower maintenance costs by preventing corrosion and equipment failure. You also ensure compliance with safety regulations, protecting both equipment and personnel. Each IP rating matches specific environmental conditions, so choosing the correct one avoids safety hazards and regulatory issues.
Note: An insufficient IP rating can lead to equipment failure, safety risks, and legal problems. Always match the IP rating to your application’s demands for long-term safety and performance.
Installation and Maintenance of Waterproof Connectors
Best Practices for Safe Installation
You ensure maximum protection for your electrical systems by following proven installation methods. Begin by cleaning all threads and surfaces to remove debris and contaminants. Inspect connectors and cables for damage before assembly. Strip wire insulation precisely, using recommended tools to avoid harming conductor strands. Assemble connectors with a calibrated torque wrench, adhering to manufacturer torque specifications. This step prevents seal damage and ensures a reliable connection.
Install connectors in suitable environmental conditions. Avoid direct sunlight and allow sealants to cure properly. After installation, conduct pressure testing with compressed air, use soapy water for leak detection, and verify electrical continuity. Select connectors with the appropriate IP rating for your environment. IP68 connectors offer superior protection for continuous submersion. Confirm that cable specifications match connector requirements and that current ratings suit the electrical load.
You can further enhance waterproofing by using proper cable support and management. Install cables with a slight downward slope to facilitate water drainage. Avoid low points or U-shaped bends where water can collect. Employ watertight conduits and junction boxes for added protection. Apply self-fusing silicone tape or butyl rubber tape to form watertight seals around cables and connectors. Heat-shrink tubing creates a durable barrier over cable joints. Use silicone sealants or epoxy resins to seal cable entries, ensuring surfaces are clean and dry before application.
Tip: Always turn off power and wear insulated gloves and safety goggles during installation. Apply dielectric grease inside connectors to repel moisture and prevent corrosion.
Regular Inspection and Maintenance
You maintain the reliability of waterproof connectors by inspecting them regularly. Heavy-duty connectors require maintenance on a monthly to quarterly basis, depending on environmental and operational factors. Regular performance checks, including electrical testing and visual inspections, help you detect wear, damage, or corrosion early. Replace connectors showing significant degradation to prevent failures.
Tailor your inspection schedule to the specific conditions of your installation. In harsh environments or with frequent use, increase inspection frequency. Establish a documented inspection plan to manage maintenance effectively. Regular inspection extends connector lifespan and reduces unexpected downtime. Always work with power off and consult qualified technicians for safety.
Common Mistakes to Avoid
You prevent costly failures by avoiding common mistakes during installation and maintenance. The table below highlights frequent errors and solutions:
| Common Mistakes During Installation | How to Avoid Them |
|---|---|
| Misunderstanding connector ratings (especially IP ratings) | Match connector ratings to your environment; review manufacturer specifications carefully. |
| Incorrect installation techniques (improper seating, wrong torque) | Follow manufacturer guidelines; use proper tools and ensure connectors are seated and tightened correctly. |
| Improper handling and storage | Store connectors in original packaging in clean, dry environments; handle carefully to prevent damage. |
| Failure to consider environmental factors | Select connectors based on temperature and exposure type; inspect regularly for wear. |
| Not cleaning surfaces before installation | Verify surfaces are clean and free from debris before applying connectors. |
| Not using dielectric grease | Apply compatible dielectric grease to enhance waterproof sealing and reliability. |
| Over-tightening or under-tightening connectors | Use torque wrenches to apply correct torque, preventing damage or poor seals. |
| Skipping post-installation inspection and maintenance | Conduct inspections after installation and perform regular maintenance to detect issues early. |
Note: Careful preparation and regular maintenance ensure your waterproof connectors deliver long-term safety and performance.
Waterproof Connector Solutions for Safer Electrical Connections
How Waterproof Connectors Prevent Hazards
You protect your electrical systems from serious hazards when you use waterproof connectors. These connectors use seals, such as rubber or silicone gaskets, to create tight barriers against moisture and dust. In wet environments, this design prevents water vapor from entering and causing short circuits or shocks. IP67 and ip68 ratings confirm that connectors can withstand immersion, making them reliable for marine and outdoor installations. Durable materials resist corrosion and UV damage, so your connections stay safe even under harsh conditions.
Waterproof junction boxes add another layer of safety. They enclose electrical connections, shielding them from moisture, dust, and corrosion. Features like hinged or screw-on lids maintain waterproof integrity while allowing easy access for maintenance. You reduce the risk of electrical hazards, such as shocks or equipment damage, by combining these solutions. In marine applications, double protection—using both ip68 connectors and waterproof distribution boxes—offers the highest level of safety.
Tip: Always handle electrical sockets with dry hands. Experimental data shows that wet hands increase leakage risk, highlighting the importance of proper waterproofing and safety awareness.
Ensuring Reliability in Harsh Environments
You need connectors that maintain performance in harsh environments, including marine, industrial, and outdoor settings. Waterproof connectors achieve this by meeting strict ingress protection standards, such as IP67 and ip68. These ratings guarantee dust-tight enclosures and resistance to water immersion. The use of compressed gaskets or O-rings made from advanced materials, like Viton or silicone, ensures a tight seal that blocks moisture and dust.
Manufacturers design these connectors to withstand extreme temperature swings, vibration, and mechanical stress. Thermoplastic housings and corrosion-resistant metals, such as chromium-plated brass, endure temperature ranges from -100°C to +200°C. Locking mechanisms and keyed designs prevent accidental disconnections, even during thermal cycling or vibration. In marine environments, these features keep your systems running smoothly, reducing the risk of corrosion, signal loss, or electrical failure.
Note: Some advanced connectors maintain their ingress protection even when unmated, using sealing or dust caps to protect open ends. This ensures reliability during maintenance or temporary disconnections.
Actionable Advice for Selecting Waterproof Connectors
You make the best choice by following a clear selection process for waterproof connectors. Start by assessing the environment—consider water exposure, humidity, temperature, chemicals, and physical impacts. Choose connectors with the right ingress protection rating for your needs. For marine or wet environments, select at least IP67 or ip68 connectors to ensure long-term durability.
Next, match the connector type to your application. Consider the shape, size, and pin configuration. Ensure the sealing mechanism—such as gaskets or O-rings—effectively blocks water ingress. Check that the current and voltage ratings meet your system’s requirements to avoid overheating or failure. Verify compatibility with your cables and devices, and choose connection methods like soldering or crimping as needed.
Always look for connectors that meet industry certifications, such as UL, CE, or RoHS. Features like locking mechanisms and gold-plated contacts enhance reliability and prevent accidental disconnections. If you feel uncertain, seek expert advice to tailor the solution to your specific needs.
- Assess environmental conditions and select the correct IP rating.
- Match connector type and sealing mechanism to your application.
- Confirm electrical compatibility and industry certifications.
- Seek professional guidance for complex or critical installations.
Remember: The right waterproof connector protects your investment, ensures safety, and delivers reliable performance in any environment.
You protect your electrical systems when you choose connectors with IP67 and proper ingress protection standards. Waterproof connector solutions help you avoid hazards and extend equipment life. Evaluate your environment and application before making a selection. Consider these steps:
- Match the IP rating to your exposure risks.
- Check material quality and sealing features.
- Confirm compatibility with your devices.
Tip: Consult industry standards and seek expert advice for critical installations. Reliable waterproof connectors keep your connections safe and your operations running smoothly.
FAQ
What does the IP67 rating mean for waterproof connectors?
IP67 means your connector is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. You gain reliable protection in harsh environments, including outdoor, marine, and industrial settings.
Can you use IP67 connectors underwater for long periods?
You should not use IP67 connectors for continuous underwater applications. IP67 protects against temporary immersion only. For long-term submersion, select connectors with an IP68 rating.
How do you maintain the waterproof integrity of connectors?
You should inspect seals and gaskets regularly. Clean connectors before installation. Use dielectric grease to prevent moisture ingress. Always follow the manufacturer’s installation guidelines for best results.
Are IP67 connectors resistant to chemicals and UV exposure?
Many IP67 connectors use materials that resist chemicals and UV light. You should check the manufacturer’s specifications to confirm resistance for your specific application.
Can you connect and disconnect IP67 connectors frequently?
Yes, you can. Most IP67 connectors support thousands of mating cycles. You should verify the rated cycle life in the product datasheet to ensure long-term reliability.
What industries benefit most from IP67 waterproof connectors?
You see IP67 connectors in industrial automation, marine electronics, automotive systems, outdoor lighting, and consumer wearables. These industries demand high reliability in challenging environments.
How do you choose the right IP rating for your application?
Assess your environment. Identify risks from dust, water, and chemicals. Match the IP rating to your exposure level. When in doubt, select a higher rating for added safety.
Do IP67 connectors require special tools for installation?
Most IP67 connectors use standard hand tools. Some models may need torque wrenches or specialized crimpers. You should review the installation instructions before starting your project.
