Engineers rely on m16 12 pin connector technology for dependable and high-performance connections in industrial automation. M16 connectors support critical functions such as data transfer and system integration across industrial environments. The right m16 connector strengthens manufacturing efficiency and scalability. Connector selection impacts the reliability of sensors, robotics, and control systems. Industrial facilities often choose m16 connectors over M8 connector or Type B connector for complex applications. Connector factory experts recommend m16 for harsh conditions. A single 12 pin connector can streamline wiring and reduce downtime in industrial settings.
Understanding M16 12 Pin Connector Systems
Definition and Overview of m16 connectors
Connector Design and Construction
M16 connector systems play a vital role in advanced manufacturing environments. Engineers design m16 connectors with durability and reliability in mind. These connectors use robust materials such as brass, stainless steel, and high-grade plastics. The circular shape of m16 circular connectors allows for compact installation, making them ideal for tight spaces in control panels and machinery. The threaded locking mechanism ensures a secure connection, even in high-vibration settings like robotics and conveyor systems. This feature prevents accidental disconnection, a common issue with traditional connector types.
M16 connectors offer flexibility in wiring and installation. Manufacturers provide multiple wiring methods, including crimping, welding, and screw pressing. The m16 cable connector supports a wide range of cable diameters, from 4.0 to 10 mm, accommodating various industrial needs. The modular design of m16 circular connectors enables easy integration into automation equipment, industrial control systems, and harsh environments. The rugged construction and IP67 or IP68 ratings protect the connector from water and dust, ensuring long-term performance.
Note: The compact and lightweight design of m16 connectors supports high-density wiring without sacrificing performance.
Pin Configuration and Arrangement
The m16 12 pin connector stands out for its high pin density. Engineers can transmit power, signal, or hybrid signals through a single connector, reducing the need for multiple cables and connectors. The 12 pins are arranged in a circular pattern, optimizing space and supporting complex wiring requirements. This configuration allows for efficient signal transmission and power delivery in automation, sensor integration, and control systems. The contacts inside the connector maintain low resistance, ensuring high transmission efficiency and minimal heat loss.
Standards and Compliance for m16 connector
International Standards (DIN EN 61076-2-106)
Manufacturers design m16 connector systems to meet strict international standards. The DIN EN 61076-2-106 standard defines the dimensions, performance, and safety requirements for m16 connectors. Compliance with this standard ensures compatibility and interchangeability across different brands and applications. The standard also specifies the use of metal locking rings and screw locking mechanisms, which enhance durability and electromagnetic compatibility.
Industry Certifications and Approvals
M16 connector systems undergo rigorous testing and certification processes. Leading manufacturers achieve certifications such as UL, TUV, CE, RoHS, and ISO9001:2015. These certifications confirm that the connector meets global safety, environmental, and quality standards. The IP68 waterproof rating makes m16 connectors suitable for sensor and actuator devices in automation. Strict quality control and multiple inspections guarantee reliable performance in demanding industrial environments.
| Certification | Features |
|---|---|
| UL, TUV, CE, RoHS, ISO9001:2015 | IP68 waterproof, 100% new materials, strict quality control, suitable for automation |
M16 connectors provide manufacturers with confidence in system integration, ensuring that every cable, contact, and connector meets the highest industry standards.
Technical Specifications of M16 12 Pin Connector
Electrical Characteristics of m16 connectors
Voltage and Current Ratings
The m16 12 pin connector delivers reliable electrical performance in industrial automation. Engineers select this connector for its ability to handle both power and signal transmission. The typical rated voltage for a 12-pin m16 connector is 32 V, with a rated current of approximately 3 A. These ratings meet the requirements of IEC 61076-2-106 and support safe operation in demanding environments. The table below summarizes the key electrical ratings for m16 connectors:
| Pin Count | Rated Voltage (V) | Rated Current (A) | Max Wire Diameter (mm²) | Protection Rating |
|---|---|---|---|---|
| 2 to 8 | 32 or 150 | 3 to 7 | 0.75 (AWG 18) | IP67 |
| 12 to 24 | 32 | ~3 | 0.25 (AWG 24) | IP67 |
The 12-pin configuration ensures efficient distribution of electrical signals and power, making the m16 cable connector a preferred choice for complex automation systems.
Signal Integrity and Shielding
M16 connectors maintain high signal integrity, even in environments with significant electromagnetic interference. Several design features contribute to this performance:
- 360° EMC shielding with metal housings or shielding rings blocks external noise.
- Gold-plated contacts prevent corrosion and ensure stable electrical connections.
- Nickel-plated brass outer housings provide both environmental protection and resistance to vibration.
- Shielding structures, such as metal braid or foil, act as barriers to electromagnetic interference, reducing signal loss and data errors.
- Compliance with DIN 47250-6 and AISG standards guarantees reliable high-speed data transfer.
The circular waterproof connector design ensures that signal transmission remains stable, even in harsh manufacturing settings.
Mechanical Properties of m16 connector
Materials and Construction (TPU, PVC, PUR)
Manufacturers use robust materials to construct the m16 connector. Common housing materials include stainless steel, zinc alloy, and high-performance polymers like TPU, PVC, and PUR. These materials provide strength, corrosion resistance, and chemical resistance. The use of gold-plated copper alloy for contacts reduces impedance and improves signal quality. Silicone sealing rings enhance environmental sealing, while PA/PP engineering plastics offer electrical isolation.
Environmental Protection (IP Ratings: IP40, IP67, IP68)
The m16 connector stands out for its waterproof capabilities. Most models achieve IP67 or higher, ensuring resistance to water, dust, and contaminants. This protection allows the connector to operate reliably in wet, dusty, or chemically aggressive environments. The table below highlights key mechanical properties:
| Mechanical Property | Description |
|---|---|
| Protection Level | IP67 or higher, waterproof, dustproof, vibration resistant |
| Operating Temperature Range | -40°C to +85°C |
| Housing Material | Zinc alloy or stainless steel, corrosion resistant |
| Plug-in Life | Over 5,000 plug-in cycles, wear-resistant phosphor copper pins |
| Anti-seismic Design | Threaded locking or snap-on mechanisms for vibration stability |
| Installation | Quick installation via threaded connections |
These features make the m16 connector suitable for harsh manufacturing environments.
Physical Dimensions of m16
Size and Form Factor
The m16 connector features a compact circular form factor. This design supports high-density wiring in control panels and machinery. The small size allows engineers to install multiple connectors in limited spaces without sacrificing performance. The circular shape also simplifies cable routing and reduces installation complexity.
Mounting and Termination Options
Engineers benefit from flexible mounting and termination options with the m16 connector. Threaded locking mechanisms ensure secure attachment, while various termination methods—such as soldering, crimping, or screw connections—accommodate different cable types. Quick installation and easy maintenance reduce downtime in manufacturing operations.
Tip: Proper handling and termination of the m16 connector maximize its electrical and waterproof performance.
Key Features and Advantages of M16 Connectors
High Pin Density and Multi-signal Capability
Space Efficiency in Industrial Systems
M16 connectors deliver exceptional space efficiency in industrial systems. Engineers often face challenges with limited panel space and dense wiring. The m16 connector addresses these issues by supporting up to 24 contacts within a compact 18.5mm diameter. This miniaturization allows multiple signals to pass through a single connector, reducing the number of cables and connectors required. As a result, control panels and machinery remain organized and accessible.
| Feature | Description |
|---|---|
| Pin Density | Up to 24 contacts in a compact m16 connector |
| Miniaturization | Multiple signals through one connector, saving valuable space |
| Hybrid Solutions | Power, networking, and signal lines combined in a single connector |
| Robust Design | Screw locking and EMI shielding for secure, interference-free connections |
| Environmental Protection | IP67/IP68 ratings for dust and waterproof performance |
Support for Complex Wiring Needs
Industrial automation systems demand flexible wiring solutions. The m16 12 pin connector enables engineers to transmit power, data, and control signals through one cable. This hybrid capability simplifies wiring, reduces installation time, and enhances modularity. The screw lock design and IP67 waterproof rating ensure stable connections, even in environments with vibration or moisture. These features make the m16 connector ideal for sensor networks, robotics, and distributed control systems.
Data Transfer Capabilities of m16 12 pin connector
Speed and Bandwidth (up to 10 Gbit/s)
Modern manufacturing relies on rapid data transmission. M16 connectors support high transfer rates up to 10 Gbits/s, meeting the needs of sensor-based automation and real-time monitoring. The m16 connector’s advanced contact design maintains signal integrity at high speeds. This capability ensures reliable communication between devices and supports the increasing data demands of Industry 4.0 applications.
Signal Isolation and Electromagnetic Interference Protection
Engineers design m16 connectors with robust shielding to prevent electromagnetic interference. The metal housing and 360° EMC shielding block external noise, protecting sensitive signals. Gold-plated contacts and precise pin arrangement further enhance signal isolation. These features guarantee stable data transmission, even in environments with heavy machinery or electrical noise.
Durability and Reliability of m16 connectors
Resistance to Vibration, Shock, and Harsh Environments
M16 connectors excel in harsh industrial environments. The rugged construction, compact structure, and material selection provide resistance to vibration, shock, and extreme temperatures. High protection levels, such as IP67 and IP68, ensure the connector remains dustproof and waterproof. These qualities allow the m16 connector to perform reliably in automation, rail transit, and new energy applications.
- M16 connectors comply with IEC61076-2-106 standards.
- Pollution degree ratings confirm suitability for challenging conditions.
- Environmental adaptability supports use in demanding fields.
Longevity and High Mating Cycles
The m16 connector offers a long service life. Engineers can expect over 5,000 mating cycles without performance loss. The cable and connector system maintains stable connections, reducing maintenance needs and minimizing downtime. This longevity makes the m16 connector a cost-effective choice for continuous industrial operations.
Note: The combination of high pin density, waterproof protection, and robust construction ensures that m16 connectors meet the evolving needs of advanced manufacturing.
Modularity and Flexibility of m16 connector systems
Customization and Coding Options
Manufacturers in advanced manufacturing environments demand connector solutions that adapt to evolving requirements. The m16 connector system stands out for its modularity, allowing engineers to assemble connectors as integrated blocks tailored to specific applications. This modular approach standardizes key components and introduces compatible modules with varying functions. Developers can select from shielded or unshielded variants, combining parts to create a connector that meets the exact needs of industrial machinery, cameras, or sensors.
The m16 connector supports hybrid configurations, enabling the transmission of power, data, and control signals through a single cable. This hybrid capability streamlines system design and reduces the number of connectors required. The modular design also maximizes space utilization and improves installation efficiency. By reducing wiring errors, the m16 connector enhances reliability in complex automation projects.
Coding options further increase flexibility. The m16 connector offers multiple coding positions, which prevent mismating and ensure secure connections. Color-coded inserts and mechanical keying simplify identification and assembly, even in challenging conditions such as sub-zero temperatures or when operators wear gloves. The triangular shape of some m16 connector variants improves handling, making installation and maintenance straightforward.
Tip: Modular m16 connector systems provide high protection levels, making them suitable for harsh environments and supporting reliable, customized manufacturing solutions.
Easy Maintenance and Replacement
The modularity of the m16 connector system simplifies maintenance and replacement tasks. Engineers can quickly disassemble and reassemble connectors, minimizing downtime during repairs or upgrades. The design allows for the replacement of individual modules or contacts without disturbing the entire connector assembly. This feature proves valuable in environments where continuous operation is critical.
The m16 connector’s hybrid design supports easy integration of new functions or upgrades. When a manufacturing process changes, engineers can swap out modules or reconfigure the connector to accommodate new requirements. The standardized interface ensures compatibility with existing systems, reducing the need for extensive rewiring.
Transport and installation also benefit from the modular approach. The m16 connector arrives as separate modules, which technicians can assemble on-site. This reduces the risk of damage during shipping and allows for flexible cable routing. The robust construction and high protection ratings ensure that the connector maintains performance after repeated maintenance cycles.
- Modular m16 connector systems reduce repair time.
- Hybrid configurations support future expansion.
- Standardized interfaces guarantee compatibility.
The m16 connector system delivers unmatched flexibility, supporting both current and future manufacturing needs.

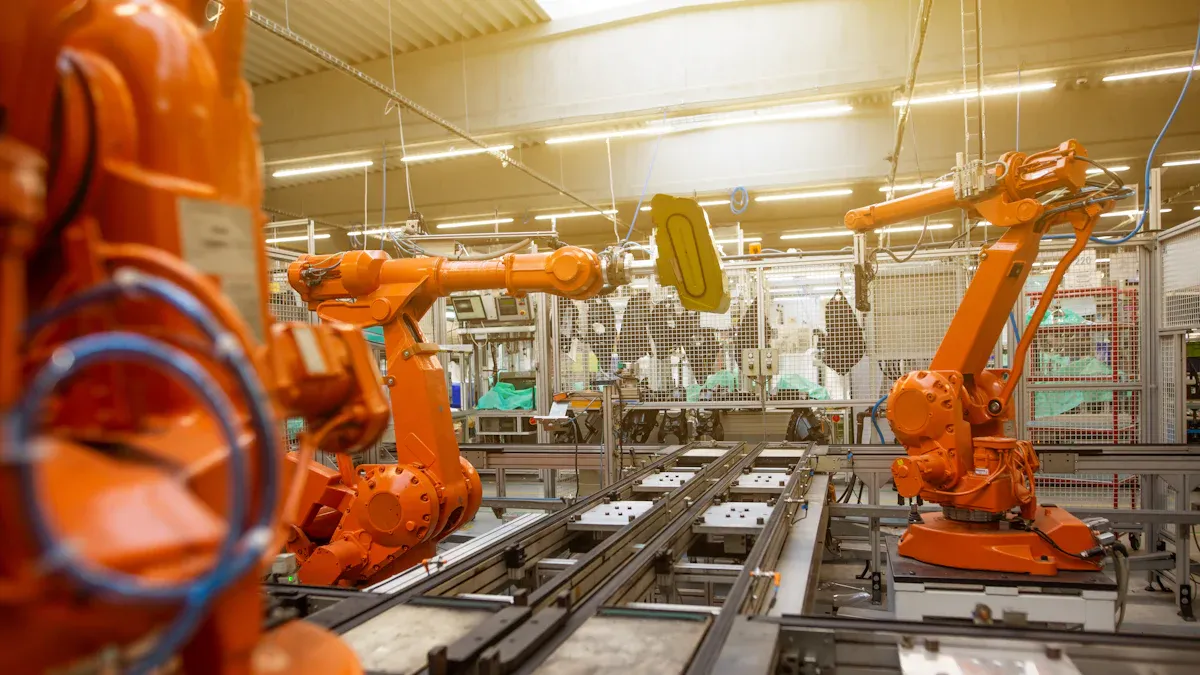

Applications of M16 12 Pin Connector in Advanced Manufacturing
The m16 connector plays a central role in advanced manufacturing by enabling reliable connections for sensors, motors, actuators, and industrial networks. Its robust design and versatile features make it suitable for a wide range of applications. The following table highlights the most common m16 connector application areas in modern manufacturing environments:
| Application Area | Description |
|---|---|
| Industrial Automation | Connecting equipment, sensors, and actuators in factory automation systems. |
| Power Transmission | Moderate to high power distribution in compact spaces ensuring efficiency and reliability. |
| Telecommunications | Data transmission in communication systems. |
| Medical Equipment | Stable and secure connections for critical medical devices. |
| Transportation and Vehicles | Electrical and signal transmission in vehicles and heavy machinery under harsh conditions. |
| Lighting Systems | Durable and weather-resistant connections for outdoor and industrial lighting. |
Sensor Integration with m16 connectors
Process Monitoring Systems
Manufacturers rely on the m16 connector for sensor connection in process monitoring systems. The connector ensures stable and secure electrical links between sensors and control units. High-quality crimp contacts and proper installation techniques create gas-tight, vibration-resistant connections. This stability maintains signal integrity during mechanical stress and temperature changes. The m16 connector supports real-time data collection from sensors that monitor temperature, humidity, and flow. Its IP67 rating and metal housing protect against dust, water, and corrosion, making it ideal for harsh industrial environments. The connector’s compatibility with standardized cabling allows seamless integration into process monitoring networks.
- M16 connectors enable real-time monitoring and process optimization.
- They support automated control by integrating with MES and ERP systems.
- Their anti-interference design ensures reliable signal transmission in complex environments.
Quality Control and Automation
Quality control systems in manufacturing demand precise and uninterrupted data flow. The m16 connector delivers high-performance connections for sensors used in quality inspection and automation. Its robust construction and EMI shielding prevent signal loss and interference. The connector’s long-life design reduces the need for frequent replacements, supporting continuous production. Manufacturers use m16 connectors to link high-precision detection modules, ensuring accurate monitoring of key production parameters. The connector’s adaptability to high and low temperatures, humidity, and corrosive conditions guarantees reliable operation in diverse industrial applications.
Note: M16 connectors, such as those in the Binder series, offer excellent EMI shielding and IP67 protection, making them ideal for sensor systems in process monitoring and quality control.
Motor and Actuator Control using m16 connector
Robotics and Automated Machinery
The m16 connector is essential in robotics and automated machinery. It connects sensors, actuators, and control modules, enabling the transmission of both power and control signals. In robotic joints—such as the head, wrist, and elbow—the connector ensures stable and versatile signal and power delivery. Its self-locking and plug-and-play design simplifies installation and maintenance. The connector’s zinc alloy housing and gold-plated pins provide corrosion resistance and high conductivity. These features support reliable operation in demanding environments, including CNC machines and factory automation systems.
| Feature/Aspect | Description/Role in Motor and Actuator Control in Robotics and Automation |
|---|---|
| Usage | Connect sensors, actuators, and control systems in robotics and automation |
| Signal & Power Transmission | Transmit both power and control signals reliably |
| Environmental Protection | Waterproof (IP65/IP67), corrosion resistant, explosion-proof, high temperature resistance |
| Electrical Ratings | Rated current 5-10A, voltage up to 250V, withstands impulse voltages up to 1500V |
| Mechanical Design | Self-locking, plug-and-play, spring lock design for secure connection |
| EMI Shielding | Zinc alloy housing and internal components provide electromagnetic and RF interference protection |
| Application Examples | Used in robotic joints (head, wrist, elbow), motion control modules, factory automation sensors |
| Cable Compatibility | Supports cable diameters from 4 to 10 mm |
| Material | Gold-plated pins for corrosion resistance and conductivity; PBT material for stable electrical performance |
| Industrial Suitability | Suitable for harsh industrial environments, outdoor installation, and automation systems |
Precision Motion and Drive Systems
Precision motion and drive systems require connectors that can handle high currents and voltages while maintaining signal integrity. The m16 connector meets these requirements with its robust construction and high electrical ratings. It supports cables with diameters from 4.0 to 10 mm, rated voltage up to 250 V, and current up to 10A. The connector’s 360-degree EMI shielding reduces electromagnetic interference, which is critical for precise motor and actuator control. Its explosion-proof and high-temperature-resistant design ensures safe operation in challenging industrial settings. The m16 connector’s versatility makes it a preferred choice for powering and controlling motors in heavy-duty machinery, mining operations, and automated production lines.
Industrial Networking with m16
Fieldbus and Ethernet Connectivity
Industrial network connection is vital for modern manufacturing systems. The m16 connector supports fieldbus and Ethernet connectivity, providing standardized and durable interfaces for industrial automation. It accommodates cable diameters from 3 to 9 mm, ensuring secure and robust cable connections. M12 D-coded Ethernet connectors with m16 cable gland sizes enable reliable installation in harsh environments. The connector’s field wireable plugs and mating receptacles allow flexible and customizable network configurations. Manufacturers use m16 connectors to support protocols such as DeviceNet, Foundation Fieldbus, Profibus, and Profinet. This versatility ensures seamless integration into industrial network architectures.
- M16 connectors facilitate easy installation and maintenance of industrial networks.
- They provide high EMI shielding for stable data transmission.
- Their rugged design supports both fieldbus and Ethernet applications in automation and control systems.
Distributed Control and Communication Systems
Distributed control and communication systems depend on reliable connectors for uninterrupted data flow. The m16 connector delivers this reliability through its robust construction and environmental protection features. It enables the connection of distributed sensors, actuators, and controllers across the factory floor. The connector’s flexible pin configurations, including the 12-pin option, support diverse power and signal needs. Its threaded locking mechanism ensures vibration-resistant connections, even in high-motion environments. The m16 connector’s compatibility with both cable-to-cable and cable-to-panel connections enhances system flexibility. Manufacturers benefit from reduced downtime and improved scalability in distributed control systems.
Tip: The m16 connector’s durable construction and versatile coding options prevent mismating and ensure system compatibility in complex industrial applications.
The m16 connector stands out as a cornerstone of advanced manufacturing, supporting a wide range of applications from sensor integration to motor control and industrial networking. Its durability, flexibility, and high-performance features make it indispensable for modern production environments.
Machine Vision Systems and m16 connectors
Camera and Lighting Integration
Machine vision systems have become essential in advanced manufacturing. These systems rely on precise camera and lighting integration to inspect products, guide robots, and monitor processes. The m16 connector provides a robust solution for connecting cameras, lighting modules, and control units. Its compact circular design allows engineers to install multiple connectors in tight spaces, supporting high-density wiring in vision enclosures.
Manufacturers choose the m16 for its secure screw-locking mechanism. This feature prevents accidental disconnection during machine operation or maintenance. The connector’s high pin count supports the simultaneous transmission of power, control, and data signals. This capability enables engineers to connect multi-channel LED lighting, high-resolution cameras, and auxiliary devices through a single interface.
The m16 connector’s environmental protection ratings, such as IP67 and IP68, ensure reliable operation in dusty, wet, or high-vibration environments. Gold-plated contacts and EMI shielding maintain signal integrity, which is critical for high-speed image data transfer. These features make the m16 connector a preferred choice for machine vision applications that demand accuracy and durability.
Tip: Using m16 connectors for camera and lighting integration reduces wiring complexity and simplifies maintenance in automated inspection systems.
Real-time Data Acquisition and Processing
Real-time data acquisition forms the backbone of modern machine vision systems. The m16 connector supports high-speed data transfer, enabling cameras and sensors to send large volumes of image and measurement data to processing units without delay. Its multi-signal capability allows engineers to combine power, control, and data lines in one connector, streamlining system architecture.
The rugged construction of the m16 ensures stable connections even in environments with constant motion or vibration. Shielded variants protect sensitive data lines from electromagnetic interference, which can cause image distortion or data loss. The connector’s modular design allows for easy upgrades or reconfiguration as vision system requirements evolve.
Manufacturers benefit from reduced downtime and improved system reliability when using m16 connectors in real-time data acquisition and processing. The connector’s quick-connect features and standardized interfaces support rapid installation and troubleshooting, which is vital for maintaining continuous production.
Automotive and Medical Equipment Applications
Vehicle Sensor and Control Systems
Automotive manufacturers face increasing demands for reliable sensor and control system connectivity. The m16 connector addresses these needs with its rugged design, high pin density, and environmental resistance. Engineers use the m16 in vehicle sensor networks to connect temperature, pressure, and proximity sensors to electronic control units. The connector’s screw-locking mechanism and robust housing prevent accidental disconnection, even under constant vibration and shock.
The m16 supports up to 24 contacts, allowing for complex sensor and actuator connections in modern vehicles. Its EMI shielding and IP68 protection rating ensure signal integrity and durability in harsh automotive environments. The connector’s modular design enables customization for different vehicle platforms, supporting a wide range of sensor and control applications.
- The m16 connector provides secure connections for automotive sensors and actuators.
- Its environmental tolerance makes it suitable for under-hood and chassis applications.
- Engineers benefit from easy maintenance and reliable performance in demanding conditions.
The connector’s compliance with IEC standards and availability of shielded cable assemblies further enhance its suitability for automotive sensor and control systems. Its operating temperature range up to +85°C supports use in both passenger and commercial vehicles.
Medical Device Connectivity
Medical equipment requires connectors that deliver reliability, safety, and ease of maintenance. The m16 connector meets these requirements by offering secure, high-density connections for medical devices such as imaging systems, diagnostic instruments, and patient monitoring equipment. Its compact size allows integration into portable and stationary devices, where space is often limited.
Engineers value the m16 for its gold-plated contacts, which ensure stable signal transmission and reduce the risk of corrosion. The connector’s IP67 and IP68 ratings protect sensitive medical electronics from fluids and contaminants. Its modular design supports quick replacement or reconfiguration, minimizing downtime during equipment servicing.
Medical applications benefit from the m16 connector’s ability to handle both power and data signals in a single interface. This capability simplifies device design and reduces the number of required connectors. The connector’s compliance with international safety and quality standards ensures it meets the stringent requirements of the medical industry.
Note: The m16 connector’s combination of durability, high pin count, and environmental protection makes it an ideal choice for both automotive and medical applications.
Selection Criteria for M16 12 Pin Connector in Manufacturing Projects
Performance Requirements for m16 connectors
Electrical and Mechanical Needs
Engineers evaluate the m16 connector based on its ability to deliver stable electrical performance and withstand mechanical stress. The connector must support rated voltages up to 250 V and currents up to 7A at 40ºC. Applications such as industrial control systems and automation equipment require high pin counts and robust construction. The m16 connector uses materials like stainless steel or brass to resist wear and maintain reliable connections. Its design includes secure locking mechanisms and 360-degree EMI shielding, which protect against interference and accidental disconnects. These features ensure the connector meets the demands of both power and signal transmission in dynamic environments.
Environmental and Operational Considerations
The m16 connector must operate reliably in harsh conditions. Manufacturing projects often expose connectors to freezing temperatures, dust, moisture, and chemicals. The connector’s IP rating, such as IP67 or higher, prevents ingress of contaminants and maintains connectivity. Engineers select m16 connectors with appropriate sealing and material durability to match the specific environment. For example, robotics and outdoor applications require connectors that withstand vibration, UV exposure, and repeated connections. The connector’s resilience ensures long-term performance and reduces downtime in critical systems.
Compatibility and Integration of m16 connector
System Interfacing and Legacy Support
Integrating the m16 connector into existing systems can present challenges. Legacy equipment may use outdated technologies or proprietary interfaces. The m16 connector addresses these issues by supporting standardized coding and pin layouts, which enable backward compatibility. Secure locking mechanisms and rugged materials help maintain reliable connections, even when interfacing with older devices. Engineers often use middleware or hardware adapters to bridge differences in data models or processing methods. Standardized protocols and thorough testing further reduce integration risks.
Future-proofing and Scalability
Manufacturers seek connectors that support future expansion. The m16 connector offers modularity and standardized interfaces, making it easy to upgrade or reconfigure as system requirements evolve. Its design allows for phased rollouts and compatibility with new technologies. By choosing connectors with flexible pin configurations and robust construction, engineers ensure the system remains scalable and adaptable to changing application needs.
Cost and Availability of m16
Budget and Procurement Considerations
Cost plays a significant role in connector selection. The m16 connector must balance performance with budget constraints. Regulatory compliance, such as testing and certification, can increase operational costs. High-performance connectors require advanced materials and rigorous quality control, which may raise development expenses. Manufacturers must consider these factors when planning large-scale projects.
Supplier Reliability and Lead Times
Availability of the m16 connector depends on supplier reliability and market conditions. Supply chain disruptions, such as natural disasters or trade restrictions, can delay production and increase costs. Manufacturers benefit from working with suppliers who offer consistent quality, clear documentation, and reasonable lead times. Reliable sourcing ensures timely project completion and reduces the risk of downtime in industrial applications.
Tip: Careful evaluation of performance, compatibility, and cost factors helps manufacturers select the right m16 connector for each application.
Implementation Best Practices for M16 Connectors
Installation Guidelines for m16 12 pin connector
Proper Handling and Termination Techniques
Engineers achieve optimal performance by following precise handling and termination techniques during connector installation. They always use manufacturer-recommended torque specifications to avoid over-tightening or under-tightening, which can cause mechanical damage or looseness. Proper cable preparation remains essential. Technicians strip cables to the correct length and ensure clean, undamaged conductors before insertion. They avoid using heat or flame, which can degrade insulation and compromise the connector’s environmental sealing. Modular connector designs with replaceable inserts allow for straightforward assembly and future expansion. Selecting robust materials, such as plated steel or titanium, further enhances durability and simplifies maintenance.
Tip: Always verify that the connector’s locking mechanism engages fully to prevent accidental disconnection during operation.
Testing and Validation Procedures
After installation, engineers perform thorough testing and validation to confirm reliable connections. They use a multimeter to measure loop resistance, ensuring no unexpected increases that might indicate degradation. Visual inspections check for proper seating, intact seals, and absence of visible damage. For critical applications, technicians may conduct environmental tests, such as water ingress or vibration resistance, to validate the connector’s performance under real-world conditions. These steps help maintain system integrity and reduce the risk of future failures.
Maintenance Strategies for m16 connector systems
Inspection and Preventive Maintenance Schedules
Routine inspection and preventive maintenance extend the service life of every connector system. The following table outlines recommended tasks and their frequencies:
| Maintenance Task | Recommended Frequency | Method/Notes |
|---|---|---|
| Tightness Check | Quarterly | Use visual markers and hand checks to detect backshell looseness and prevent electrical issues. |
| Loop Resistance Test | Annually | Measure with a multimeter to identify increased resistance indicating potential connector degradation. |
| Corrosion Inspection | Semi-annual | Visual and tactile inspection to detect corrosion that could compromise connector integrity. |
| Cable Jacket Review | Quarterly | Visual and physical inspection to ensure proper cable preparation and strain relief are intact. |
Technicians follow these schedules to minimize downtime and enable field repairs with common tools. They replace connectors showing persistent looseness, visible damage, or corrosion with new components that match original specifications.
Troubleshooting Common Issues
When issues arise, technicians use a systematic approach to troubleshooting. They first check for loose connections or improper locking, which often cause intermittent faults. Next, they inspect for signs of corrosion or physical damage. If electrical degradation is suspected, they perform loop resistance tests to pinpoint affected connectors. Modular connector systems allow for quick replacement of faulty inserts, reducing repair time. Selecting connectors designed for repeated mating cycles ensures long-term reliability, even in harsh environments.
Note: Consistent maintenance and careful installation practices help maintain high performance and extend the lifespan of every connector system.
Future Trends in M16 Connector Technology
Advancements in Materials and Design of m16 connectors
Enhanced Durability and Miniaturization
Manufacturers continue to push the boundaries of m16 connector technology. Recent designs feature compact sizes with high pole counts, allowing engineers to maximize space in control panels and machinery. Optimized 360° shielding protects against electromagnetic interference, supporting stable data transmission in environments with heavy electrical noise. Protection ratings now reach IP68, which means m16 connectors withstand dust, water, and contaminants. These improvements enable reliable operation in sectors such as aerospace, military, and advanced manufacturing.
Engineers select robust materials like stainless steel and aluminum for m16 connector housings. These metals resist corrosion and extend service life, even in aggressive industrial settings. Advanced sealing technologies further enhance environmental resistance. Push-pull and screw-locking mechanisms provide secure connections that remain stable during vibration and movement. Cost-effective designs make m16 connectors suitable for demanding applications, including 5G infrastructure and automated production lines.
Tip: Miniaturized m16 connectors with high pole counts help manufacturers reduce wiring complexity and improve system scalability.
New Materials for Extreme Environments
The evolution of m16 connectors includes the adoption of new materials engineered for extreme conditions. Manufacturers use high-performance polymers and advanced alloys to create connectors that tolerate wide temperature ranges and chemical exposure. These materials maintain integrity in environments with rapid temperature changes or corrosive substances. Enhanced sealing compounds protect internal contacts from moisture and dust, ensuring uninterrupted signal and power transmission.
A table below highlights key material advancements:
| Material Type | Benefit | Typical Application |
|---|---|---|
| Stainless Steel | Corrosion resistance | Marine, chemical processing |
| Aluminum Alloy | Lightweight, durable | Aerospace, robotics |
| High-Performance Polymer | Chemical and thermal stability | Food processing, outdoor systems |
Smart Connectors and IoT Integration with m16
Embedded Diagnostics and Monitoring
Smart m16 connectors now support embedded diagnostics, transforming how manufacturers monitor equipment. Integrated sensors within the connector track temperature, humidity, and electrical performance. Real-time data collection enables early fault detection, reducing unplanned downtime. Engineers use these features to schedule maintenance proactively, improving overall system reliability.
Wireless communication protocols such as Wi-Fi, Bluetooth, and 5G enhance the flexibility of m16 connectors. These technologies reduce cabling costs and simplify installation in smart factories. Rugged housings and advanced sealing ensure that m16 connectors maintain secure power, signal, and data connections in harsh environments.
Note: Embedded monitoring in m16 connectors supports predictive maintenance and boosts equipment uptime.
Integration with Industrial IoT Platforms
Industry 4.0 drives the integration of m16 connectors with industrial IoT platforms. Sensor networks connected through m16 interfaces collect production data, enabling manufacturers to optimize processes and improve product quality. Real-time monitoring allows for rapid adjustments, enhancing worker safety and satisfaction.
Smart m16 connectors facilitate secure data transmission between devices and central control systems. Case studies show that customized circular connectors with high EMI resistance and 1 Gbps data transfer capability improve equipment stability in high-interference environments. These advancements position m16 connectors as essential components in automated production lines and robotics.
Manufacturers benefit from the reliability and scalability of m16 connectors in IoT-enabled factories. The combination of robust design, advanced materials, and smart features ensures that m16 technology remains at the forefront of industrial innovation.
M16 12 pin connector systems deliver reliable, high-performance connections in advanced manufacturing. Their robust construction, modular pin configurations, and superior sealing technology support automation, data transfer, and system integration across industries. Manufacturers benefit from features such as gold-plated contacts, IP67 waterproof ratings, and durable housings.
| Feature | Description | Relevance to Manufacturing |
|---|---|---|
| IP67 Waterproof Rating | Protection against dust and water immersion | Essential for harsh environments |
| Gold-Plated Contacts | Optimal conductivity and corrosion resistance | Maintains long-term reliability |
| Modular Pin Configurations | Customizable for specific circuit requirements | Supports system scalability |
- M16 connectors withstand mechanical tension and environmental challenges.
- Their versatility makes them a future-ready choice for scalable production environments.
FAQ
What is an M16 12 pin connector used for?
Engineers use M16 12 pin connectors to transmit power, data, and control signals in industrial automation, robotics, and sensor networks. These connectors support high-density wiring and ensure reliable connections in harsh environments.
How does the IP67 rating benefit manufacturing applications?
The IP67 rating protects the connector from dust and water immersion. This feature allows the connector to operate reliably in wet, dusty, or outdoor manufacturing environments.
Can M16 12 pin connectors handle both power and data signals?
Yes. M16 12 pin connectors support hybrid configurations. They transmit power, data, and control signals through a single interface, which simplifies wiring and reduces installation time.
What materials are commonly used in M16 connectors?
Manufacturers often use stainless steel, zinc alloy, and high-performance polymers like TPU, PVC, or PUR. Gold-plated contacts improve conductivity and resist corrosion.
How do engineers ensure proper installation of M16 connectors?
Technicians follow manufacturer guidelines, use correct torque, and check locking mechanisms. They perform visual inspections and electrical tests to confirm secure and reliable connections.
Are M16 12 pin connectors compatible with legacy equipment?
M16 connectors offer standardized pin layouts and coding options. These features help engineers integrate them with older systems and maintain compatibility across different equipment generations.
What maintenance practices extend the life of M16 connectors?
Routine inspections, resistance testing, and corrosion checks help maintain connector performance. Technicians replace damaged or worn connectors promptly to prevent system failures.
Can M16 connectors support high-speed data transfer?
M16 connectors support data rates up to 10 Gbit/s. Shielded designs and gold-plated contacts maintain signal integrity, even in environments with electromagnetic interference.
