When you work with industrial automation, you often rely on m8 connectors for reliable signal and power transmission. You see these connectors in manufacturing and automation where durability and compact size matter most. M8 connectors stand out from a standard Type B connector due to their robust design for sensors and actuators, especially in harsh environments. Connector factory standards ensure each m8 connector meets strict quality benchmarks. The growing demand for these connectors reflects a global market valued at $0.76 billion in 2024, with a projected 7.0% annual growth rate.
Main Features and Design of M8 Connectors
Physical Characteristics of M8 Connectors
Size and Dimensions
When you select m8 connectors, you notice their compact size. The “m8” designation refers to the 8 mm metric thread on the coupling nut. This small diameter allows you to install these connectors in tight spaces where larger connectors would not fit. You often see m8 connectors used in sensor and actuator applications because their size supports high-density installations. The typical length and width vary by manufacturer, but the thread size remains consistent, ensuring compatibility across different brands.
Materials Used
You want durability and reliability in your connections. Manufacturers use high-quality materials for m8 connectors to meet these needs. The contact pins usually consist of gold-plated brass or phosphor bronze, which provides excellent conductivity and resists corrosion. The housing often uses nickel-plated brass or stainless steel for mechanical strength. For insulation and sealing, you find materials like TPU (thermoplastic polyurethane) or PA (polyamide), which offer flexibility and environmental protection. These choices help m8 connectors withstand harsh industrial environments.
Electrical Properties of M8 Connectors
Voltage and Current Ratings
You must match the electrical ratings of your m8 connector to your application. The voltage and current ratings depend on the coding and the number of contacts. The table below summarizes typical ratings for m8 connectors according to industry standards:
| Coding | Contacts | Rated Voltage | Rated Current |
|---|---|---|---|
| A | 3 | 50 V a.c./ 60 V d.c. | 3 A |
| A | 4 | 50 V a.c./ 60 V d.c. | 3 A |
| A | 6 | 30 V a.c./ 30 V d.c. | 1.5 A |
| A | 8 | 30 V a.c./ 30 V d.c. | 1.5 A |
| B | 5 | 30 V a.c./ 30 V d.c. | 3 A |

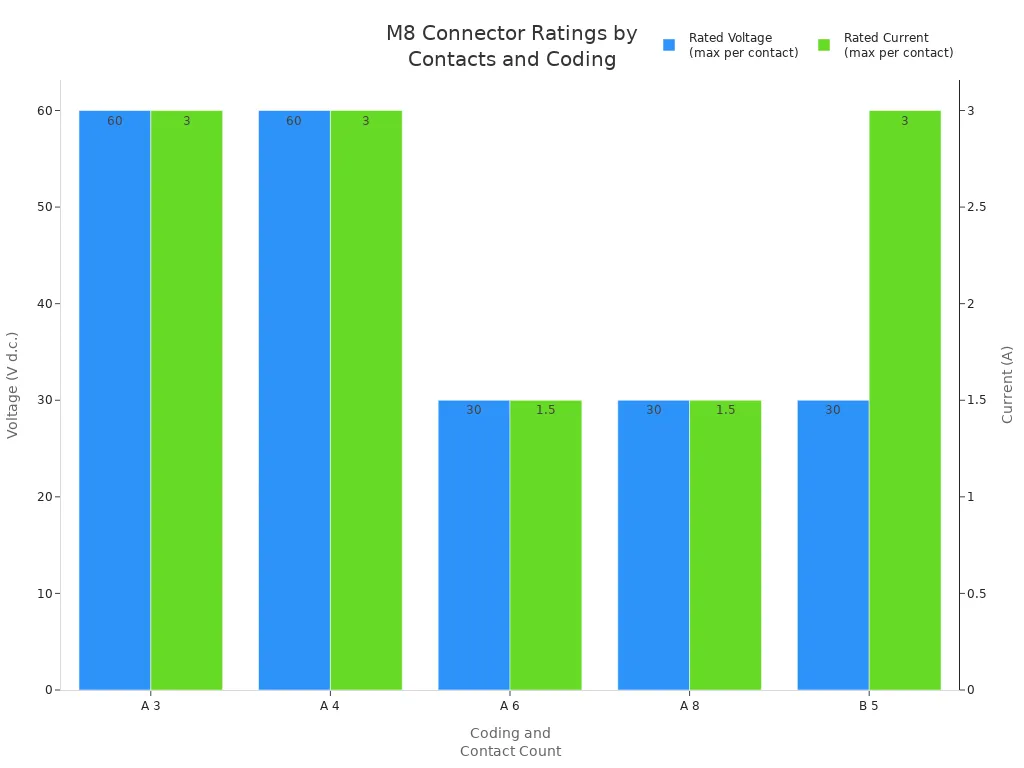

You can also visualize these ratings in the chart below, which compares the rated voltage and current for different m8 connectors:
You see that most m8 connectors support up to 3 A and 50-60 V, depending on the configuration. Always check the datasheet for your specific m8 connector to ensure safe operation.
Shielding and Protection
You often need to protect your signals from electromagnetic interference (EMI). Many m8 connectors offer shielding options, such as metal housings or internal shielding layers. This shielding helps maintain signal integrity in environments with electrical noise. You also benefit from built-in protection features like O-rings and gaskets, which prevent dust and moisture from entering the connector. These features help you achieve reliable performance, even in challenging industrial settings.
Mechanical Strength of M8 Connectors
Durability
You rely on m8 connectors for their robust construction. The metal coupling nuts and reinforced housings resist mechanical stress, such as vibration and impact. The gold-plated contacts reduce wear and maintain low contact resistance over thousands of mating cycles. You can expect a long service life from your m8 connector, even with frequent use.
Environmental Resistance
You often install m8 connectors in environments exposed to water, dust, oil, or chemicals. Manufacturers design these connectors with high ingress protection (IP) ratings, such as IP67 or IP68. This means your m8 connectors can withstand temporary immersion in water and resist dust penetration. The use of chemical-resistant plastics and corrosion-resistant metals ensures that your connectors perform reliably, even in harsh industrial or outdoor conditions.
Tip: Always verify the IP rating and material compatibility of your m8 connector before installation. This step helps you avoid premature failure and ensures long-term reliability.

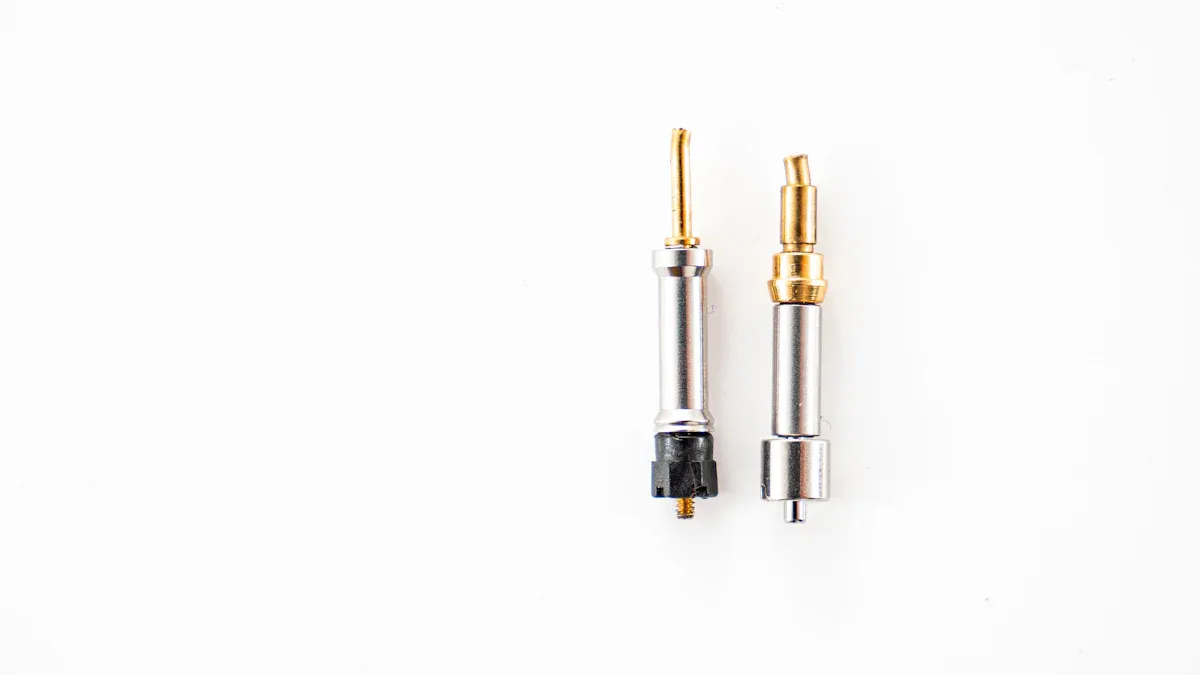

Types and Coding of M8 Connectors
When you select m8 connectors for your project, you need to understand the different types and coding systems. These factors help you ensure compatibility and reliable performance in your application.
M8 Connector Types
Male vs. Female
You encounter two main types of m8 connectors: male and female. The male m8 connector has exposed pins, while the female version contains sockets. You use male connectors to plug into female connectors, creating a secure electrical connection. This design prevents accidental contact with live pins and helps you maintain safety in your system.
Tip: Always match male and female connectors correctly to avoid connection issues and ensure proper signal transmission.
Straight vs. Angled
You also choose between straight and angled m8 connectors. Straight connectors work well when you have enough space for direct cable routing. Angled connectors, often at 90 degrees, help you manage cables in tight spaces or when you need to reduce cable strain. You improve installation flexibility by selecting the right orientation for your setup.
Pin Configurations in M8 Connectors
M8 connectors come in several pin configurations. You select the pin count based on your signal or power requirements.
3-pin
You often use 3-pin m8 connectors for simple sensor or actuator connections. These connectors support basic signal and power transmission.
4-pin
4-pin m8 connectors give you an extra contact for more complex devices. You see these in applications that require both power and data lines.
5-pin
When you need to transmit additional signals, you choose 5-pin m8 connectors. These connectors support more advanced sensors or devices with extra functions.
6-pin
6-pin m8 connectors provide even more flexibility. You use them for devices that require multiple data or control lines.
8-pin
For the most demanding applications, you select 8-pin m8 connectors. These connectors handle complex devices that need several signal paths in a compact form.
| Pin Count | Typical Use Case |
|---|---|
| 3-pin | Basic sensors, actuators |
| 4-pin | Power + data, IO modules |
| 5-pin | Advanced sensors, CAN bus |
| 6-pin | Multi-signal devices |
| 8-pin | High-density signal transfer |
Coding Systems for M8 Connectors
You must pay attention to the coding system when choosing m8 connectors. Coding prevents mismating and ensures you connect the right devices together.
A-coding
A-coding is the most common system for m8 connectors. You use A-coded connectors for sensors, actuators, and standard signal transmission. The keying prevents you from connecting incompatible devices.
B-coding
You find B-coded m8 connectors in fieldbus and network applications. B-coding helps you distinguish these connectors from standard signal types, reducing the risk of wiring errors.
D-coding
D-coded m8 connectors support Ethernet and high-speed data transmission. You use D-coding when you need reliable communication in industrial networks.
P-coding
P-coded m8 connectors are designed for power transmission. You select P-coding when your application requires higher current handling in a compact connector.
Note: Always check the coding before installation. Using the wrong coding can lead to connection failures or equipment damage.
Technical Specifications of M8 Connectors
Standards and Compliance for M8 Connectors
IEC Standards
You need to ensure that your m8 connectors meet international standards for safety and performance. Most m8 connectors comply with IEC 61076-2-104. This standard guarantees mechanical compatibility and signal reliability across different brands and applications. When you choose connectors that follow this specification, you reduce the risk of mismatched parts and improve the consistency of your installations.
IP Ratings
You often work in environments where dust, water, or oil can damage electrical connections. M8 connectors typically offer high IP ratings, such as IP67 or IP68. These ratings mean your connectors can withstand immersion in water and resist dust ingress. Always check the IP rating in the product specifications to match your application’s needs.
Electrical Performance of M8 Connectors
Signal Transmission
You rely on m8 connectors for stable and reliable signal transmission. The design includes EMI-resistant architecture, which shields your signals from interference caused by nearby electrical equipment. This feature helps prevent data corruption and ensures your system operates smoothly. The table below highlights key features that support signal quality and reliability:
| Feature | Description |
|---|---|
| EMI-Resistant Architecture | Built-in shielding to prevent data corruption from nearby electrical sources. |
| Compliance with IEC 61076-2-104 | Ensures mechanical compatibility and signal reliability according to global standards. |
| Rugged and Sealed | Options available for protection in wet, dusty, or high-impact environments. |
| Proven Durability | Connectors withstand shock, vibration, water ingress, and EMI, ensuring reliable performance. |
Power Handling
You must consider the power handling capabilities when selecting m8 connectors for your application. Standard m8 connectors can handle a maximum load current of 150 A and a nominal voltage of up to 1000 V. These specifications allow you to use m8 connectors in demanding industrial environments where both signal and power transmission are required.
| Specification | Value |
|---|---|
| Maximum Load Current | 150 A |
| Nominal Voltage | 1000 V |
Environmental Ratings of M8 Connectors
Temperature Range
You often install m8 connectors in areas with extreme temperatures. Most m8 connectors operate reliably in a wide temperature range, typically from -25°C to +85°C. This broad range ensures that your connections remain stable in both hot and cold environments.
Chemical Resistance
You may need to use m8 connectors in locations exposed to harsh chemicals, oils, or coolants. Manufacturers test these connectors, such as ifm ecolink models, for chemical resistance in industrial environments. They withstand immersion in aggressive chemical media at 80°C for up to 1,200 hours without swelling or deforming. This level of durability ensures your connectors maintain their integrity and performance, even in challenging conditions.
- M8 connectors are tested for chemical resistance in industrial environments.
- They withstand exposure to aggressive chemicals, oils, and coolants.
- Connectors remain stable after immersion in chemical media at 80°C for 1,200 hours.
Tip: Always review the environmental specifications of your m8 connector before installation. This step helps you avoid unexpected failures and ensures long-term reliability.

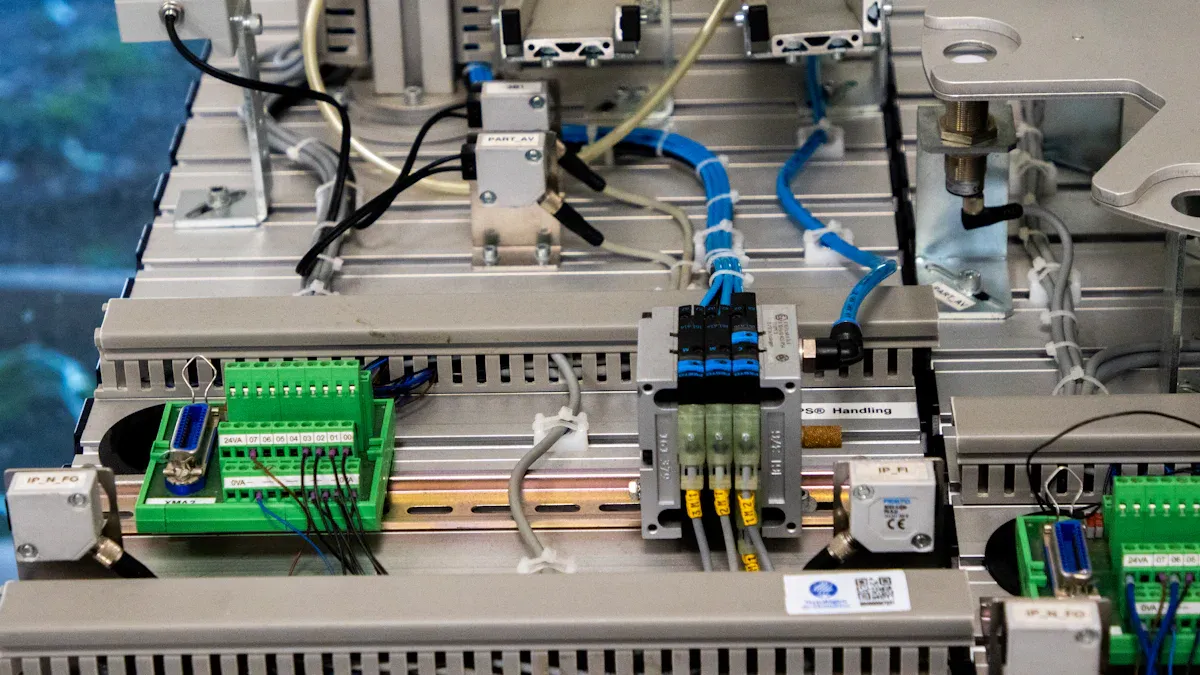

Common Applications of M8 Connectors
You encounter m8 connectors in a wide range of industrial applications. Their compact size, durability, and reliable performance make them a preferred choice for many sectors. Understanding the main applications of m8 connector technology helps you select the right solution for your needs.
Industrial Automation with M8 Connectors
Sensors and Actuators
You often use m8 connectors to link sensors and actuators in industrial automation. These connectors provide secure and stable connections for devices that monitor temperature, pressure, or position. You benefit from quick installation and easy replacement, which reduces downtime on the factory floor. The robust design of m8 connectors ensures that your equipment continues to operate even in environments with vibration or dust.
Robotics
In robotics, you rely on m8 connectors for signal and power transmission between controllers, motors, and feedback devices. The small footprint of m8 connectors allows you to fit them into compact robotic arms and automated guided vehicles. You achieve precise control and fast data transfer, which are essential for modern robotic systems. The high ingress protection rating of these connectors keeps your connections safe from moisture and contaminants.
Transportation Uses for M8 Connectors
Automotive Systems
You find m8 connectors in automotive systems where reliable data and power transmission are critical. Their rugged construction allows them to withstand extreme temperatures and vibrations found in vehicles. You use these connectors for sensors, lighting, and control modules. M8 distribution boxes also support compact automation equipment on assembly lines, making them ideal for low-power sensors and control systems in tight spaces.
Railways
Railway applications demand connectors that can endure harsh conditions. You depend on m8 connectors to maintain communication and control across train systems. Their ability to resist dust, water, and mechanical stress ensures uninterrupted operation. You install these connectors in signaling equipment, monitoring devices, and passenger information systems, where reliability is non-negotiable.
Food and Beverage Industry Applications
Hygienic Equipment
You need connectors that meet strict hygiene standards in food and beverage processing. M8 connectors feature smooth surfaces and chemical-resistant materials, making them easy to clean and sanitize. You use them in equipment that requires frequent washdowns, such as filling machines and conveyors. Their sealed design prevents contamination and supports compliance with industry regulations.
Packaging Machinery
In packaging machinery, you rely on m8 connectors for fast and secure connections. These connectors handle frequent plugging and unplugging without performance loss. You benefit from reduced maintenance time and increased productivity. Their resistance to moisture and cleaning agents ensures long-term reliability in demanding production environments.
Tip: When you evaluate applications of m8 connector solutions, always consider the specific requirements of your industry. This approach helps you maximize performance and minimize downtime.
Additional Application Areas for M8 Connectors
HVAC Systems
You see m8 connectors playing a growing role in modern HVAC systems. These systems demand reliable connections for sensors, actuators, and control modules. You need compact solutions that fit into tight control panels and withstand temperature fluctuations. M8 connectors provide secure signal and power transmission for temperature sensors, pressure switches, and damper actuators. Their robust sealing protects against dust and moisture, which often challenge HVAC environments.
You benefit from fast installation and easy maintenance. The standardized design of m8 connectors allows you to replace faulty components quickly, reducing system downtime. You also find that m8 connectors support sensor integration and I/O module connections, which are essential for smart building management. As HVAC systems become more automated, you rely on these connectors to ensure stable communication between devices.
Tip: When you select connectors for HVAC applications, always check the IP rating and temperature range. This step helps you avoid failures in demanding environments.
Factory Equipment
You depend on m8 connectors to keep factory equipment running efficiently. These connectors support a wide range of devices, including conveyors, packaging machines, and robotic arms. You often need to connect sensors, actuators, and control units in compact spaces. The small size of m8 connectors makes them ideal for high-density installations.
You also see new applications emerging in smart manufacturing and logistics systems. M8 connectors enable reliable connections for sensor networks, which monitor equipment status and production quality. You can use them for SPE (Single Pair Ethernet) hybrid transmission, which combines data and power in one cable. This feature simplifies wiring and supports the move toward Industry 4.0.
- Common additional application areas for m8 connectors include:
- Smart manufacturing
- Sensor integration
- Logistics systems
- I/O module connections
- SPE hybrid transmission
You improve system flexibility and scalability by choosing m8 connectors for your factory equipment. Their durability and ease of use help you maintain high productivity in demanding industrial environments.
Selecting the Right M8 Connector
Choosing the right m8 connector for your project requires careful evaluation of your needs and the environment where you plan to use it. You must consider several factors to ensure reliable performance and long-term durability.
Assessing Application Requirements for M8 Connectors
Environmental Conditions
You need to start by analyzing the environment where you will install the m8. Industrial settings often expose connectors to dust, moisture, chemicals, and temperature extremes. You should check the IP rating of each connector. An IP67 or IP68 rating means the connector can withstand water immersion and dust ingress. If your application involves exposure to oils or aggressive chemicals, select connectors made from materials with proven chemical resistance. For outdoor installations, UV-resistant housings help prevent degradation from sunlight.
Tip: Always match the connector’s environmental rating to the harshest condition expected in your application.
Electrical Needs
You must also review the electrical requirements of your system. Determine the voltage and current that your devices need. Each m8 connector comes with specific electrical specifications, such as rated voltage and current. Exceeding these ratings can cause overheating or failure. You should also consider the type of signal—analog, digital, or power transmission. Shielded connectors help reduce electromagnetic interference in environments with high electrical noise.
A quick checklist for electrical needs:
- Identify maximum voltage and current
- Confirm compatibility with signal type (analog, digital, or power)
- Check for shielding if EMI is a concern
Compatibility Considerations for M8 Connectors
Device Matching
You need to ensure that the connector matches your device’s interface. Check the manufacturer’s datasheet for both the device and the connector. Look for matching thread sizes, mating cycles, and mechanical compatibility. You should also verify that the connector’s mounting style—panel mount, cable mount, or PCB mount—fits your installation requirements.
Pin and Coding Selection
Pin configuration plays a critical role in compatibility. You must select the correct number of pins based on your device’s wiring needs. For example, a sensor may require a 3-pin or 4-pin connector, while more complex devices may need 5, 6, or 8 pins. Coding systems, such as A, B, D, or P coding, prevent mismating and ensure safe connections. Always match the coding of the connector to the device to avoid connection errors.
| Pin Count | Typical Use | Coding Type | Application Example |
|---|---|---|---|
| 3 | Basic sensors | A | Proximity switches |
| 4 | IO modules | A | Industrial sensors |
| 5 | CAN bus, advanced | B | Fieldbus devices |
| 8 | High-density signal | D | Ethernet connections |
Note: Never force a connector with the wrong coding or pin count. This can damage both the connector and your equipment.
Quality and Certification of M8 Connectors
Manufacturer Standards
You should always choose connectors from reputable manufacturers who follow recognized industry standards. Look for compliance with IEC 61076-2-104, which ensures mechanical and electrical compatibility. Reliable manufacturers provide detailed documentation and traceability for their products. This helps you maintain quality control in your installations.
Testing and Verification
Before deploying connectors in critical applications, you should verify their performance. Manufacturers often conduct tests for vibration, shock, temperature cycling, and ingress protection. You can request test reports or certificates to confirm compliance with required standards. For high-reliability environments, consider connectors that have passed third-party certifications.
Callout: Investing in certified connectors reduces the risk of unexpected failures and supports long-term system reliability.
By following these steps, you can confidently select the right m8 connector for your applications. Careful attention to environmental, electrical, and compatibility factors ensures that your system operates safely and efficiently.
Implementation: Installation and Maintenance of M8 Connectors
Installation Best Practices for M8 Connectors
Proper Connection Techniques
You achieve reliable performance by following correct installation guidelines for m8 connectors. Always align the connector’s keyway before mating. Turn the coupling nut gently until you feel resistance, then tighten it by hand. This method prevents cross-threading and ensures a secure fit. Use only the recommended torque if your application requires a tool. Over-tightening can damage the threads or seals. You should inspect the connector for debris or damage before each installation. Clean contacts help you maintain strong electrical connections.
Avoiding Common Mistakes
Many installation errors can lead to poor performance or early failure. You should avoid forcing connectors together if they do not align easily. Never substitute m8 connectors with similar-looking types, as this can cause mismatches. Do not expose connectors to moisture or dust during installation. Always check the coding and pin configuration before connecting. These steps help you prevent wiring errors and equipment damage.
Tip: Label each cable and connector during installation. This practice simplifies future maintenance and reduces confusion in complex systems.
Maintenance Tips for M8 Connectors
Cleaning Procedures
You keep your m8 connectors working well by cleaning them regularly. Use a soft, lint-free cloth to wipe the connector surfaces. For stubborn dirt, use isopropyl alcohol and let the connector dry completely before reconnecting. Avoid using abrasive materials or harsh chemicals, as these can damage the contacts or housing. Clean connectors help you avoid signal loss and corrosion.
Inspection and Replacement
You should inspect each connector during scheduled maintenance. Look for signs of wear, corrosion, or bent pins. Replace any connector that shows damage or fails to lock securely. Regular inspection helps you catch problems early and maintain system reliability. Keep spare connectors on hand to minimize downtime during replacement.
Troubleshooting M8 Connector Issues
Identifying Connection Issues
You may encounter problems such as intermittent connections, signal loss, or unexpected equipment behavior. Start by checking each connector for proper seating. Look for signs of corrosion or contamination. Environmental exposure, such as moisture or dust, can cause failures. Electrical noise may also disrupt signals in sensitive applications.
Solutions for Common Problems
You can address most issues by following proven troubleshooting steps. The table below summarizes common problems and effective solutions:
| Common Issue | Troubleshooting Method |
|---|---|
| Intermittent connections | Check each connector for proper seating, ensure no corrosion, and clean if necessary. |
| Environmental exposure | Use connectors rated for moisture and dust resistance to prevent failure in harsh conditions. |
| Electrical noise | Implement twisted pair cables or shielding to reduce noise and maintain signal integrity. |
| Lack of maintenance | Establish a regular inspection and testing schedule to identify and resolve issues before they escalate. |
You improve system uptime by addressing these issues quickly. Regular maintenance and proper installation help you avoid most common failures with m8 connectors. Reliable connections support the demanding requirements of modern industrial applications.
Future Trends and Innovations in M8 Connectors
Advancements in Materials for M8 Connectors
Enhanced Durability
You see manufacturers investing in new materials to improve the durability of m8 connectors. These connectors now feature rugged construction that helps them endure extreme temperatures, moisture, and vibration. You benefit from enhanced EMI resistance, which keeps signals reliable in noisy environments. The latest designs focus on higher data transfer rates and better EMI shielding, so you can trust your connections in demanding industrial settings.
- Rugged construction withstands harsh conditions.
- Improved EMI shielding boosts signal reliability.
- Higher data transfer rates support advanced m8 applications.
Eco-friendly Options
You notice a growing emphasis on sustainability in connector design. Manufacturers now explore eco-friendly materials, such as recyclable plastics and lead-free alloys. These choices help you reduce your environmental impact without sacrificing performance. You can select m8 connectors that meet green standards for your projects, supporting both operational efficiency and corporate responsibility.
Tip: When you choose connectors, look for certifications that verify eco-friendly materials and manufacturing processes.
Smart Connector Technologies in M8 Connectors
Integrated Diagnostics
You gain new capabilities with smart m8 connectors that feature integrated diagnostics. These connectors monitor connection status and signal quality in real time. You can detect faults quickly, which helps you minimize downtime and maintain system reliability. Diagnostic features also simplify troubleshooting, making maintenance more efficient.
IoT Compatibility
You see m8 connectors evolving to support IoT and digital communication. Technologies like IO-Link enable bidirectional data exchange between devices, allowing you to transmit process data, service information, and event notifications. This integration provides accurate sensor data and reduces the need for extensive cabling. You can upgrade existing systems more easily and support modern industrial applications with these smart connectors.
Market Developments for M8 Connectors
Industry Adoption
You observe rapid adoption of m8 connectors across industries. Automation, robotics, and transportation sectors rely on these connectors for compact, reliable connections. You find m8 used in sensor networks, control modules, and smart equipment. The versatility and robust design make them a preferred choice for new installations and upgrades.
Emerging Standards
You must stay informed about new standards shaping the future of m8 connectors. Industry groups work to define protocols for higher data rates, improved EMI protection, and better environmental resistance. You benefit from standardized designs that ensure compatibility and simplify integration. As these standards evolve, you can expect m8 connectors to support even more advanced applications.
| Trend | Impact on M8 Connectors |
|---|---|
| Rugged materials | Longer lifespan, reliability |
| Smart technologies | Real-time diagnostics, IoT |
| Eco-friendly options | Sustainability, compliance |
| New standards | Compatibility, performance |
Note: You should monitor industry updates to take advantage of the latest innovations in m8 connector technology.
You now understand the essential features and benefits of m8 connectors. When you select the right m8 for your application, you ensure reliable performance and long-term durability.
- Always match connector specifications to your environment and device needs.
- Regular maintenance supports system uptime.
As technology advances, you can expect smarter, more robust connector solutions to meet future industry demands.
FAQ
What does the “M8” in M8 connector mean?
The “M8” refers to the metric thread size of the connector’s coupling nut, which measures 8 millimeters in diameter. You use this size for compact connections in industrial automation and sensor applications.
Can you use M8 connectors outdoors?
Yes, you can use M8 connectors outdoors. Choose models with high IP ratings, such as IP67 or IP68. These ratings ensure protection against dust and water, making them suitable for harsh environments.
How do you identify the correct pin configuration?
You should check the device’s datasheet and the connector’s markings. M8 connectors come in 3, 4, 5, 6, or 8-pin versions. Matching the pin count and coding ensures proper connection and prevents equipment damage.
Are M8 connectors compatible with other connector types?
M8 connectors are not directly compatible with other sizes, such as M12. You must use adapters or select connectors with matching thread sizes and coding. Always verify compatibility before installation.
What is the typical lifespan of an M8 connector?
You can expect M8 connectors to last for thousands of mating cycles. Manufacturers design them for durability in industrial environments. Regular inspection and maintenance help you maximize their service life.
How do you maintain M8 connectors for optimal performance?
You should clean connectors with a lint-free cloth and inspect them regularly for wear or corrosion. Replace damaged connectors immediately. Proper maintenance ensures reliable signal and power transmission.
What standards should you look for when selecting M8 connectors?
Look for compliance with IEC 61076-2-104 and high IP ratings. These standards guarantee mechanical compatibility, electrical safety, and environmental protection. Choosing certified connectors helps you meet industry requirements.
