You need reliable power delivery when you use high-performance gpus. Individual 8-pin connectors provide stable current and prevent overheating. Standard pin connectors may work for older systems if they meet the power needs. Always check if your M8 connector or Type B connector matches your GPU’s requirements. Connector factory standards help guarantee safety and future upgrades.
Proper connector selection protects your system from power issues and supports long-term performance.
Pin Connectors and 8-Pin Connector Types
Standard Pin Connectors Overview
Common Pin Connector Types
You encounter several pin connectors in desktop computer systems. Each type serves a specific function and supports different hardware components.
- ATX: This standard power connector supplies power to your motherboard and essential components.
- Molex: You find this older connector in legacy systems, often powering fans or older graphics cards.
- SATA: This connector links hard drives and SSDs to your motherboard, delivering both power and fast data transfer.
- PCI Express (PCIe): This high-speed connector powers graphics cards and other expansion cards.
Power Delivery Capabilities of Pin Connectors

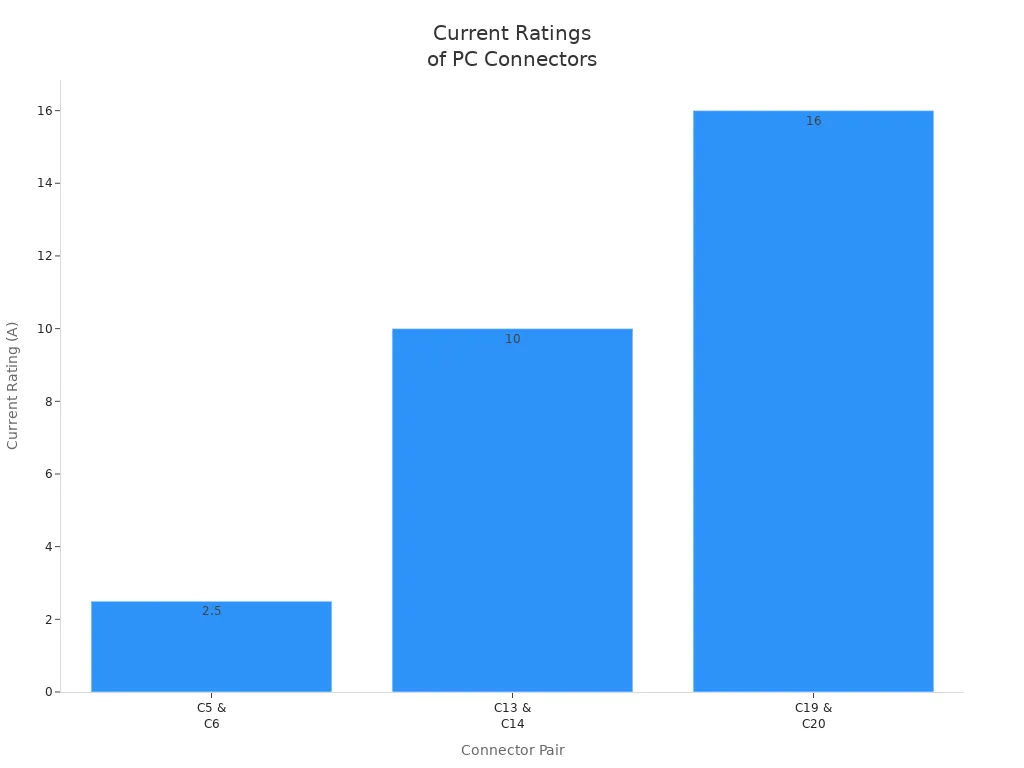

Pin connectors vary in voltage and current ratings. You must match the connector to your device’s requirements to ensure safe operation. The table below summarizes typical ratings:
| Connector Pair | Voltage Rating | Current Rating | Typical Use |
|---|---|---|---|
| C5 & C6 | Up to 250 V | 2.5 A | Laptops, smaller devices |
| C13 & C14 | Up to 250 V | 10 A | PCs, monitors, peripherals |
| C19 & C20 | Up to 250 V | 16 A | Servers, heavy machinery |
Always check the voltage and current ratings before connecting high-capacity connector types to avoid overloading your system.
8-Pin Connector Specifications
PCIe 8-Pin Connector Features
The 8-pin PCIe connector delivers supplemental power to modern GPUs. You use this connector when your graphics card requires more power than the motherboard slot can provide. The official specifications for the 8-pin PCIe connector include:
| Attribute | PCIe 8-pin |
|---|---|
| Connector pinout | 1: 12V, 2: 12V, 3: 12V, 4: Sense1, 5: Ground, 6: Sense0, 7: Ground, 8: Ground |
| Specified/Rated Power | 150/288 W |
| Usage | Provides three 12V sources for power draw, with sense pins indicating power availability |
You should use individual 8-pin cables from your power supply for each GPU connector to ensure stable power delivery and prevent overheating.
EPS 8-Pin Connector Differences
The EPS 8-pin connector powers your CPU through the motherboard. It differs from the PCIe 8-pin connector in pin arrangement and purpose.
- The EPS 8-pin connector supplies power to the CPU socket.
- The PCIe 8-pin connector supplies power to the GPU.
- The arrangement and shape of the pins prevent incorrect connections.
The top left connector on the EPS 12V is squared off, while that on the PCIe is rounded off, preventing incorrect connections.
6+2 Pin Connectors and Compatibility
How 6+2 Pin Connectors Work
You often see the PCI-E 6+2 pin connector in modern power supplies. This flexible design allows you to use the same cable for either 6-pin or 8-pin GPU power requirements. You simply attach or detach the extra 2-pin segment as needed.
Compatibility with 8-Pin Connector Requirements
The 6+2 pin connector matches the requirements of most 8-pin GPU sockets. However, you must use high-quality pcie 8-pin cables and avoid non-standard cables to prevent electrical shorts. The table below highlights common compatibility issues:
| Issue | Description |
|---|---|
| Overheating | High current draw on a single cable can lead to overheating. |
| Quality of Power Supply | Using a good quality power supply is crucial to avoid issues. |
| Non-standard Cables | Risks arise from using non-standard cables due to different pinouts, which can cause electrical shorts. |
Tip: Always use individual 8-pin cables from your PSU for each GPU connector to maximize safety and performance.
16-Pin Power Connector for Modern Systems
16-Pin Connector Use Cases
You see the 16-pin power connector in many modern desktop systems. This connector supports high-performance graphics cards and advanced hardware. Manufacturers design it to deliver up to 600 watts of power, which meets the demands of next-generation gpus. You find this connector on new power supplies and graphics cards that require more energy than older models.
You use the 16-pin power connector when you build a system for gaming, professional rendering, or scientific computing. It provides a single cable solution, which reduces clutter inside your case. You also benefit from improved cable management and airflow. Many users choose this connector for systems that run resource-intensive applications.
Here are common use cases for the 16-pin power connector:
- High-end gaming PCs with powerful GPUs
- Workstations for 3D modeling or video editing
- Systems that support multiple graphics cards
- Builds that require clean cable routing and minimal adapters
Tip: You should check if your power supply offers native 16-pin support before you purchase a new GPU. This step helps you avoid compatibility issues and ensures stable power delivery.
Future-Proofing with 16-Pin Power Connector
You plan for future upgrades when you select a 16-pin power connector. This connector supports upcoming hardware releases and new standards. You avoid the need for adapters or multiple cables, which can cause power loss or overheating. Many manufacturers now include native 16-pin support in their latest power supplies, so you can upgrade your system without replacing major components.
You achieve future-proofing by choosing a power supply with a 16-pin power connector. This decision prepares your system for next-generation gpus and other high-power devices. You also protect your investment, since you will not need to buy new cables or adapters as technology advances.
The table below shows the advantages of using a 16-pin power connector for future-proofing:
| Feature | Benefit |
|---|---|
| High wattage delivery | Supports demanding GPUs |
| Single cable solution | Simplifies installation |
| Native 16-pin support | Ensures compatibility |
| Upgrade readiness | Prepares for future hardware |
Note: You should always review your GPU and PSU specifications before you upgrade. This step helps you confirm that your system supports the 16-pin power connector and avoids unnecessary expenses.
Compatibility and Standards for Pin Connectors
ATX and PCIe Connector Standards
Physical and Electrical Compatibility
You must understand the physical and electrical compatibility of pin connectors before building or upgrading your system. Each connector type features a unique shape and pin arrangement. This design prevents incorrect connections and ensures safe power delivery. For example, the 24-pin ATX connector powers your motherboard, while the 6-pin and 6+2-pin PCIe connectors supply power to your graphics card. You cannot interchange these connectors because their pin layouts and voltage requirements differ.
Electrical compatibility also matters. You should always match the voltage and current ratings of your pin connectors to the hardware specifications. Using the wrong connector can cause system instability or even permanent damage. Many modern power supplies offer backward compatibility, allowing you to use newer connectors with older components. However, you must always check the documentation for your hardware to confirm compatibility.
Connector Polarization and Safety
Connector polarization keeps your system safe. Manufacturers design pin connectors with keyed shapes. This feature ensures you insert each connector in the correct orientation. For example, the PCI-E connector has a unique shape that fits only one way into your GPU socket. You avoid short circuits and electrical hazards by following the correct orientation.
You should never force a connector into a port. If a connector does not fit easily, you may have the wrong type. Always double-check the connector label and the port on your hardware. Many connectors also include locking clips. These clips secure the connection and prevent accidental disconnection during operation.
Tip: Always power off your system and unplug the power supply before connecting or disconnecting any pin connectors.
Matching Pin Connectors to Hardware
GPU Connector Requirements
Your graphics card, or GPU, often requires specific pin connectors for stable operation. Most modern GPUs use 6-pin, 6+2-pin, or 8-pin PCIe connectors. High-end cards may need multiple connectors to meet their power demands. You should check the GPU manufacturer’s specifications to determine the exact connector type and quantity required.
PSU Connector Availability and Compatibility
Your power supply unit (PSU) must provide the correct connectors for your hardware. Gaming and workstation builds often use several types of pin connectors. The table below summarizes the most common PSU connector configurations:
| Connector Type | Description |
|---|---|
| 24-pin ATX connector | The primary connector for powering the motherboard. |
| 4-pin ATX12V / 8-pin EPS12V | Provides additional power to the CPU, with variations depending on the motherboard. |
| 6-pin / 6+2-pin PCIe Connector | Commonly used for connecting graphics cards. |
You should always verify that your PSU offers enough connectors for your GPU and other components. Some power supplies include modular cables, which let you add or remove pin connectors as needed. This flexibility improves cable management and airflow inside your case.
Compatibility between your PSU and hardware ensures stable power delivery. If your PSU lacks the required connectors, you may need to upgrade to a model with more options. Always prioritize safety and system stability when selecting pin connectors for your build.
Comparing Pin Connectors vs. Individual 8-Pin Connectors
Power Delivery and Performance
Maximum Wattage Supported by Each Connector
You must consider the maximum wattage supported by each connector when building or upgrading your system. The table below shows the typical wattage limits for standard pin connectors and individual 8-pin connectors:
| Connector Type | Maximum Wattage |
|---|---|
| 6-pin | 75W |
| 8-pin | 150W |
Individual 8-pin connectors offer a higher power delivery capacity compared to standard 6-pin connectors. This difference becomes critical when you use power-hungry flagship gpus that demand more energy for stable operation. You should always match your GPU’s requirements to the connector’s wattage rating to ensure reliable connections and prevent power issues.
Impact on GPU Stability and Performance
A well-designed power delivery system ensures your GPU receives consistent and stable power. This stability directly impacts your system’s performance and reliability. If you use individual 8-pin connectors, you provide dedicated power paths to your GPU, which reduces the risk of voltage drops and instability.
You should also consider the following factors:
- The transition to PCIe Gen4 has introduced challenges with riser cables due to increased bandwidth requirements.
- Better signaling strength and components are necessary to maintain performance with newer connector types.
When you use connectors that meet your GPU’s power needs, you avoid issues like random shutdowns, crashes, or throttling. Individual 8-pin connectors help maintain optimal operation, especially in flagship builds that push hardware to its limits.
Safety and Overheating Risks
Protection Features of 8-Pin Connectors
Individual 8-pin connectors include features that enhance safety and reliability. These connectors use thicker wires and robust pin layouts to handle higher currents. The design minimizes the risk of overheating and ensures secure connections, even under heavy loads. You benefit from enhanced safety and reliability when you use the correct connectors for your GPU.
Risks of Using Incompatible Pin Connectors
Using incompatible pin connectors with high-power GPUs introduces several risks. The table below outlines the most common dangers:
| Risk Type | Description |
|---|---|
| Power Instability | Using incorrect connectors can lead to unstable power delivery, causing the GPU to fail to initialize. |
| Hardware Damage | Incompatible connectors can result in physical damage to the GPU and other components. |
| Connector Melting | There have been instances of connectors melting due to overheating from inadequate power supply. |
You may encounter issues like melted connectors, especially with third-party adapters or when using cables not rated for your GPU’s requirements. For example, users have reported melted power connectors on the RTX 4090 and RTX 5090, even when using cables that appeared to meet specifications. Always use connectors recommended by your GPU and PSU manufacturers to avoid these hazards.
Use Cases for Pin Connectors and 8-Pin Connector
High-End Gaming and Workstation Builds
You should use individual 8-pin connectors in high-end gaming PCs and workstation builds. These systems often feature flagship GPUs that require dedicated power delivery for stable performance. Individual connectors ensure each GPU receives the necessary wattage without sharing power with other components. This approach supports reliable connections and reduces the risk of power-related failures during demanding tasks like 3D rendering or competitive gaming.
Budget and Legacy System Scenarios
Standard pin connectors remain suitable for budget builds or legacy systems. If your GPU has modest power requirements, you can use 6-pin or pcie connectors without concern. Pigtail connectors also simplify cable management for GPUs with dual 8-pin inputs, though you should verify that your PSU can handle the combined load. Both connector types are safe when used within their rated limits, but individual 8-pin connectors provide extra peace of mind for users who prioritize reliability.
Tip: Always check your GPU and PSU documentation before selecting connectors. This step helps you avoid compatibility issues and ensures your system operates safely.
Assessing System Needs for Connector Compatibility
Evaluating GPU Power Requirements
Checking Manufacturer Specifications
You should always start by checking your GPU manufacturer’s specifications. These documents list the recommended connector type and the required wattage for stable operation. Manufacturers often specify whether your graphics card needs a 6-pin, 8-pin, or even a 16-pin connector. This information helps you avoid underpowering your GPU and ensures reliable power delivery.
The PCIe 6-pin is only capable of 75W, while the 8-pin is capable of 150W. The primary difference between the 6-pin and 8-pin is based on PCI-SIG’s specification, and not the conductors.
Estimating Power Draw for Compatibility
You need to estimate your system’s total power draw to select the right connectors. You can use two main methods:
| Method | Description |
|---|---|
| Using meters and faceplates | Read power usage directly from built-in meters or check faceplate specifications for voltage and amp ratings. |
| Using hardware lists | Compile a list of all components and research their power specifications to calculate total requirements. |
When you add up the power needs of your GPU, CPU, drives, and other devices, you get a clear picture of the demands on your power supply. High-end graphics cards require high-wattage power supplies for stable operation. Mid-range cards typically consume between 200W and 300W, so you may need 6-pin or 8-pin connectors. Transitioning to 12V-2×6 (16-pin) connectors is recommended for improved stability and future upgrades.
| Connector Type | Power Capability | Recommended Use |
|---|---|---|
| 6-pin | 75W | Low to mid-range GPUs |
| 8-pin | 150W | Mid to high-end GPUs |
| 12V-2×6 (16-pin) | Supports higher wattage | Future-proofing for high-performance GPUs |
Reviewing PSU Specifications for Pin Connectors
Connector Types and Quantity
You must review your power supply’s specifications to ensure it provides the correct connector types and quantity. The type and number of connectors are crucial for compatibility. You should use separate cables for each power connector on the GPU to ensure proper power delivery and prevent overheating. Modular power supplies allow you to add or remove cables as needed, which helps with cable management and airflow.
Total Wattage and Rails
You need to check the total wattage rating of your power supply. Make sure it meets or exceeds the combined power requirements of your system. The quality of the power supply and the gauge of the wires are important factors, especially in older or lower-quality units. Multiple rails can distribute power more efficiently, but you should confirm that each rail can handle the load required by your GPU and other components.
Identifying Compatibility Issues
Adapter Use and Associated Risks
You may consider using adapters if your power supply lacks the necessary connectors. However, adapters can introduce risks such as unstable power delivery and overheating. Using adapters may also void warranties or cause damage if not rated for your GPU’s power draw. Always prioritize direct connections from your power supply to your GPU.
Physical Fit and Clearance Considerations
Physical fit and clearance play a critical role in connector compatibility. You must ensure that pin connectors align properly with your hardware. Common issues include:
- Pin configuration and misalignment can lead to bent pins and prevent proper mating.
- Connector corrosion reduces conductivity and causes signal inconsistencies.
- Overmolding damage from excessive force or temperature results in intermittent connections.
- Mating cycle issues occur when connectors wear out after repeated use.
You should inspect connectors for damage and confirm that they fit securely in your system. Proper alignment and clean contacts help maintain stable power delivery and prevent hardware failures.
Decision Guide for Choosing Pin Connectors and 8-Pin Connector
Step-by-Step Checklist for Connector Selection
Identify Your GPU Model and Power Needs
Start by identifying your GPU model. Check the manufacturer’s documentation for the recommended power requirements. You will find information about the number and type of connectors needed. High-end GPUs often require more than one 8-pin connector. Lower-power cards may only need a single 6-pin or 8-pin connector. Always confirm the wattage and connector type before moving forward.
Check PSU Connector Options and Compatibility
Next, examine your power supply unit (PSU). Review the available connectors and their types. Modular PSUs allow you to add or remove cables as needed. Make sure your PSU has enough connectors to match your GPU’s requirements. If your PSU lacks the correct connectors, consider upgrading to a model that supports your hardware.
Match Power Requirements to Connector Type
Match your GPU’s power needs to the correct connector type. Use the table below as a quick reference:
| GPU Power Requirement | Recommended Connector Type |
|---|---|
| Up to 75W | 6-pin PCIe |
| Up to 150W | 8-pin PCIe |
| 300W or more | Multiple 8-pin or 16-pin |
You should always use separate cables for each connector on your GPU. This practice ensures stable power delivery and reduces the risk of overheating.
Common Mistakes to Avoid with Pin Connectors
Unsafe Adapter Use
Many users make mistakes when choosing pin connectors for their systems. The most frequent errors include:
- Selecting the wrong connector size. You must ensure the connector matches the cable type. Forcing incompatible connectors can damage your hardware.
- Choosing the incorrect bandwidth. Always match the connector’s performance rating with the cable’s specifications.
- Judging a connector by looks alone. Do not rely on appearance. Always check the technical specifications for impedance.
- Ignoring compression connectors. These connectors offer better electrical performance and stability.
Avoid using adapters unless absolutely necessary. Adapters can introduce instability and may not support the required power draw for modern GPUs.
Ignoring Manufacturer Recommendations
You should never ignore the recommendations from your GPU or PSU manufacturer. These guidelines exist to protect your hardware. Using the wrong connector or ignoring the specified requirements can lead to system instability, overheating, or even permanent damage.
Tip: Always consult your hardware manuals before making any changes to your system’s connectors.
Future-Proofing with 8-Pin and 16-Pin Power Connector
Planning for Upgrades
When you plan for future upgrades, consider the benefits of future-proofing for next-gen hardware. The 12VHPWR connector, introduced with the ATX 3.0 standard, delivers up to 600 watts through a single cable. This advancement replaces multiple 8-pin connectors and supports the increasing power demands of modern GPUs. You achieve simplified installation and compatibility, making your system ready for future hardware releases.
Ensuring Long-Term Safety and Compatibility
Choose connectors that support both current and upcoming standards. By selecting a power supply with native 8-pin and 16-pin support, you ensure long-term safety and compatibility. This approach reduces the need for adapters and minimizes the risk of power delivery issues as technology evolves.
Note: Investing in quality connectors and a modern PSU helps you avoid costly upgrades and keeps your system stable as new hardware becomes available.
Troubleshooting and Upgrading Pin Connectors and 8-Pin Connector
Signs of Insufficient Power Delivery
System Instability and Performance Issues
You may notice several warning signs if your system does not receive enough power through its connectors. Common symptoms include:
- Unexpected system shutdowns during high GPU or CPU loads.
- Random reboots or crashes when running demanding applications.
- Failure to boot or initialize hardware, especially after installing a new graphics card.
- Loose connections or inadequate power supply units can also cause these issues.
You should always check that your connectors are secure and that your power supply meets the requirements of your components. Using a 4-pin CPU cable from the PSU, when available, often provides better stability than relying on adapters, especially if your PSU has multiple +12V rails.
Overheating and Throttling Symptoms
Insufficient power delivery can lead to overheating and performance throttling. You might observe:
- Fans spinning up to maximum speed as the system tries to cool itself.
- Lower frame rates or reduced performance in games and applications.
- Components, such as the GPU, running hotter than usual.
- Throttling, where the system automatically reduces performance to prevent damage.
If you experience these symptoms, inspect your pin connectors for secure fit and check your PSU’s output.
Upgrading PSU or Pin Connectors
When to Replace Your PSU for More 8-Pin Connectors
You should consider upgrading your PSU if your current unit lacks enough 8-pin connectors for your GPU. High-end graphics cards often require more power than a single 8-pin connector can provide. The additional 8-pin connector supplies up to 150W, but this may still fall short for demanding GPUs. A quality PSU with adequate connectors ensures optimal performance and system stability.
Both connectors need to be populated. Your PSU is NOT up to the task of powering a 3060 even if it had the necessary cables.
Choosing Quality Pin Connectors for Reliability
Selecting high-quality pin connectors is essential for reliable power delivery. Use the following criteria to guide your choice:
| Criteria | Description |
|---|---|
| Power Rating | Ensure the connector can handle the maximum voltage and current required by the device. |
| Compatibility | Verify that the connector physically fits and is compatible with the system. |
| Current Capacity | Choose connectors that can manage the expected current to prevent overheating. |
| Voltage Compatibility | Select connectors that align with the system’s voltage levels for reliable connections. |
| Environmental Suitability | Consider factors like temperature and humidity to ensure long-term reliability in the intended environment. |
| Safety Considerations | Focus on insulation and materials that prevent electrical shocks and fire hazards. |
You should look for insulated, heat-resistant, and hermetic connectors to maximize safety and reliability.
Adapter Solutions for Pin Connectors and 8-Pin Connector
Safe Adapter Use Practices
If you must use adapters, prioritize safety and quality. Follow these best practices:
| Key Considerations | Details |
|---|---|
| Quality of Adapters | Use high-quality adapters with 18 AWG, UL 1007 insulated wires. Avoid cheap adapters with thin wires. |
| Power Rating | Good quality adapters are rated for a maximum of 120 W. |
| Cable Management | Do not bundle cables; spread them out for better cooling. |
| Connection Check | Ensure MOLEX ends are inserted correctly to avoid bad contact. |
| Testing | Benchmark system stability for 10-15 minutes to check for overheating or crashes. |
Always verify that your PSU can supply enough power, as adapters do not increase the PSU’s capacity.
Risks and Limitations of Adapters
Adapters can introduce several risks and limitations:
- Using adapters without proper grounding can create safety hazards.
- Inexpensive adapters may not handle high currents and can overheat.
- Improperly connected adapters may lead to fire or electrical shock.
- Adapters are passive; your PSU must provide sufficient power for the GPU.
- Some high-power GPUs require native cables, making adapters unsuitable.
You should only use adapters as a temporary solution and always monitor your system for signs of instability or overheating.
When you build or upgrade your system, always use individual 8-pin connectors for high-end GPUs to ensure reliable power and safety. For mid-range or older setups, pin connectors may suffice if they meet your GPU’s needs. Assess your GPU and PSU specifications before making a choice. Avoid risky adapters and focus on compatibility. To support future upgrades, consider 16-pin connectors and follow these best practices:
| Best Practice | Description |
|---|---|
| Choose the Right Connector | Select based on environment and durability needs. |
| Proper Installation | Align pins correctly and avoid over-tightening. |
| Regular Cleaning & Maintenance | Inspect for corrosion and keep connectors dry. |
| Avoid Frequent Mating | Use locking mechanisms and limit unnecessary connections. |
| Store and Handle Correctly | Keep unused connectors in a dry, safe place. |
FAQ
What is the difference between a 6-pin and an 8-pin PCIe connector?
A 6-pin PCIe connector delivers up to 75W, while an 8-pin provides up to 150W. You should use the connector type that matches your GPU’s power requirements for stable operation.
Can you use adapters to connect an 8-pin GPU to a PSU with only 6-pin connectors?
You can use adapters, but this practice increases the risk of overheating and instability. Always check your PSU’s power rating and use direct connections when possible for safety.
How do you know if your PSU supports a 16-pin connector?
Check your PSU’s specifications or manual. Look for “12VHPWR” or “16-pin PCIe” support. Many modern PSUs list compatible connectors on the box or product page.
Do you need separate cables for each 8-pin GPU connector?
Yes. You should use individual cables from the PSU for each 8-pin connector on your GPU. This approach ensures stable power delivery and reduces the risk of overheating.
What happens if you use the wrong connector type for your GPU?
Using the wrong connector can cause system instability, crashes, or even hardware damage. Always match the connector type and wattage to your GPU’s requirements.
Are all 8-pin connectors the same?
No. PCIe 8-pin connectors power GPUs, while EPS 8-pin connectors power CPUs. The pin layouts differ. Never interchange them, as this can damage your components.
How often should you inspect your pin connectors?
You should inspect connectors every few months. Look for signs of wear, corrosion, or loose connections. Regular checks help prevent power issues and extend your system’s lifespan.
Can you future-proof your system with a 16-pin connector?
Yes. Choosing a PSU with a native 16-pin connector prepares your system for next-generation GPUs. This option supports higher wattages and reduces the need for adapters.
