You encounter a variety of pin types in electrical connectors, such as solid, hollow, spring-loaded, blade, socket, coaxial, power, and ground pins. The choice of pin material—copper, brass, or beryllium copper—and the design, including shape, size, and termination style, directly impacts your connector’s performance and reliability. In different types of connectors, like d-sub connectors, USB, or pin header connectors, selecting the right pin connector and socket connector ensures proper electrical connection, compatibility, and protection for your application.
When you select electrical connector types for connector applications, consider features such as vibration tolerance, corrosion protection, insulation and housing, and mounting options. These factors help you achieve safe, long-lasting electrical terminal and connection performance in demanding environments, such as those using the M8 connector, Type B connector, or d-sub designs.
| Type of Pin Connector | Market Share (%) |
|---|---|
| Two Pin Type | N/A |
| Three Pin Type | N/A |
Additionally, working with a reputable connector factory can provide you with a wide range of options for pin types, ensuring that you find the best fit for your specific needs.
Why Pin Types Matter in Electrical Connectors
Impact on Electrical Performance
You rely on electrical connectors to deliver stable, efficient power and signal transmission. The pin types you select directly influence how well your connector performs. High-quality conductive materials, such as copper alloys like beryllium copper or phosphor bronze, help minimize resistance and maintain signal integrity. These materials also provide a balance of strength and electrical efficiency, which is essential for demanding connector applications.
- Impedance matching remains crucial in high-frequency circuits. Mismatched impedance can cause signal reflections and distortion, especially in usb or d-sub connectors.
- The geometry of power pins affects resistance and inductance, which impacts efficient power transfer.
- Pin length and how the pin attaches to the circuit board influence signal loss and overall electrical connection quality.
You must consider these factors when choosing electrical connector types for your application. The right pin connector ensures optimal performance and protection for your devices.
Role in Mechanical Reliability
Mechanical reliability determines how long your connectors last and how well they withstand repeated use. The contact force between the pin and its mating surface plays a key role in connection reliability. Proper design maintains sufficient force throughout the pin’s lifecycle. Factors such as pin geometry, spring characteristics, and plating thickness all contribute to optimal contact force.
Tip: Choose plating materials that match your durability needs. The table below highlights common plating options and their benefits:
| Plating Material | Durability Benefits | Additional Notes |
|---|---|---|
| Tin | Cost-effective, acceptable for most applications | Can corrode, forms oxide layer |
| Gold | High corrosion resistance, low contact resistance | Soft, thin plating over nickel |
| Silver | Lowest contact resistance, good for high current | Less common, thin plating |
| Tin-Lead | Stronger solder joints, suppresses whisker growth | Used in high-reliability connectors |
| Specialty Alloys | Enhanced durability for specific uses | Includes nickel or palladium alloys |
You should also consider how well the connector resists temperature changes, humidity, vibration, and contaminants. These factors affect the lifespan and reliability of your electrical terminal and contacts.
Influence on Application Suitability
Pin types determine whether a connector fits your specific needs. In different types of connectors, such as pin header connectors or d-sub, the number of pins dictates available electrical pathways. Pitch arrangement affects compatibility and performance. Keying features ensure correct orientation, preventing mismatches that could damage your devices.
In specialized applications, such as automotive, aerospace, or medical devices, you must pay attention to pin sequencing for stable power and ground signals. Durability, measured by mating cycles, becomes critical for connectors that require frequent connections. Insulation and housing also play a role in protecting the electrical connection and ensuring safety.
Connector technology continues to evolve, offering you more choices for pin connectors and terminals. By understanding these factors, you can select the right pin connector for your application, ensuring compatibility, protection, and long-term reliability.
Overview of Pin Types in Different Types of Connectors

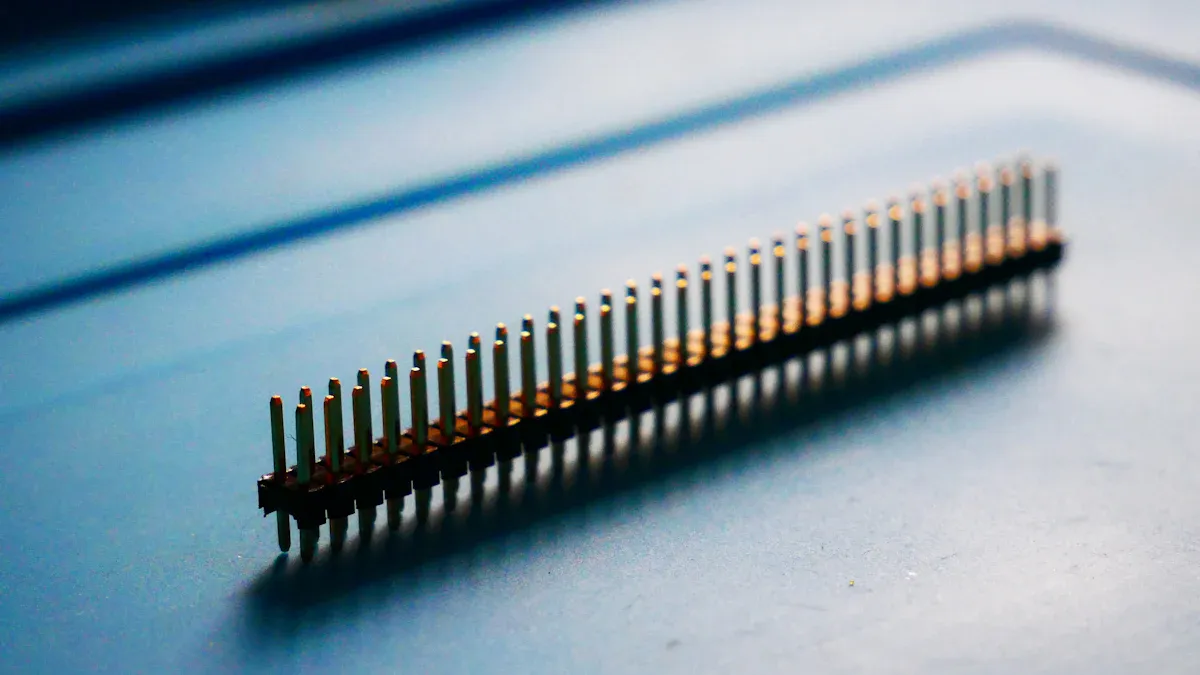

Solid Pins
Features
Solid pins represent one of the most robust pin types you can select for electrical connectors. These pins use a single piece of metal, often enclosed in insulating plastic, which provides excellent mechanical strength and durability. You benefit from their ability to handle higher currents and withstand harsh environments. Solid pins also offer a heavier and thicker profile compared to stranded or hollow alternatives, making them ideal for demanding conditions.
A key advantage lies in their precision tip design. For example, precision pin tips can reduce insertion and mating forces by up to 35 percent. This reduction improves efficiency during wire-wrapping and connection processes, especially in applications that require frequent assembly or disassembly.
| Characteristic/Metric | Description |
|---|---|
| Type | Solid pin terminals are metal components enclosed in insulating plastic, designed for wire insertion and connection. |
| Applications | Used in various applications including vehicle controls and building structures for transporting strong currents. |
| Performance | Solid pins can cut insertion and mating forces by up to 35 percent, making them optimal for wire-wrapping and PCB applications. |
Note: Solid pins can withstand inclement weather and constant mobility. You should consider them when you need durability and reliable performance in outdoor or high-vibration environments.
Common Applications
You will find solid pins in a wide range of electrical connectors, including d-sub connectors, pin header connectors, and power connectors. They excel in vehicle controls, building infrastructure, and industrial machinery where strong currents and mechanical reliability are essential. Solid pins also play a crucial role in applications that demand long-term protection and stable electrical connection, such as outdoor lighting systems and heavy equipment.
Hollow Pins
Features
Hollow pins offer a lightweight alternative to solid pins. Manufacturers design these pins with a tubular structure, which reduces weight by about 80 percent compared to solid pins. This design uses 30-70 percent less material, resulting in lower manufacturing costs and a smaller carbon footprint. You gain improved assembly efficiency because their lighter weight puts less strain on equipment and enhances precision during installation.
| Advantage | Description |
|---|---|
| Reduced weight | Hollow pins weigh about 80% less than solid pins, reducing overall product weight. |
| Less material | They use 30-70% less material, leading to lower manufacturing costs and a smaller carbon footprint. |
| Cost savings | Swaged hollow pins can cost 70-80% less than solid pins, allowing for potential savings. |
| Improved assembly efficiency | Their lighter weight and precision enhance assembly efficiency and reduce equipment strain. |
💡 If your application requires a balance between electrical performance and reduced weight, hollow pins provide an efficient solution.
Common Applications
You often see hollow pins in connectors for consumer electronics, usb devices, and compact equipment where minimizing weight is critical. They are suitable for applications that do not require the same level of mechanical strength as solid pins but still demand reliable electrical connection. Hollow pins also appear in pin connectors for portable devices, where cost savings and efficient assembly matter most.
Spring-Loaded (Pogo) Pins
Features
Spring-loaded pins, also known as pogo pins, use a unique mechanism to maintain consistent contact pressure. Each pogo pin contains a conductive pin inside a spring. When you press the pin against a mating surface, the spring compresses and ensures a stable electrical connection, even if there are small shifts or vibrations. This design allows for repeated connections without significant wear, making pogo pins ideal for temporary or frequently cycled connections.
- The pin and spring mechanism ensures reliable contact.
- The pin touches a counterpart, such as a copper pad or circuit board.
- Spring tension maintains consistent pressure, even with movement.
- The connection completes the circuit, allowing electricity to flow.
Tip: Spring-loaded pins provide excellent performance in environments where devices move or require frequent docking and undocking.
Common Applications
You will encounter spring-loaded pins in many modern electronic devices. They are common in smartphones, smart wearables, and usb charging docks. You also find them in home audio-visual systems, medical devices, and robotics. Their ability to support high-current demands and maintain stable contacts makes them essential for applications that require frequent, reliable connections. Pogo pins also appear in d-sub and pin header connectors for testing and programming terminals, where temporary but secure electrical connection is necessary.
Blade Pins
Features
Blade pins stand out among pin types for their flat, rectangular shape. You often see these pins in power and signal connectors where robust mechanical strength and low contact resistance matter. The wide surface area of blade pins allows for efficient current transfer and reduces the risk of overheating. You benefit from their ability to handle higher currents compared to round pins. The flat geometry also makes alignment easier during mating, which helps prevent bent or damaged contacts.
Blade pins typically use copper alloys or brass for optimal conductivity and durability. Manufacturers may add plating, such as tin or gold, to enhance corrosion resistance and ensure long-term protection. The design supports quick and secure insertion, which is essential for connectors that require frequent connection and disconnection.
Tip: Blade pins provide excellent vibration resistance. You should consider them for environments where connectors experience frequent movement or shock.
Common Applications
You will find blade pins in a variety of electrical connectors, especially in automotive, industrial, and power distribution systems. They are common in d-sub connectors, pin header connectors, and power connectors used in control panels and machinery. Blade pins also appear in consumer electronics, such as usb power adapters, where reliable current delivery is critical. Their robust design makes them suitable for terminals that must withstand repeated use and harsh conditions.
Socket Pins
Features
Socket pins play a crucial role in ensuring reliable and stable connections within different types of connectors. You will notice that socket pins feature a hollow or slotted design, which allows them to accept and grip mating pins securely. This design ensures consistent contact pressure and minimizes the risk of intermittent connections. Socket pins often use high-quality materials like phosphor bronze or beryllium copper to provide both flexibility and strength.
You can further improve the performance of socket pins by applying lubricants. Lubrication reduces the force needed for insertion and protects against environmental factors, such as moisture and dust, that could lead to connector failure. This approach helps prevent corrosion and wear, which are common causes of electrical connector issues. Socket pins also support easy maintenance, allowing you to replace or service contacts without damaging the connector housing.
Socket pins are essential for maintaining reliable connections in electrical connectors. They help ensure proper contact, which is crucial for preventing issues like corrosion and wear. The application of lubricants can further improve the performance of these connectors by reducing the force needed for insertion and protecting against environmental factors that could lead to connector failure.
Common Applications
You encounter socket pins in a wide range of pin connectors, including d-sub connectors, pin header connectors, and modular connectors. They are widely used in telecommunications, data centers, and industrial automation systems. Socket pins also appear in consumer electronics and usb connectors, where frequent mating cycles demand high reliability. Their design supports easy assembly and maintenance, making them ideal for applications that require quick replacement or inspection of contacts.
Coaxial Pins
Features
Coaxial pins are specialized contacts designed to maintain signal integrity in high-frequency applications. You will recognize coaxial pins by their concentric structure, which consists of an inner conductor surrounded by an insulating layer and an outer shield. This configuration provides excellent electromagnetic interference (EMI) protection and minimizes signal loss.
Coaxial pins require precise manufacturing to ensure consistent impedance throughout the connector. High-quality materials, such as gold-plated brass or beryllium copper, help maintain low resistance and enhance durability. The design supports high-density layouts, making coaxial pins suitable for compact connectors in advanced electronics.
- Protects high signal integrity by ensuring connectors and cables carry uncorrupted signals, minimizing noise from variations in power and ground voltage.
- Minimizes return loss by addressing manufacturing imperfections and design errors that can degrade signal quality.
- Designs systems that limit impedance discontinuities, which can cause signal reflections and affect performance.
- Requires high-quality RF connectors to maintain an uninterrupted signal path and reduce return loss.
- Collaborates with component suppliers to ensure effective design for density in high-speed applications.
Common Applications
You will find coaxial pins in connectors used for radio frequency (RF) and microwave applications. They are essential in telecommunications, broadcast equipment, and high-speed data transmission systems. Coaxial pins also appear in usb and d-sub connectors designed for high-frequency signals. Their ability to maintain signal integrity makes them a top choice for applications that demand minimal interference and maximum protection against external noise.
Power Pins
Features
You rely on power pins to deliver safe and efficient current transmission in electrical connectors. These pins often have a larger diameter and thicker plating than signal pins. This design supports higher current loads and reduces the risk of overheating. Manufacturers select materials with high conductivity, such as copper alloys, to minimize resistance and maximize performance. You will notice that power pins often feature robust mechanical construction, which helps maintain a stable connection even under vibration or mechanical stress.
When you design or select connectors for high-power applications, you must consider several critical factors. Effective thermal management stands out as a top priority. Increasing the copper layer thickness in the pin and PCB reduces resistance and heat generation. You can also improve heat dissipation by using heat sinks, cooling fins, or thermal channels. Proper layout of heat-generating components prevents excessive heat concentration and extends the lifespan of your connector.
The following table summarizes key design considerations for power pins:
| Design Consideration | Description |
|---|---|
| Thermal Management | Use thicker copper layers, heat sinks, and thermal channels to manage heat. |
| Power and Ground Plane Design | Implement large power planes and continuous ground planes to reduce noise and voltage drop. |
| Routing Design | Increase trace width and shorten trace length for high-current paths. |
| Component Layout | Group related circuits and separate high-power from sensitive components. |
You should also pay attention to the routing design. Wider traces and shorter paths reduce resistance and power loss. Avoiding parallel routing helps prevent parasitic coupling, which can degrade performance. Proper placement of vias ensures that current flows efficiently through the connector and PCB.
Tip: Always conduct thermal simulations when designing connectors for high-current applications. This step helps you optimize layout and cooling, ensuring long-term reliability.
Common Applications
You find power pins in a wide range of different types of connectors. These include d-sub connectors, pin header connectors, and specialized power connectors used in industrial machinery, automotive systems, and power distribution units. Power pins play a crucial role in usb charging ports, where they must handle frequent connections and high current loads. In building infrastructure and heavy equipment, power pins ensure stable delivery of electricity to critical systems. You also encounter them in pin connectors for renewable energy installations, such as solar inverters, where efficient current transmission is essential.
Ground Pins
Features
Ground pins provide essential protection and stability in electrical connectors. You use ground pins to establish a common reference point for all circuits within a connector. This reference helps control voltage differences and prevents electrical shock hazards. Ground pins often have a dedicated position in the connector layout, which ensures reliable contact with the ground plane or chassis.
You benefit from ground pins in several ways:
- They provide protection from electrical shock hazards during fault conditions.
- Ground pins establish a conductive path for lightning protection.
- They reduce voltage levels on accessible points, preventing hazards.
- Grounding supports noise control by minimizing voltage differences between circuits.
- Proper grounding helps manage unintentional faults and electrical transients.
- Ground pins control unwanted radiated emissions, improving electromagnetic compatibility.
- They provide a common reference to reduce potential differences that can lead to shock hazards.
You must ensure that ground pins use high-quality materials and robust construction. This approach guarantees a low-resistance path to ground, which is vital for both safety and signal integrity. Many regulations require grounding as a safety measure, especially in industrial and consumer applications.
Note: Effective grounding strategies are essential for both safety and electromagnetic compatibility. Always verify that your connector design includes adequate ground pins for your application.
Common Applications
You encounter ground pins in nearly all electrical connectors, from pin header connectors in consumer electronics to d-sub connectors in data centers. Ground pins are critical in automotive and industrial connectors, where they protect sensitive electronics from voltage spikes and electromagnetic interference. In usb connectors, ground pins help maintain stable operation and prevent data corruption. You also find ground pins in pin connectors for telecommunications and medical devices, where safety and signal integrity are paramount. Their presence ensures that your connection remains safe, reliable, and compliant with industry standards.
Materials Used in Pin Types for Electrical Connectors
When you select pin materials for electrical connectors, you directly influence the performance, durability, and reliability of your connection. The most common materials include copper alloys, brass, and phosphor bronze. Each material offers unique benefits and limitations for different connector applications.
Here is a quick overview of popular pin materials:
| Material Type | Description |
|---|---|
| Copper Alloys | Known for malleability and conductivity |
| Aluminum and Lightweight Alloys | Used for their lightweight properties |
| Engineering Plastics and Composites | Durable and versatile materials |
| Precious-Metal-Plated (Gold, Palladium) | Enhanced conductivity and corrosion resistance |
Copper and Copper Alloys
Pros
You benefit from copper and copper alloys because they offer the highest electrical conductivity among commercial metals. This property makes them the preferred choice for power and signal transmission in connectors, including usb and d-sub connectors. High-conductivity coppers like C10200, C10300, C11000, and C12000 are widely used in pin header connectors and terminals. These alloys provide excellent ductility and strength, even at elevated temperatures. You also gain mechanical properties that meet or exceed many engineering metals, which ensures reliable contacts and long-term protection.
Copper alloys deliver superior performance in electrical connectors, especially when you need efficient current flow and minimal signal loss.
Cons
Despite their advantages, copper and its alloys can be soft, which may limit their use in high-stress environments. You might notice that pure copper pins deform more easily under repeated mating cycles. In some cases, you need to select a copper alloy with added elements to improve strength, but this can slightly reduce conductivity. Surface oxidation can also occur, which may affect the quality of the electrical connection over time.
Brass
Pros
Brass stands out as a popular choice for connector pins due to its balance of mechanical strength and good electrical conductivity. You find brass easy to manufacture, which helps reduce production costs for electrical connectors. Brass also offers better corrosion resistance than pure copper, making it suitable for environments where protection from moisture and oxidation is important.
| Advantages | Limitations |
|---|---|
| Superior mechanical strength | Copper can be limited in certain applications due to softness. |
| Better corrosion resistance | Surface oxidation can affect conductivity. |
| Easier to manufacture | |
| Good electrical conductivity |
Cons
While brass provides many benefits, it does have some limitations. Surface oxidation can still affect conductivity, especially if you use the connector in harsh environments. Brass is not as conductive as pure copper, so you may see a slight drop in performance for high-frequency or high-current applications. In some cases, you need to apply additional plating to maintain optimal contact quality.
Phosphor Bronze
Pros
Phosphor bronze offers a strong combination of electrical conductivity, corrosion resistance, and mechanical strength. You can rely on this material for efficient current transmission in electrical connectors. Phosphor bronze resists wear during repeated mating and unmating, which makes it ideal for connectors that require frequent use. The material also maintains stable performance under stress and is easy to machine for precise contacts.
| Property | Description |
|---|---|
| Conductivity | Good electrical conductivity, ideal for efficient current transmission. |
| Corrosion Resistance | High resistance to corrosive environments, ensuring long-term stability. |
| Mechanical Strength | Harder than pure copper, resists wear during mating and unmating processes. |
| Fatigue Resistance | Maintains stable performance under repeated use. |
| Machinability | Relatively easy to machine for precise component production. |
Cons
Phosphor bronze, while strong, does not match the conductivity of pure copper. You may need to consider this if your application demands the lowest possible resistance. The material can also be more expensive than brass, which may impact your choice for large-scale production. However, its durability and resistance to corrosion often justify the investment, especially for d-sub connectors and pin header connectors that require long-term reliability.
Beryllium Copper
Pros
You often choose beryllium copper for electrical connectors when you need a combination of strength, durability, and excellent conductivity. This material stands out because it delivers exceptional mechanical performance, even in demanding environments. Beryllium copper offers superior fatigue strength, so your connector pins can withstand repeated mechanical stress without degrading. You also benefit from its excellent electrical conductivity, which rivals pure copper and ensures efficient electricity flow. This property becomes critical in high-performance applications, such as usb and d-sub connectors, where minimal energy loss matters.
Beryllium copper also provides superior thermal conductivity. This feature helps dissipate heat quickly, preventing overheating and enhancing the overall performance of your connection. Its corrosion resistance makes it suitable for environments exposed to moisture or chemicals, giving you long-term protection for your terminals and contacts.
| Property | Description |
|---|---|
| Superior Fatigue Strength | Withstands repeated mechanical stress without degrading. |
| Excellent Electrical Conductivity | Ensures efficient electrical performance, critical for high-performance connectors. |
| Corrosion Resistance | Enhances suitability in harsh or corrosive environments. |
| High Strength | Provides robustness for demanding applications. |
| Durability | Ensures longevity and reliability in harsh environments. |
You will find beryllium copper in connectors and switches, spring contacts, and relay contacts. Its high strength and resistance to electrical arcing make it a top choice for reliable electrical connectors.
Cons
Despite its advantages, beryllium copper comes with some drawbacks. The material costs more than other copper alloys, which can impact your budget for large-scale projects. You must also handle beryllium copper with care during manufacturing, as beryllium dust poses health risks. Specialized processing and safety measures increase production complexity. In some cases, you may need to consider alternative materials if cost or safety is a primary concern.
Stainless Steel
Pros
You select stainless steel for connector pins when you need maximum durability and resistance to harsh environments. Stainless steel pins exhibit superior strength and wear resistance, making them ideal for heavy-duty applications. You benefit from their exceptional corrosion resistance, which is crucial for performance in marine, industrial, or outdoor settings. Stainless steel comes in various grades, such as 304 and 316, allowing you to customize your connector for specific applications. This flexibility enhances the durability and lifespan of your electrical connectors.
- Superior strength and wear resistance
- Exceptional corrosion resistance for harsh environments
- Customizable grades for specific connector needs
Cons
Stainless steel does not match the electrical conductivity of copper or its alloys. You may notice higher resistance in your connection, which can limit its use in high-frequency or high-current applications. Stainless steel also tends to be harder to machine, which can increase manufacturing costs and complexity. For most signal or power transmission needs, you may prefer other materials unless your application demands extreme durability and protection.
Plating Materials for Connectors (Gold, Tin, Nickel)
Gold Plating
You often see gold plating on connector pins in high-reliability applications. Gold provides high conductivity and superior corrosion resistance, making it ideal for harsh environments. Gold maintains its conductivity even under corrosive conditions, so your electrical connectors deliver stable performance over time. You benefit from low contact resistance, which ensures efficient signal transmission in usb, d-sub, and pin header connectors.
Tin Plating
Tin plating offers a cost-effective solution for many connector applications. You get moderate conductivity and corrosion resistance, which suits general-purpose connectors and terminals. Tin requires higher contact forces due to oxide formation, but it remains a popular choice for consumer electronics and d-sub connectors. You can rely on tin plating for affordable protection and reliable connection in less demanding environments.
Nickel Plating
Nickel plating provides high wear resistance and good corrosion protection. Although nickel has lower conductivity than gold or tin, it remains cost-effective for many connectors. You often use nickel as an underlayer for other platings or as a standalone finish in industrial connectors. Nickel plating works well when you need durability and protection, especially in environments where wear and abrasion are concerns.
| Plating Type | Conductivity | Corrosion Resistance | Additional Notes |
|---|---|---|---|
| Gold | High | Superior | Ideal for harsh environments; maintains conductivity under corrosion. |
| Tin | Moderate | Moderate | Cost-effective; requires higher contact forces due to oxide layer. |
| Nickel | Low | High | Good wear resistance; lower conductivity; cost-effective. |
Tip: Always match your plating choice to your application’s electrical, mechanical, and environmental requirements. The right plating ensures long-lasting performance and protection for your connector contacts.
Design Variations in Pin Types for Connectors
Shape and Geometry
Round Pins
You often encounter round pins in connectors for their versatility and ease of alignment. These pins provide consistent contact pressure and minimize wear during repeated mating cycles. Round pins excel in usb and pin header connectors, offering reliable electrical connection and mechanical stability. Their geometry helps reduce misalignment, but you must consider the risk of pin compression, which can affect bandwidth and performance.
| Aspect | Impact on Performance |
|---|---|
| Pin Compression | Can affect bandwidth and performance; unexpected PCB warpage may occur with over-torqued or soft PCB materials. |
| Misalignment | Three degrees of freedom; back and forth misalignment is the most sensitive and difficult to detect. |
| Design Solutions | Alignment features added to connectors to ensure proper pin placement on the pad. |
Square Pins
Square pins offer enhanced mechanical strength and resist rotation within the connector housing. You benefit from their ability to maintain stable contacts, especially in d-sub connectors and industrial terminals. Square pins provide a larger contact area, which improves current carrying capacity and reduces the risk of overheating. Their shape supports secure placement and protection against vibration.
Flat/Blade Pins
Flat or blade pins stand out for their wide surface area and low contact resistance. You use blade pins in applications that demand efficient current transfer and robust mechanical reliability. Their flat geometry simplifies alignment and insertion, making them ideal for d-sub and power connectors. Blade pins also provide excellent vibration resistance, which enhances protection in harsh environments.
Size and Pitch
Standard Sizes
You select standard pin sizes for compatibility and ease of assembly. Common pitches, such as 2.54mm, allow for manual soldering and straightforward maintenance. Standard sizes support reliable connection in industrial control cabinets and pin header connectors. You achieve good maintainability and reduce the risk of assembly errors.
| Pin Pitch | Typical Uses | Impact on Compatibility |
|---|---|---|
| 0.4mm | Smartphones, smartwatches | Requires SMT precision soldering, space-constrained |
| 0.8mm | Tablets, routers | Balances density and manufacturability |
| 2.54mm | Industrial control cabinets | Easy manual soldering, good maintainability |
Fine Pitch Pins
Fine pitch pins enable miniaturization in modern electronic products. You use pitches as small as 0.4mm in smartphones and wearables, where space is limited. Fine pitch connectors require precise manufacturing and careful handling to maintain signal integrity. Incorrect pitch selection can lead to unstable mating and increased repair rates, as seen in medical devices. The pitch of board-to-board connectors defines the architecture and reliability of multi-PCB systems, impacting signal integrity and long-term reliability.
Tip: Always match pin pitch to your application’s requirements. Ignoring vibration specifications or pitch compatibility can result in connector loosening and costly downtime.
Termination Styles in Electrical Connectors
Solder Pins
Solder pins remain a popular choice for permanent connections. You achieve strong electrical and mechanical bonds by melting solder onto the pin and pad. Soldering suits both manual and automated assembly, but excessive heat can damage sensitive components. You must ensure proper soldering techniques to maintain connection reliability.
Crimp Pins

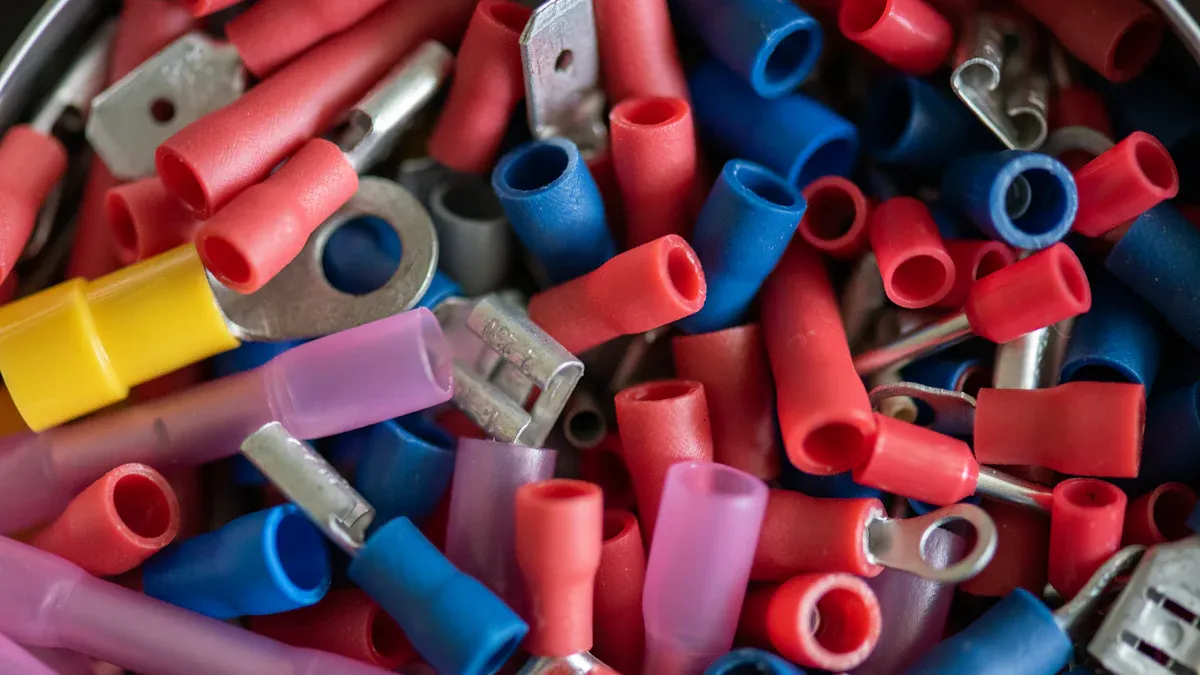

Crimp pins offer fast and reliable assembly without heat. You use a crimping tool to deform the pin around the wire, creating a secure mechanical and electrical bond. Crimping supports mass production and reduces assembly time. You benefit from consistent performance and reduced risk of cold solder joints.
Press-Fit Pins
Press-fit pins create a gas-tight connection by forcing the pin into a plated hole. You avoid the heat of soldering, which protects sensitive components. Press-fit technology supports high-volume manufacturing and provides reliable contacts. This method has gained acceptance for its ease of application, though you should monitor long-term reliability.
Wire-Wrap Pins
Wire-wrap pins allow you to wrap wire around the pin for a secure connection. You use this method in prototyping and repair, where flexibility and reworkability matter. Wire-wrap provides good electrical performance, but it may not suit high-vibration environments.
Note: The evolution of termination styles reflects your need for reliable and manufacturable interconnects. Each method offers unique advantages and challenges, directly impacting the reliability and ease of assembly for connector pins.
Contact Area and Surface Finish
Smooth vs. Textured
You need to pay close attention to the contact area and surface finish when selecting connectors for your applications. The contact area determines how much of the pin touches its counterpart, directly affecting the reliability of your connection. Industry experts recommend a minimum contact engagement of 1.5 times the diameter of the pin for dependable performance. This guideline helps you maintain a stable electrical path, especially in high-vibration environments like those found in d-sub connectors.
A smooth contact surface offers several advantages. You experience reduced friction during insertion and removal, which lowers wear and tear on both the connector and terminals. Lower friction extends the lifespan of your connectors and ensures consistent performance over time. Smooth surfaces also help maintain sufficient contact normal force, which is critical for continuous contact in demanding conditions.
Textured surfaces, on the other hand, can increase friction and may lead to faster wear. You might encounter textured contacts in specialized connectors designed for unique mechanical requirements. However, for most usb and d-sub applications, a smooth finish provides better protection against environmental factors and mechanical stress.
Tip: Always check the surface finish specifications for your connectors. A well-finished contact surface acts as a barrier against corrosion, humidity, and chemicals, helping you avoid increased resistance and connection failure.
Plated vs. Unplated
You face an important choice between plated and unplated contacts when designing or selecting connectors. Plated contacts use a thin layer of metal, such as gold, tin, or nickel, to cover the base material. This plating serves as a protective shield, preventing corrosion and enhancing conductivity. Gold plating, for example, offers superior protection and maintains low contact resistance, making it ideal for usb and high-performance d-sub connectors.
Unplated contacts expose the base material directly to the environment. You risk corrosion, which can increase resistance at the contact points and lead to poor electrical conductivity. Over time, corrosion may cause connection failure, especially in harsh environments. Plated contacts provide a longer service life and more reliable performance, especially when you need to protect your terminals from moisture and chemicals.
Consider the following table when evaluating plated versus unplated contacts:
| Feature | Plated Contacts | Unplated Contacts |
|---|---|---|
| Corrosion Resistance | High | Low |
| Electrical Conductivity | Consistent | Variable |
| Lifespan | Extended | Shorter |
| Protection | Excellent | Limited |
You should always match the surface finish and plating to your specific connector requirements. This approach ensures optimal performance, longevity, and protection for your connection.
Matching Pin Types to Use Cases in Different Types of Connectors
High-Current Applications
Recommended Pin Types
When you design for high-current applications, you need pin types that can handle large amounts of electrical flow without overheating or failing. Solid pins and blade pins work best in these situations. Their robust construction allows them to carry higher currents safely. You often see these pin types in power connectors, d-sub connectors, and industrial electrical connectors where reliability is critical.
- Solid pins: Offer maximum cross-sectional area for current flow.
- Blade pins: Provide a wide contact surface, reducing resistance and heat buildup.
Tip: Always select pin types with a larger diameter for high-current paths to ensure safe operation.
Suitable Materials
Choosing the right material for high-current terminals is just as important as the pin type. You want materials with high electrical conductivity and strong mechanical properties. The table below compares common materials used in high-current connectors:
| Material | Electrical Conductivity | Mechanical Strength | Corrosion Resistance | Cost |
|---|---|---|---|---|
| Phosphor Copper | Good | Strong | Enhanced durability | Lower than Beryllium Copper |
| Tellurium Copper | Superior | Adequate | Good | Mid-range cost |
| Stainless Steel | Poor | Extreme strength | Excellent | Relatively inexpensive |
| Gold/Silver Coating | Very good | N/A | Excellent | High cost |
You should prioritize phosphor copper or tellurium copper for their balance of conductivity and durability. For extra protection, gold or silver coatings on contacts help prevent corrosion, especially in demanding environments.
High-Frequency/Signal Integrity Applications
Recommended Pin Types
In high-frequency or signal integrity applications, you need pin types that minimize signal loss and interference. Coaxial pins and spring-loaded pins (pogo pins) excel in these scenarios. Coaxial pins maintain a controlled impedance, which is vital for usb, d-sub, and RF connectors. Spring-loaded pins provide consistent contact pressure, reducing the risk of signal dropouts.
- Coaxial pins: Shield signals from external noise and maintain signal clarity.
- Spring-loaded pins: Ensure stable connection even with movement or vibration.
Suitable Materials
You must select materials that support high-frequency performance. Specialized PCB materials such as Rogers PCB and PTFE PCB are industry standards for these applications. These materials offer low dielectric loss, which helps preserve signal integrity at high frequencies.

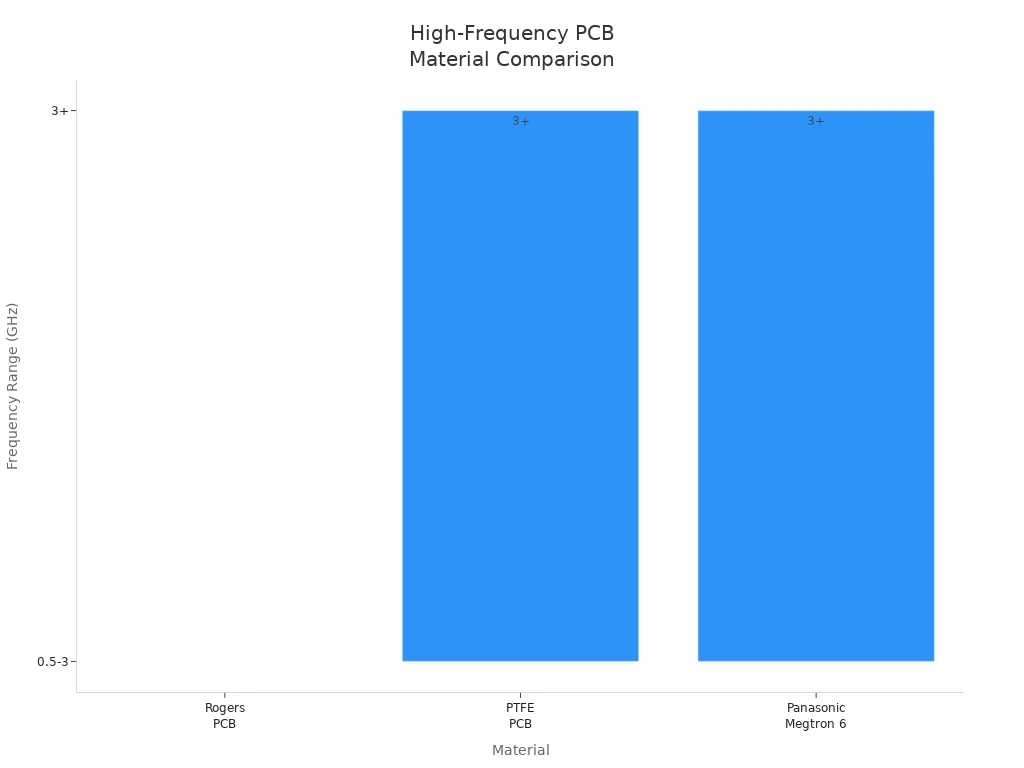

| Material | Key Properties | Frequency Range |
|---|---|---|
| Rogers PCB | Excellent performance in high-frequency environments | 500MHz to 3GHz |
| PTFE PCB | Low dielectric loss, suitable for high frequencies | 3GHz and above |
| Isola I-speed | Low loss at high frequencies | N/A |
| Isola Astra | Low loss at high frequencies | N/A |
| Tachyon | Low loss at high frequencies | N/A |
| Panasonic Megtron 6 | Low loss, suitable for high frequencies | 3GHz and above |
You can rely on Rogers PCB and PTFE PCB for the best signal protection in high-frequency connectors. These materials help you achieve stable, high-speed data transmission in your connection.
Rugged/Harsh Environments
Recommended Pin Types
For rugged or harsh environments, you need pin types and connectors that withstand mechanical stress, moisture, and corrosion. Blade pins and solid pins are your best choices due to their strength and durability. You often find these pin types in M12 connectors, VULCON circular connectors, and MIL-DTL-38999 connectors used in aerospace and military applications.
- Blade pins: Resist bending and maintain strong electrical connection.
- Solid pins: Offer robust performance under vibration and shock.
Note: High-density connectors can deliver data rates up to 10 Gb/s, outperforming standard connectors in tough conditions.
Suitable Materials
Material selection is crucial for protection in harsh environments. Stainless steel, especially 316 stainless steel, provides excellent resistance to corrosion and mechanical damage. Nickel-plated brass and composite materials also offer strong protection against EMI and RFI.
| Connector Type | Material | Key Features |
|---|---|---|
| M12 Connector | 316 Stainless Steel | High resistance to corrosion and mechanical damage, ideal for marine use |
| VULCON Circular Connector | Stainless Steel/Nickel Brass | Hybrid construction, EMI/RFI shielding, multiple conductor options |
| MIL-DTL-38999 | Steel/Aluminum/Composite | Aerospace/military standard, proven ruggedness and reliability |
You should choose stainless steel or nickel-plated brass for your connectors when you need maximum durability and long-term protection for your contacts.
Miniaturized/Electronics Applications
Recommended Pin Types
You face unique challenges when designing electrical connectors for miniaturized electronics. Devices such as wearables, smartphones, and compact sensors require pin types that fit into tight spaces while maintaining reliable connection. Spring-loaded pins and fine-pitch solid pins work well in these environments. Spring-loaded pins provide consistent contact pressure, which helps you maintain stable electrical performance even when devices move or vibrate. Fine-pitch solid pins allow you to increase I/O density, supporting more features in smaller devices.
Consider these factors when selecting pin types for miniaturized applications:
- Size matters. You must choose pins with small pitch sizes to fit components into compact spaces.
- Higher I/O density lets you add more features without increasing device size.
- Diverse pin types enable multiple functionalities within a single connector.
- Evolving user experience drives the need for smaller, more efficient designs.
Tip: Always check the pitch and overall dimensions of your connector to ensure compatibility with your device layout.
Suitable Materials
You need materials that offer both strength and conductivity in miniaturized electrical connectors. Beryllium copper and phosphor bronze provide excellent mechanical properties and resist wear during repeated mating cycles. Gold plating on contacts enhances protection against corrosion and maintains low contact resistance, which is critical for reliable signal transmission in small devices. These materials help you achieve long-lasting performance and stable connection in compact electronics.
Consumer Electronics
Recommended Pin Types
Consumer electronics demand connectors that balance performance, cost, and ease of assembly. You often use hollow pins and blade pins in devices such as usb chargers, audio equipment, and home appliances. Hollow pins reduce weight and material costs, making them ideal for mass-produced products. Blade pins offer robust mechanical strength and support efficient current transfer, which is important for devices that require frequent connection and disconnection.
You should select pin types that simplify assembly and support high-volume manufacturing. Modular connectors with standardized pin layouts help you streamline production and maintenance.
Suitable Materials
Brass and tin-plated copper are popular choices for consumer electronics. Brass provides good mechanical strength and resists corrosion, while tin plating offers affordable protection for contacts. These materials suit the needs of consumer devices, where cost-effectiveness and reliable electrical performance matter most. For usb and d-sub connectors, you may also use nickel plating to enhance durability and wear resistance.
Automotive and Industrial Connectors
Recommended Pin Types
Automotive and industrial applications require electrical connectors that withstand harsh conditions and deliver reliable performance. Solid pins and blade pins excel in these environments. Solid pins offer maximum strength and resist vibration, which is essential for vehicles and heavy machinery. Blade pins provide a wide contact area, reducing resistance and supporting high-current flow.
You should look for connectors with reinforced terminals and secure locking mechanisms. These features help you maintain stable connection and protect sensitive electronics from shock and environmental hazards.
Suitable Materials
Stainless steel and nickel-plated brass are top choices for automotive and industrial connectors. Stainless steel resists corrosion and mechanical damage, making it suitable for outdoor and rugged environments. Nickel-plated brass offers strong protection against electromagnetic interference and wear. You may also use gold plating on contacts in critical systems to ensure long-term reliability and low contact resistance.
Note: Always verify that your connector materials meet industry standards for safety and durability in automotive and industrial applications.
Factors to Consider When Selecting the Right Electrical Connector Pin Types
Electrical Requirements
You must always start by evaluating the electrical requirements for your application. Each connector must support the voltage and current levels your system demands. If you select pin types that cannot handle the expected load, you risk overheating or even failure. For example, d-sub connectors in industrial settings often carry higher currents than those in consumer electronics. You should check the maximum current rating for each pin and ensure the insulation withstands the operating voltage.
Signal integrity also matters, especially in usb or high-speed data connectors. Low-resistance contacts help maintain clear signals and reduce data loss. You should look for connectors with gold-plated contacts if your application requires stable, low-resistance connections. Always match the connector’s electrical performance to your application requirements to avoid costly downtime.
Tip: Review the datasheets for each connector to confirm current, voltage, and signal specifications before making your selection.
Mechanical Strength
Mechanical strength plays a key role in the reliability of electrical connectors. You need to consider how much force the connector and its terminals can withstand during insertion, removal, and operation. Applications with frequent mating cycles, such as test equipment or modular devices, require robust pin types and durable housings.
You should also assess the connector’s resistance to vibration and shock. In automotive or industrial environments, connectors face constant movement. Solid pins and reinforced contacts provide extra protection against bending or breaking. If your application involves d-sub connectors in heavy machinery, prioritize mechanical strength to ensure a stable connection.
A quick checklist for mechanical strength:
- Evaluate the number of mating cycles required.
- Check for locking mechanisms or latches.
- Choose materials like beryllium copper or stainless steel for added durability.
Environmental Conditions
Environmental conditions can greatly affect the performance and lifespan of electrical connectors. You must consider factors such as temperature extremes, humidity, dust, and exposure to chemicals. For outdoor or harsh environments, select connectors with sealed housings and corrosion-resistant materials.
If your application involves exposure to moisture or chemicals, look for connectors with IP-rated protection. Stainless steel or nickel-plated contacts offer better resistance to corrosion. In environments with high electromagnetic interference, shielded connectors provide extra protection for sensitive signals.
Note: Always match the connector’s environmental ratings to your application requirements to ensure long-term reliability and safety.
A table to help you compare environmental features:
| Condition | Recommended Feature | Example Use Case |
|---|---|---|
| High humidity | Sealed housing, gold plating | Outdoor lighting |
| Vibration/shock | Reinforced terminals | Automotive connectors |
| Chemical exposure | Stainless steel contacts | Industrial automation |
By carefully considering these factors, you improve the reliability and protection of your electrical connection, ensuring your connectors perform well in any environment.
Cost and Availability
You must always consider cost and availability when selecting pin types for electrical connectors. The price of a connector depends on several factors, including the base material, plating, and manufacturing complexity. For example, gold-plated contacts offer excellent protection and conductivity, but they increase the overall cost. Brass and tin-plated options provide a more affordable solution for many applications.
You should also evaluate the supply chain for your chosen connector. Some specialized materials, such as beryllium copper, may face limited availability due to sourcing challenges. This can lead to longer lead times or higher prices. If you work with high-volume production, you benefit from choosing connectors and terminals that use widely available materials. This approach helps you avoid delays and keeps your project on schedule.
When you compare different pin types, create a checklist to guide your decision:
- Assess the total cost, including materials and plating.
- Check the availability of each connector type in your region.
- Consider the minimum order quantities required by suppliers.
- Evaluate the impact of material choice on long-term maintenance costs.
Note: Selecting a connector that balances performance and cost ensures you meet your application requirements without exceeding your budget.
Compliance and Standards
You must ensure that your electrical connectors comply with industry standards and regulations. Compliance guarantees that your connection meets safety, reliability, and performance benchmarks. For example, d-sub connectors and usb connectors often follow strict guidelines set by organizations such as IEC, UL, and RoHS.
You should review the certifications required for your specific applications. Many industries, including automotive and medical, demand connectors that meet rigorous standards for protection and durability. These standards cover aspects such as contact resistance, insulation, and environmental protection. You also need to verify that the materials used in your contacts and terminals do not contain restricted substances.
A quick reference table for common standards:
| Standard | Focus Area | Typical Use Case |
|---|---|---|
| IEC | Safety and performance | General electrical connectors |
| UL | Fire and shock protection | Consumer electronics, industrial |
| RoHS | Hazardous substances | All modern connectors |
Tip: Always request documentation from your supplier to confirm compliance. This step protects your project from regulatory issues and ensures long-term reliability.
Common Mistakes When Selecting Pin Types in Connectors and How to Avoid Them
When you select pin types for electrical connectors, you face several pitfalls that can compromise performance, safety, and reliability. Understanding these common mistakes helps you make better choices and ensures your connection remains secure in all applications.
Overlooking Material Compatibility
You might focus on the connector’s appearance or price, but ignoring material compatibility can lead to serious issues. If you pair incompatible metals, you risk galvanic corrosion, which degrades contacts and shortens the lifespan of your connectors. For example, using copper pins with aluminum terminals can accelerate corrosion, especially in humid environments. Always check that the pin and terminal materials work well together, especially in d-sub connectors or usb assemblies.
Tip: Review manufacturer datasheets for recommended material pairings. This step helps you avoid unexpected failures and ensures long-term protection for your electrical connectors.
Ignoring Application-Specific Needs
You may feel tempted to choose a connector based on general specifications, but every application has unique requirements. If you ignore these needs, you risk poor performance or even equipment damage. For instance, selecting pins with insufficient current ratings for power-hungry applications can cause overheating. In high-frequency circuits, using standard pins instead of coaxial contacts can result in signal loss. D-sub connectors in industrial settings often require robust pins to handle vibration and mechanical stress.
- Improper wire preparation, such as over-stripping or under-stripping, can cause short circuits or unreliable connections.
- Using generic tools instead of specialized ones may damage conductors and compromise the integrity of your connection.
- Loose connections from insufficient tightening can lead to arcing, heat buildup, and potential fire hazards.
You should always match pin types and connector features to your specific application. Consider current, voltage, frequency, and environmental demands before making a decision.
Underestimating Environmental Factors
Environmental conditions play a critical role in the performance of electrical connectors. If you underestimate these factors, you expose your connection to moisture, dust, chemicals, or extreme temperatures. This oversight can lead to corrosion, insulation breakdown, or even complete failure of your connectors. For example, using unsealed connectors outdoors leaves your contacts vulnerable to water ingress and oxidation.
Note: Neglecting safety protocols, such as working on live circuits, increases the risk of electrical shock. Always isolate power before installing or servicing connectors to ensure your protection.
You should select connectors with appropriate sealing, plating, and housing materials for your environment. Stainless steel or nickel-plated contacts offer better resistance in harsh conditions. Proper planning and attention to environmental factors help you maintain reliable performance and extend the life of your connection.
Failing to Consider Long-Term Reliability
You might focus on immediate performance when selecting electrical connectors, but overlooking long-term reliability can lead to costly failures. Many issues with connectors do not appear right away. Instead, they develop over time as the connection faces repeated use, environmental stress, or electrical load. If you do not plan for durability, your system may suffer from unexpected downtime or even safety hazards.
Long-term reliability depends on several factors. You need to consider the wear and tear on contacts, the effects of corrosion, and the stability of the mechanical connection. For example, in d-sub connectors, repeated mating cycles can wear down the plating on pins and sockets. This wear increases resistance and can cause intermittent faults. In usb applications, frequent plugging and unplugging can loosen terminals, leading to unreliable data transfer or power delivery.
Tip: Always check the rated mating cycles for your connector. Manufacturers test connectors for a specific number of insertions and removals. If your application requires frequent connections, choose a connector with a high cycle rating.
Environmental conditions also play a major role. Moisture, dust, and temperature changes can degrade materials over time. If you use connectors in harsh environments, select those with proper sealing and corrosion-resistant plating. Gold-plated contacts offer better protection against oxidation, which helps maintain a stable connection for years.
Aging materials can affect the performance of electrical connectors. Plastics may become brittle, and metal fatigue can weaken springs or blades. You should review the expected lifespan of all components, not just the initial specifications. For critical applications, such as industrial controls or medical devices, long-term reliability ensures safety and consistent operation.
Here are some best practices to improve long-term reliability:
- Choose connectors with proven durability in your industry.
- Use gold or nickel plating for contacts in demanding environments.
- Avoid mixing incompatible metals to prevent galvanic corrosion.
- Schedule regular inspections and maintenance for all terminals.
- Store spare connectors in controlled environments to prevent premature aging.
| Factor | Impact on Reliability | Recommended Action |
|---|---|---|
| Mating cycles | Wear on contacts | Select high-cycle connectors |
| Environmental stress | Corrosion, material fatigue | Use sealed and plated connectors |
| Material compatibility | Galvanic corrosion | Match metals carefully |
| Maintenance | Early fault detection | Inspect and replace as needed |
By planning for long-term reliability, you protect your investment and ensure that your electrical connectors deliver consistent performance. You reduce the risk of failure, extend the life of your connection, and maintain the safety of your system.
You gain a significant advantage when you understand pin types, materials, and design variations in electrical connectors. This knowledge helps you select the right connector and terminals for your specific applications, whether you work with usb, d-sub connectors, or other connectors. You improve connection reliability and ensure your contacts perform well in every environment. Always review your requirements before choosing a connector. Careful selection leads to safer, longer-lasting electrical connectors and better results in your d-sub projects.
FAQ
What is the most common material for connector pins?
You often see copper and its alloys used for connector pins. Copper provides excellent electrical conductivity. Manufacturers sometimes use brass or phosphor bronze for added strength and durability.
How do you choose the right pin type for your application?
You should consider current, voltage, frequency, and environmental conditions. Review your device’s requirements and select a pin type that matches your electrical and mechanical needs. Always check the connector’s datasheet for compatibility.
Why do some pins have gold plating?
Gold plating resists corrosion and maintains low contact resistance. You benefit from stable electrical connections, especially in harsh or high-reliability environments. Gold also prevents oxidation, which can degrade performance over time.
Can you use the same connector pin in high-current and signal applications?
You should not use the same pin for both. High-current pins require larger cross-sections and robust materials. Signal pins need low resistance and minimal interference. Mixing them can cause overheating or signal loss.
What is the difference between solid and hollow pins?
Solid pins provide maximum strength and current capacity. Hollow pins reduce weight and material cost. You should use solid pins for demanding or high-current applications. Hollow pins work well in lightweight or cost-sensitive designs.
How does pin pitch affect connector performance?
Pin pitch determines the spacing between pins. Smaller pitch allows for higher density but increases the risk of crosstalk and makes assembly harder. Larger pitch improves reliability and ease of use but limits the number of connections.
Do all connectors need ground pins?
You should include ground pins in most connectors. Ground pins improve safety, reduce electrical noise, and protect sensitive circuits. They help prevent shock hazards and ensure stable operation in your devices.
