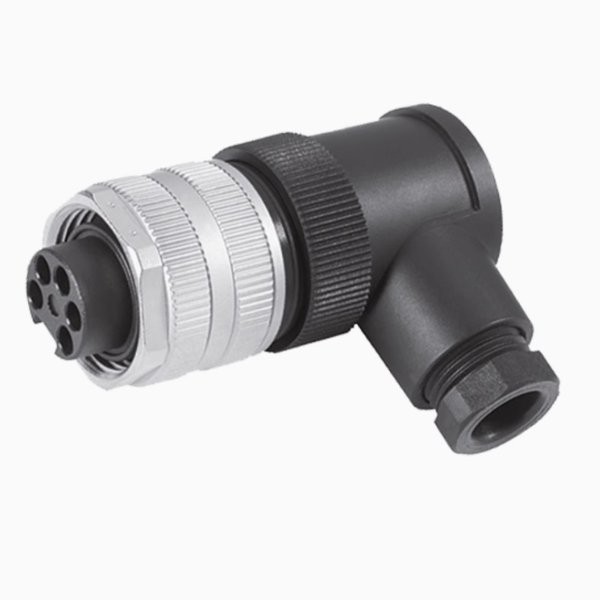

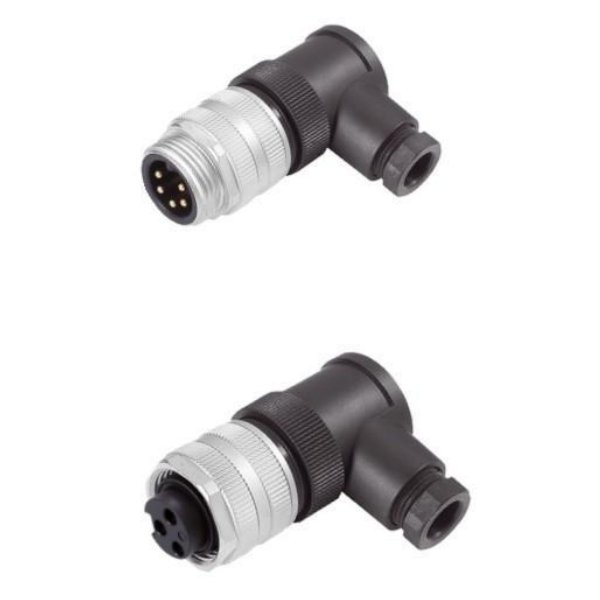

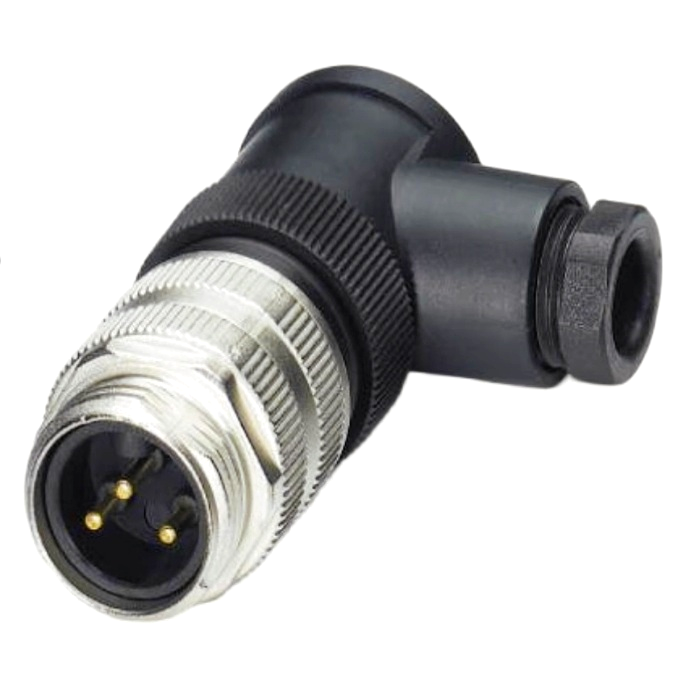

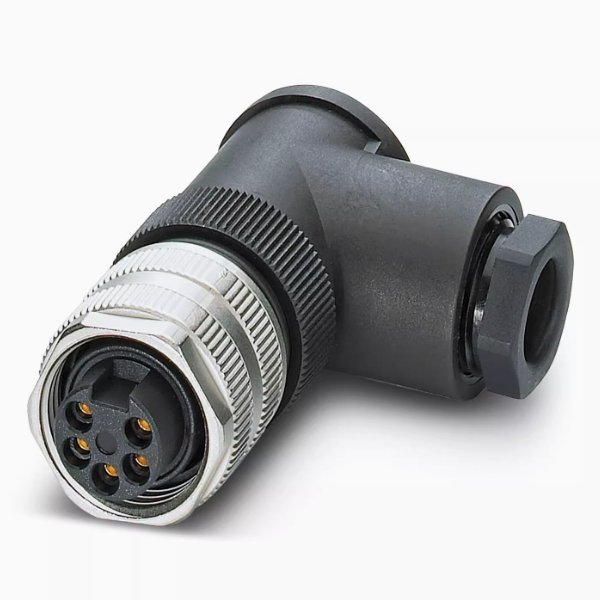

7/8 Connector – Elbow Plastic Shell Connector adopts a 90° elbow design, with a lightweight and durable plastic shell, adapted to the 7/8-16UN standard interface, and achieves a stable connection through a nut, supporting flexible configuration of 3-5 pins. The product combines protection and installation convenience, is suitable for signal transmission and power connection in industrial equipment, automation control systems and other scenarios, and provides an efficient solution for complex wiring environments
1. Product Features
The connector optimizes the spatial layout with a 90-degree elbow shape, reduces the bending stress of the cable, and is suitable for narrow installation environments; the plastic shell has weather resistance and insulation properties, meeting the IP54 protection requirements; the standard 7/8-16UN standardized threaded interface is compatible with mainstream industrial equipment; the nut locking structure ensures a stable connection and strong vibration resistance; 3-pin core-5-pin core optional configuration, covering the signal/power transmission requirements of multiple scenarios, and the male and female pins adopt differentiated hole arrangement (such as 3-pin core is a 3-hole ring distribution, and 5-pin core contains a positioning hole design) to ensure the accuracy of plugging and improve system reliability.

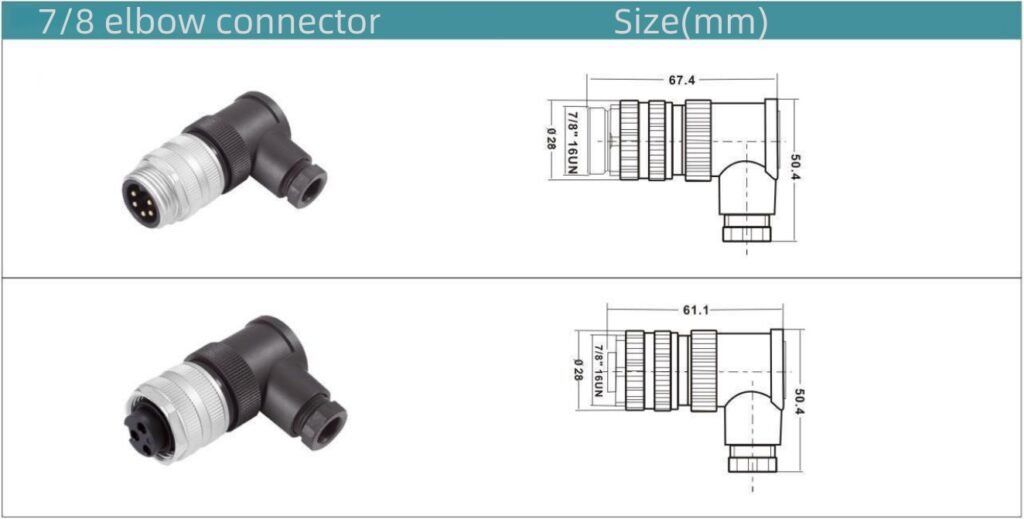

2. Product size and number of pins
The product provides two main body length specifications: male head 67.4mm (with external thread extension section) and female head 61.1mm, both of which are suitable for 7/8-16UN interface (inner diameter ±0.02mm tolerance), tail length 50.4mm, taking into account both strength and lightness. The number of pins covers 3/4/5 pins. The male pin adopts a central positioning hole + peripheral ring distribution (such as 1 central hole + 3 peripheral holes for 4 pins). The female pin optimizes the conductive performance with a symmetrical layout, adapts to different signal protocols, and provides users with diversified configuration options.
3. Product materials and technical parameters
| Materials and technical parameters | |||
| Number of pins | 3 | 4 | 5 |
| Wiring method | Screw connection | ||
| Cable specifications | Max.1.5mm²(max.16AWG) | ||
| Cable OD | 6~8mm | ||
| Operating temperature | -25℃~+85℃ | ||
| Number of secure connections | >100 | ||
| Rated voltage | 300V | ||
| Rated current (40℃) | 12A | 9A | |
| Protection degree | IP67 | ||
| Contact resistance | ≤3mΩ | ||
| Insulation resistance | ≥100MΩ | ||
| Pin contact | CuZn | ||
| Socket contact | CuSn | ||
| Contact plating | Au | ||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
