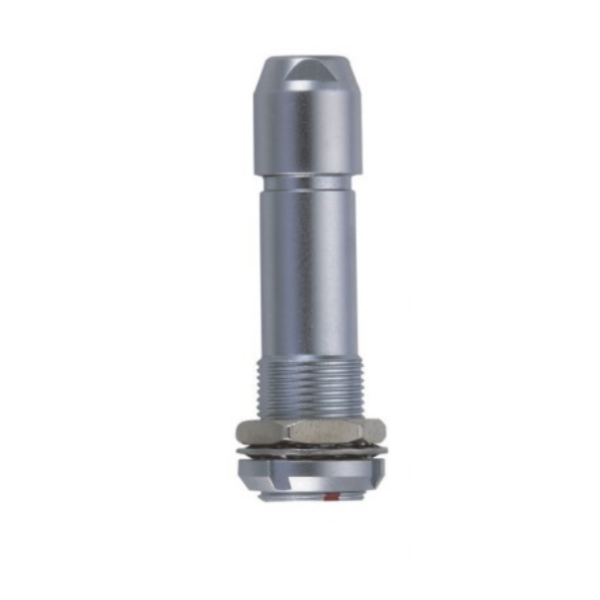

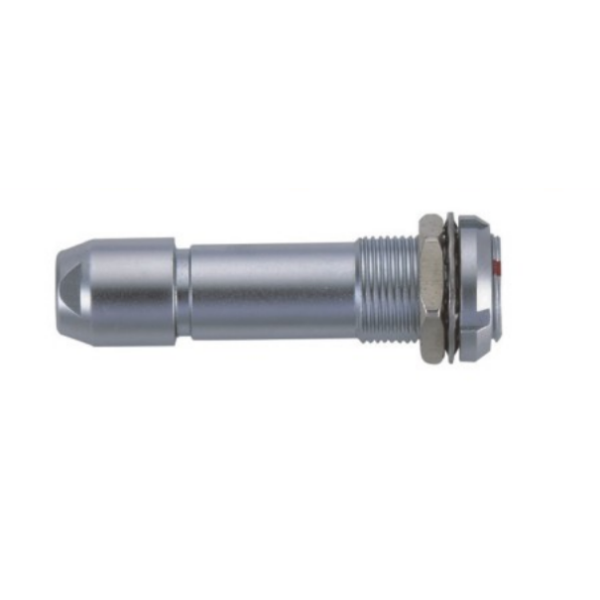

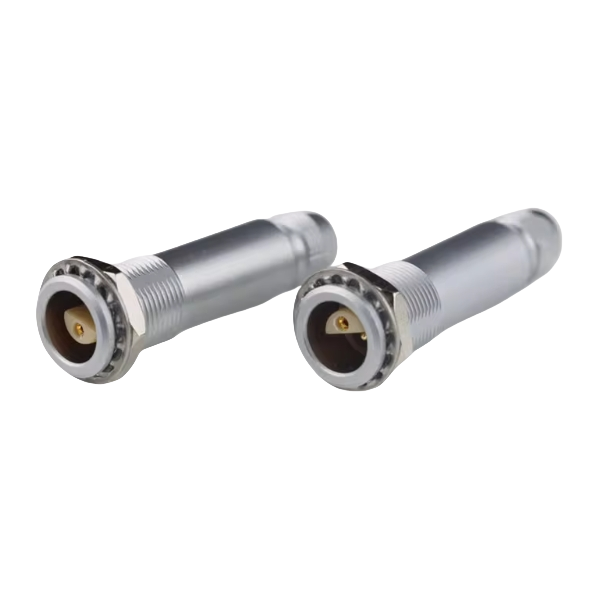

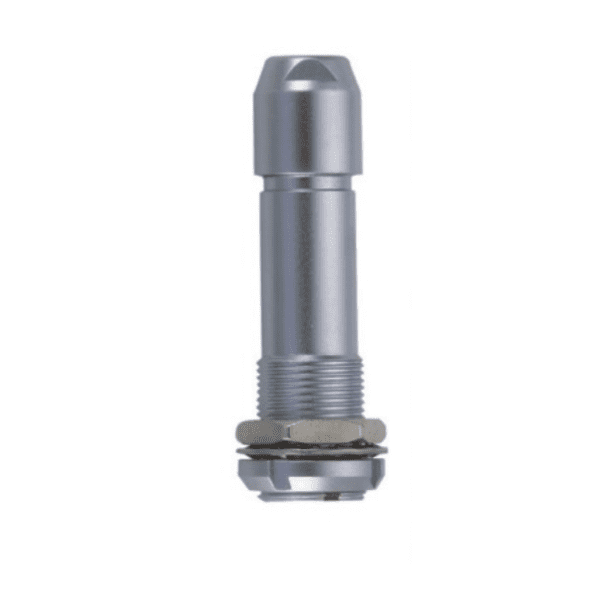

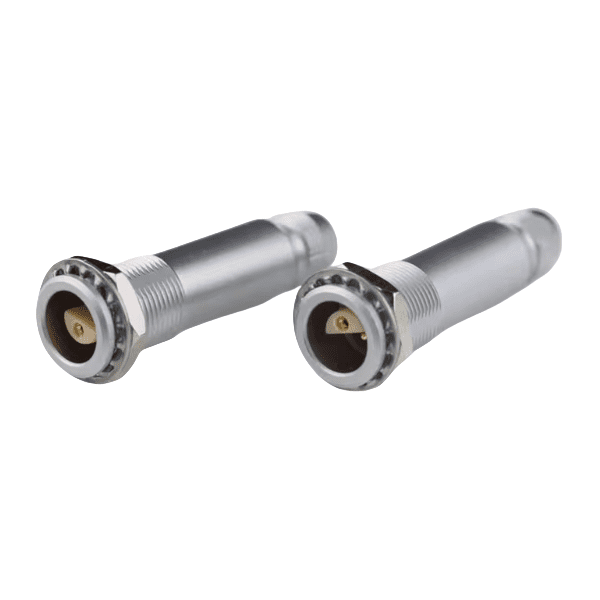

The B-type connector DFG double nut adjustable fixed socket is a high-performance fixed socket designed for industrial scenarios. It adopts a double nut female structure, which can be firmly installed on various panels and supports highly flexible adjustment. It is equipped with a special cable clamp to enhance the cable fixing effect. The product combines installation convenience and connection reliability, and is suitable for signal transmission and power connection in areas that require frequent plugging and unplugging or in harsh environments, providing an efficient solution for device integration.
1. Product Features
The B-type connector-DFG connector takes “stable installation, flexible adaptation, and safe protection” as its core design concept and has three significant advantages: First, the double-nut socket structure adopts precision thread matching. When the female head is fixed to the panel, the graded locking nut can be used to achieve double anti-loosening, effectively resisting mechanical stress such as vibration and impact, and ensuring the connection stability in long-term use; second, the height adjustable function supports vertical displacement fine-tuning within the range of ±5mm, adapting to panels of different thicknesses or complex installation environments, and can achieve precise alignment without additional holes, greatly reducing the difficulty of construction; third, the standard engineering plastic cable clamp adopts an elastic buckle design, which can quickly fix the wire with a cross-sectional area of 3-10mm². The surface of the clamp is anti-slip, which can not only avoid poor contact caused by excessive stretching of the cable, but also keep the appearance neat and improve the aesthetics of the equipment wiring. In addition, the product shell adopts a metal one-piece molding process, and the internal conductive parts are made of high-purity brass gold-plated material. The surface is nickel-plated with gold, with excellent conductivity and strong antioxidant ability. It can work stably in an environment of -45℃~+125℃.

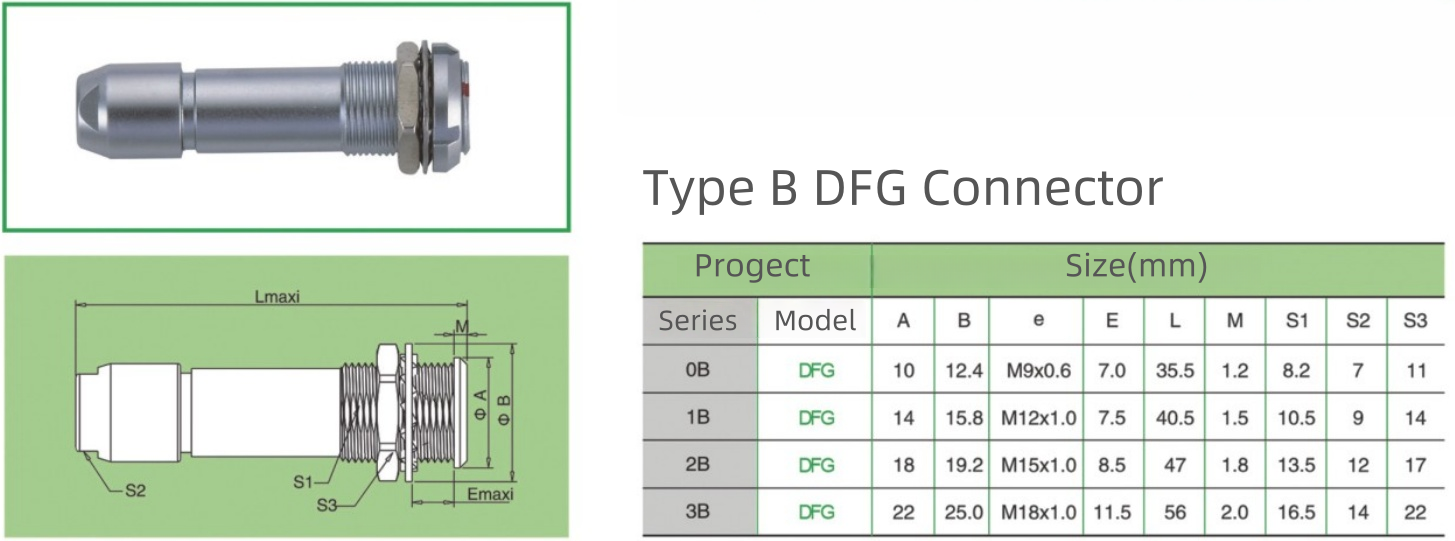

2. Product model, size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Adjustable fixed socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
