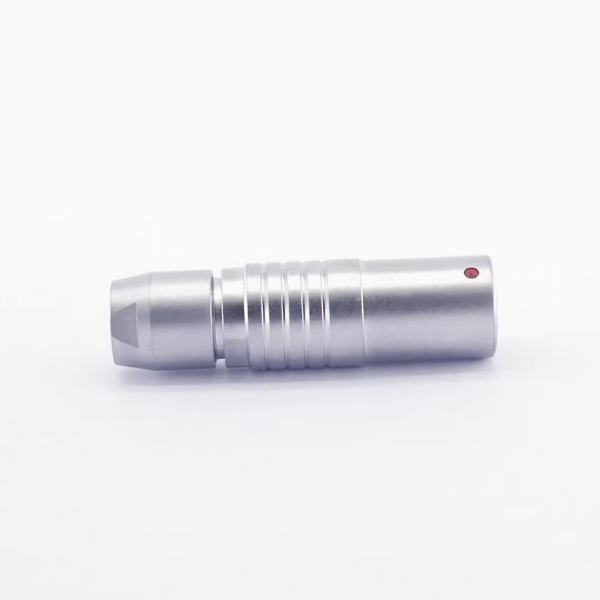

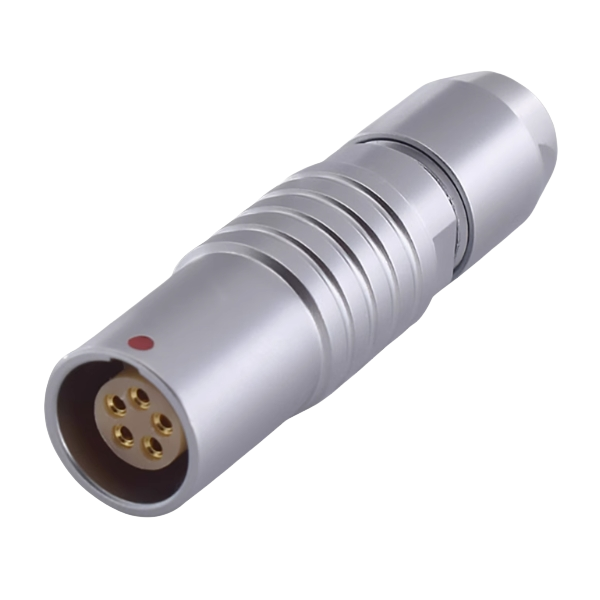

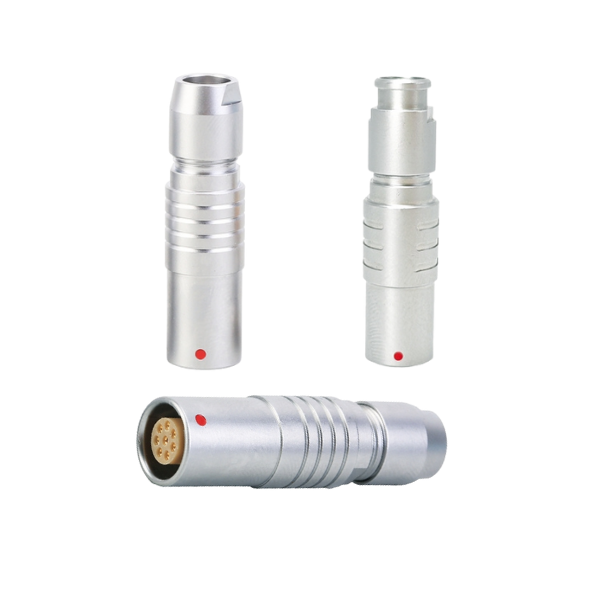

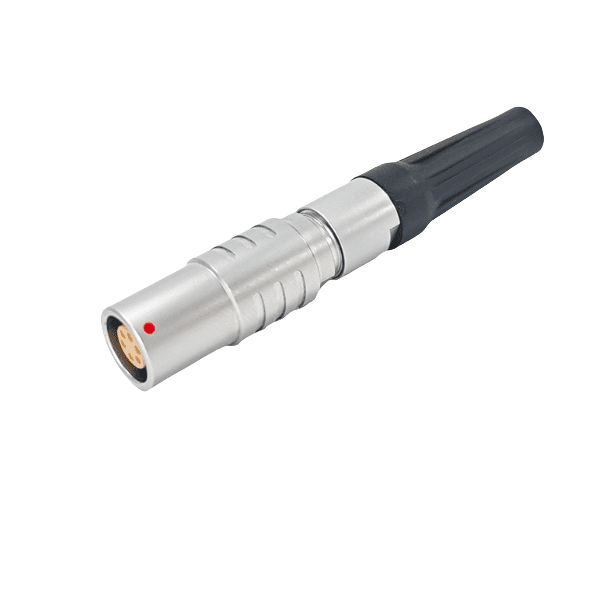

The B-type connector DHG can be equipped with a tail cover. The straight floating socket is a straight floating socket (female) designed for high-density installation scenarios. It has floating docking and installation-free characteristics. It adopts a straight push-pull locking structure to support quick plugging and blind plugging operations. Its small size and high density advantages are significant. With accessories such as positioning pins and cable clamps, it can efficiently achieve cable extension and stable connection. It is widely used in electronic equipment assembly, industrial control, communication equipment and other fields, providing reliable signal transmission solutions for complex wiring environments.
1. Product Features:
Precise design enables efficient connection: The DHG connector takes “floating docking” as its core design concept, and realizes automatic centering calibration of the plug and socket through an elastic structure, effectively reducing contact loss caused by installation deviation or vibration, and improving signal transmission stability. The straight push-pull locking structure combines convenience and reliability – quick plugging and unplugging can be completed without tools, and the locking buckle design ensures a tight connection to prevent the cable from shaking and loosening. Its blind plug function supports operation in an environment with obstructed vision, greatly improving the efficiency of equipment assembly.
As a representative of lightweight design, the DHG connector adopts a high-density integration solution, which is more than 30% smaller than traditional connectors, and the weight of a single piece is controlled at the gram level, which is particularly suitable for scenarios with densely arranged multiple interfaces. The installation-free feature further simplifies the deployment process. Users can directly fix it with the positioning pin (G/A·M/R type) and the cable clamp without additional screws or brackets, saving installation time and space costs. In addition, the product supports cable extension function, adapts to connection requirements of different lengths, and is compatible with a variety of wire specifications.

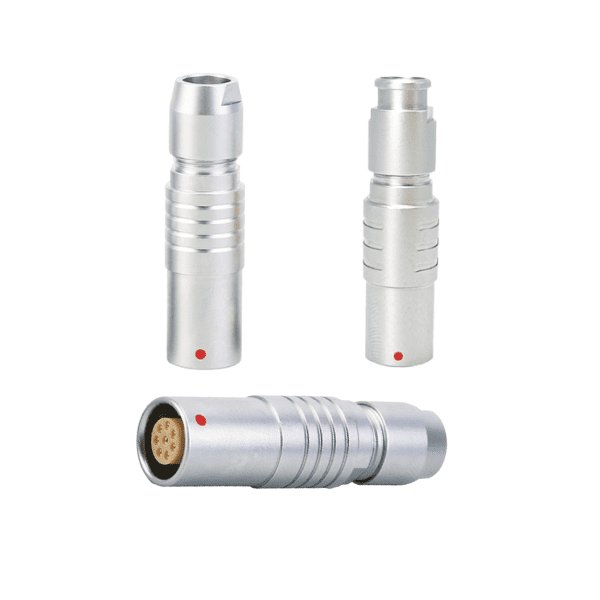

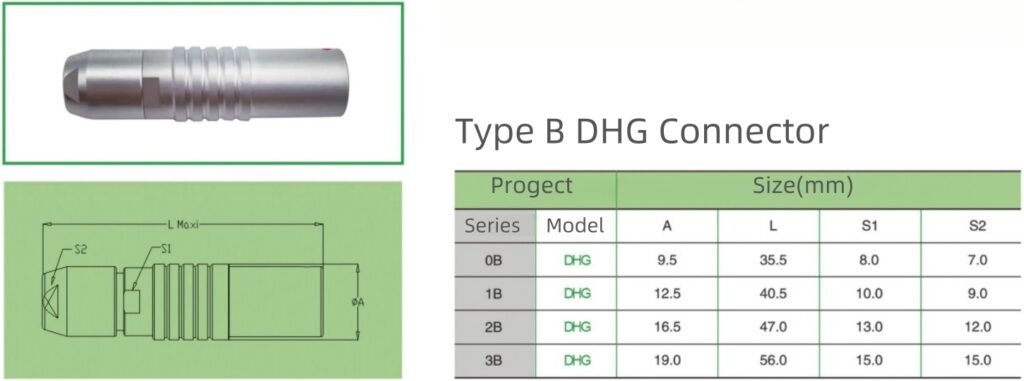

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Straight floating socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
