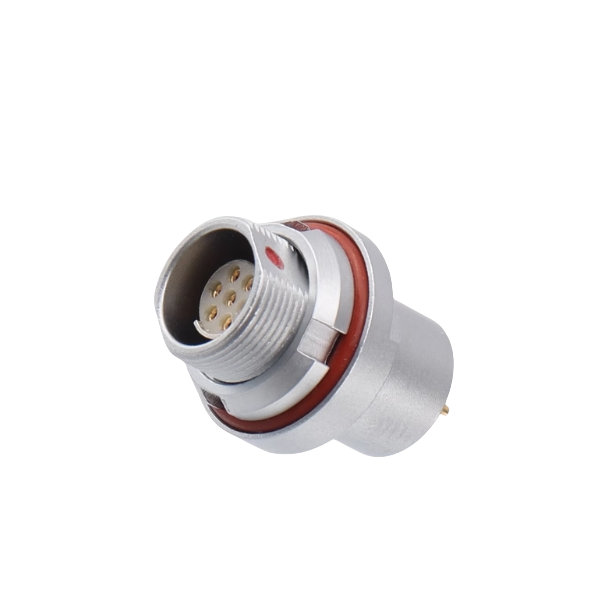

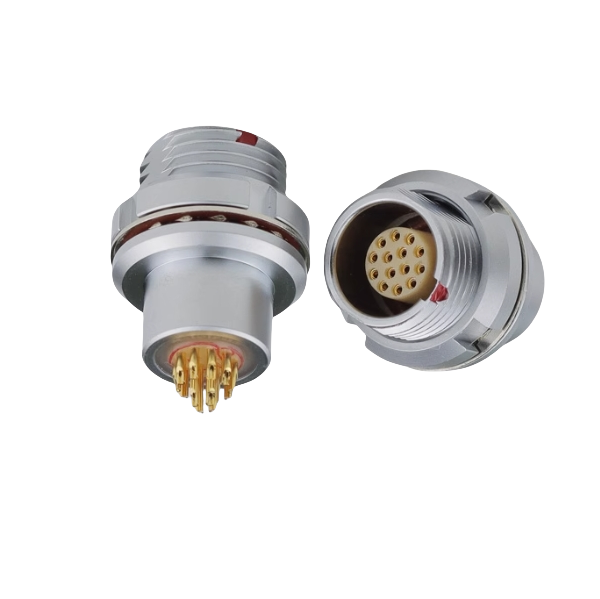

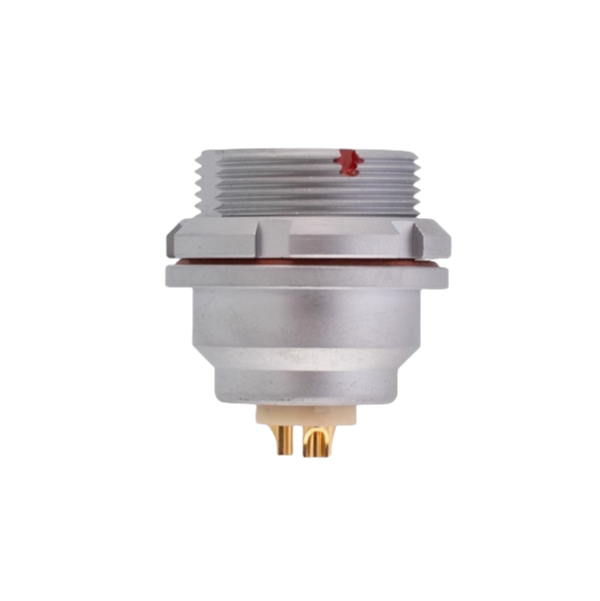

The B-type connector MEG single nut fixed socket is a high-performance single-socket female connector designed for harsh environments. It adopts a brass nickel-plated body and a sealing collar structure, supports rear panel installation and external chassis fixation, and has both watertight/vacuum sealing performance and anti-electromagnetic interference and mechanical shock capabilities. The product is suitable for a variety of installation scenarios. Through precise thread design and positioning pin positioning, it ensures a stable and reliable connection. It is widely used in industrial control, aerospace, medical equipment and other fields.
1. Product Features:
The MEG connector takes “reliable connection” as its core and integrates multiple functional designs:
Excellent sealing protection performance: Standard weather-resistant sealing collar, supports watertight (IP67 and above) and vacuum sealing environment, effectively blocks the intrusion of dust, liquid and corrosive gas, and meets the needs of humid, dusty or high-cleanliness scenes.
Rugged structure adapts to complex working conditions: The main body is made of brass nickel-plated, and the surface is treated with anti-oxidation, which has both conductive properties and corrosion resistance; the anti-electromagnetic interference (EMI) design shields external electromagnetic interference through the metal shell, and the mechanical impact strength reaches IK08 level, which can withstand high-intensity vibration and collision.

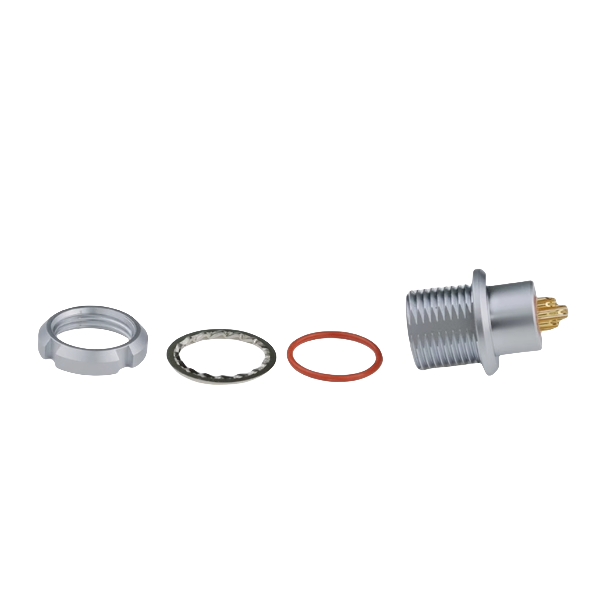

Flexible installation and precise positioning: Supports two methods: direct installation on the rear panel and external fixing of the chassis, equipped with M9x0.6, M12x1.0, M15x1.0 and other multi-specification thread interfaces (corresponding to 0B/1B/2B series), with positioning pins (G type) or positioning holes (A…M/R type) to achieve fast and accurate alignment and reduce installation errors.
Modular compatible design: The single socket female head structure is compatible with a variety of plug types, supports signal, power or data composite transmission, and meets the integration requirements of different systems.

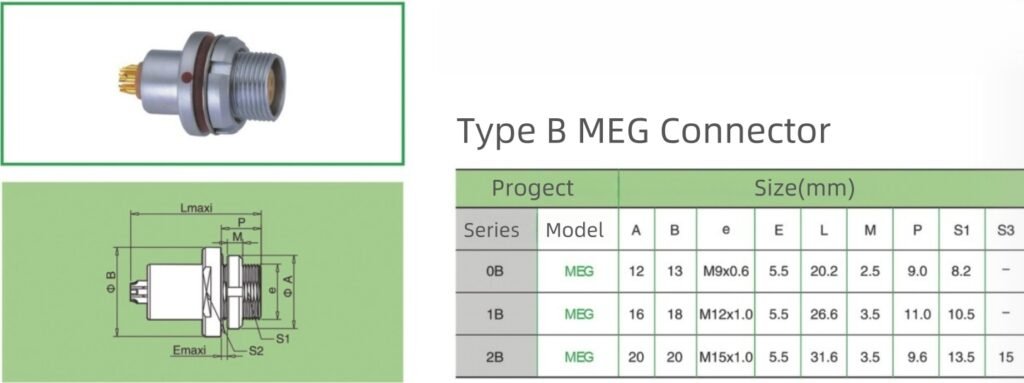

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Single nut fixing socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
