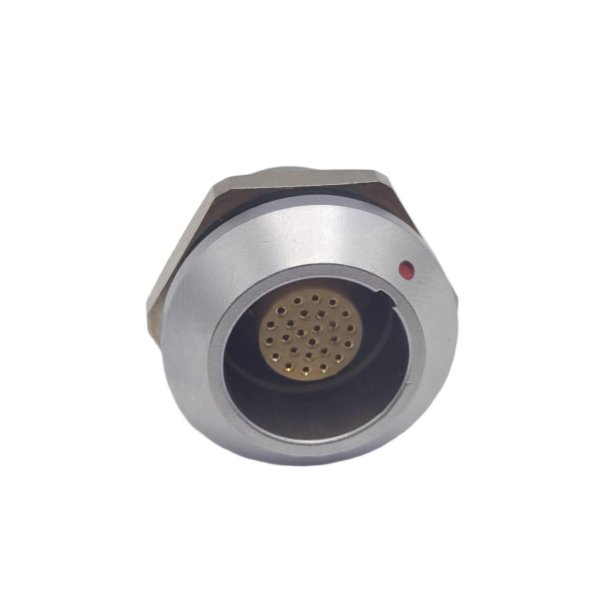

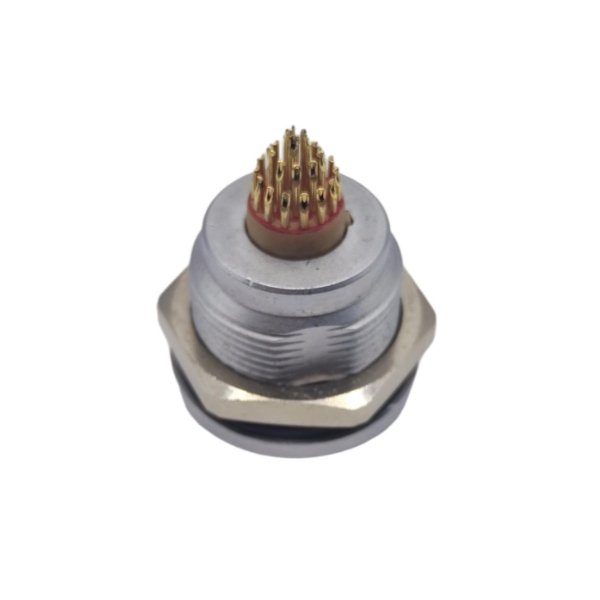

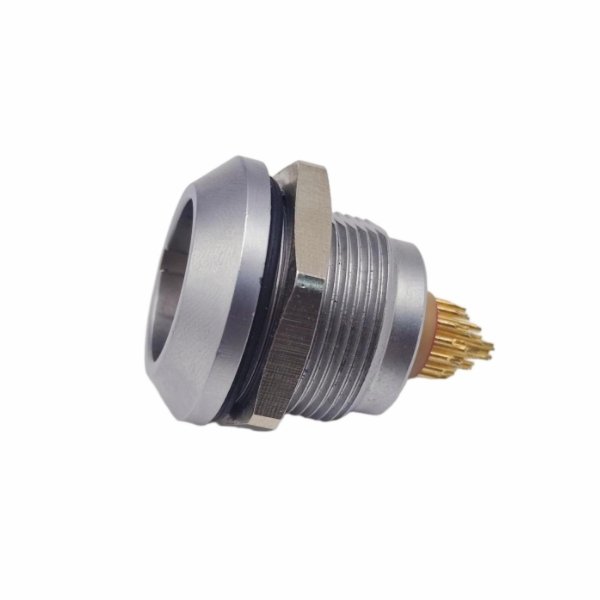

The B-type connector MGG single nut fixed socket is a high-performance fixed socket designed for harsh environments. It adopts a single nut inner fixing structure and is easily installed on a panel or box. The product is made of brass as the main material, and the surface is treated with nickel plating. It has excellent conductivity and corrosion resistance. At the same time, it has vacuum sealing or watertight performance, which effectively resists dust, liquid and harsh environment. It is compatible with a variety of positioning pin configurations to ensure accurate and reliable connections. It is widely used in industrial equipment, aerospace, medical equipment and other fields, providing stable electrical and mechanical connection solutions for system integration.
1. Features of MGG Connector Products
Efficient installation and structural stability: The single nut inner fixing method is adopted, and quick installation and tightening can be achieved by rotating the nut, without the assistance of additional tools, which greatly improves the assembly efficiency; the fixing structure goes deep into the panel or box to prevent the exposed parts from being impacted by external forces, effectively improving the mechanical strength and vibration resistance of the connection system.
High-quality materials and craftsmanship: The main body is made of brass, which has good conductivity and mechanical toughness; the surface is nickel-plated to form a dense protective layer, which effectively resists oxidation, salt spray and chemical corrosion, and prolongs the service life; the contact parts are made of high-conductivity alloy to reduce signal transmission loss and ensure stable electrical performance.
Precise positioning and compatibility: Two specifications are provided: positioning pin (G type) and positioning pin (A…M, R type), which support precise alignment of plugs and sockets in different scenarios to avoid damage caused by misinsertion; modular design is compatible with a variety of cable specifications, adapts to different current and voltage requirements, and improves the flexibility of system integration.

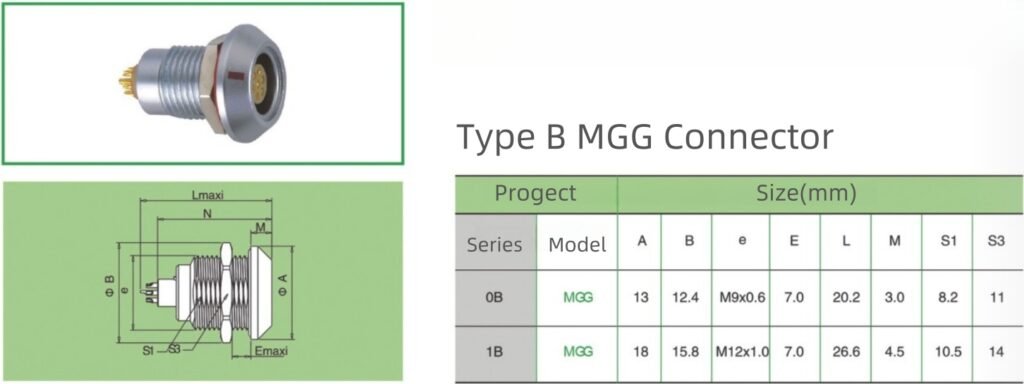

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Welding fixed socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
