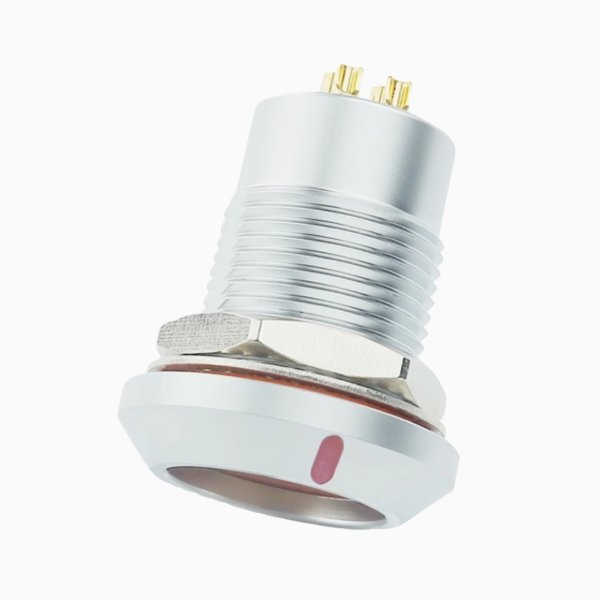

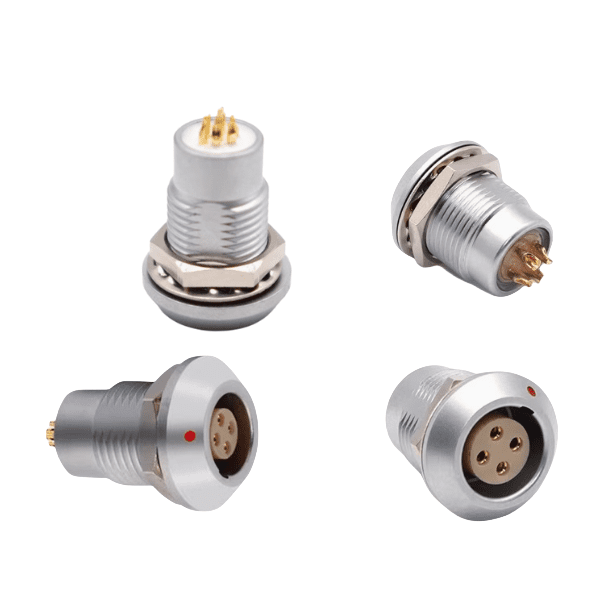

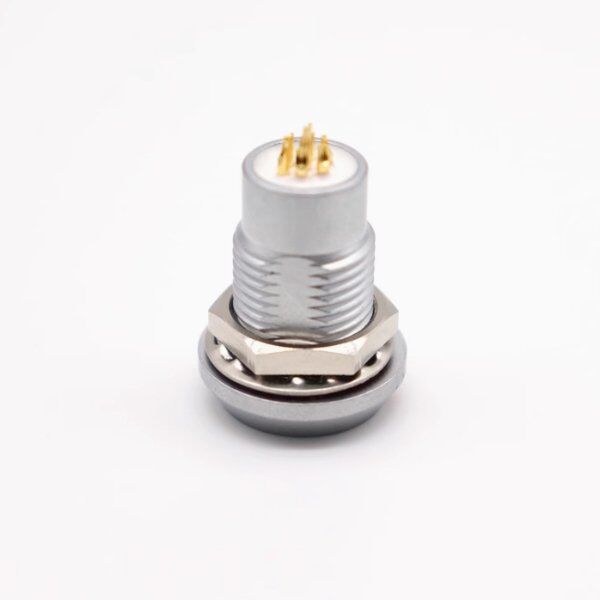

The B-type connector MHG waterproof fixed socket is a high-end electrical connector designed for harsh environments. It has the core advantage of vacuum waterproof (when plugged in), with a quick self-locking structure and all-round shielding design, which can effectively resist electromagnetic interference and support flexible configuration of 2-32 pins. Its nut fixing installation method combined with the positioning pin guide ensures a stable and reliable connection, which is suitable for high-precision signal transmission and power docking scenarios in the fields of industrial automation, aerospace, medical equipment, etc.
MHG series B-type connector adopts fast and safe self-locking, and comes standard with convenient self-locking buckle. It automatically locks when plugged in, and can be connected with one hand. When disassembled, it can be quickly released by rotating the nut, which improves the efficiency of on-site maintenance and avoids accidental falling off in a vibrating environment.
Full-band electromagnetic shielding: The shell is made of high-strength metal material (such as aluminum alloy or stainless steel), and the surface is conductively oxidized. With the internal grounding spring design, a 360° all-round shielding layer is formed, which effectively attenuates high-frequency electromagnetic interference (EMI/RFI) and ensures the stability of precision instrument signals.

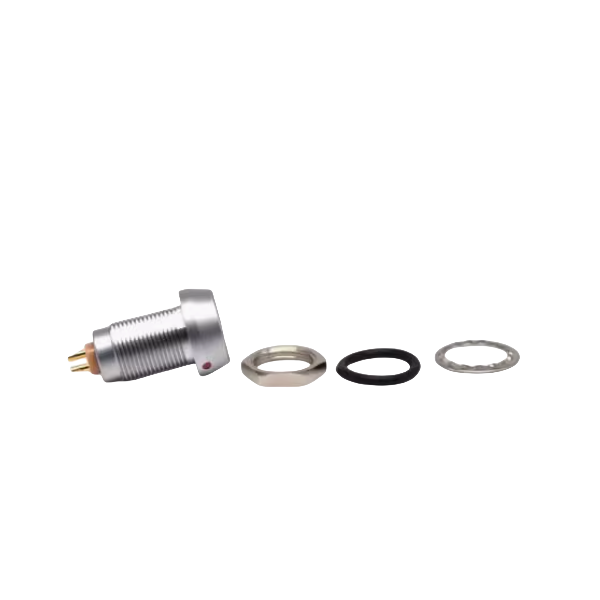

Flexible adaptation and stable installation: Provide multiple specifications such as 0B, 1B, 2B (corresponding to different mounting hole diameters and positioning pin configurations), support M9×0.6, M12×1.0 and other thread specifications, and are compatible with a variety of mounting bases; the positioning pin guide structure ensures the accuracy of plugging, reduces contact wear, and extends service life.

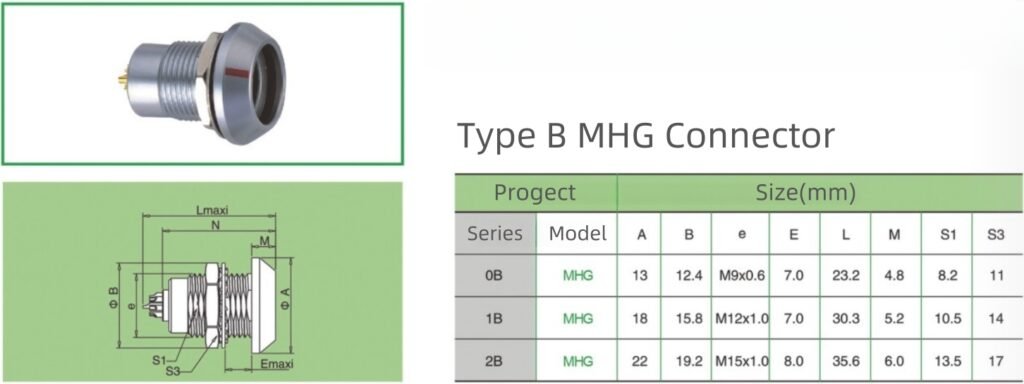

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Welding fixed socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
