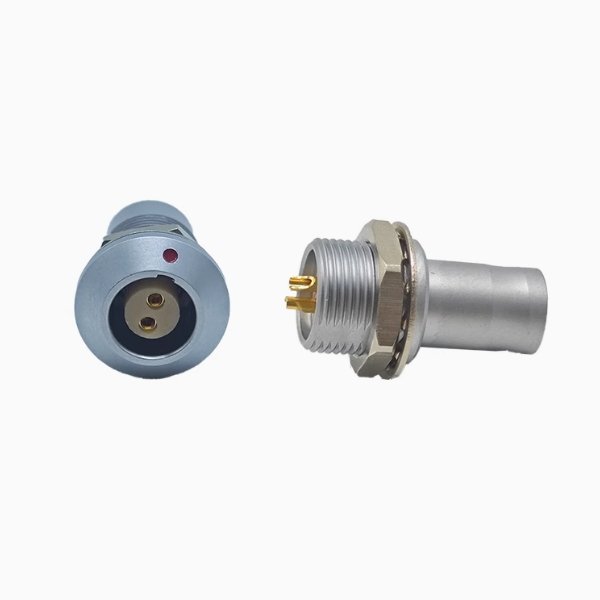

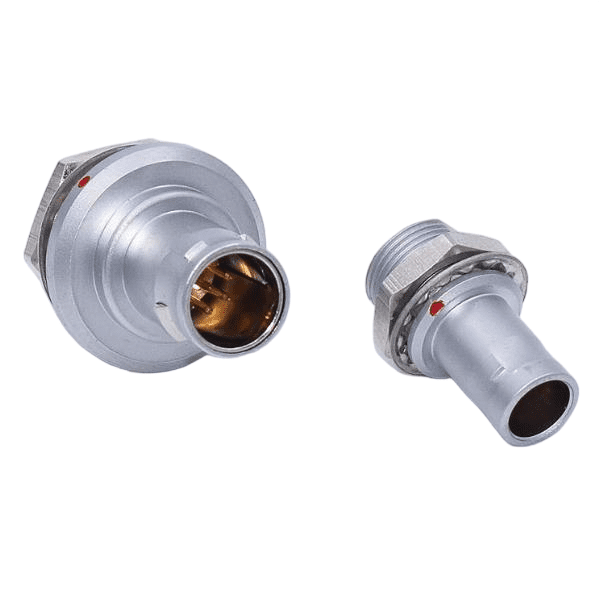

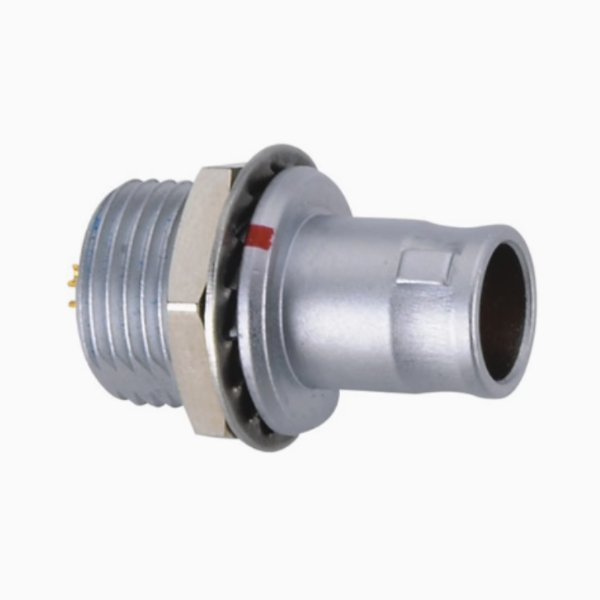

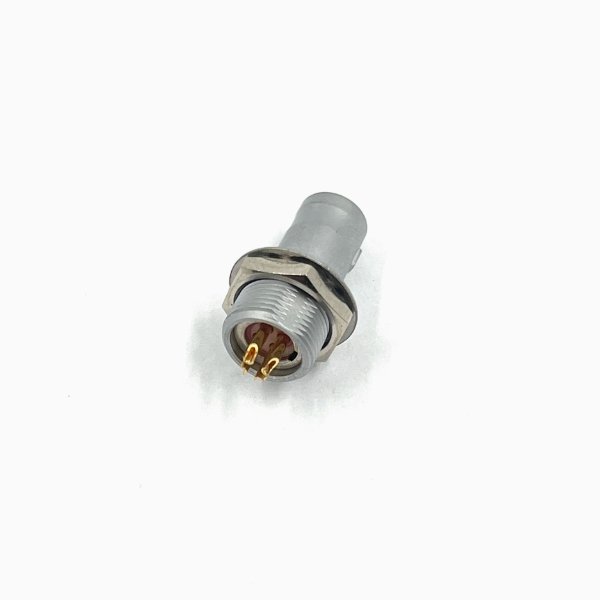

The B-type connector TAG single nut fixed plug is a high-performance fixed plug designed for industrial scenarios. It supports nuts to be directly fixed on the panel or chassis, which is easy and stable to install. The product provides a variety of pin counts (2-32) to adapt to different signal transmission requirements. It has an automatic locking device design, and is matched with a positioning pin (G type) or a positioning pin (A/M/R type) to achieve precise alignment and ensure connection reliability. It is suitable for industrial equipment, control systems, communication instruments and other fields, providing an efficient solution for the stable connection of cables and equipment.
1. Product Features
TAG connector takes “stable connection and flexible adaptation” as its core design concept and has three core advantages: First, the mechanical structure is optimized, and the fixed plug adopts a straight-insert design. It is fastened to the panel, chassis and other substrates through high-strength nuts, with excellent anti-vibration performance, effectively avoiding poor contact caused by mechanical stress; second, the modular configuration is flexible, supporting the selection of multiple pins (the specific number of pins can be customized according to needs), meeting the composite transmission needs of different signals, power or data; third, it is easy to install, and the standard non-locking device reduces the complexity of operation. At the same time, it provides two types of positioning pins (G-type general positioning pins, A/M/R-type precise positioning pins) to adapt to diverse installation environments, ensure quick and accurate alignment of plugs and sockets, and improve on-site construction efficiency. In addition, the surface of the product is treated with anti-corrosion, and the core contact parts are made of high-conductivity metal materials, which have both durability and signal transmission stability.

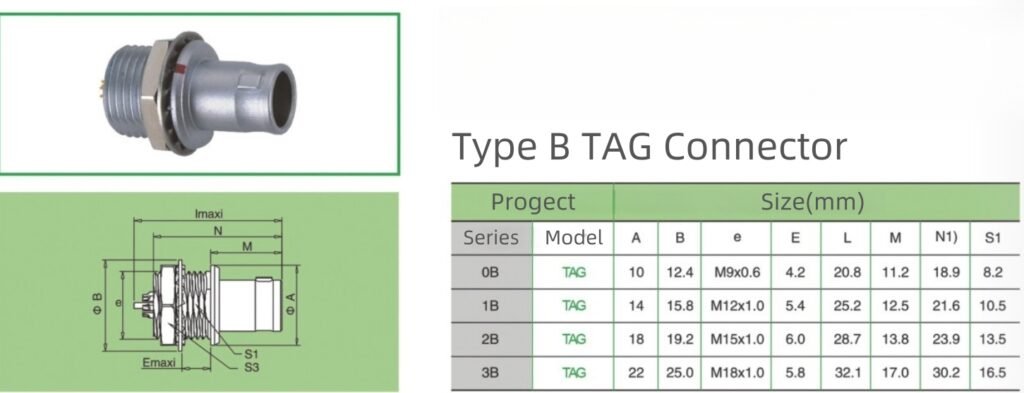

2. Product parameters and materials
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Fixed plug | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
