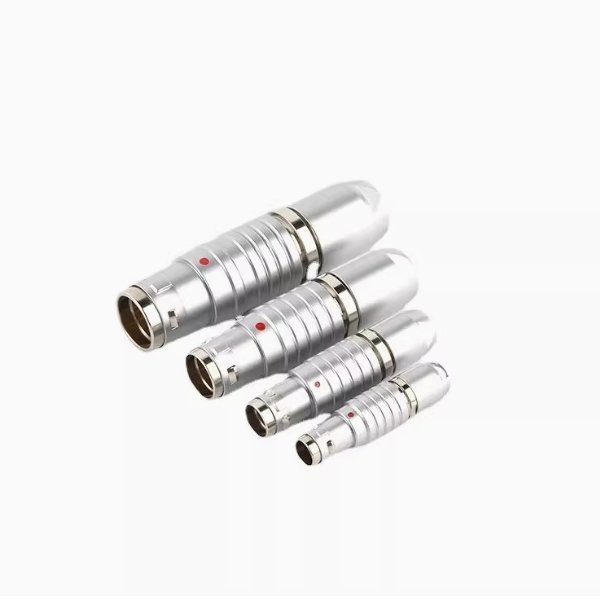

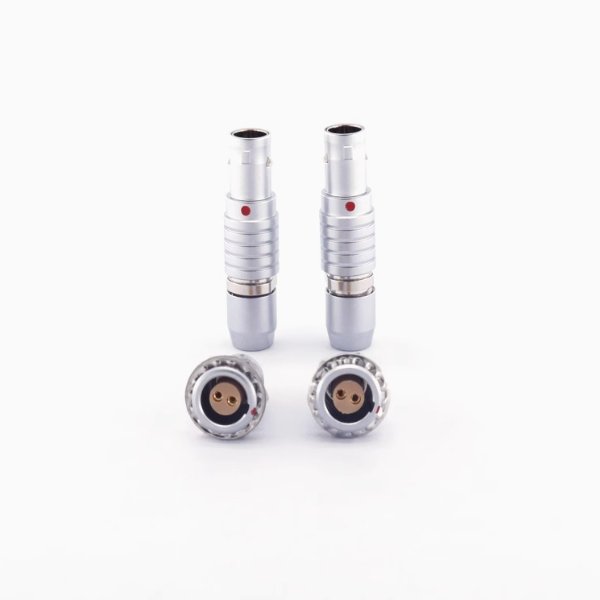

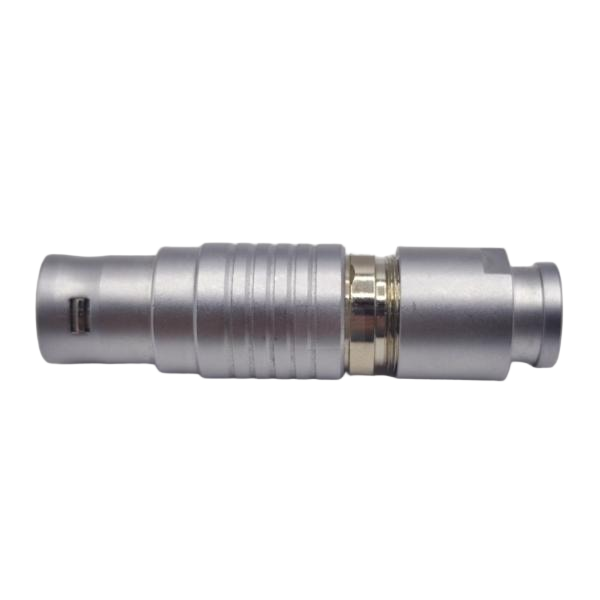

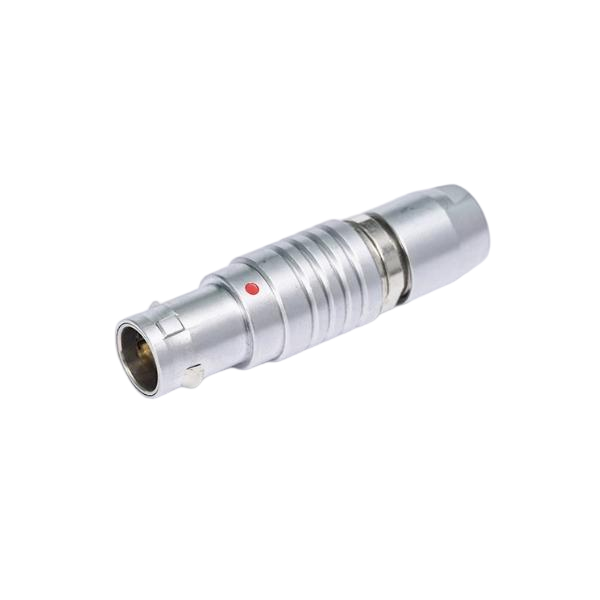

The B-type connector TGG straight plug is a high-end connection solution designed for high-reliability scenarios. It has a quick push-pull self-locking system and all-round shielding performance, supports high-density installation of 2-32 pins, and is suitable for space-constrained scenarios. Its plug-in life exceeds 1 million times, and it can work stably in the temperature range of -45°~+125°, humidity of 95% (60° environment), 10-20000Hz vibration frequency and 15g impact strength. It has passed the 48-hour salt spray corrosion test and has a protection level of IP50, providing durable and anti-interference signal transmission guarantees for industries such as industry, communications, and aviation.
1. Product Features
The TGG connector takes “efficient connection + extreme durability” as its core, and innovatively adopts a quick push-pull self-locking structure, which allows plugging and unplugging operations to be completed with one hand, greatly shortening the equipment maintenance time. It is also equipped with a precise positioning pin design to ensure that the connection is stable and not loose. Its unique electromagnetic shielding layer covers all contacts, and through the multiple grounding design of the metal shell and conductive rubber, it achieves 360° all-round anti-electromagnetic interference, effectively suppresses signal attenuation, and is particularly suitable for high-frequency and high-speed data transmission scenarios. In terms of space utilization, it supports high-density integration of 2-32 pins, and the volume of a single terminal is 20% smaller than that of traditional connectors, leaving more layout space for miniaturized equipment.

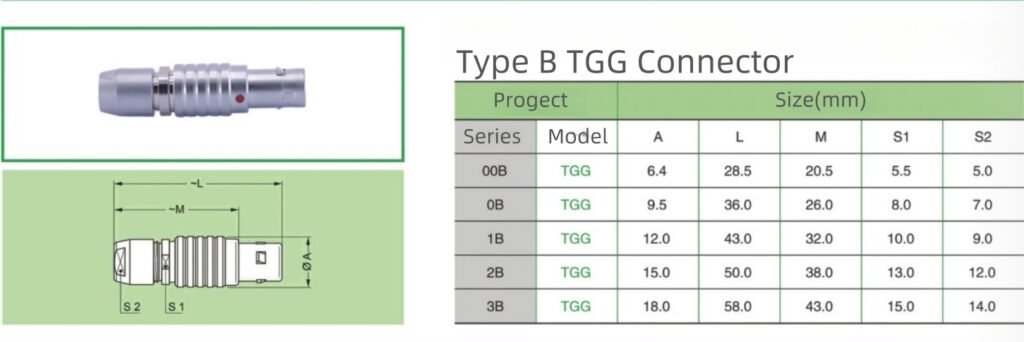

2. Product model size and characteristic parameters
Dimensional parameters: The main body adopts M12×1.0 standard thread, which is suitable for mainstream industrial equipment; the interface specification is PG7, the shell length covers 36-44mm, the diameter is 17-20mm (slightly different for different models), and the compact design takes into account both strength and flexibility.
3. Product features and technical characteristics
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Metal straight plug | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores, high-density installation saves space | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
Number of pins selection: Provide a variety of pin number combinations, A-type series includes 4-pin, 5-pin, 8-pin, 12-pin (corresponding to different pinhole arrangements), B-type 5-pin, D-type 4-pin, to meet the needs of multiple scenarios from simple signal to complex data transmission, suitable for industrial automation, equipment control, sensor connection and other fields.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
