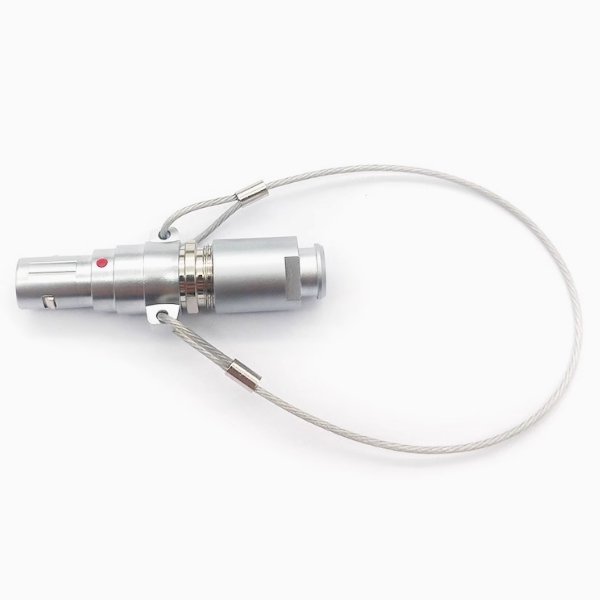

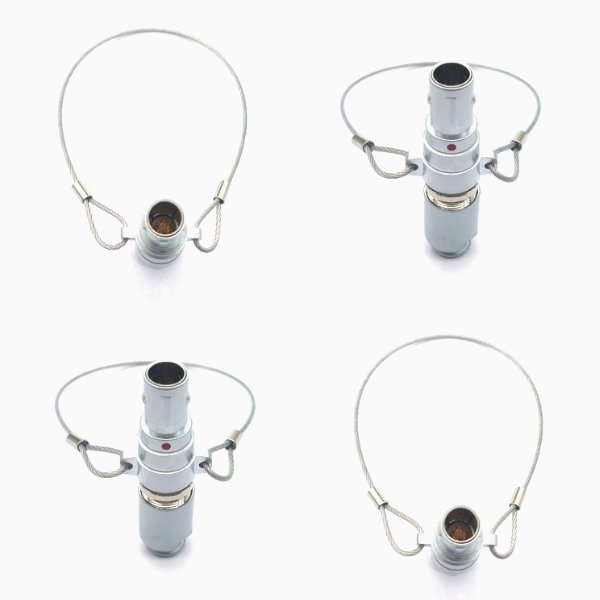

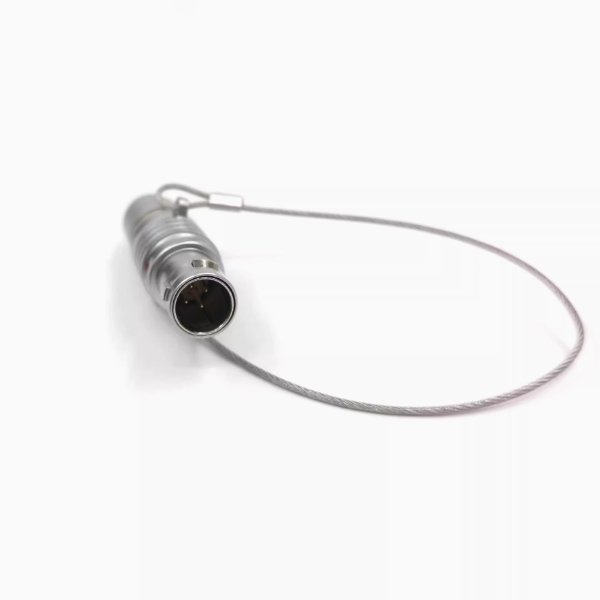

The B-type connector TNG straight plug with drawstring is a straight plug product designed for efficient connection needs. It has a straight plug structure, a sheath-type tail cover and a quick unlocking drawstring, and supports flexible configuration of 2-32 pins. Its integrated positioning pin positioning system and cable clamp design combine installation convenience and cable fixing stability. The metal shell is matched with insulating materials to ensure durability and safety. It is suitable for signal transmission scenarios in multiple fields such as industrial control, communication equipment, and electronic equipment.
1. Product Features
TNG connector takes “reliable connection and convenient maintenance” as its core design concept and adopts a straight plug structure to ensure uniform axial force during plugging and unplugging, reduce contact loss, and improve signal transmission stability. The sheathed tail cover can not only effectively protect the internal terminals from external dust and moisture erosion, but also fix the cables through the tail cable clamp to avoid poor contact caused by pulling. The unique quick unlocking pull cord design allows the plug to be disassembled without tools and can be completed with one hand, significantly improving on-site maintenance efficiency. The product supports flexible configuration of 2-32 pins to adapt to the signal transmission requirements of different scenarios. The positioning pin (G type/A…M type/R type) and the standardized interface design are compatible with mainstream equipment and have strong compatibility.

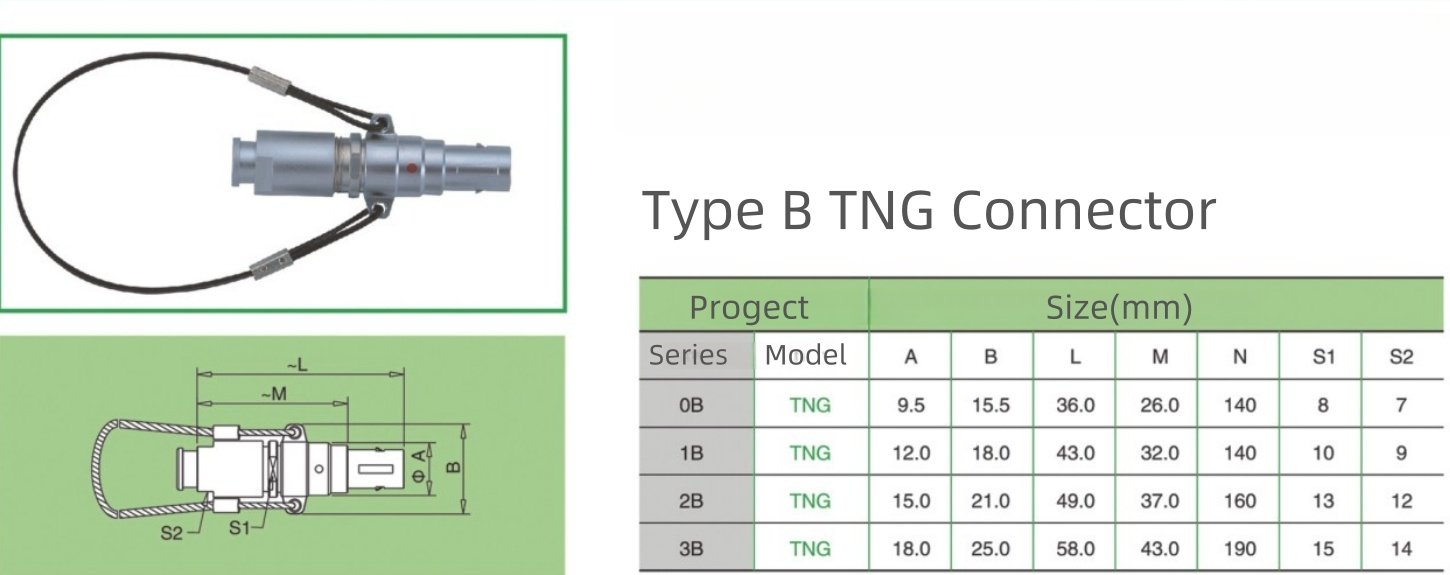

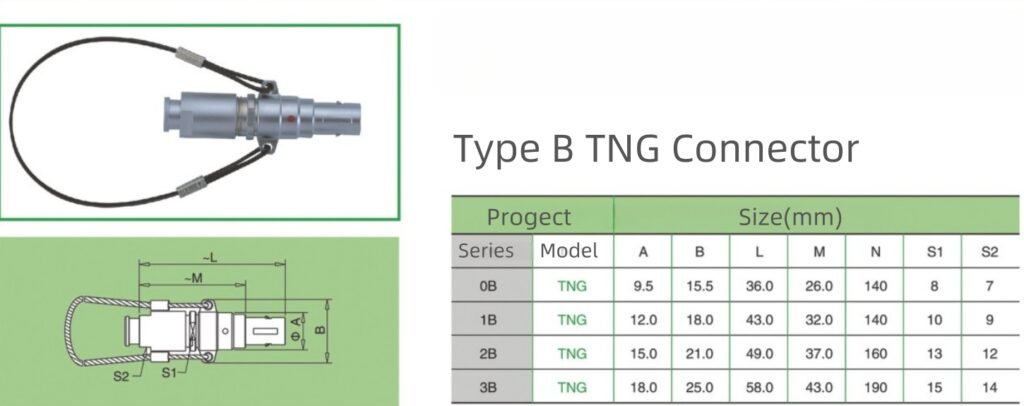

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Quick plug with unlocking cord | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
