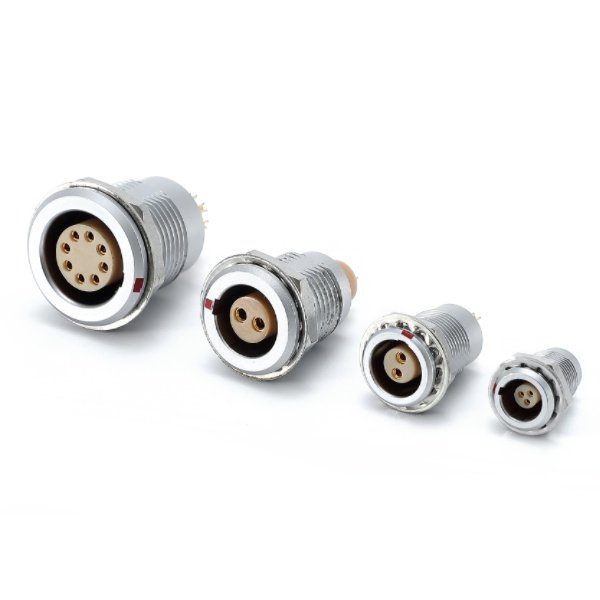

The B-type connector ZGG single nut fixed socket is a high-performance fixed socket (female) designed for industrial scenarios. It adopts a single nut chassis fixing structure and supports flexible configuration of 2-32 pins. The product has a compact appearance, high protection performance and stable electrical connection characteristics. It is suitable for a variety of positioning pin solutions and is widely used in internal signal transmission and power connection of equipment to meet the reliability requirements in harsh environments.
1. Product Features

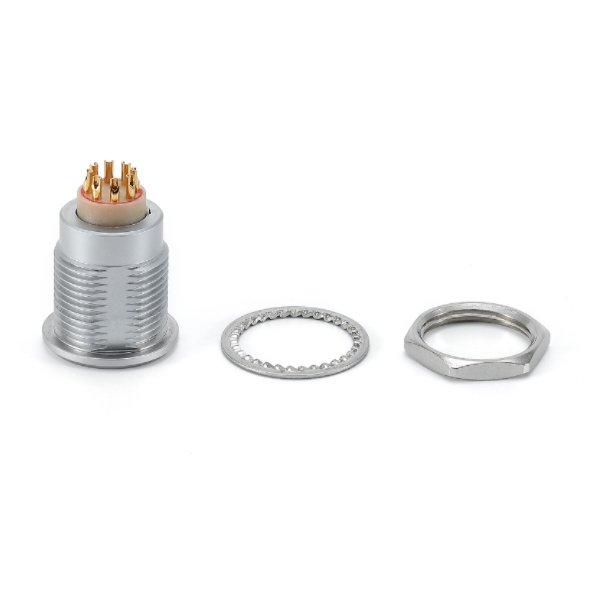

The ZGG connector takes “stable connection and flexible adaptation” as its core design concept. It adopts a fixed socket/female structure, and achieves quick installation and embedded fixing in the chassis through a single nut, effectively saving space and improving installation efficiency. Its original positioning pin design (supporting various specifications such as G type, A-M type, R type, etc.) ensures accurate alignment between the plug and the socket, avoiding misinsertion loss, and is particularly suitable for high-frequency plug-in and unplug scenarios. The product supports free selection of 2 to 32 pins, covering the full scene requirements from simple signal transmission to complex data bus, and has strong compatibility. The shell is made of high-strength metal material (such as brass nickel plating, stainless steel), the surface is treated with anti-oxidation, and the internal insulation parts are made of high-temperature resistant engineering plastics, which have both mechanical strength and insulation performance. It can adapt to a wide temperature environment of -40℃~+125℃, effectively resist dust, moisture and vibration interference, and ensure long-term stable operation.

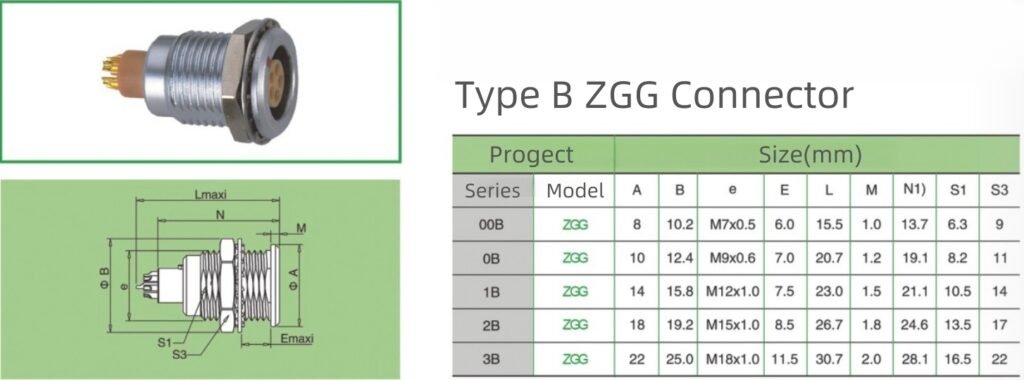

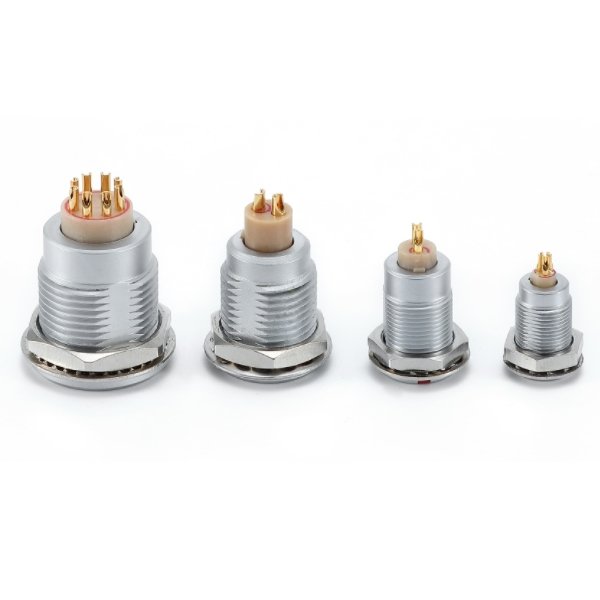

2. Product model size and characteristic parameters
3. Product overview and technical parameters

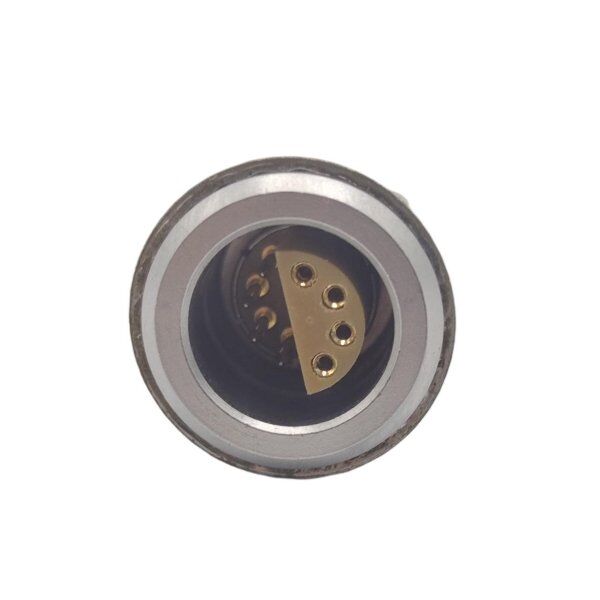

| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Fixed socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
