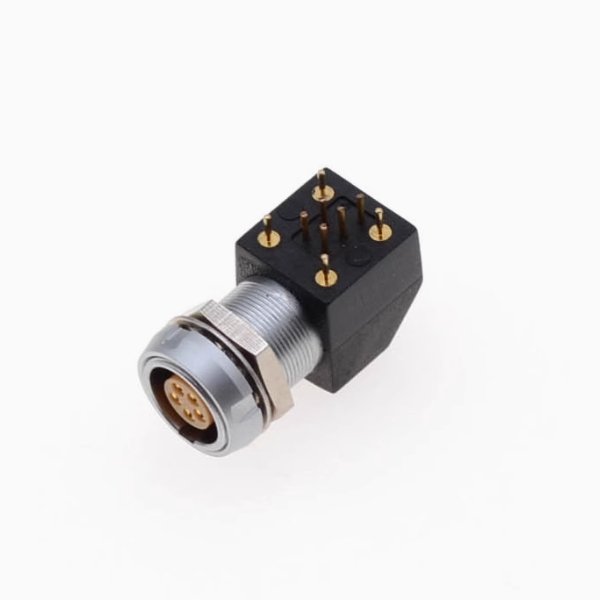

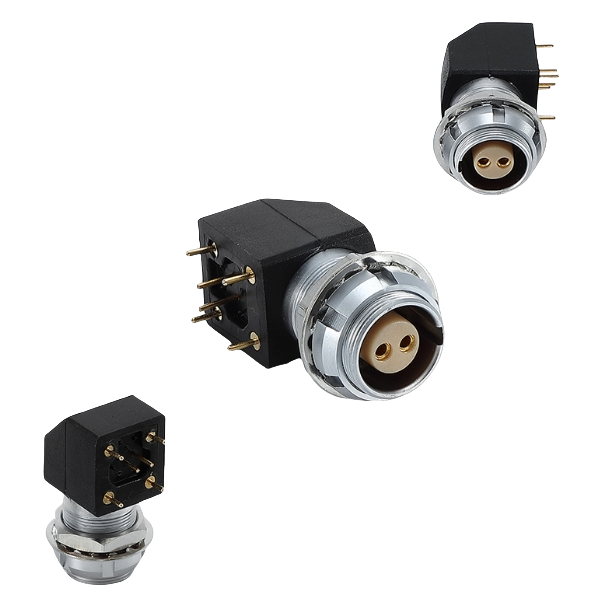

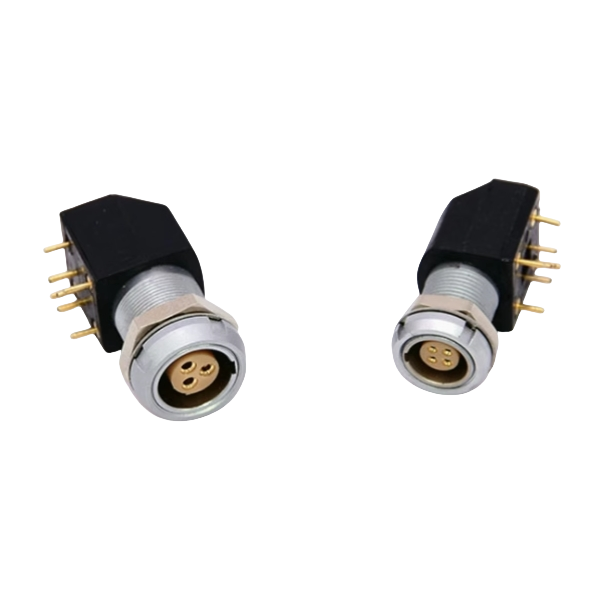

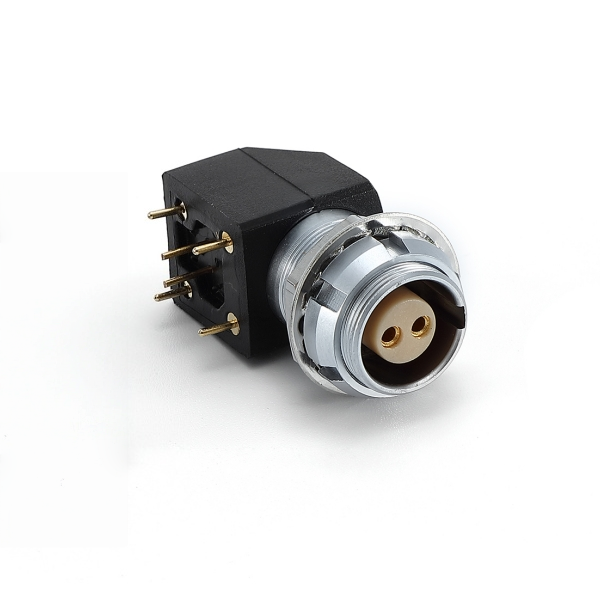

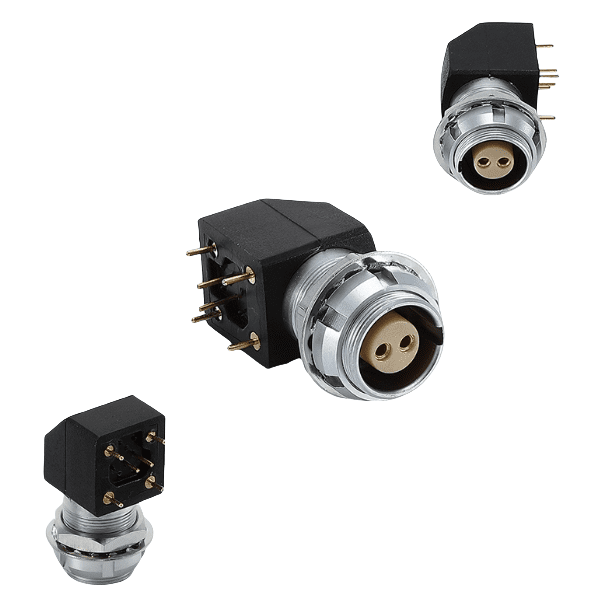

The B-type connector ZXG PCB double fixed socket is a 90° angle socket designed for printed circuit boards. It adopts a dual fixing structure of welding and screws, combining stability and installation flexibility. The product has a compact appearance and high-precision connection performance, is compatible with a variety of positioning pin configurations, can meet the signal transmission and mechanical connection requirements in different scenarios, and is widely used in industrial control, communication equipment, consumer electronics and other fields, providing reliable interface solutions for circuit systems.
1. Product Features
The ZXG B-type PCB connector optimizes the installation and use experience of traditional sockets with innovative design. Its core advantage lies in the 90-degree angle structure, which effectively saves PCB board space and is especially suitable for high-density wiring scenarios in small areas; the dual fixing method (welding + screws) combines the electrical performance advantages of welding with the mechanical fastening characteristics of screws to avoid poor contact caused by vibration or impact, and significantly improves connection reliability. The product supports a variety of positioning pin configurations (G type or A-F type), which can be flexibly matched according to customer needs and has strong compatibility. In addition, the plug-in interface design is easy to maintain and upgrade, and the contact parts are made of high-conductivity metal materials, combined with precision processing technology, to ensure the stability and low loss of signal transmission, and meet the application requirements of high-frequency and high-speed data transmission.

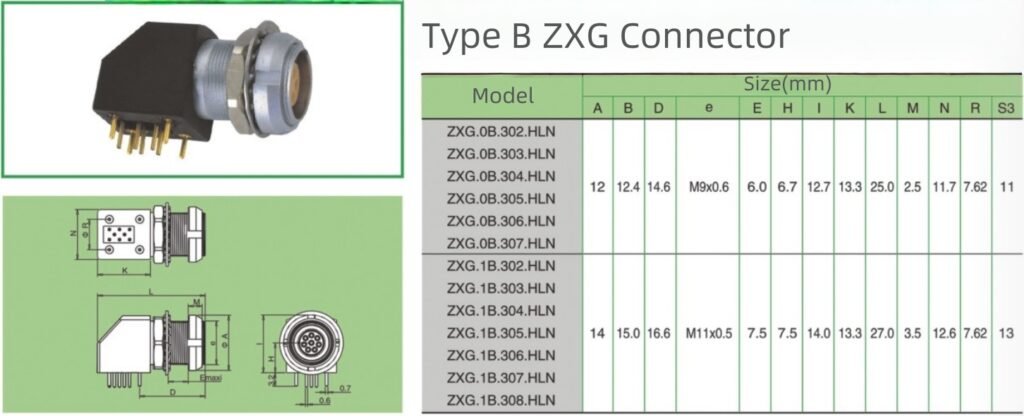

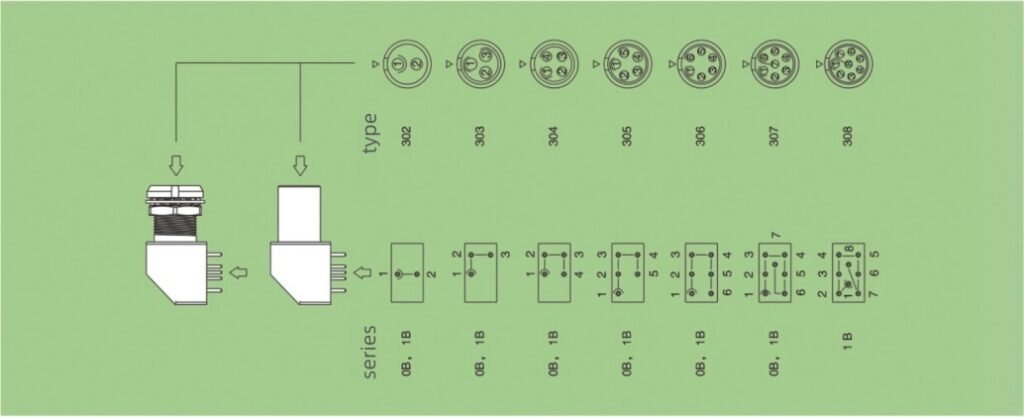

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| characteristic | describe |
| Main Features | ● Quick push-pull self-locking system |
| ● Soldering pin core | |
| ●Welding and nut double fixed socket | |
| ● Multiple alignment pin options to avoid mixed insertion of similar connectors | |
| ● All-round shielding effect, anti-electromagnetic interference | |
| ● Multi-core type 2-32 cores | |
| ● Positioning pin system, G is the standard positioning pin, used for connector alignment | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP50 |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
