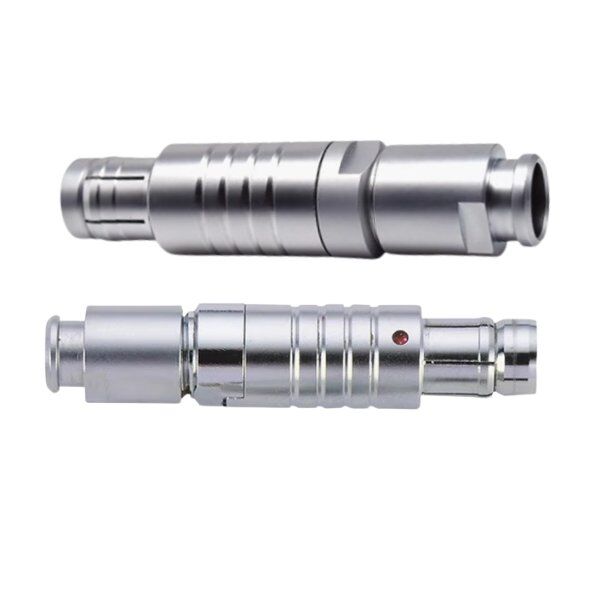

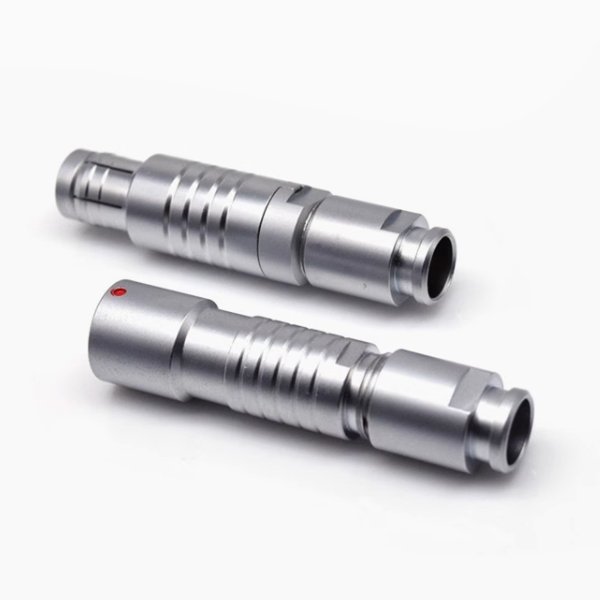

F-type connector TGG straight plug

1. Product Features
The straight plug uses phosphor copper as the core material, and the surface is nickel-plated. It has both high conductivity and corrosion resistance, and can adapt to military environments such as salt spray and humidity. The unique semi-circular metal anti-misinsertion structure uses an asymmetric slot design to ensure that the plug and the socket can only be aligned in one direction to avoid interface damage caused by misoperation; the internal cable clamp is made of elastic stainless steel, which tightly fixes the cable and limits its axial rotation to prevent cable twisting or contact wear during plugging and unplugging. The IP68 protection level enables the connector to maintain stable electrical performance under extreme conditions such as deep water immersion and dust intrusion. The shell adopts a composite structure of flame-retardant engineering plastics and metal shielding layer, which has electromagnetic shielding function and can effectively suppress signal interference in battlefield environments.

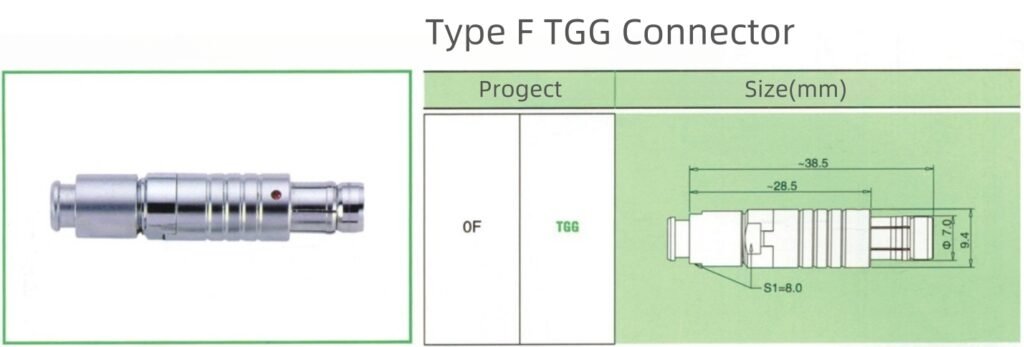

2. Product model size and characteristic parameters

3. Application scenario
Battlefield communication equipment: used for the rapid deployment of tactical radios, individual radios and encrypted communication terminals. The anti-misinsertion design ensures the accuracy of plugging and unplugging in complex terrain in the field, and the IP68 protection resists dust and rain erosion.
Armored vehicle wiring: Inside the vehicle with severe vibrations, the cable clamp and anti-rotation structure ensure the stable cable connection, and the metal shielding layer reduces electromagnetic pulse interference and improves the reliability of the command system.
Missile launch control system: The high temperature resistance and impact resistance meet the extreme environment requirements of the launch cabin, and the semi-circular metal anti-misinsertion mechanism avoids mis-touch and causes signal errors, ensuring the accurate transmission of launch commands.
Field monitoring station: For unattended sites exposed to humidity and large temperature differences for a long time, the connector self-locking function and corrosion-resistant design ensure the continuous and stable operation of data acquisition equipment.
This series of products has passed military certification and provides high-reliability connection solutions for national defense equipment.
