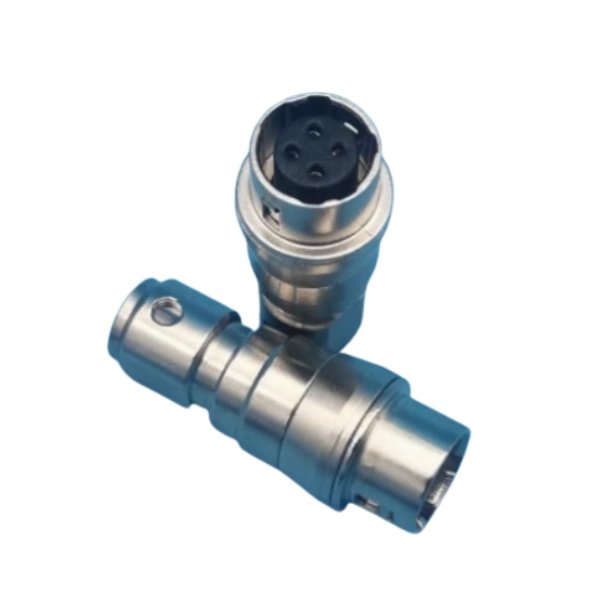

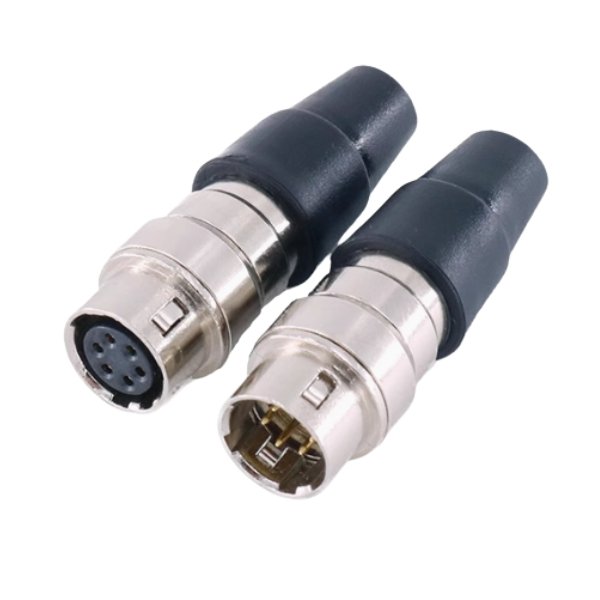

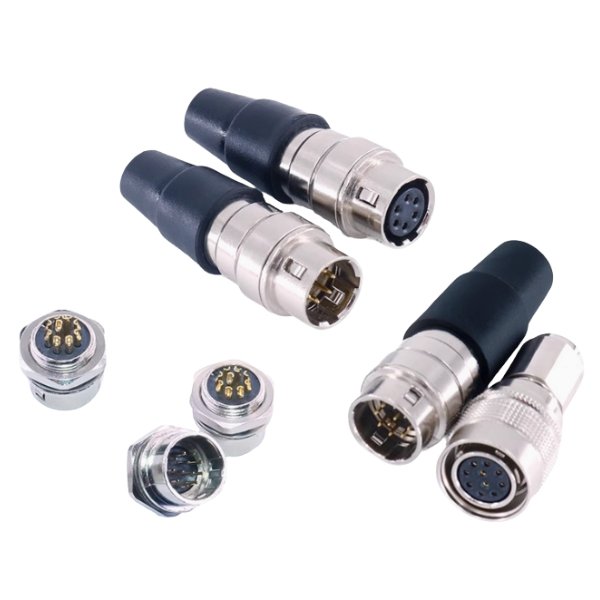

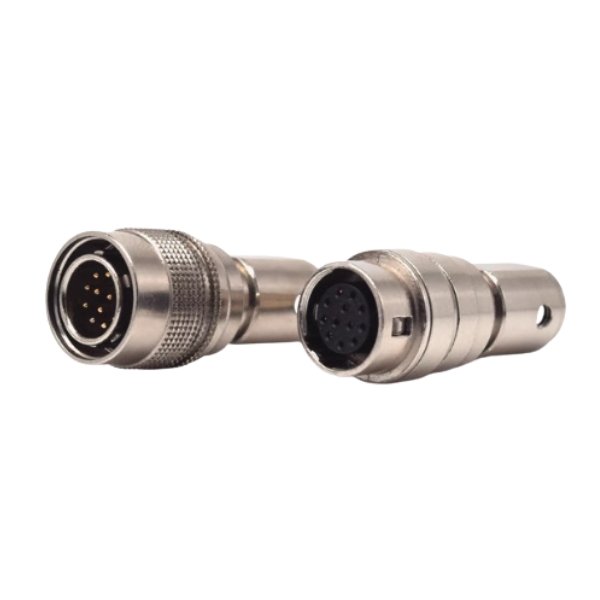

As a miniature Hirose connector, the HR10 series floating socket integrates a push-pull self-locking structure and brass nickel plating technology, combining small size and connection stability. Its floating design can adapt to slight position deviations, effectively improving docking reliability, and is widely used in scenarios with strict requirements on spatial layout and connection accuracy, providing efficient electrical solutions for equipment integration.
1. Product Features
The HR10 series floating socket adopts an elastic floating design, which can automatically calibrate the axial and radial deviations within the range of ±0.5mm, solving the pain point of high alignment accuracy requirements of traditional connectors, greatly improving docking efficiency and connection stability, and is especially suitable for long-term use in vibration environments.
Push-pull self-locking mechanism: Convenient push-pull operation enables quick plugging and unplugging, and the built-in locking structure ensures that there is no looseness after connection, combining ergonomic convenience and use safety, reducing the risk of operational errors.
High-quality material technology: The main body is made of H65 brass, and the surface is nickel-plated. It has excellent conductivity and corrosion resistance, can withstand a wide temperature environment of -40℃~125℃, and meet the durability requirements of harsh industrial scenarios.
Compact and lightweight design: The overall size is 20% smaller than similar products, and the weight is reduced by 15%. It can still maintain reliable electrical performance in a small space, with a contact resistance as low as 50mΩ and an insulation resistance ≥500MΩ, ensuring the stability and low loss of signal transmission.

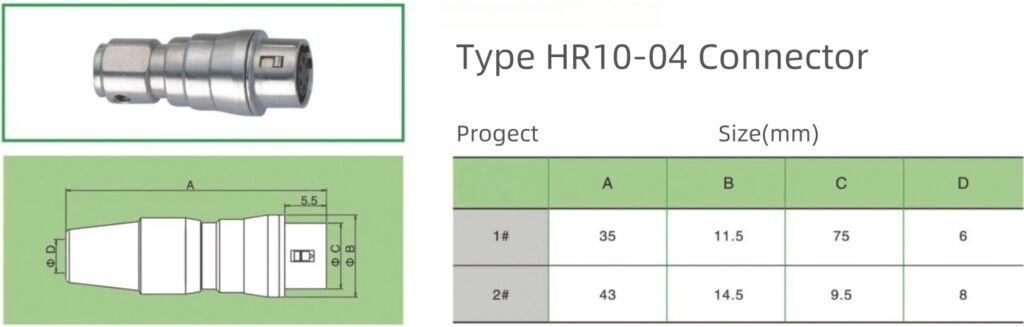

2. Product model size and characteristic parameters
3. Application scenarios
The HR10 series has become the core connection solution for industrial vision, semiconductor, medical, consumer electronics and other fields through its miniaturized structure, environmental tolerance (-40℃~+125℃ operating temperature) and diversified interface configuration (4-12 pins optional), taking into account high reliability and space efficiency.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
