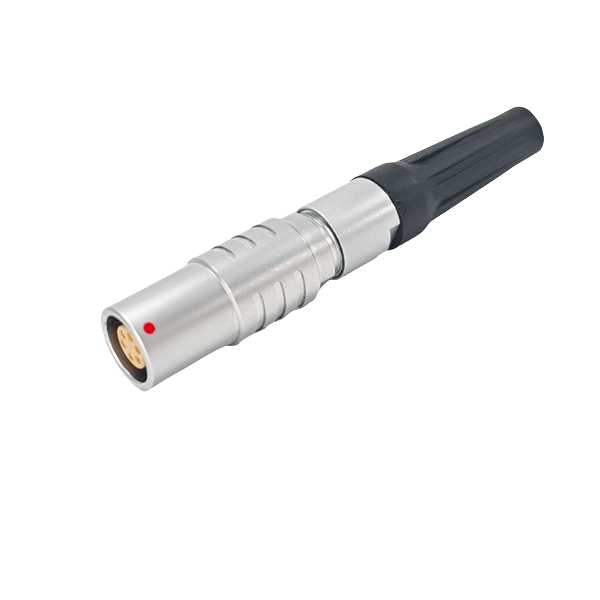

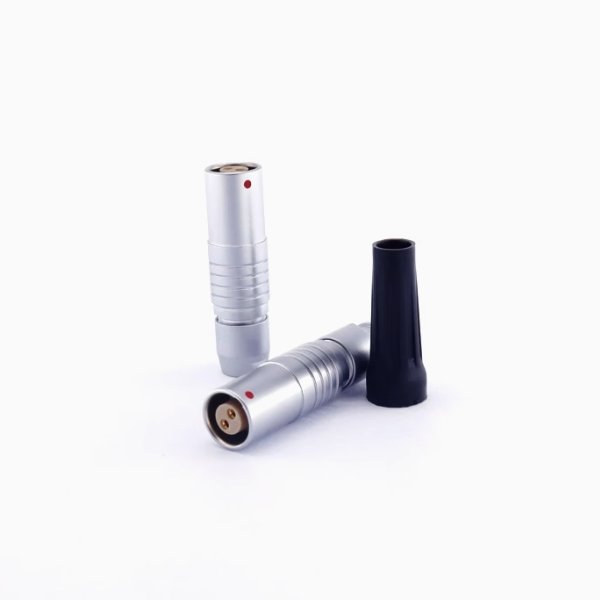

The K-type connector DHG floating socket with tail cover is a floating connector designed for highly adaptable scenes. It adopts a sheath-type tail cover and a cable clamp integrated structure, combined with brass nickel-plated material and IP68 protection level to achieve waterproof, dustproof and vibration resistance. Its floating design allows for slight displacement to compensate for installation errors, and is suitable for complex working conditions such as industrial equipment, outdoor communications, and mobile machinery, ensuring stable connections under high-frequency plugging and unplugging.
1. Product Features
The K-type DHG floating socket is based on an active structure and realizes displacement compensation of ±0.8mm on the X/Y axis through built-in elastic elements (such as spring contacts or elastic brackets), which effectively alleviates the connection stress caused by thermal expansion and contraction or mechanical vibration of outdoor equipment and prolongs its service life. The brass nickel-plated shell (thickness ≥1.0mm) has excellent corrosion resistance and can resist salt spray, ultraviolet rays and acid rain erosion. With a 360° metal shielding layer, it meets IP68 protection and EMC anti-interference requirements. The pin adopts a high-elastic copper alloy gold plating process (plating thickness ≥50μm), with a contact resistance as low as ≤1.5mΩ, supports high-frequency signal transmission (DC-1GHz), and has built-in waterproof rubber rings and dust plugs to adapt to harsh environments such as heavy rain and dust.

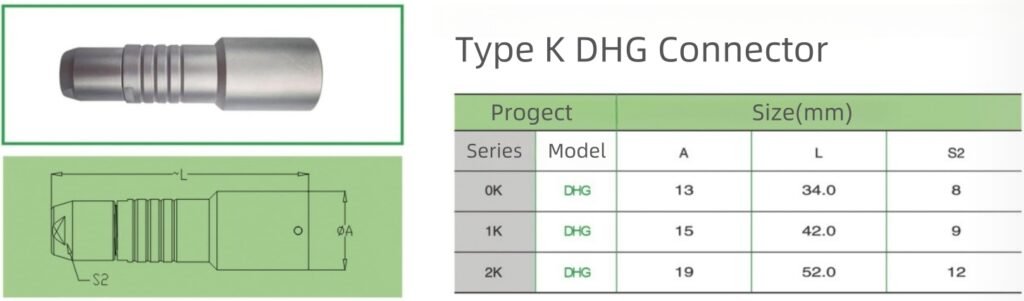

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| All models in this series are waterproof when mated and can achieve IP68 (at least IP66) protection level when properly assembled with the corresponding cable. | |
| characteristic | describe |
| Main Features | ●Floating socket |
| ●Safe push-pull self-locking system | |
| ●Rugged housing design for extremely harsh working environments | |
| ●360° shielding provides all-round EMC protection (anti-electromagnetic interference) | |
| ●Locking pin system (<G> is the standard locating pin) for connector alignment | |
| ●Multi-core type 2 – 32 cores | |
| ●Waterproof connection (IP68/IP66) | |
| ●Multiple locating pin options to avoid mixed insertion between similar connectors | |
| ●High-density installation, saving space. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
