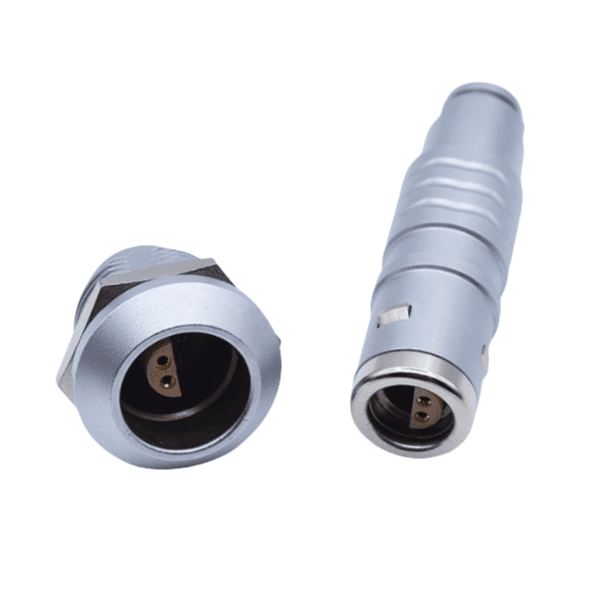

The K-type connector TGG metal straight plug is a straight plug (male) designed for harsh environments, with high strength and a wide range of applications. It supports 2-3 pin core connection, with IP68 high-level waterproof performance and excellent anti-electromagnetic interference capability. It has a compact structure and is easy to install. It is equipped with positioning pins and cable clamps to ensure a stable and reliable connection. It is suitable for high-precision and high-strength scenarios in the fields of industrial automation, outdoor equipment, medical equipment, etc.
1. Product Features
The K-type TGG straight metal plug adopts a modular design to achieve fast plugging and precise alignment. Its multi-pin core expansion capability (2-32 pins) avoids the risk of mixed plugging through standardized pin spacing and positioning pin system (such as G-type standard positioning pin), and adapts to complex wiring requirements. The IP68 waterproof performance is achieved through a labyrinth sealing structure and a silicone sealing ring to ensure continuous protection at a depth of 30 meters underwater; the 360° electromagnetic shielding design combines gold-plated contacts and a metal shell to increase EMI interference attenuation to more than 60dB to ensure signal integrity. In addition, the push-pull self-locking mechanism supports one-handed operation, and the plug-in life is more than 100W times, which meets high-frequency usage scenarios.

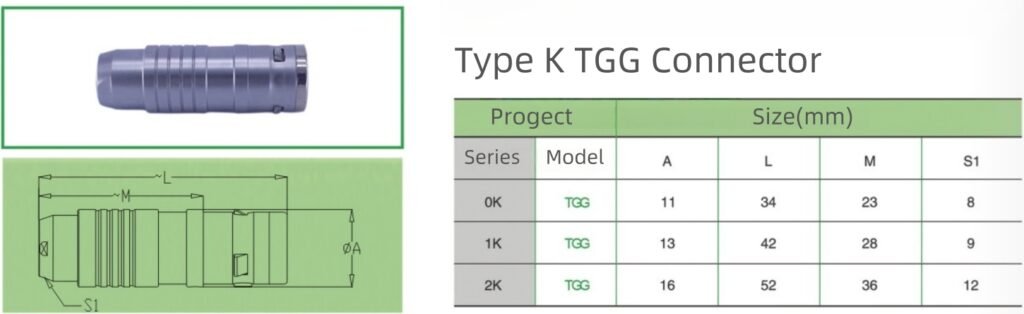

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| All models in this series are waterproof when mated and can achieve IP68 (at least IP66) protection level when properly assembled with the corresponding cable. | |
| characteristic | describe |
| Main Features | ●Straight push-pull connector plug |
| ●Safe push-pull self-locking system | |
| ●Rugged housing design for extremely harsh working environments | |
| ●360° shielding provides all-round EMC protection (anti-electromagnetic interference) | |
| ●Locking pin system (<G> is the standard locating pin) for connector alignment | |
| ●Multi-core type 2 – 32 cores | |
| ●Waterproof connection (IP68/IP66) | |
| ●Multiple locating pin options to avoid mixed insertion between similar connectors | |
| ●High-density installation, saving space. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
