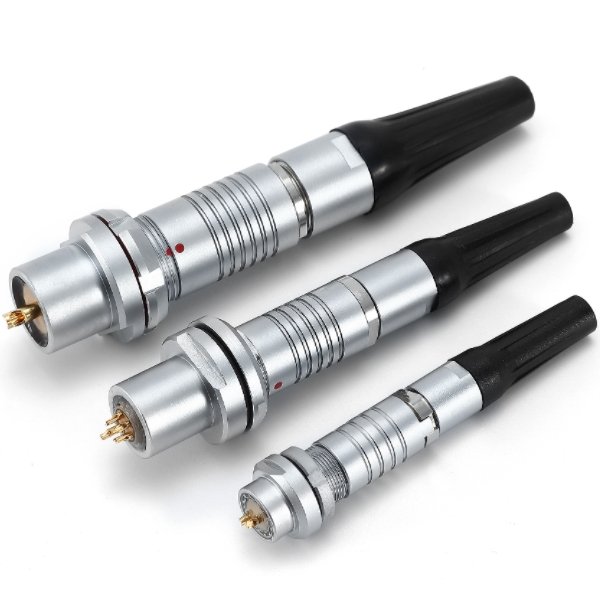

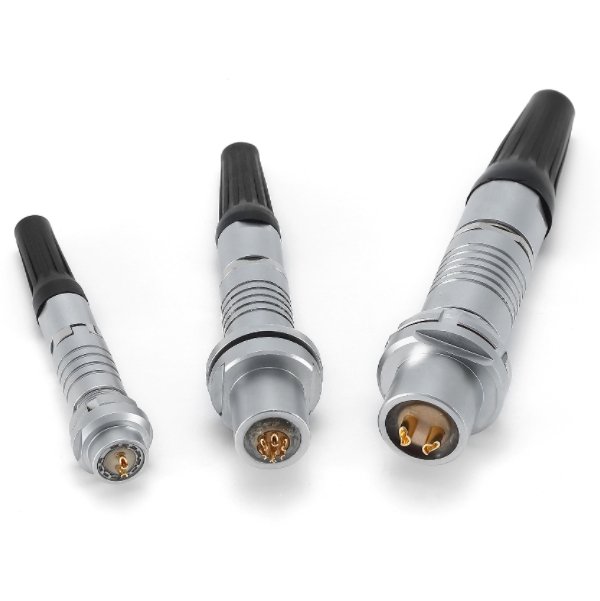

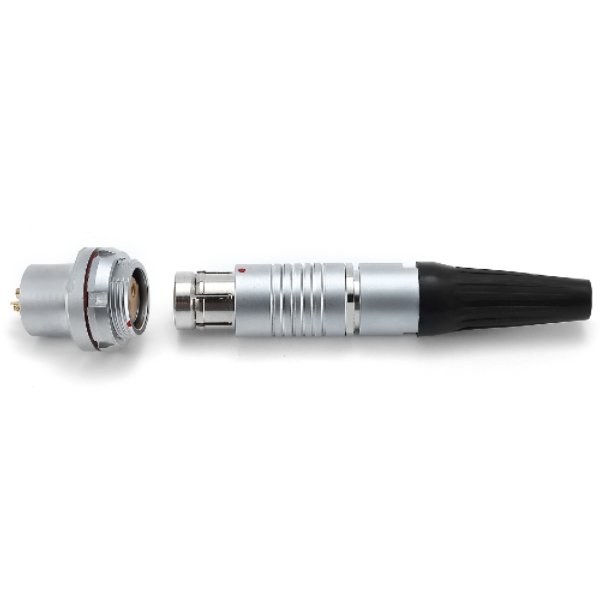

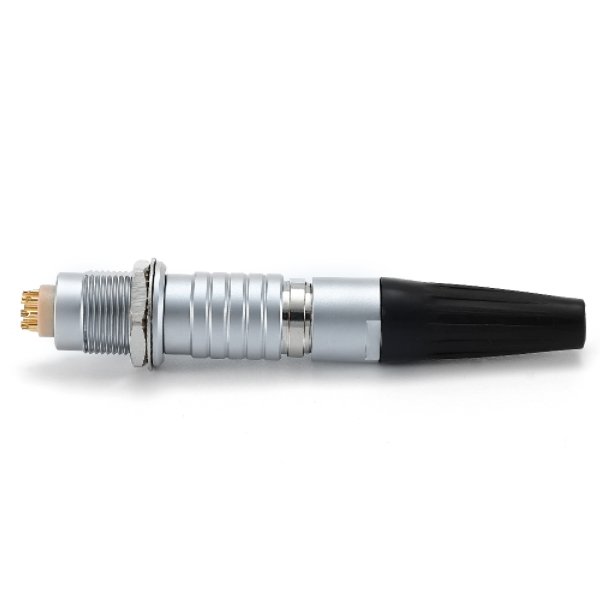

The K-type connector TGG1 straight plug with tail cover sleeve is a straight plug connector designed for harsh environments. It supports a detachable tail cover configuration and has both waterproof sealing and convenient installation characteristics. Its modular structure is suitable for multi-pin core cable connection, and ensures high-reliability docking through a precise positioning system. It is widely used in industrial equipment, communication systems and outdoor scenes to meet the needs of stable signal transmission under high-frequency plugging and unplugging and complex working conditions
1. Product Features
The K-type TGG1 straight plug with tail cap and sheath adopts a push-pull self-locking mechanism to achieve rapid deployment and stable connection. Its detachable tail cap design not only simplifies the cable fixing process, but also enhances the waterproof performance (protection level up to IP68) by screwing it in to prevent moisture or dust from intruding. The product has a built-in 360° metal shielding layer to effectively suppress electromagnetic interference (EMI) and ensure signal integrity; the pin adopts a high-elastic copper alloy gold plating process, with a contact resistance as low as ≤2mΩ, supporting high-frequency signal transmission (DC-6GHz). In addition, the modular positioning pin system (such as the G-type standard pin) can prevent mis-insertion and adapt to the standardization requirements of different equipment interfaces.

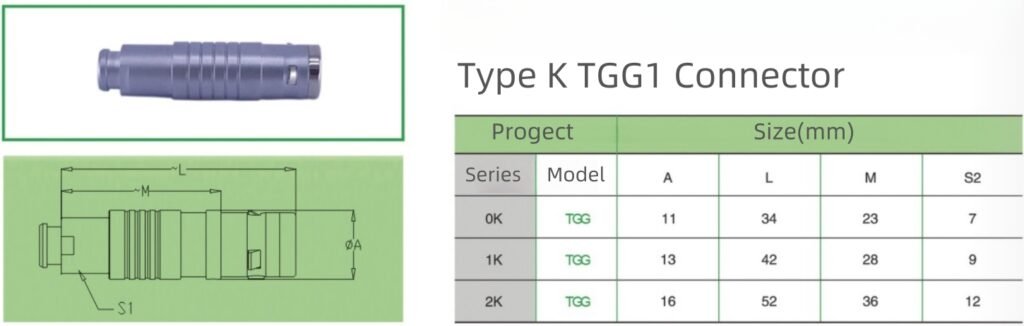

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| All models in this series are waterproof when mated and can achieve IP68 (at least IP66) protection level when properly assembled with the corresponding cable. | |
| characteristic | describe |
| Main Features | ●Straight push-pull connector plug |
| ●Safe push-pull self-locking system | |
| ●Rugged housing design for extremely harsh working environments | |
| ●360° shielding provides all-round EMC protection (anti-electromagnetic interference) | |
| ●Locking pin system (<G> is the standard locating pin) for connector alignment | |
| ●Multi-core type 2 – 32 cores | |
| ●Waterproof connection (IP68/IP66) | |
| ●Multiple locating pin options to avoid mixed insertion between similar connectors | |
| ●High-density installation, saving space. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
