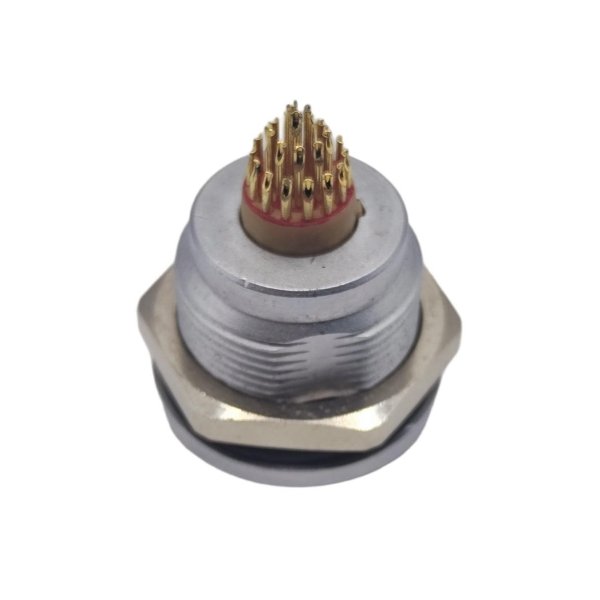

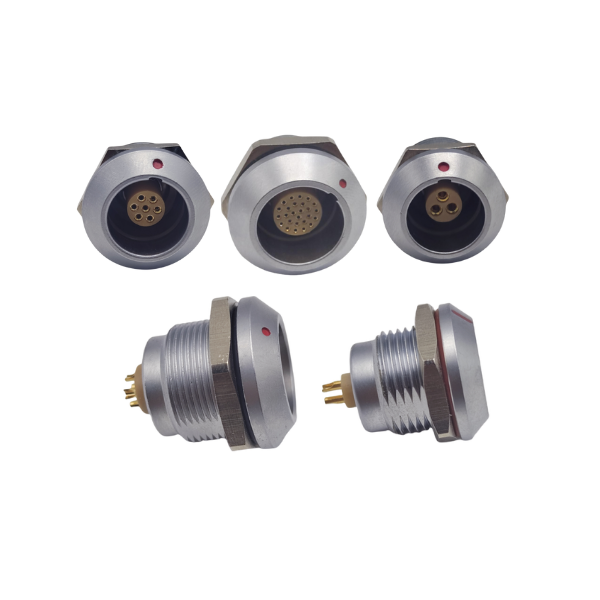

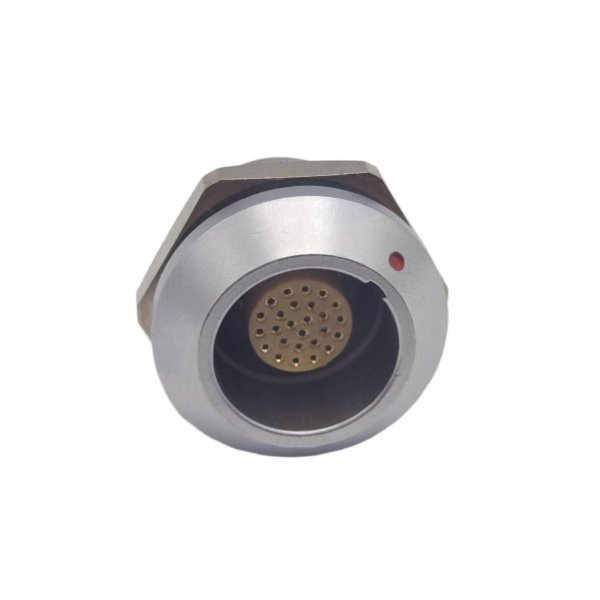

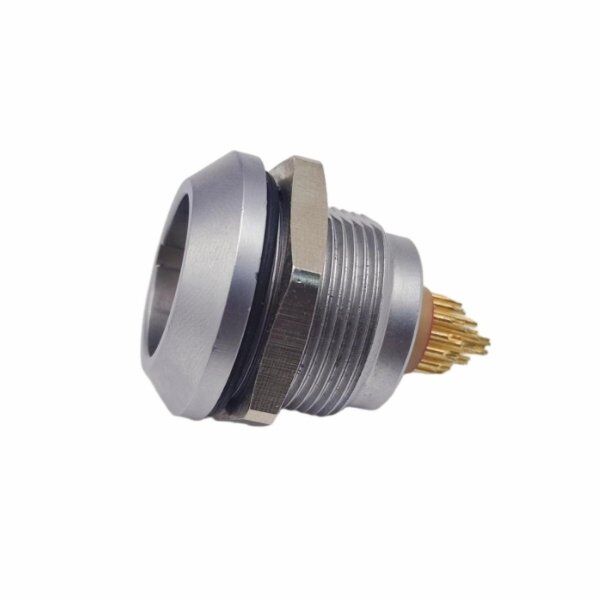

The K-type connector ZGG single nut fixed socket is a fixed socket designed for high-stability scenarios. It adopts a single nut locking and inner fixing structure to ensure the stability of the connection. Its compact design is suitable for precision wiring needs, supports multi-pin signal transmission, and is suitable for industrial control, communication equipment and high-frequency test instruments, providing a reliable solution for electrical connections in harsh environments.
1. Product Features
The K-type ZGG single-nut fixed socket achieves zero loose connection through the dual protection of single nut and inner fixing. Its inner fixing design embeds the contact into the shell, effectively avoiding the deviation caused by external force collision, while reducing the pollution of the contact surface by the external environment (such as dust and liquid). The single-nut locking mechanism simplifies the installation process, and can be tightened without additional tools. It also has an anti-mistouch function-an electromagnetic shielding layer is automatically formed after tightening to suppress high-frequency interference (EMI). The product supports straight or angled installation, adapts to different PCB layouts, and is compatible with standard positioning pins (such as G type, A-F type) to ensure accurate alignment when multiple devices are connected.

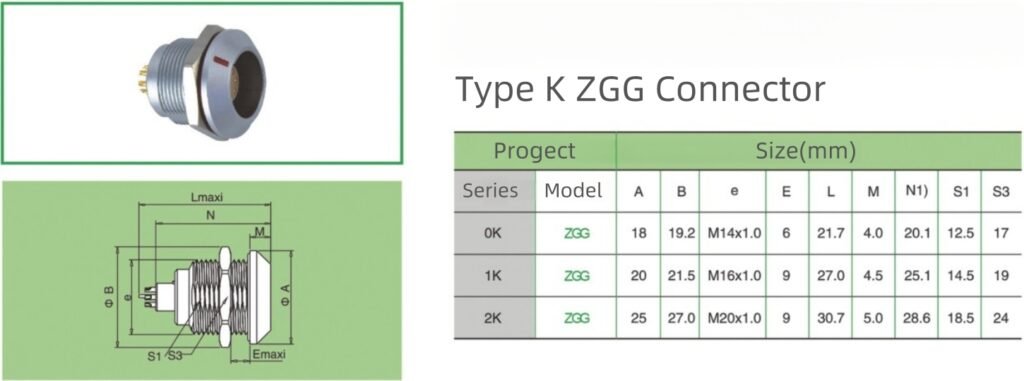

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| All models in this series are waterproof when mated and can achieve IP68 (at least IP66) protection level when properly assembled with the corresponding cable. | |
| characteristic | describe |
| Main Features | ●Single nut fixing socket |
| ●Safe push-pull self-locking system | |
| ●Rugged housing design for extremely harsh working environments | |
| ●360° shielding provides all-round EMC protection (anti-electromagnetic interference) | |
| ●Locking pin system (<G> is the standard locating pin) for connector alignment | |
| ●Multi-core type 2 – 32 cores | |
| ●Waterproof connection (IP68/IP66) | |
| ●Multiple locating pin options to avoid mixed insertion between similar connectors | |
| ●High-density installation, saving space. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
