M12 connector-assembled 90° elbow plastic connector, adopts a 90° elbow design, saves installation space, is equipped with a screw locking structure and a plastic shell, and the internal contacts are brass nickel-plated. It has IP68 high-level protection capabilities and is suitable for harsh industrial environments. It supports multiple pin core options, and the connection is stable and reliable to meet the needs of efficient signal transmission
1. Product Features
The connector optimizes the space layout with a 90-degree elbow shape and is suitable for compact equipment installation; the screw locking design ensures a stable connection, anti-vibration and anti-falling; the food-grade plastic shell is both lightweight and durable, the internal brass nickel-plated contacts are anti-oxidation and have excellent conductivity, and the protection level reaches IP68, which can resist dust intrusion and deep waterproof (water depth of 1 meter, for 30 minutes). It supports fast plugging and unplugging, meeting the high reliability requirements of industrial automation, sensor connection and other scenarios.
2. Product size and number of pins

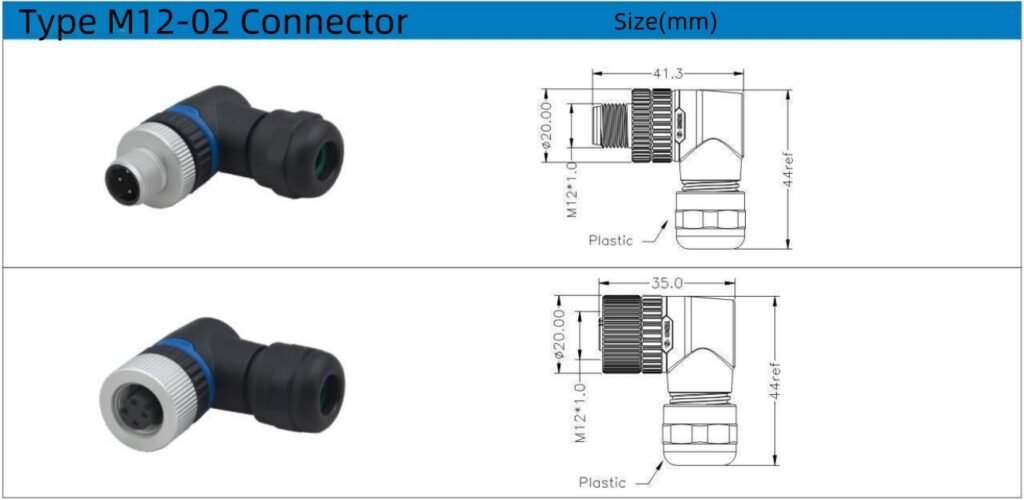

Size: The main body diameter is 20.00mm, the total length is 41.3mm, the thread specification is M12×1.0, and it is suitable for standard M12 interface equipment. The curvature of the elbow is smooth, which is convenient for cable steering layout.
Number of pins: Provides a variety of choices, Type A covers 3/4/5/8/12 pins, Type B 5 pins, Type D 4 pins, male and female pins are arranged in a standardized pinhole arrangement (such as Type A 5 pins male pins are arranged in a ring), compatible with mainstream industrial protocols, supports customized pin number configuration, and meets the signal transmission requirements of different scenarios.
3. Materials and technical parameters
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
