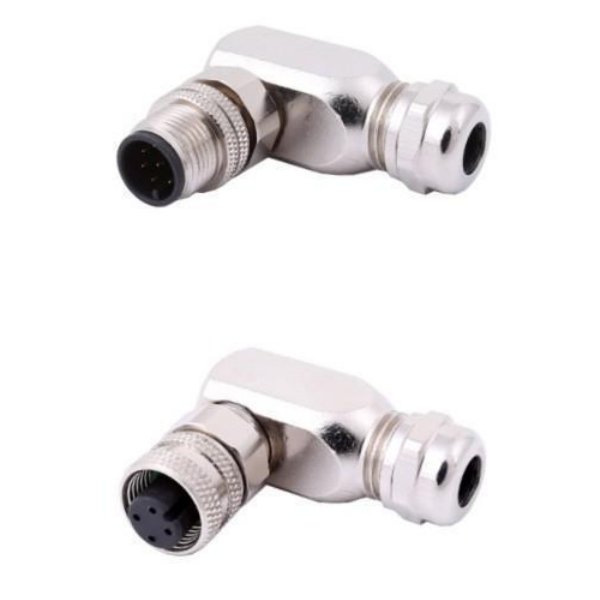

M12 connector assembled elbow circular metal connector

1. Product Features
Structural design: 90-degree elbow shape, optimized space layout, suitable for complex mechanical environments; assembled design simplifies the installation process and improves work efficiency.
Protective performance: The metal shell is matched with brass nickel plating process, which has strong corrosion resistance; IP68 protection, can be immersed in water for long-term use, and has excellent dust and water resistance.
Stable connection: The screw locking mechanism ensures tight insertion, and the cable clamp locks the cable design to prevent the cable from loosening, adapt to vibration scenarios, and ensure signal transmission stability.
Material advantages: High-quality metal material base, surface treatment process improves wear resistance, and meets the long-term use requirements of harsh industrial environments.

2. Product size and number of pins

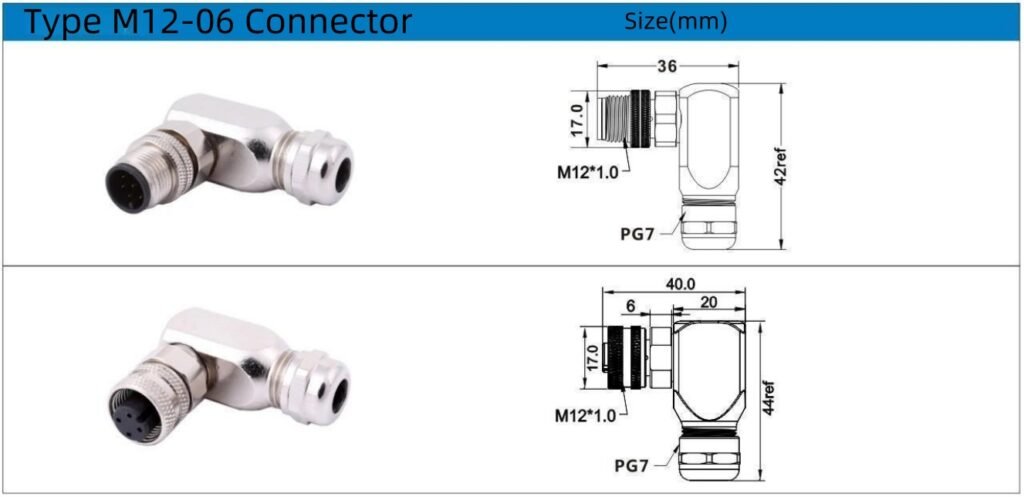

Dimensional parameters: The main body adopts M12×1.0 standard thread, which is suitable for mainstream industrial equipment; the interface specification is PG7, the shell length covers 36-44mm, the diameter is 17-20mm (slightly different for different models), and the compact design takes into account both strength and flexibility.
Number of pins selection: Provides a variety of pin number combinations, A-type series includes 4-pin, 5-pin, 8-pin, 12-pin (corresponding to different pinhole arrangements), B-type 5-pin, D-type 4-pin, to meet the needs of multiple scenarios from simple signals to complex data transmission, suitable for industrial automation, equipment control, sensor connection and other fields.

3. Materials and technical parameters
