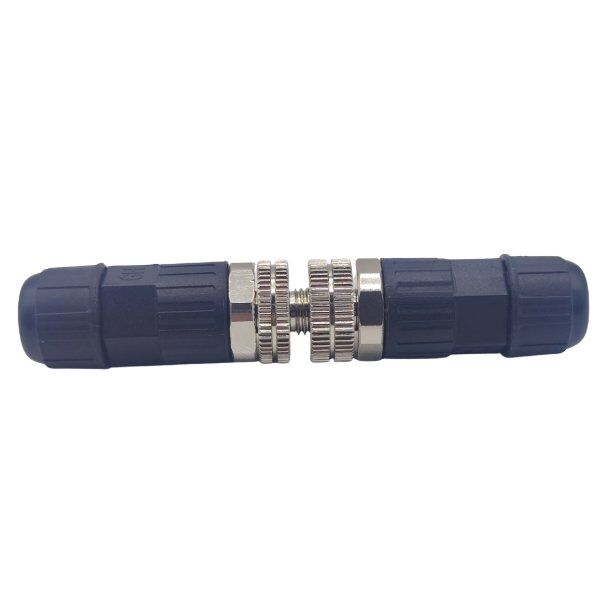

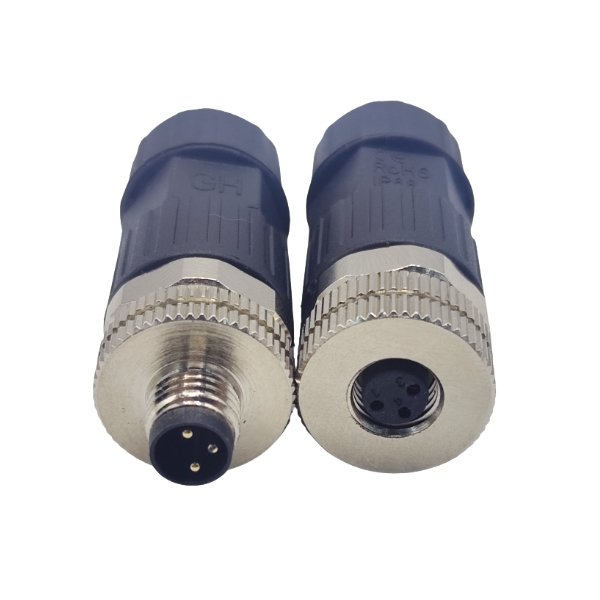

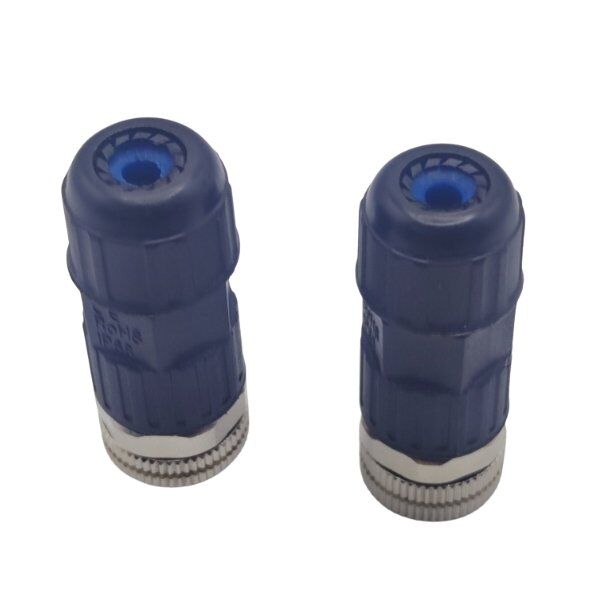

M12 connector-assembled straight plastic connector is an ideal connection solution in the field of industrial automation. It adopts a screw locking structure and a lightweight plastic shell. The internal brass nickel-plated contact has both conductivity and oxidation resistance. It is equipped with a cable locking design to effectively resist vibration and external force pulling. The product provides a variety of pin core options (3-12 pin cores) to meet the needs of different scenarios. It is easy to install and has an excellent protection level, providing a stable and reliable solution for equipment connection.
1. Product Features
The connector is designed to be assembled quickly, and its core advantages include: ① Screw locking mechanism: through precise thread fastening, it ensures stable signal transmission, anti-vibration and anti-shock; ② Lightweight plastic shell: using high-strength engineering plastics, chemical corrosion resistance, good insulation, and reducing the weight of the equipment; ③ Brass nickel-plated contacts: the internal conductive parts are nickel-plated, with excellent conductivity, strong anti-oxidation ability, and extended service life; ④ Cable locking structure: suitable for a variety of cable specifications, tightly fit after locking, effectively preventing poor contact caused by pulling.
2. Product size and number of pins

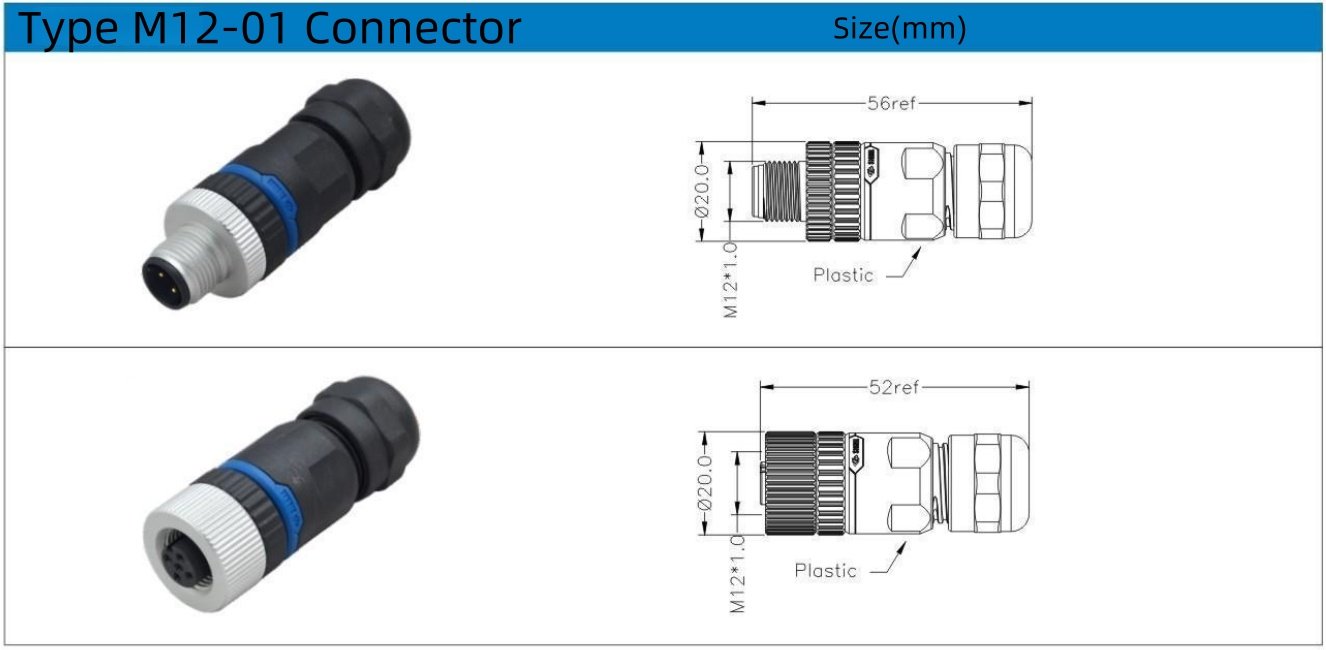

Size specification: Two mainstream models are provided to adapt to different installation spaces-
Male head: body diameter 56mm (refer to the size diagram), adapted to M12×1 threaded interface;
Female head: body diameter 52mm (refer to the size diagram), also using M12×1 standard interface, taking into account compactness and versatility.
Number of pins selection: Covering the full-scenario needs of 3-12 pins, subdivided into A/B/D types and other specifications:
A-type series: 3-pin, 4-pin, 5-pin, 8-pin, 12-pin (both male and female pinholes support multi-pin layout);
B-type/D-type: 5-pin, 4-pin (adapted to lightweight connection of specific equipment).
Both male and female pinholes adopt standardized layout (such as A-type 5-pin male pins are symmetrically distributed from 1 to 5), compatible with mainstream equipment in the market, and strong installation compatibility. The product combines functionality and flexibility, and is the preferred solution for industrial control, sensor connection, and equipment integration.
3. Materials and technical parameters
| Materials and parameters | |||||
| Number of pins | 3 | 4 | 5 | 8 | 12 |
| Connection | screw clamp | solder | |||
| Wire gauge | 0.14/0.25/0.34/0.5mm²/(26/24/22/20 AWG) | ||||
| Cable OD | 6～8mm | ||||
| Operating temperature | -25℃~+85℃ | ||||
| Mechanical operation | >100 mating cycles | ||||
| Rated voltage | 250V | 60V | 30V | ||
| Rated current | 4A | 2A | 1.5A | ||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | <10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
