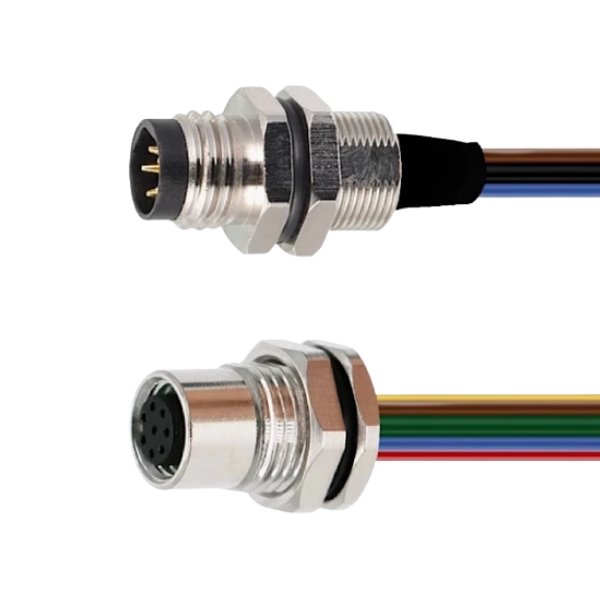

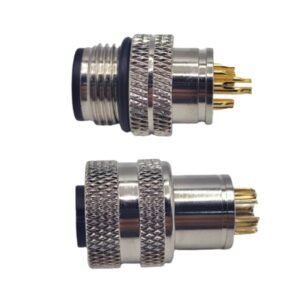

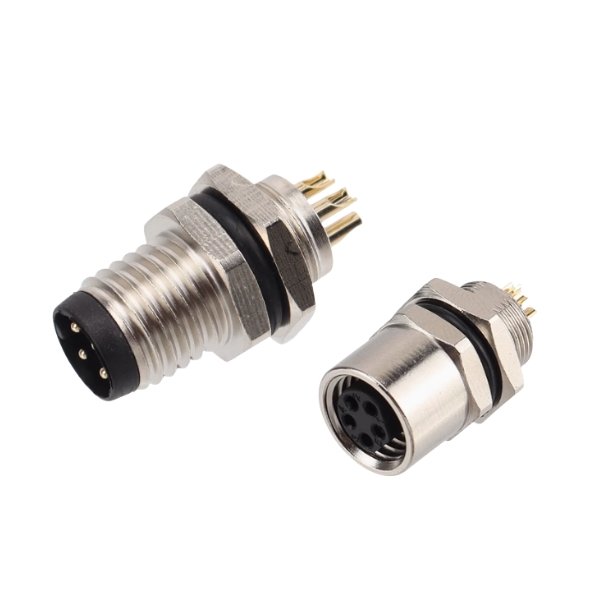

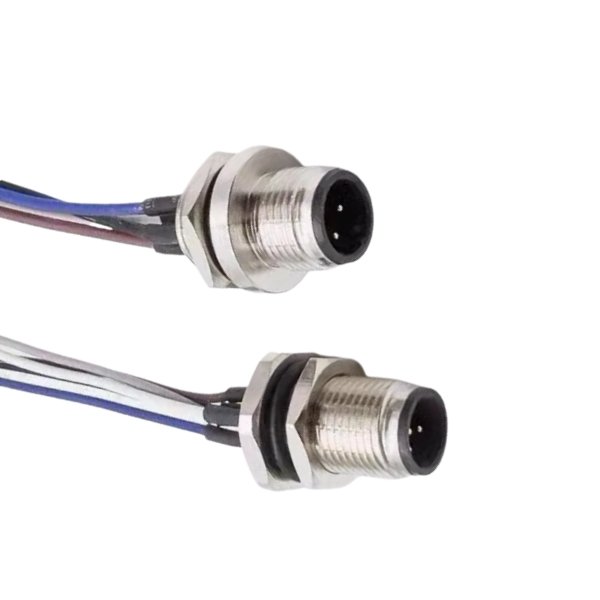

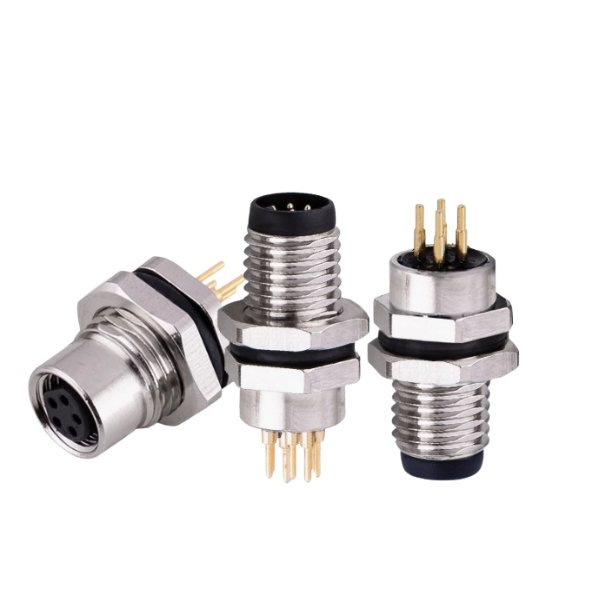

M12 connector-front lock panel type with wire connector, adopts front lock panel installation design, with internal and external double fixing structure and screw locking at the connection, stable and durable. Supports nut customization, flexible adaptation of cable length, color, and material, suitable for industrial automation, equipment connection and other scenarios, providing efficient solutions for cable integration.
1. Product Features
The connector is designed with “front lock panel type” as the core, supports front panel installation, enhances connection stability through internal and external dual fixing structures, and is equipped with a screw locking device to ensure reliable signal transmission and effectively resist industrial environment interference such as vibration and impact. It comes with a standard nut, which can be customized according to needs. It also supports flexible customization of the length, color, and material of the welding cable to meet the needs of various scenarios. It has a compact structure, excellent protection performance, is suitable for a variety of cable specifications, is easy to install, and has strong compatibility.
2. Product size and number of pins

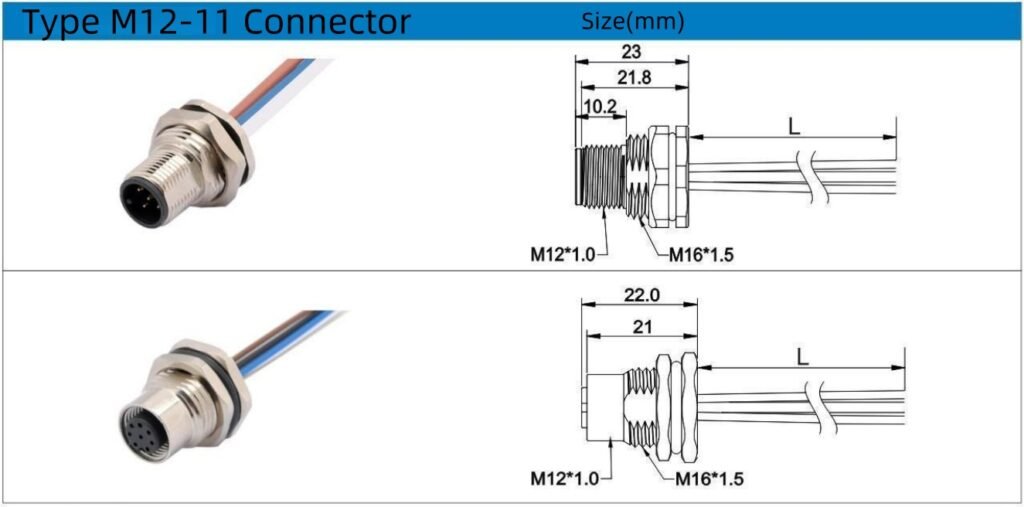

Size specifications: Two thread specifications are available: M12×1.0 and M16×1.5. The lengths of the male and female heads are 23mm and 22.0mm respectively, which are suitable for panel installation apertures and cable threading space, taking into account both miniaturized equipment and heavy machinery scenarios.
Number of pins selection: Covering multiple specifications such as 4-pin, 5-pin, 8-pin, and 12-pin (Type A contains 4/5/8/12 pins, Type B contains 5 pins, and Type D contains 4 pins). The male and female pinholes are clearly arranged, supporting multiple types of connections such as signals and power supplies, and are suitable for communication and power supply requirements of different devices, with strong adaptability.
3. Materials and technical parameters
| Materials and parameters | |||||
| Number of pins | 3 | 4 | 5 | 8 | 12 |
| Connection | solder | ||||
| Wire gauge | 0.14/0.25/0.34/0.5mm²/(26/24/22/20 AWG) | ||||
| Cable OD | 6～8mm | ||||
| Operating temperature | -25℃~+85℃ | ||||
| Mechanical operation | >100 mating cycles | ||||
| Rated voltage | 250V | 60V | 30V | ||
| Rated current | 4A | 2A | 1.5A | ||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | <10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
