M12 connector-T-type plastic shell adapter is a high-performance connection component designed for industrial scenes. It adopts T-shaped structure to realize three-way transmission of signal/power. The product has the characteristics of free selection of male and female interfaces, screw locking to prevent falling off, brass nickel-plated contacts, etc. It is equipped with an IP68 waterproof and dustproof plastic shell, suitable for harsh environments such as humidity and dust, and supports 4-pin core-12 pin core options. A variety of sizes and specifications are available, providing a stable and reliable solution for device connection.
1. Product Features
Structural design: T-shaped three-way shape, supports two-way connection between trunk and branch, and meets the needs of complex line layout;
Material advantages: Lightweight plastic shell is corrosion-resistant and impact-resistant, and the internal brass nickel-plated terminals have excellent conductivity and strong anti-oxidation ability;
Safety protection: The screw locking design at the connection ensures tightness and anti-loosening, and the IP68 protection level can resist deep water immersion and dust intrusion;

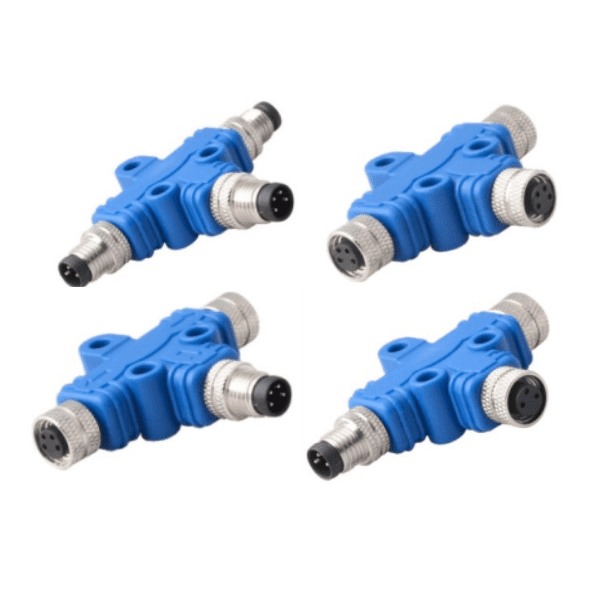

Flexible adaptation: Provides a variety of combinations of male and female interfaces to cover the connection needs of different devices and is compatible with mainstream M12 standard devices.
2. Product size and number of pins

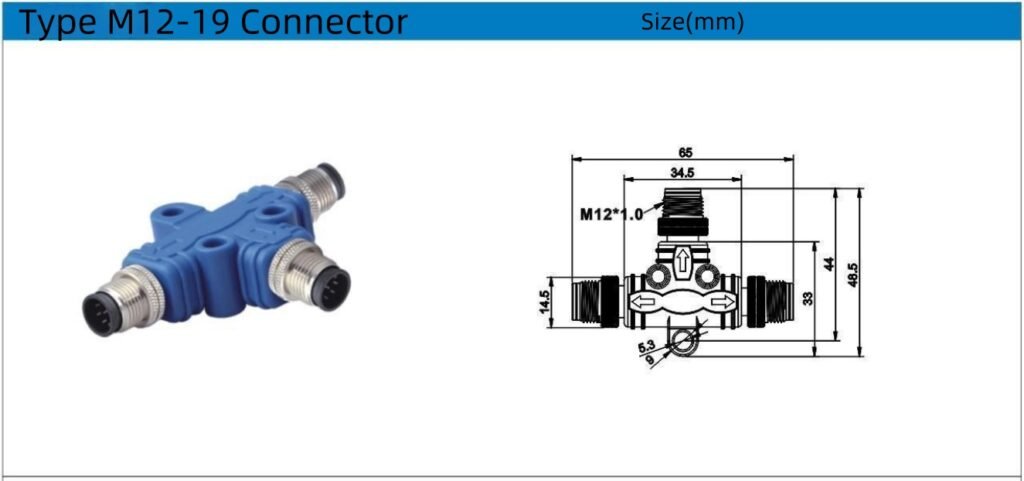

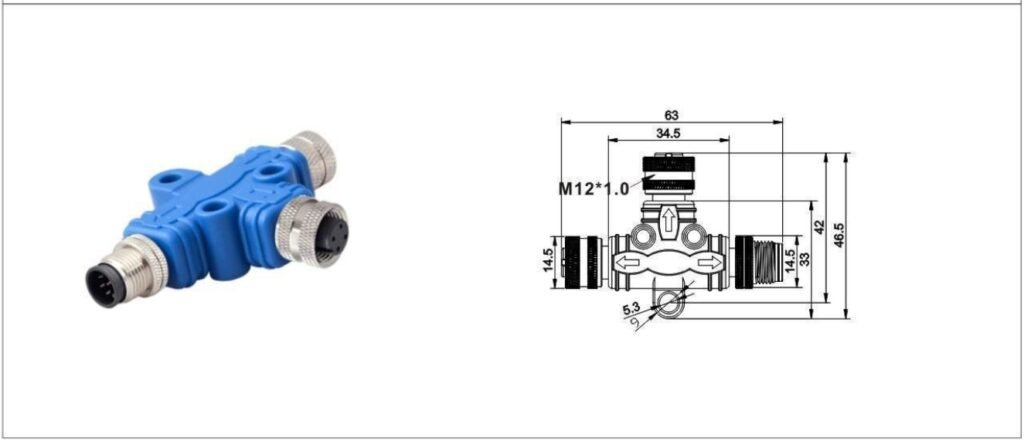

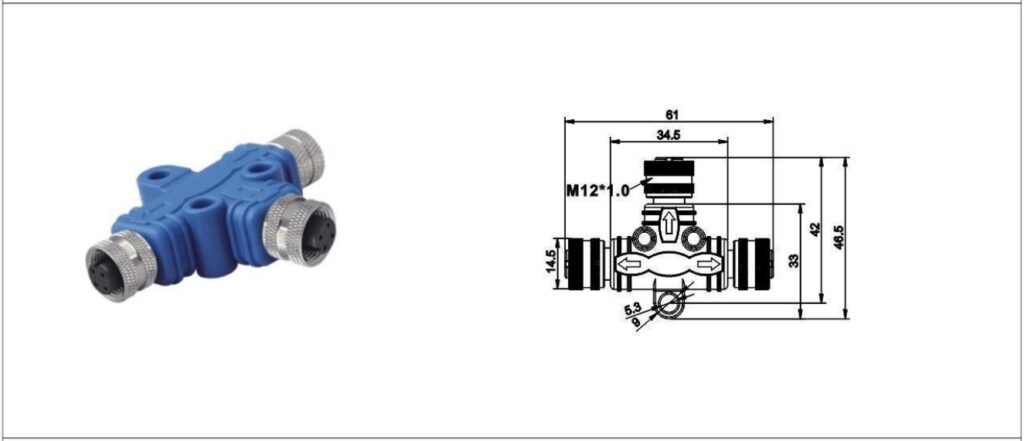

Dimensions and specifications: The main body adopts M12 standard thread (pitch 1.0mm), the main body length of common models is about 63-65mm, the outer diameter of the interface is 34.5-48.5mm, and it is compatible with the outer diameter of mainstream cables on the market;
Number of pins configuration: Classic three-port design (1 in 2 out or 2 in 1 out), 4 pins-12 pins optional, supports signal/power synchronous transmission, and meets the needs of parallel connection of multiple devices.
The product has a compact structure and high protection performance, making it an ideal choice for industrial automation, sensor connection, and equipment integration.
3. Materials and technical parameters
| Materials and parameters | |||||
| Number of pins | 4 | 5 | 8 | 12 | |
| Connection | / | ||||
| Wire gauge | / | ||||
| Cable OD | 6～8mm | ||||
| Operating temperature | -25℃~+85℃ | ||||
| Mechanical operation | >100 mating cycles | ||||
| Rated voltage | 250V | 60V | 30V | ||
| Rated current | 4A | 2A | 1.5A | ||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | <10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
