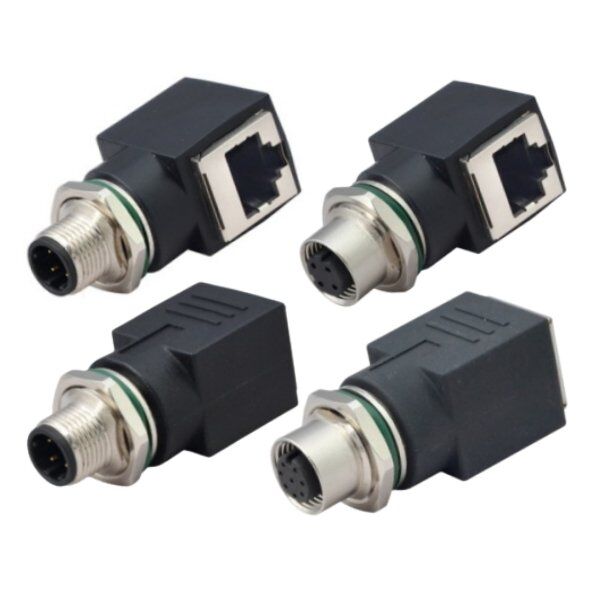

M12 connector to RJ45 adapter

1. Product Features
High protection level and durability
The adapter shell is made of high-strength plastic, and the internal contacts are made of brass nickel-plated material, which can effectively prevent corrosion and oxidation; the waterproof level reaches IP68, adapting to harsh environments such as moisture and dust, and ensuring long-term stable operation.

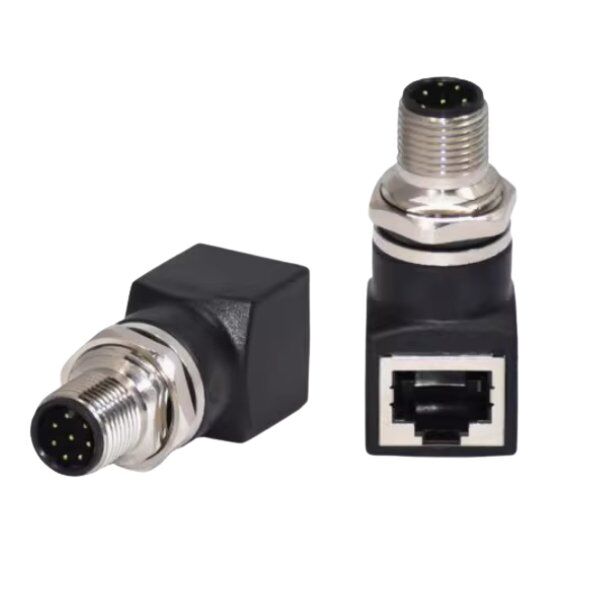

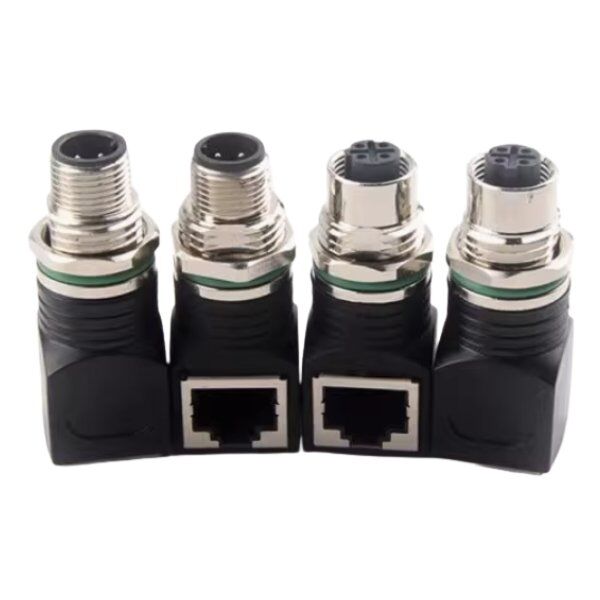

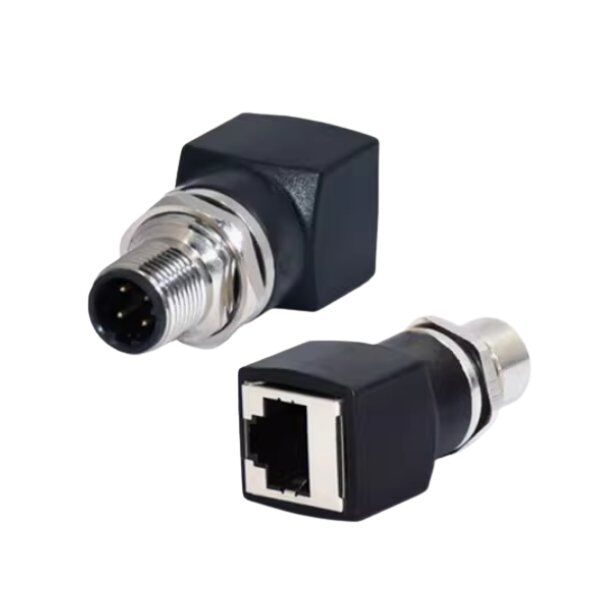

Flexible interface and customized design
Supports multiple interface types such as M12 male/female, straight/elbow, and the male and female interfaces can be freely combined to meet the docking needs of different devices. At the same time, it provides two pin core configurations of 4 pins (10BASE-T) and 8 pins (100BASE-TX), which are suitable for industrial Ethernet, fieldbus and other scenarios.

2. Product size and number of pins

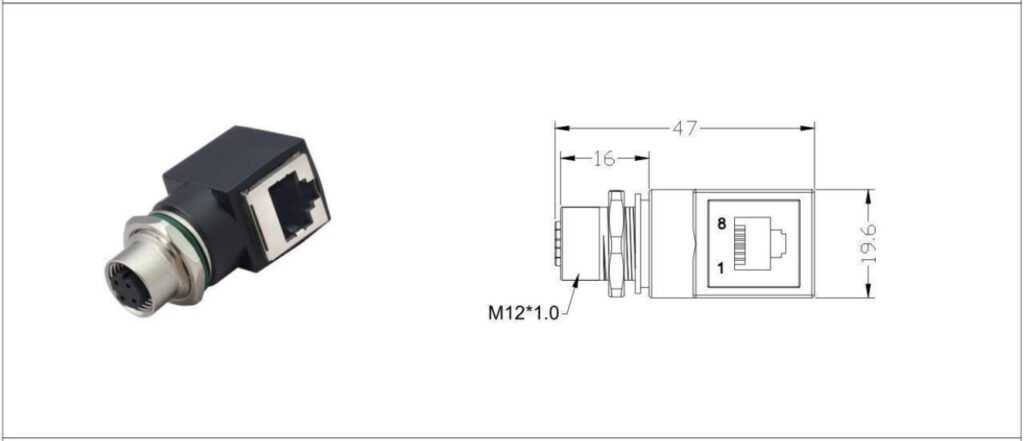

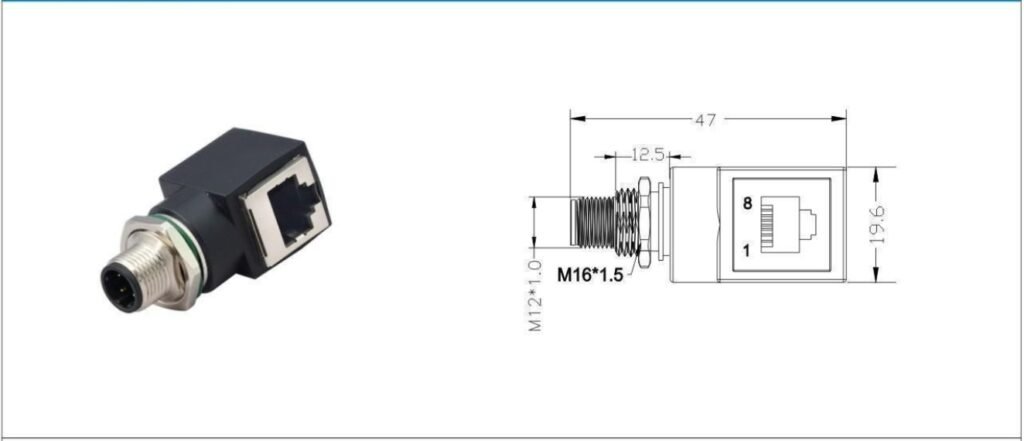

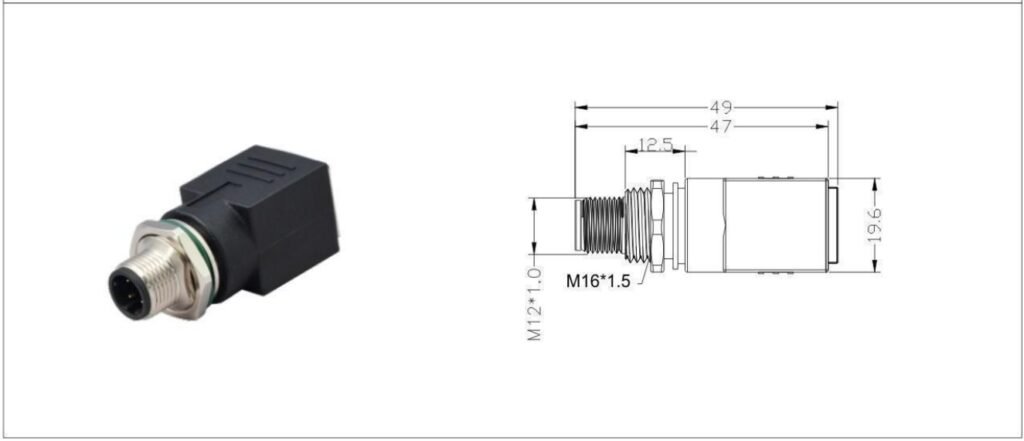

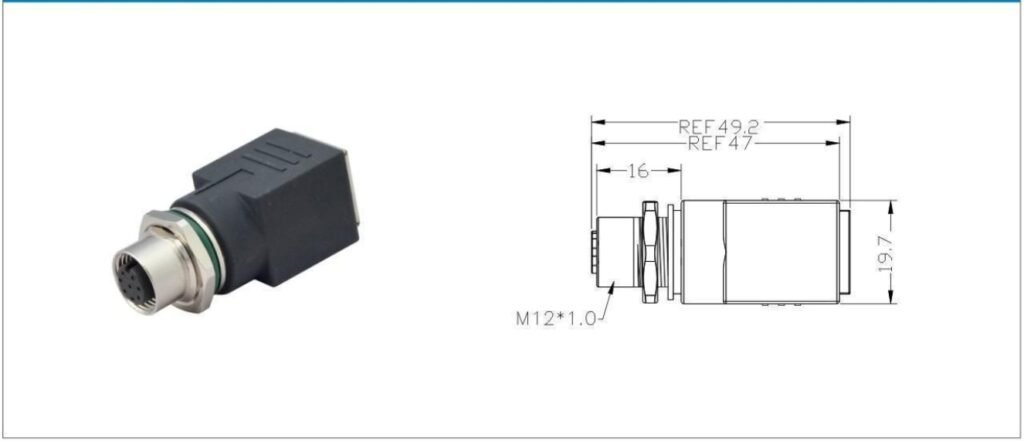

Dimensions and specifications: Provide M12 * 1.0, M12 * 1.1, M16 * 1.5 and other thread specifications, suitable for different installation apertures; the main body length covers 45-65mm (refer to the dimension diagram), the interface outer diameter is 34.5-48.5mm, and is compatible with mainstream cables and equipment interface spacing.
Number of pins configuration: Supports two pinhole arrangements: Type A (8 pins) and Type D (4 pins): Type A 8-pin male/female pins are symmetrically distributed in a ring (such as male pins 1-8 are arranged clockwise, and female pins are arranged in the opposite direction), suitable for high-speed network transmission; Type D 4-pin core adopts a compact layout (such as male pins 1-4 are arranged linearly), which meets the basic signal connection requirements, has strong compatibility, and can flexibly match the electrical performance requirements of different devices.

3. Materials and technical parameters
