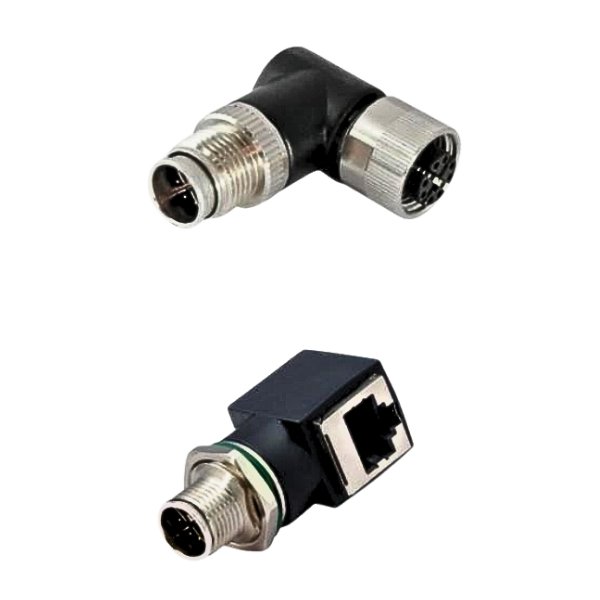

The M12 connector-X-type male to female adapter is designed for industrial automation scenarios. It uses an X-shaped structure to achieve quick transfer of M12 male and female heads, and supports stable transmission of 8-pin signals. The product has a compact body (fits into small spaces), high-precision pinhole arrangement and durable materials, is compatible with M12 * 1.5 threaded interface, and is widely used for efficient connection of sensors, control systems and other equipment to ensure the reliability and stability of industrial communications.
1. Product Features
Structural design: innovative X-shaped layout, optimized signal transmission path, reduced electromagnetic interference, ensured 8-pin core data synchronization and stability; male and female plug-in connection, easy installation, saving wiring space.
Material technology: The main body is made of high-strength engineering plastics and corrosion-resistant metal alloys, with anti-vibration, high and low temperature resistance, and adaptable to harsh industrial environments; surface nickel plating to enhance oxidation resistance.
Strong compatibility: strictly follow the M12 standard interface specifications, adapt to the mainstream 8-pin core equipment on the market, support fast plug-in and pull-out, and reduce equipment maintenance costs.
2. Product size and number of pins

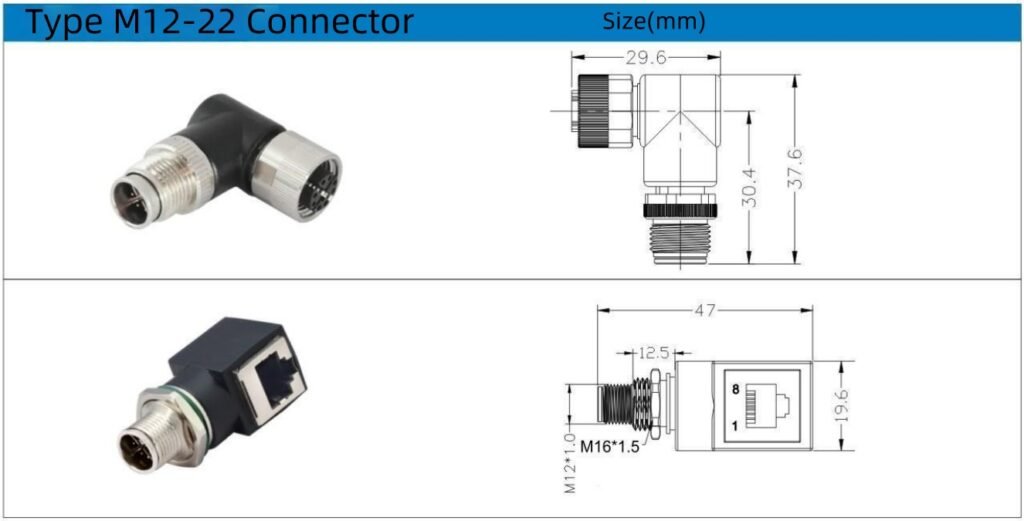

Dimensional parameters:
Male end: total length 37.6mm, interface outer diameter 30.4mm, thread specification M12 * 1.5;
Female end: total length 47mm, interface outer diameter 19.6mm, adapted to M16 * 1.5 thread (transition connection).
Number of pins configuration: 8-pin full-duplex design, both male and female pins are arranged in a circular pattern, the pinhole spacing accurately matches the industry standard, supports multi-signal synchronous transmission, and meets the needs of complex industrial scenarios.
3. Materials and technical parameters
| Materials and parameters | |||||
| Number of pins | 4 | 5 | 8 | 12 | |
| Connection | / | ||||
| Wire gauge | / | ||||
| Cable OD | 6～8mm | ||||
| Operating temperature | -25℃~+85℃ | ||||
| Mechanical operation | >100 mating cycles | ||||
| Rated voltage | 250V | 60V | 30V | ||
| Rated current | 4A | 2A | 1.5A | ||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | <10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
