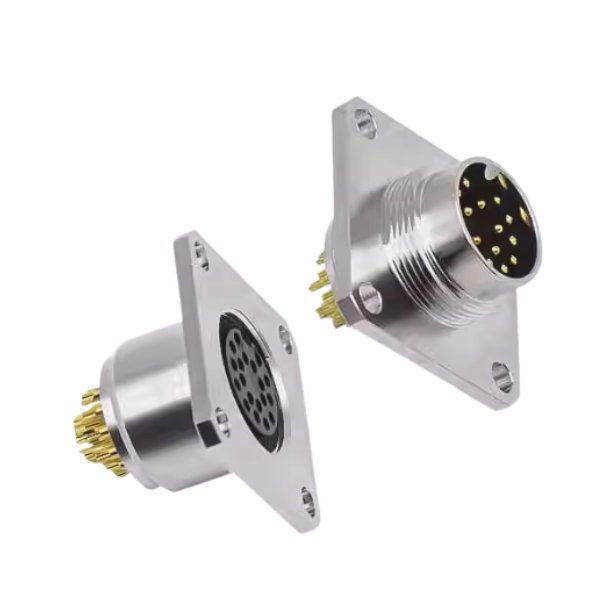

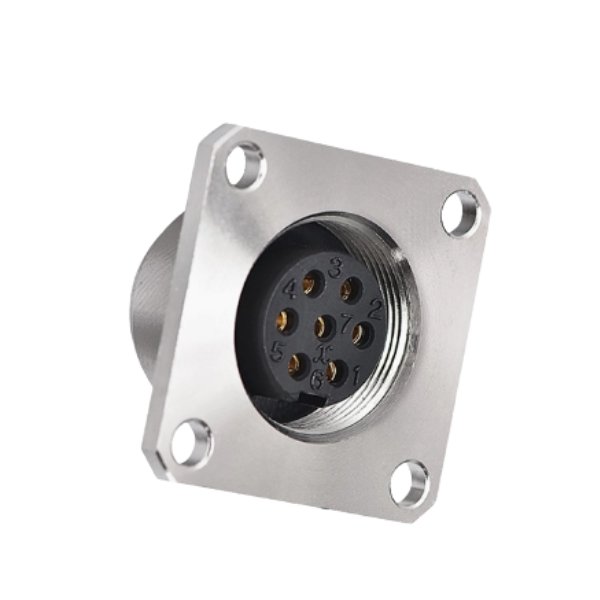

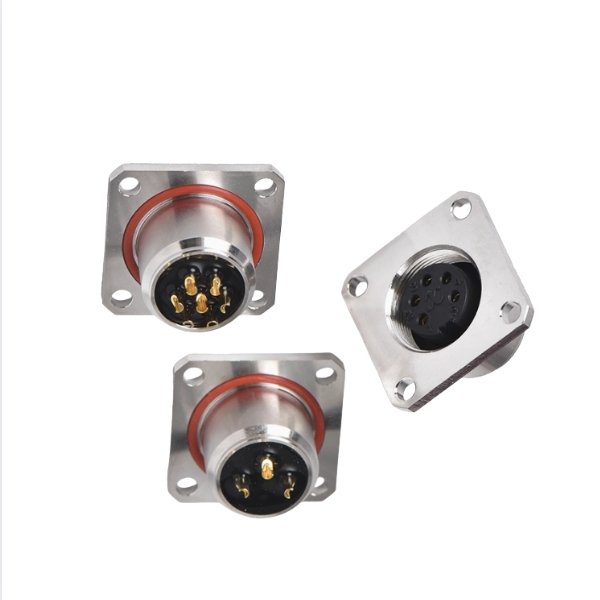

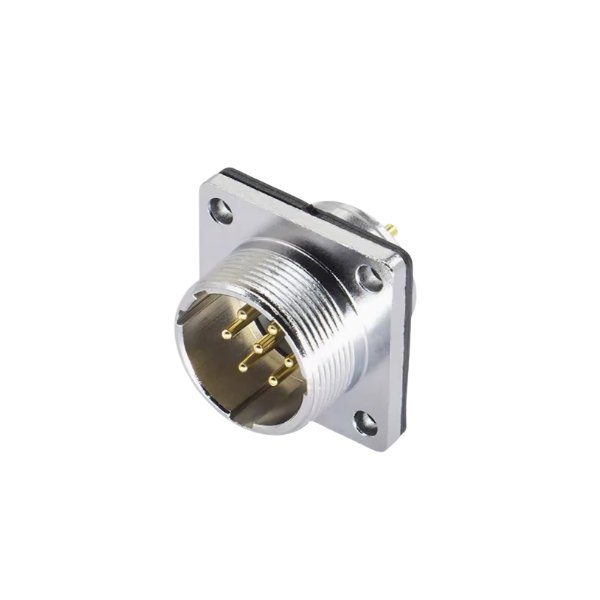

M16 connector-flange panel welding metal connector, adopts flange panel design, is firmly installed on the equipment panel with 4 screws, and has PCB board welding function to achieve reliable electrical connection. The nut locking structure at the connection of the product has waterproof and dustproof characteristics. The AB two models are adapted to 3-24 pins to cover a variety of application scenarios, suitable for harsh environments such as industrial control and equipment communication, to ensure stable signal transmission and line safety.
1. Product Features
The connector is made of metal material to create the flange panel body, supports dual installation methods of 4 screw panel fixing and PCB board welding, and is compatible with wiring requirements in multiple scenarios. The unique nut locking design ensures a tight connection and effectively resists vibration and external force pulling; the fully enclosed structure is waterproof and dustproof, and improves reliability in outdoor or complex environments. It provides flexible configuration of 3-24 pins, and the AB models correspond to different interface forms (such as plugs/sockets) to meet the needs of diversified system integration, taking into account durability and installation convenience.
2. Product size and number of pins
In terms of size, the product includes male/female heads: outer diameter 17.00mm, male head length 15.7mm, female head length mm18.4, and the installation area size is 18.40×14.00mm, which is compatible with different panel opening requirements. The number of pins in the AB models covers 3 to 24 pins, supports high-density signal or power transmission, adapts to the connection requirements of complex circuits in multiple scenarios, and has both flexibility and professionalism.
3. Materials and technical parameters
| Materials and parameters | ||||||||||||||
| Number of pins | 3 | 4 | 5A | 5B | 6 | 7A | 7B | 8 | 12 | 14A | 14B | 16 | 19 | 24 |
| Wire gauge | max,0.5mm² | max,0.25mm² | max,0.14mm² | |||||||||||
| Cable OD | 6～10mm | |||||||||||||
| Operating temperature | -25℃~+85℃ | |||||||||||||
| Mechanical operation | >100 | |||||||||||||
| Rated voltage | 100V | 63V | 32V | 63V | 32V | |||||||||
| Rated current | 5A | 1A(single contact 3 A) | ||||||||||||
| Protection degree | IP67/IP68 | |||||||||||||
| Contact resistance | ≤5mΩ | |||||||||||||
| Insulation resistance | ≥100MΩ | |||||||||||||
| Pin contact | CuZn | |||||||||||||
| Socket contact | CuSn | |||||||||||||
| Contact plating | Au | |||||||||||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
