M16 connector welding wire forming metal connector

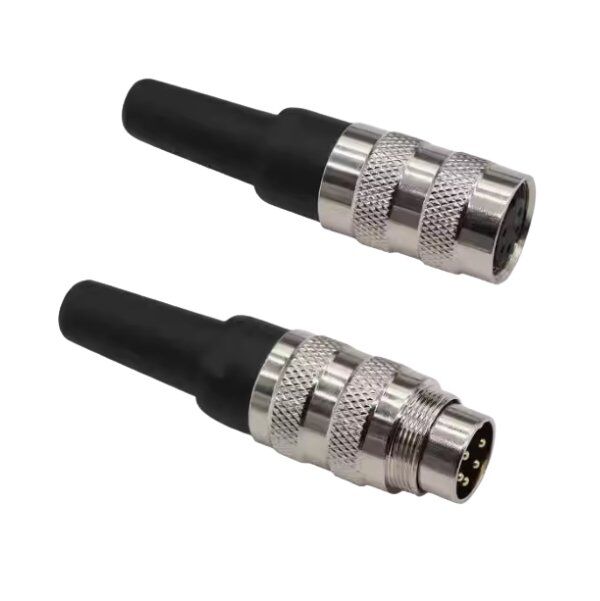

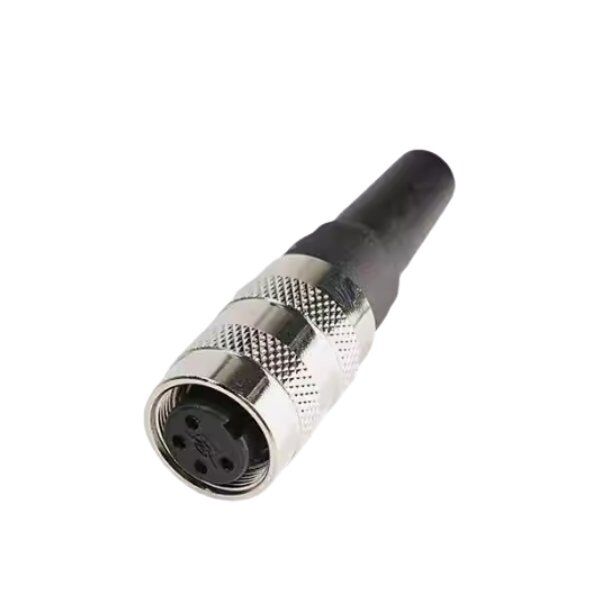

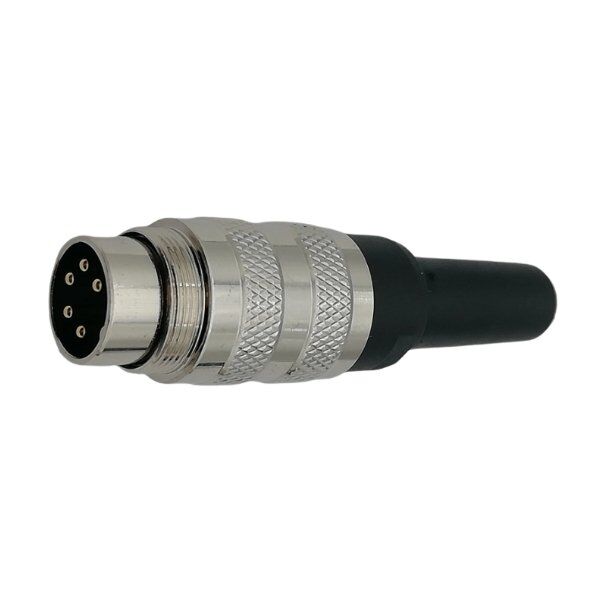

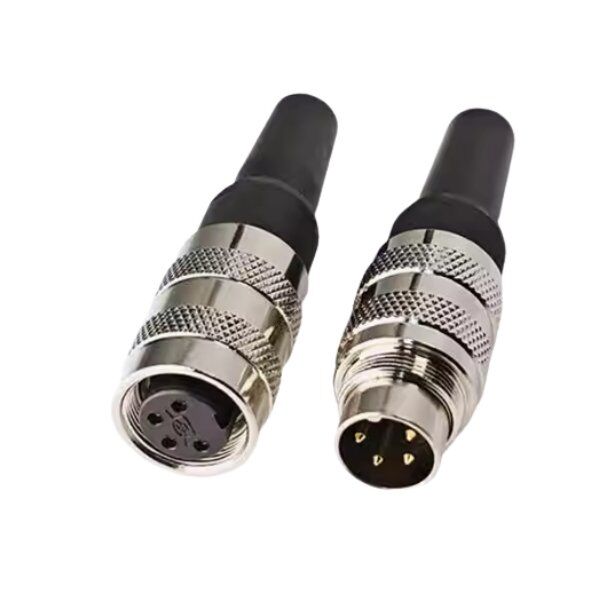

1. Product Features
The connector is based on a circular metal shell, and the main body is made of brass nickel plating. It has high-strength conductivity and corrosion resistance, and is suitable for harsh working conditions such as humidity and dust. IP68 protection can effectively block dust intrusion and deep waterproof (such as immersion in 1 meter water for 30 minutes), ensuring long-term stable operation. The built-in shielding shell design significantly reduces electromagnetic interference and improves the quality of signal transmission; the nut connection locking structure enhances mechanical stability and avoids the risk of vibration loosening. The 3-24 pin core flexible configuration covers multiple needs from basic signals to complex data transmission, adapts to different pinhole arrangements of male and female pins, and has strong compatibility.

2. Product size and number of pin cores

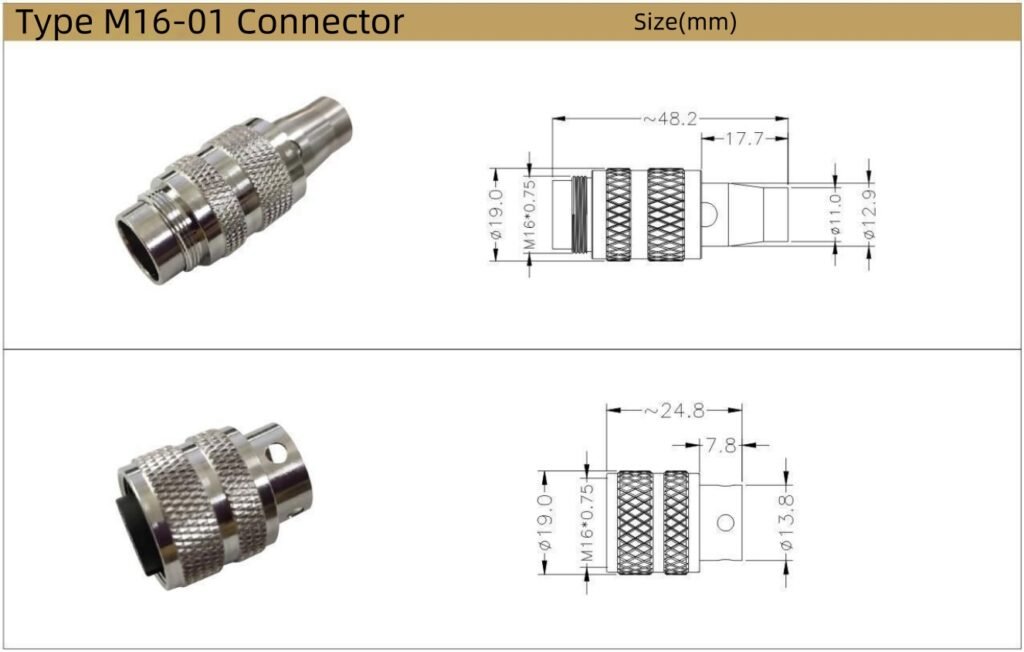

Dimension parameters: The thread specification is M16×0.75, the main body diameter covers 19.0mm (large end), 11.0mm/12.9mm (transition section), the male head is about 48.2mm long, and the female head is about 24.8mm long, which is suitable for standard industrial equipment installation aperture; the shielding shell and nut size are precisely matched to ensure sealing and installation convenience.
Number of pins configuration: Supports flexible selection of 3-24 pins, Type A covers 3-7 pins (such as 3/4/5/7/8/12/14/16/19/24 pins), Type B covers 5-24 pins (such as 5/7/14/pins), male and female pinholes are arranged differently by type (such as Type A 3 pins male pins are arranged in a ring, Type B 5 pins female pins are arranged symmetrically), meeting the signal/power mixed transmission requirements of different devices.
