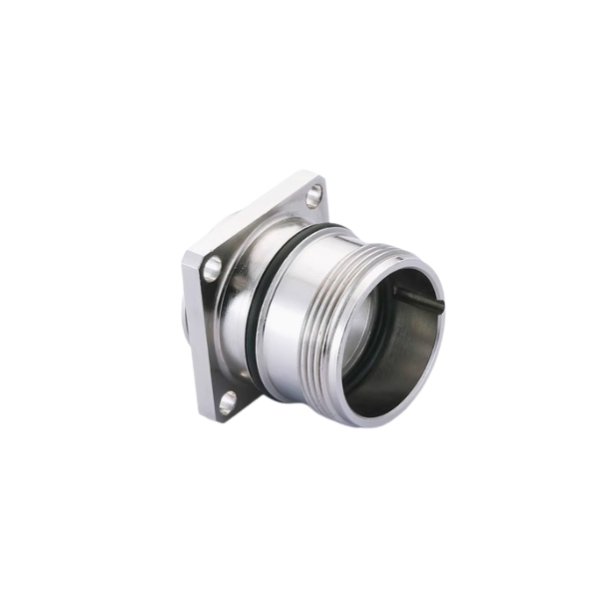

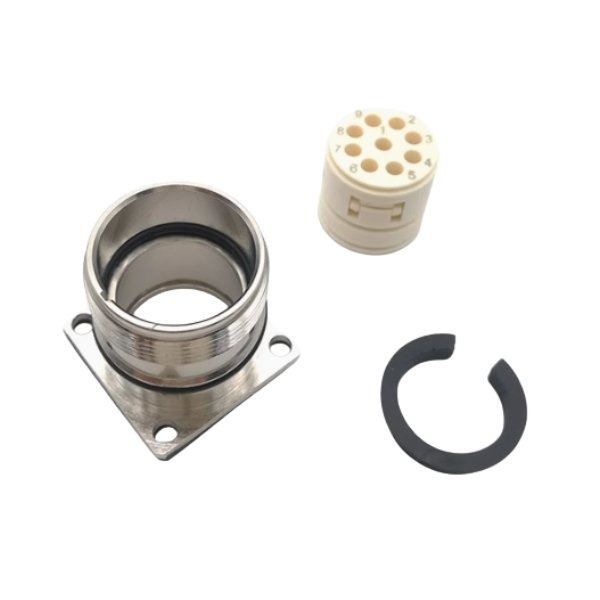

M23 connector-flange panel metal circular connector, adopts flange panel design, is firmly installed on the equipment panel through 4 external nuts, equipped with standard M23 interface, and the nuts at the connection are tightened to ensure reliable cable connection. Made of metal material, it is suitable for signal and power transmission in scenarios such as industrial automation and equipment control, supports multiple pin number configurations, and meets diverse connection needs
“I. Product Features
The connector is based on a flange panel structure and is fastened to the panel through four external nuts, which effectively improves the vibration and impact resistance and ensures the connection stability under complex working conditions. The standard M23 interface is compatible with general industry equipment, and the double nut fixing design at the connection prevents loosening and enhances sealing and mechanical strength. The metal shell is both durable and protective, and can adapt to harsh environments such as dust and humidity. It supports the transmission of multiple functions such as signals and power, and is suitable for different pin count requirements, providing industrial equipment with high efficiency and Reliable connection solution.
2. Product size and number of pins
Dimensions: outer diameter 22.4mm, overall length 25.0mm, flange thickness 2.2mm, thread specification M23×1.0, suitable for standard installation holes.

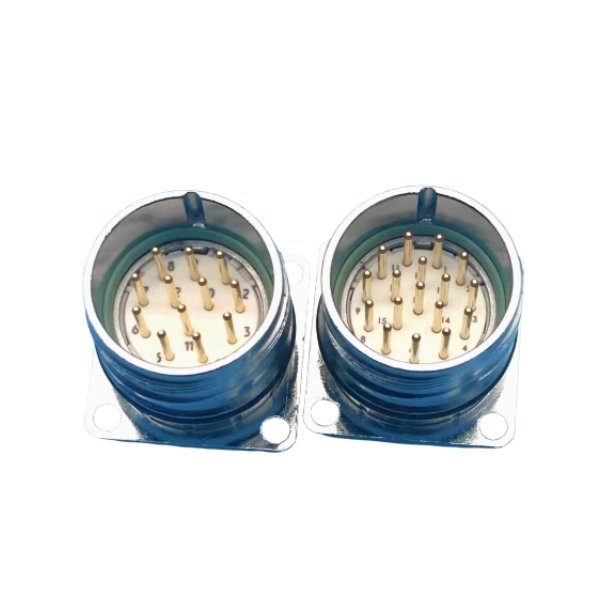

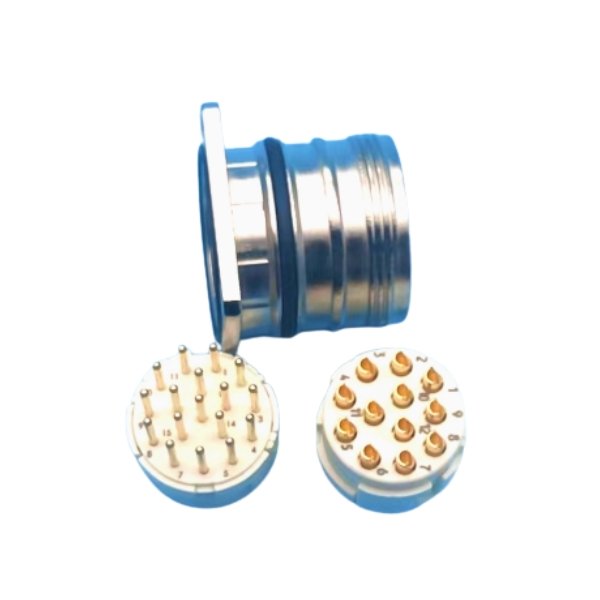

Number of pins: 6-pin, 7-pin, 9-pin, 12-pin, 16-pin, 17-pin, 19-pin and other specifications are available, covering pure signal transmission and mixed signal scenarios, and the male and female pin structure design is flexible to meet the wiring needs of different equipment.
3. Materials and technical parameters
| Materials and parameters | |||||||
| Number of pins | 6 | 7 | 9 | 12 | 16 | 17 | 19 |
| Wiring method | solder | ||||||
| Wire gauge | 2.5mm²(14AWG) | 8*1.5+1*2.5mm² (16/14AWG) |
1.0mm²(18AWG) | 16*1.0+3*1.5mm² (18/16AWG) |
|||
| Cable OD | 6~8mm | ||||||
| Operating temperature | -40℃~+125℃ | ||||||
| Mechanical operation | >100 mating cycles | ||||||
| Rated voltage | 250V | 150V | |||||
| Rated current | 20A | 8*8A+1*20A | 8A | 16*8A+3*10A | |||
| Protection degree | IP67/IP68 | ||||||
| Contact resistance | ≤3mΩ | ||||||
| Insulation resistance | ≥10³MΩ | ||||||
| Pin contact | CuZn | ||||||
| Socket contact | CuSn | ||||||
| Contact plating | Au | ||||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
