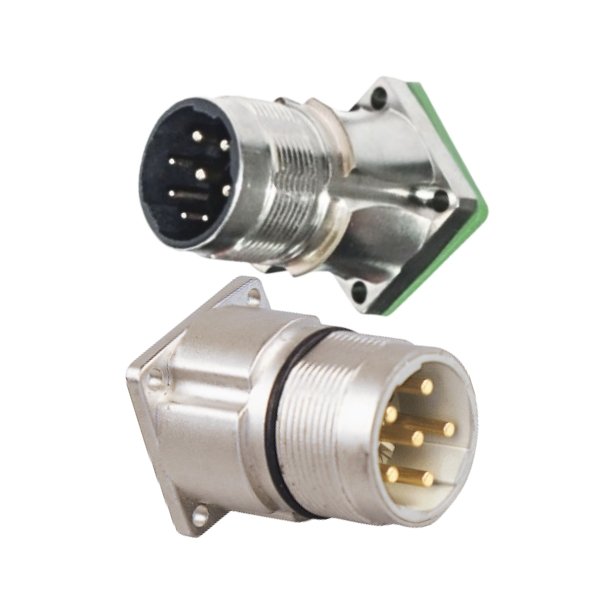

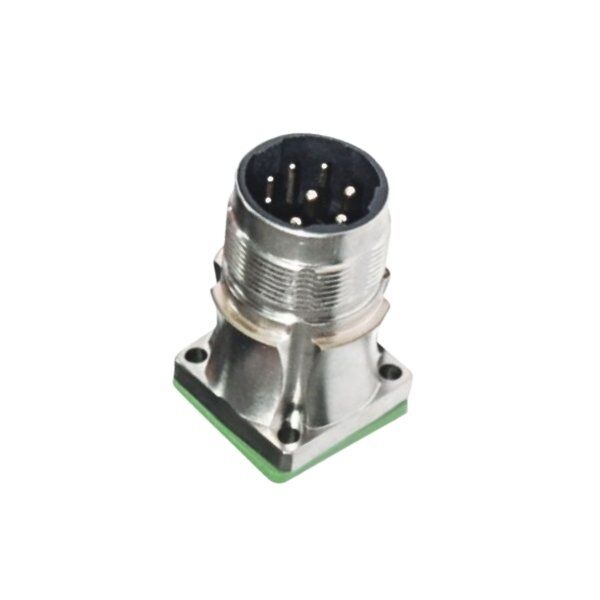

M23 connector-front lock panel metal circular connector, adopts standard M23 interface, with circular metal shell and front lock panel 4 nut external locking design, with excellent waterproof and dustproof performance. Provide 5 pins + PE, 4 + 3 + PE double pin number options, adapt to a variety of industrial scenarios, stable and durable structure, providing reliable guarantee for equipment connection.
1. Product Features
The connector is based on a circular metal shell, with high strength and anti-interference capabilities. The standard M23 interface is compatible with mainstream devices and has strong adaptability. The unique front lock panel design is equipped with 4 sets of external nut locking structures, which is easy to install and has a stable connection, effectively resisting vibration and impact. The fully sealed process achieves IP67 level waterproof and dustproof, suitable for harsh environments such as humid and dusty. The number of pins provides two configurations: 5 pins (including PE protective grounding) and 4+3 pins (power + signal composite). The male/female pinholes are clearly arranged, supporting the synchronous transmission of power and signals, and meeting the efficient connection requirements of industrial automation, equipment control and other scenarios.
2. Product size and number of pins
Dimensions: diameter 41.5mm, body length 26.0mm, height 27.1mm, compact design adapts to standard panel installation, saving space.
Number of pins:
5+PE pins: 5 pins for power transmission + 1 pin for grounding protection, meeting basic power connection;
4+3+PE pins: 4 pins for power + 3 pins for signal + 1 pin for grounding, supporting mixed power and signal transmission, adapting to the needs of multi-functional equipment.
The male/female pin structure strictly follows industry standards, with tight insertion to ensure signal stability and long-term reliability.
3. Materials and technical parameters
| Materials and parameters | ||
| Number of pins | 5+PE | 4+3+PE |
| Wire gauge | Max.2.5mm²(max.14AWG) | 4*2.5mm²+4*0.75mm² |
| Cable OD | 7~12mm | 8～14mm |
| Operating temperature | -25℃~+85℃ | |
| Mechanical operation | >100 | |
| Rated voltage | 630V | 250/630V |
| Rated current | 30A | 9A/30A |
| Protection degree | IP67/IP68 | |
| Contact resistance | ≤3mΩ | |
| Insulation resistance | ≥100MΩ | |
| Pin contact | CuZn | |
| Socket contact | CuSn | |
| Contact plating | Au | |
