M8 connector 90° angle connector

1. Product Features
The M8 90-degree angle connector is based on functional design: ① The 90-degree angle structure breaks through the traditional right-angle limitation and optimizes the space layout, which is especially suitable for the internal cable steering connection of the equipment; ② The screw locking mechanism tightens the interface by rotating the nut, effectively resisting vibration and pulling, and ensuring the stability of signal transmission; ③ The brass nickel-plated pin core has excellent conductivity, and the surface coating is anti-oxidation and corrosion-resistant, which prolongs the service life; ④ The lightweight plastic shell uses high-strength engineering plastics to reduce the overall weight, and at the same time has insulation protection function, which is suitable for complex industrial environments.

2. Product size and number of pins

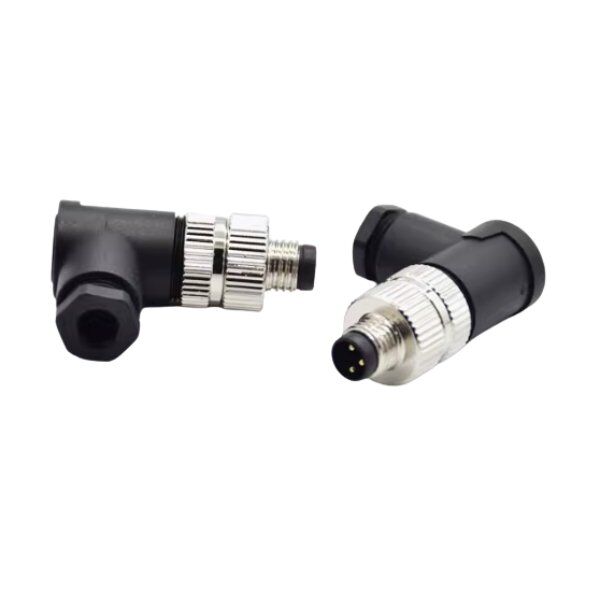

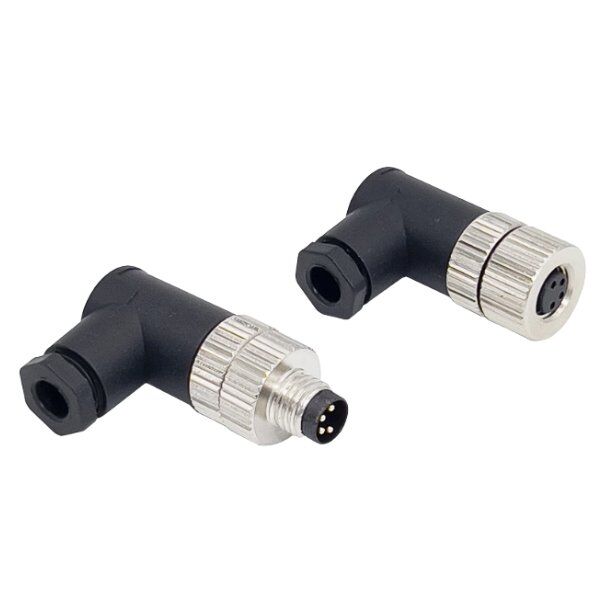

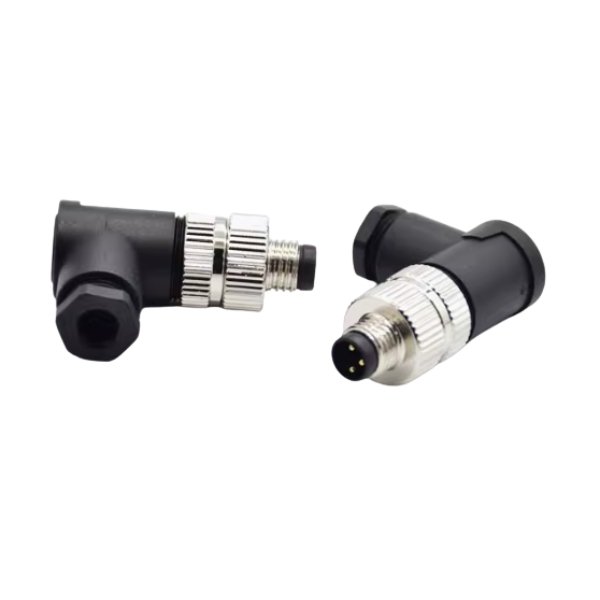

The product provides two mainstream specifications:

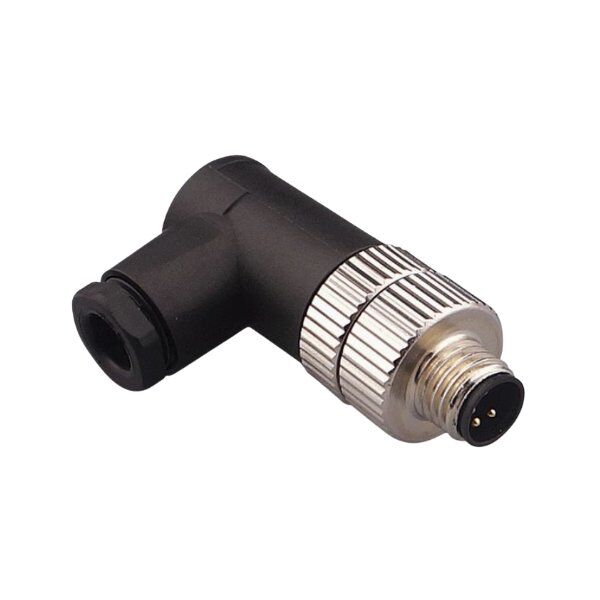

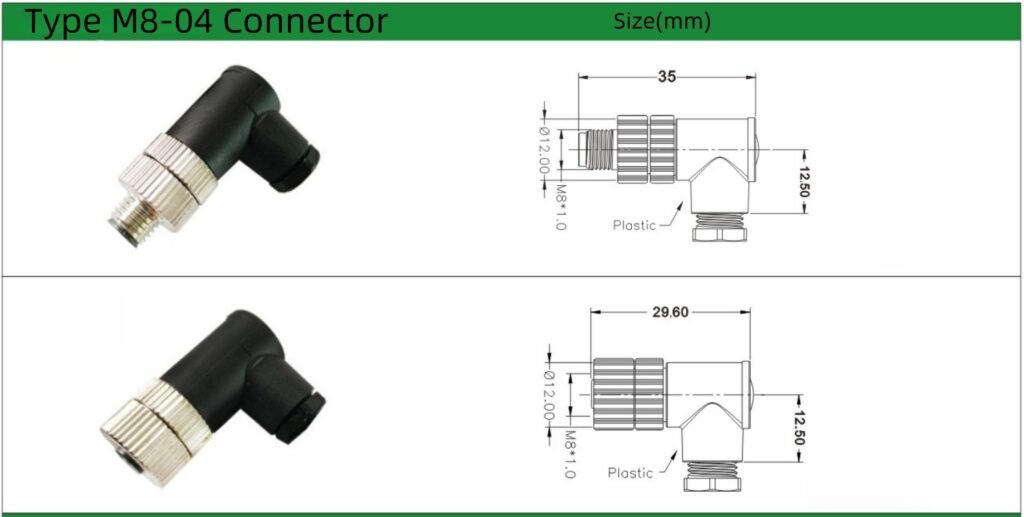

Male head: total length 35mm, maximum outer diameter 12mm, thread specification M8×1.0, suitable for 3-pin/4-pin connection (number of pins is optional);

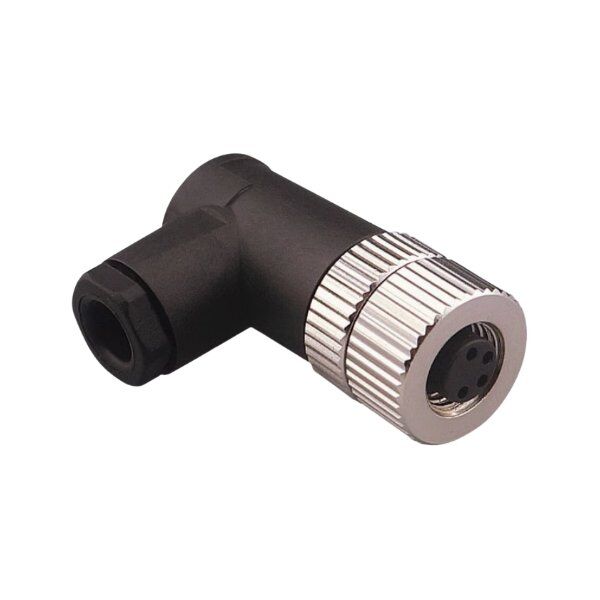

Female head: total length 29.60mm, maximum outer diameter 12.50mm, thread specification M8×1.0, compatible with 3-pin/4-pin configuration.
The pinhole arrangement follows the industry standard, and the male and female pins are precisely connected to the contacts No. 1-4, supporting multi-channel signal transmission of sensors, instruments and other equipment. It is compact in size and highly compatible, meeting the installation and expansion requirements under different working conditions.

3. Materials and technical parameters
