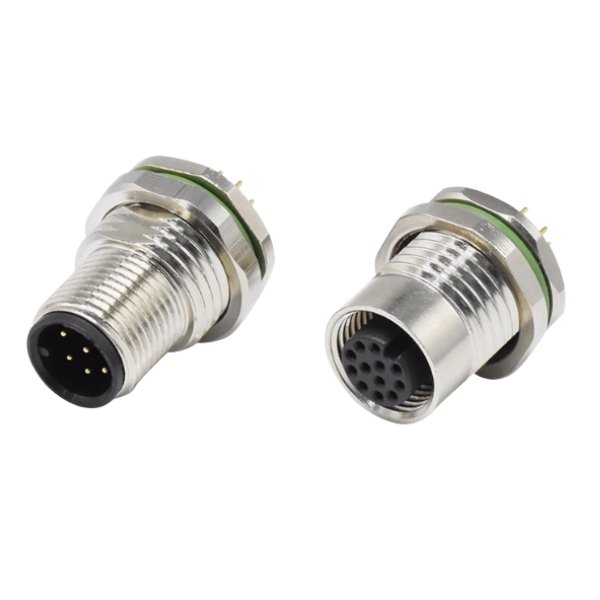

M8 connector-panel front lock connection plug, adopts brass nickel-plated material, which is durable and corrosion-resistant. The screw locking design ensures a stable connection, the nut is placed in front for easy installation, supports front and rear bidirectional fixing of the panel and the pin core tail plug-in structure, and is suitable for 3-8 pin cores in various specifications, providing a reliable solution for industrial equipment signal/power transmission.
1. Product Features

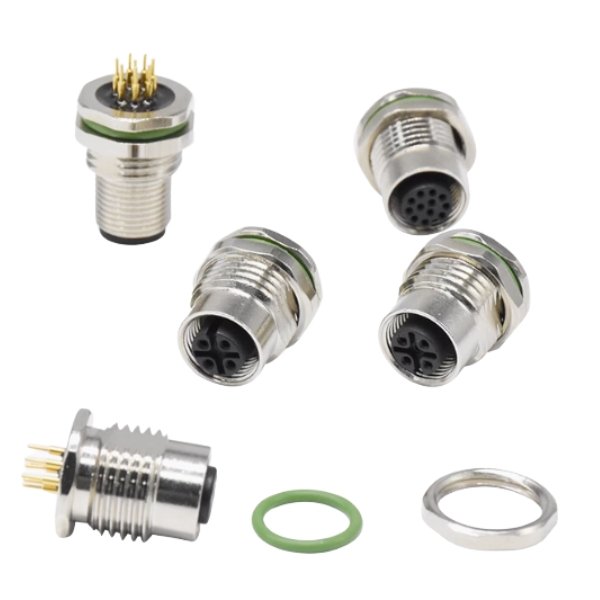

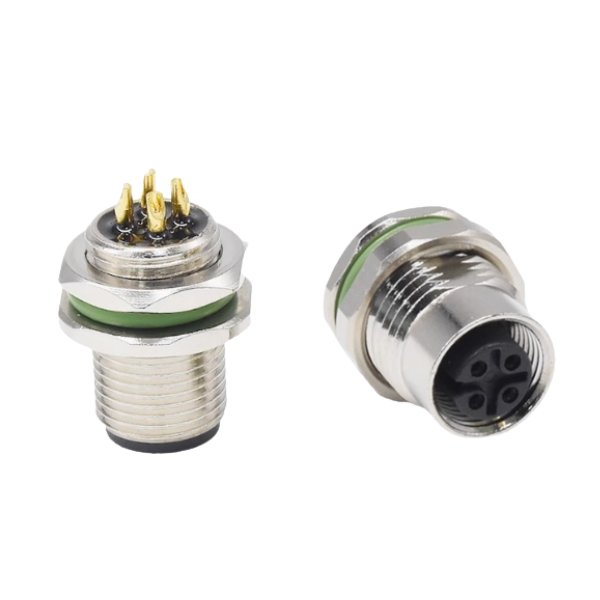

The connector is made of nickel-plated brass, which is wear-resistant and anti-oxidation, and can adapt to complex working conditions. The screw locking mechanism ensures stable plugging and unplugging to avoid poor contact; the front nut design simplifies the installation process, supports fixing on the front or back of the panel, and flexibly matches different equipment layouts. The pin core tail plug-in structure facilitates cable integration, combines protection and convenience, and is suitable for stable signal/power transmission in harsh environments.
2. Product size and number of pins

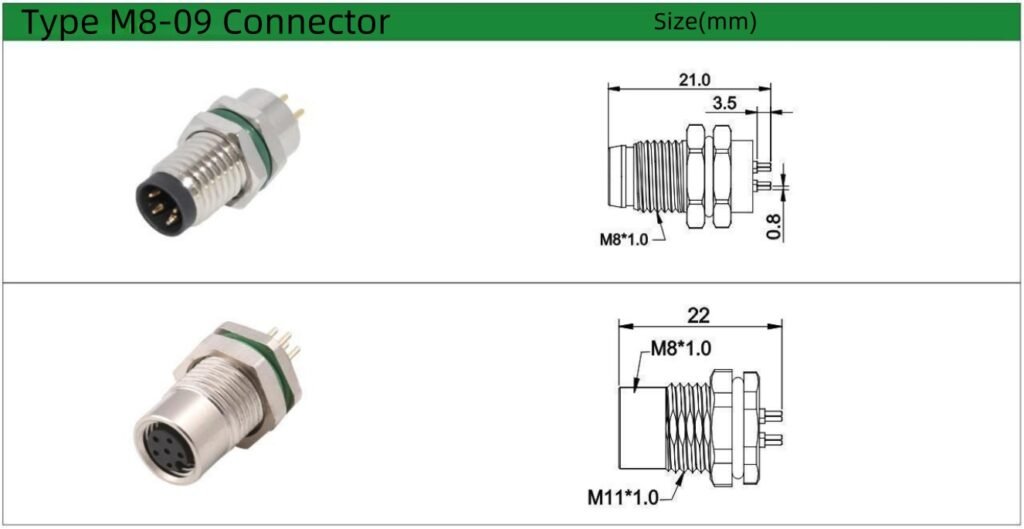

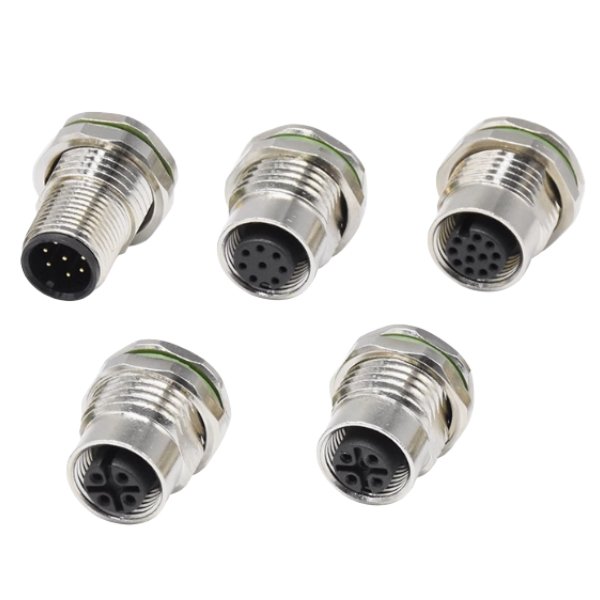

Provide M8 * 1.0 (size: φ21.0×3.5mm, thread section φ11.0mm, locking height 0.8mm) and M11 * 1.0 specifications to adapt to different installation spaces. The number of pins covers 3-8 pins, supports a variety of pinhole arrangements such as A/B/D (such as 3 pins and 4 holes, 8 pins and 8 holes), meets the signal transmission needs of diverse scenarios, has strong compatibility, and is compatible with mainstream industrial panel standards.
3. Materials and technical parameters
| Materials and parameters | |||||
| Number of pins | 3 | 4 | 5 | 6 | 8 |
| Cable fixing method | solder | ||||
| Wire gauge | 0.14/0.25/0.34 mm²1(26/24/22 AWG) | ||||
| Cable OD | 3~5.5mm | ||||
| Operating temperature | -25℃~+85℃ | ||||
| Mechanical operation | >100 mating cycles | ||||
| Rated voltage | 50V AC/60V DC | 30V | |||
| Rated current | 3A | 1.5A | |||
| Protection degree | IP67/IP68 | ||||
| Contact resistance | <10mΩ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Pin contact | CuZn | ||||
| Socket contact | CuSn | ||||
| Contact plating | Au | ||||
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
