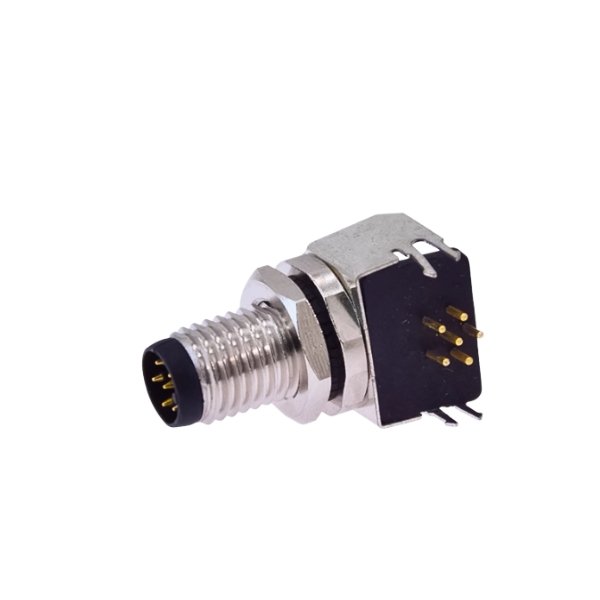

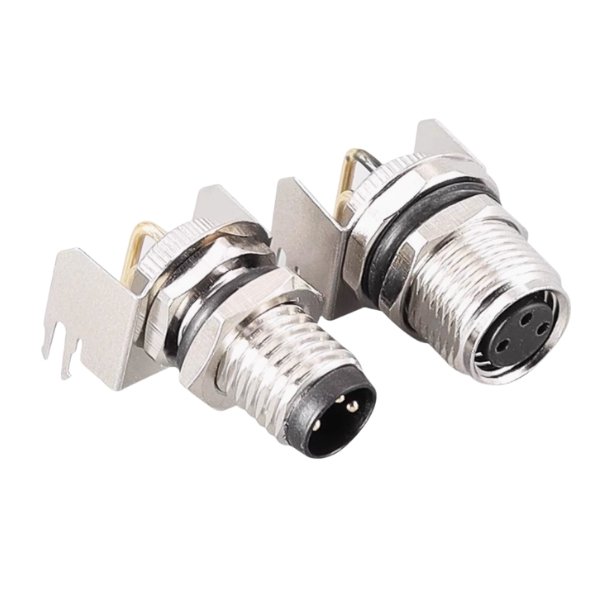

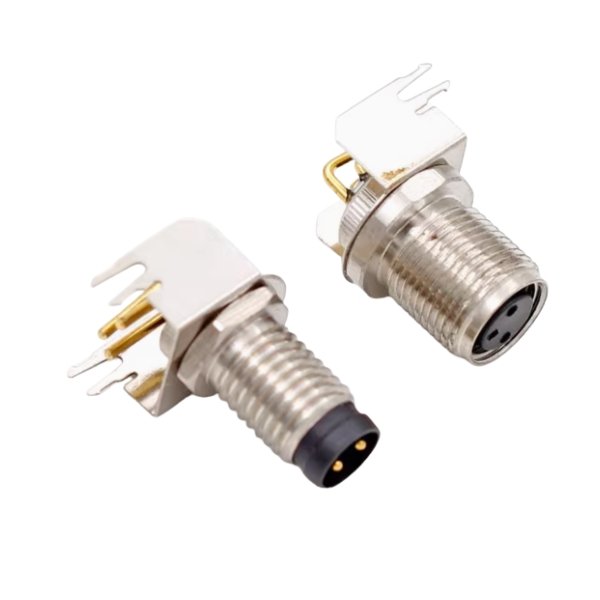

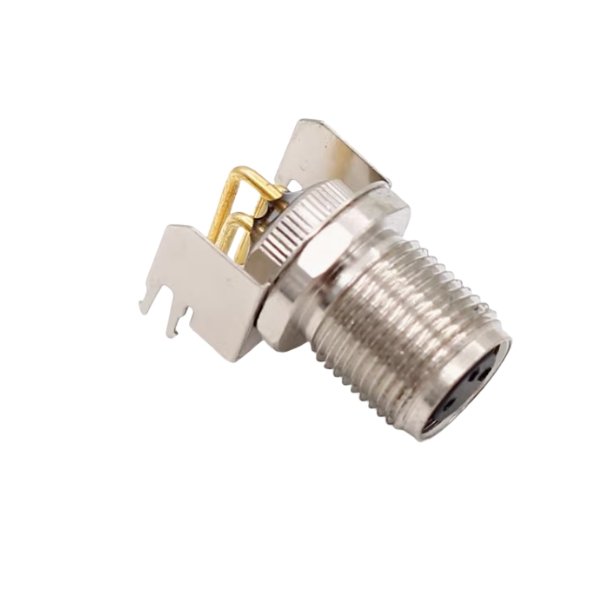

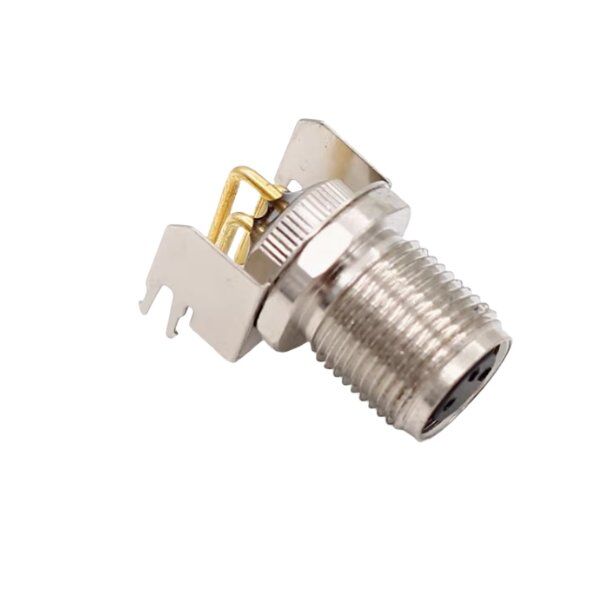

M8 connector-panel type metal curved pin plug-in socket, designed for industrial equipment connection, with screw locking, brass nickel-plated metal shell and shielding shell, strong anti-interference ability. The curved pin structure saves installation space, the panel pin welding and fixing is convenient and stable, supports 3-8 pin cores in various specifications, and is suitable for high reliability scenes.
1. Product Features
The connector adopts a screw locking design to ensure stable signal transmission without displacement; the shell is made of brass nickel-plated material, which has both high strength and corrosion resistance, and is matched with a shielding shell to effectively resist electromagnetic interference and improve data transmission accuracy. The unique curved pin shape optimizes the space layout and is suitable for compact equipment installation; the panel pin supports welding fixation, simplifies the assembly process, and ensures long-term reliability. The product is manufactured through precision technology to meet the stringent requirements of high vibration and dust in industrial environments.
2. Product size and number of pins

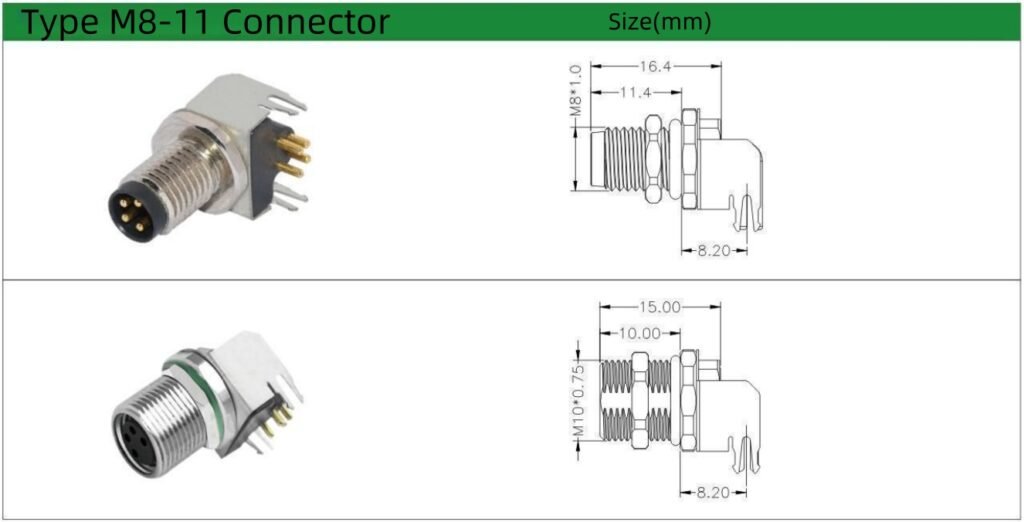

Dimensions and specifications:
M8 * 1.0 threaded model: full length 16.4mm, maximum outer diameter 11.4mm, connection thread section diameter 8.20mm;
M10 * 0.75 threaded model: full length 15.00mm, maximum outer diameter 10.00mm, connection thread section diameter 8.20mm.
Number of pins range: supports 3 pins (type A), 4 pins (type A/type B/type D), 5 pins (type B), 6 pins (type A), 8 pins (type A) and other configurations, adapting to different signal transmission requirements and strong compatibility.
3. Materials and technical parameters
| Materials and parameters | ||||||
| Number of pins | 3 | 4 A-coding | 4D-coding | 5 | 6 | 8 |
| Wiring method | PCB solder | |||||
| Wire gauge | 0.14/0.25/0.34 mm²/(26/24/22 AWG) | |||||
| Operating temperature | -25℃~+80℃ | |||||
| Mechanical operation | >100 mating cycles | |||||
| Rated voltage | 50V AC/60V DC | 60V | 30V | |||
| Rated current | 3A | 4A | 3A | 1.5A | ||
| Protection degree | IP67/IP68 | |||||
| Contact resistance | <10mΩ | |||||
| Insulation resistance | ≥100MΩ | |||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
