M8 connector-Y-type adapter is a multi-functional connection solution in the field of industrial automation. It adopts a screw locking design, with both plastic and metal shells, which is stable and durable. The 3-head structure supports flexible switching of male and female heads, and the free matching of 3-8 pins, which adapts to the signal/power transmission requirements of multiple scenarios, is easy to install, and has strong compatibility, providing an efficient solution for device connection.
1. Product Features
This adapter has three major advantages: ① Structural design: Y-shaped three-way layout, supporting two-way selection of male and female heads, meeting the interface requirements of different devices; the screw locking mechanism ensures tight connection, anti-vibration and anti-falling, and adapts to harsh industrial environments. ② Material selection: The shell can be selected from engineering plastics (lightweight insulation) or metal (high strength and corrosion resistance), taking into account both cost-effectiveness and durability. ③ Flexible configuration: Supports free combination of 3-8 pins, and realizes precise docking of signals/power through pinhole arrangement, adapting to diverse scenarios.
2. Product size and number of pins

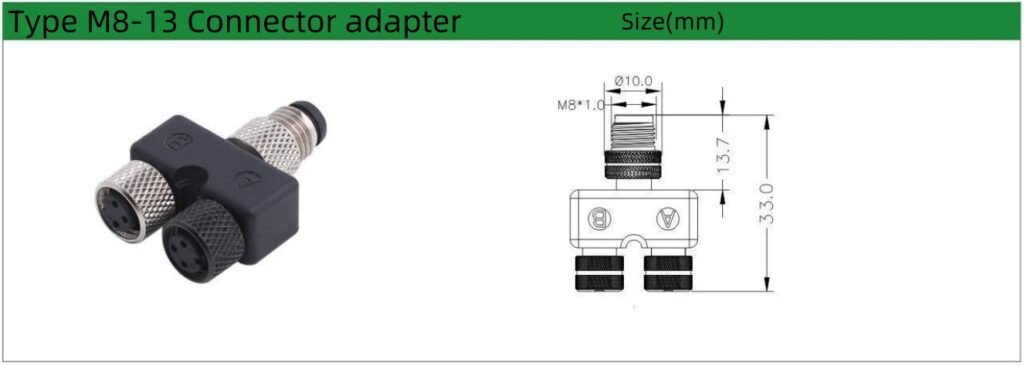

Dimensional parameters: The total length of the main body is 31.0mm, the maximum outer diameter is 10.0mm, equipped with M5×0.8 threaded interface, adapted to standard M8 cables; the height of the tail connection section is 13.7mm to ensure installation space compatibility.
Number of pins selection: 3 pins (Type A), 4 pins (Type A/B), 5 pins (Type A), 6 pins (Type A), 8 pins (Type A) are available in multiple specifications. The male and female pinholes are precisely opened according to the corresponding number of pins (such as the 8-pin arrangement includes 1-8 positioning holes), supporting customized signal transmission requirements, and adapting to industrial control, sensor connection, equipment integration and other scenarios.
3. Materials and technical parameters
| Materials and parameters | ||||||
| Number of pins | 3 | 4 A-coding | 4D-coding | 5 | 6 | 8 |
| Wiring method | 一 | |||||
| Wire gauge | 一 | |||||
| Operating temperature | -25℃~+80℃ | |||||
| Mechanical operation | >100 mating cycles | |||||
| Rated voltage | 50V AC/60V DC | 60V | 30V | |||
| Rated current | 3A | 4A | 3A | 1.5A | ||
| Protection degree | IP67/IP68 | |||||
| Contact resistance | <10mΩ | |||||
| Insulation resistance | ≥100MΩ | |||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
