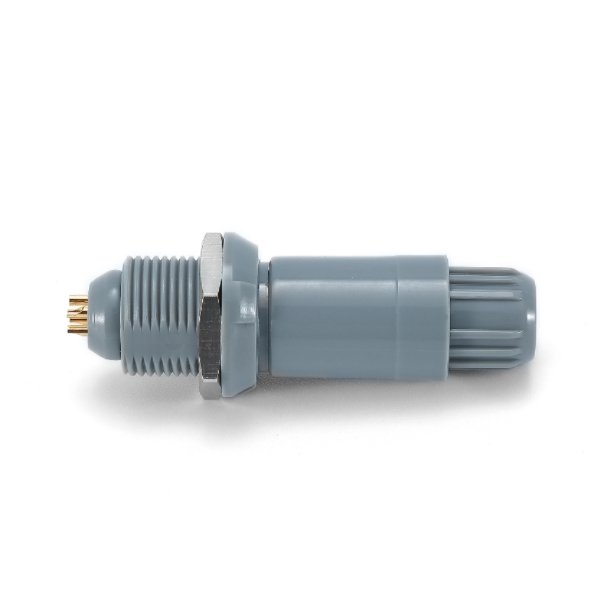

P-type connector-PAG medical equipment connection plug is a high-reliability connection solution designed for beauty and medical equipment. It adopts a bronze nickel-plated plastic shell and a push-pull self-locking structure, with a cable clamp fixation and an internal anti-rotation buckle, to achieve rapid deployment, anti-pulling and hygienic protection functions, meeting the stringent requirements for signal stability and hospital infection prevention and control in scenarios such as beauty equipment and skin testing equipment.
1. Product Features

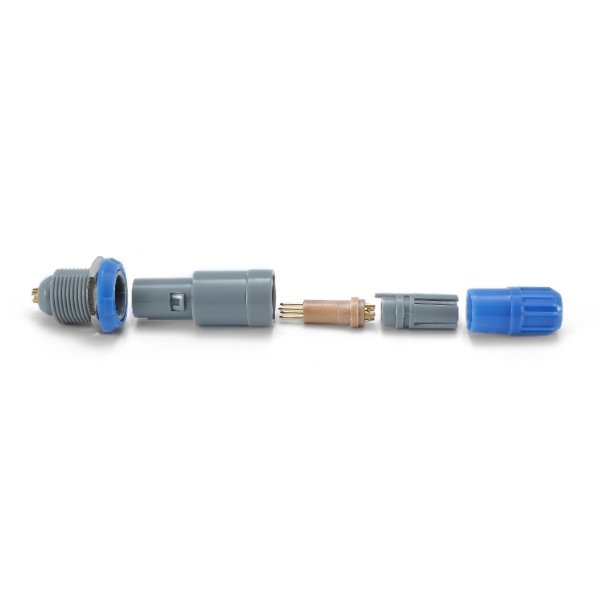

The plug is based on a bronze nickel-plated plastic shell, which is lightweight and corrosion-resistant. It can withstand high-frequency disinfection methods such as medical alcohol and high-temperature steam, and is suitable for the strict aseptic operation specifications of the beauty industry. The push-pull self-locking system achieves quick connection through a one-way sliding buckle. The operation does not require tools and the self-locking is stable after locking, avoiding loosening of the interface due to device movement or accidental pulling. The internal buckle structure works in conjunction with the cable clamp to double-fix the cable and limit its rotation, preventing contact offset or wire wear during plugging and unplugging, and extending the service life of the connector.

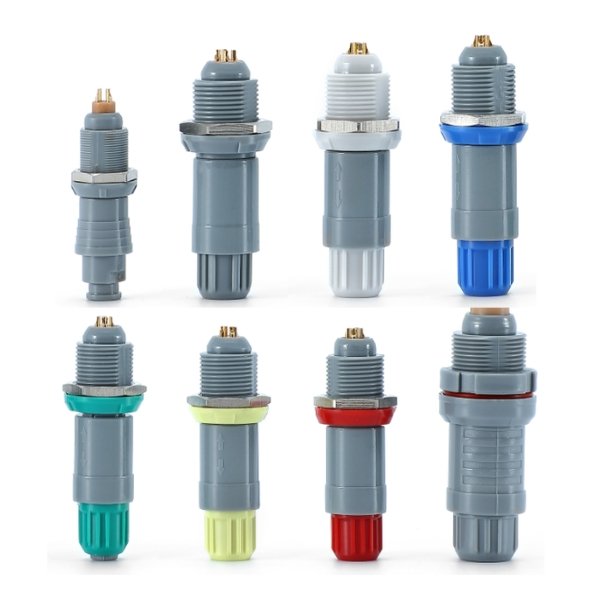

The product provides multiple pin configurations (2-14 pins) and 7 color coding options, supporting rapid identification and expansion of different functional modules, such as simultaneous transmission of control signals, power supply and sensor data. The surface of the bronze nickel-plated contacts is gold-plated, and the contact resistance is as low as 0.5mΩ, ensuring accurate signal transmission of microcurrent beauty instruments, and has an IP50 protection level to resist liquid splashes during beauty operations.
2. Product model size and characteristic parameters
| of P-type connector | |
| Main Features | Medical equipment connection plug |
| Plastic shell, brass pin core, nut | |
| Safety flap push-pull self-locking system | |
| 2-14 cores | |
| High-density installation, saving space | |

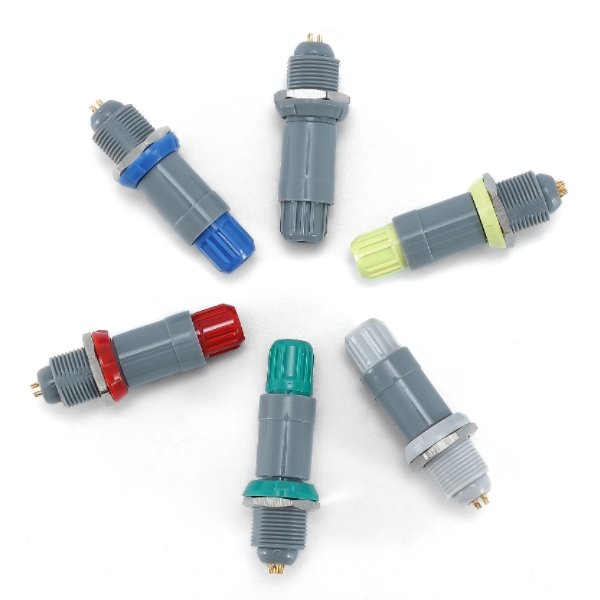

| The tail nut and the socket round nut are color-coded to prevent mis-insertion | |
| Double spring locking, keyway to prevent rotation | |
| Plug-in and unplug times: >5000 times | |
| Protection level: IP50 and above | |
3. Application scenarios of beauty and body medical equipmentRadio frequency beauty instrument: used to connect the energy probe to the host, the push-pull self-locking design ensures stable high-frequency current transmission during treatment, the anti-rotation buckle avoids poor contact due to instrument vibration, and the bronze nickel-plated shell withstands corrosion from disinfectants to ensure hospital infection safety.
Skin detection equipment: integrated multi-pin core signal transmission and power supply, color coding quickly distinguishes electrodes, sensors and data cables, and the wire clamp fixing structure adapts to the outpatient use environment of frequent plugging and unplugging, reducing the risk of oxidation of contact points.
Electroporation introduction instrument: micro-current transmission relies on high-precision contacts, the gold-plated surface reduces signal attenuation, and the internal buckle prevents cable twisting from causing abnormal energy output, ensuring the safety of drug penetration treatment.
Household facial cleanser: compact design adapts to lightweight body, IP50 protection resists water washing and cleaning, push-pull self-locking one-handed operation is convenient, and the service life of the equipment in humid environments is extended.
This series of products has passed the medical device quality management system certification and provides safe and durable connection solutions for the beauty and medical industry.
