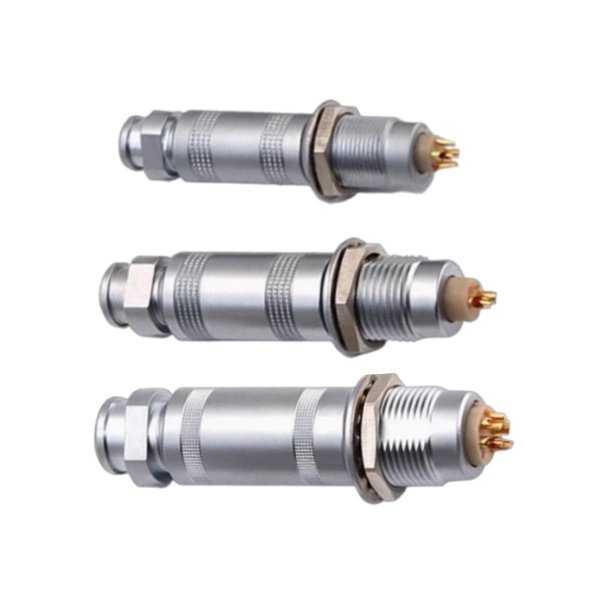

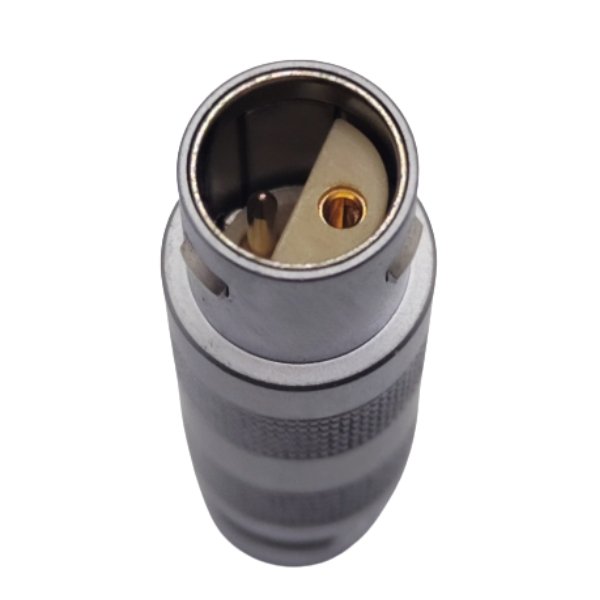

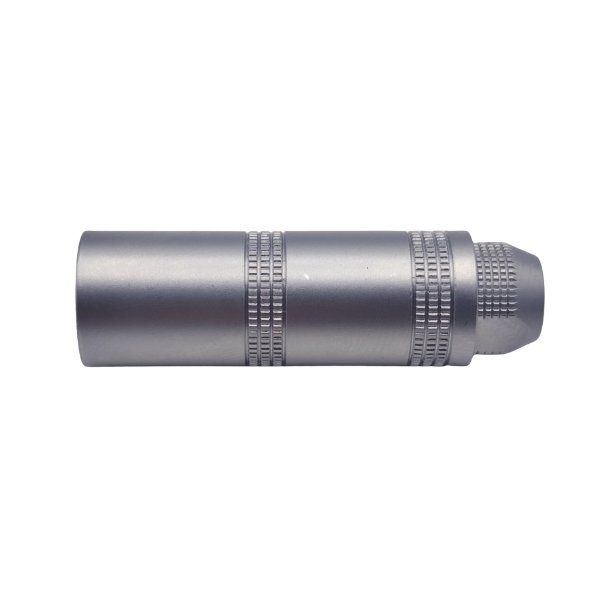

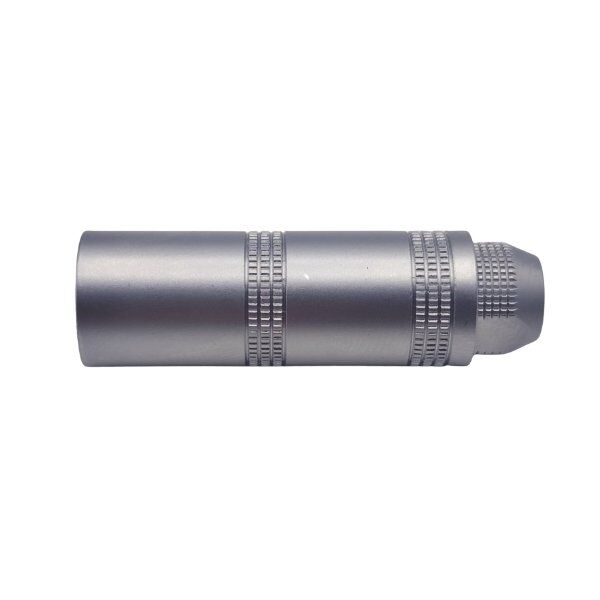

The S-type connector-DCA floating socket is designed for high-reliability connection between cables. It adopts a floating structure to automatically compensate for installation deviations, and is equipped with a cable clamp for stable fixation. An optional protective tail sleeve can be used to prevent cable bending damage. The product has anti-vibration and wear-resistant characteristics, and is suitable for industrial equipment, communication systems and other scenarios where frequent plugging and unplugging is required and cables are easily disturbed by external forces, ensuring the long-term stability of signal transmission.
1. Product Features
The core innovation of this connector lies in the integrated design of floating structure and wire clamp protection. The floating socket/female head realizes axial and radial micro-displacement compensation through elastic metal terminal groups, effectively eliminating the poor contact problem caused by cable assembly error or equipment displacement, and ensuring the adaptive centering ability of the plugging and unplugging process. The built-in cable clamp adopts an elastic clamping structure, which can firmly fix cables of different diameters to prevent the cables from slipping or kinking during plugging and unplugging, and disperse the impact of external tension on the contact terminals. The optional protective tail sleeve is made of weather-resistant engineering plastic, which wraps the cable interface area to avoid bending stress concentration, prevent cable skin damage or internal conductor oxidation, and is especially suitable for application environments with frequent movement or small space.
The conductive parts are made of high-purity copper alloy, and the surface is nickel-plated. It has low contact resistance and corrosion resistance, and supports large current transmission (rated current can reach 16A); the shell is made of flame-retardant ABS material with IP54 protection level, which can resist dust intrusion and short-term water splashing. The floating stroke design allows an offset compensation range of ±1.5mm, adapting to the connection requirements in complex vibration scenarios, and supports parallel configuration of multiple pin core groups to meet high-density wiring requirements

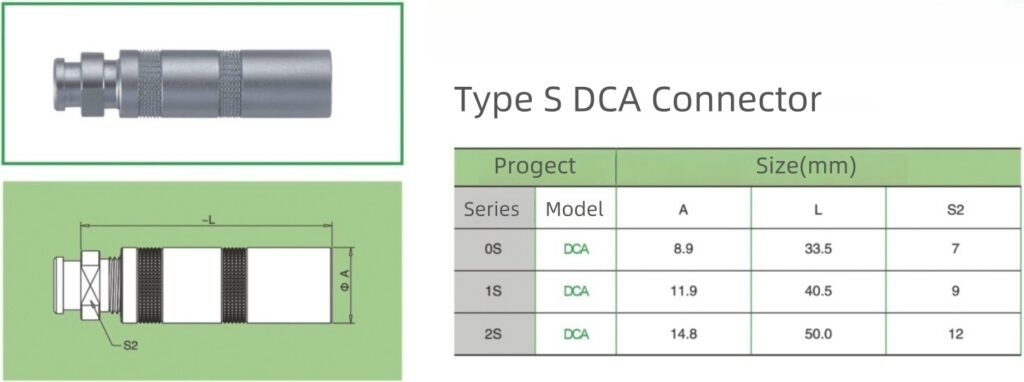

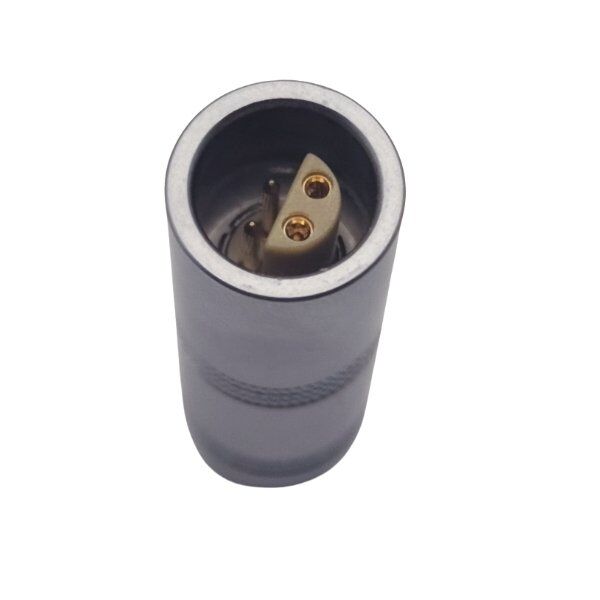

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| S-type connector parameter overview | |
| characteristic | describe |
| Main Features | ●Cable floating socket |
| ●Safe push-pull self-locking system | |
| ●2-6 pins | |
| ●High-density installation, space saving | |
| ●Stepped (half-moon) ferrules are equipped with both male and female contacts, polarity positioning; | |
| ●360-degree shielding provides full range of EMC protection. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
