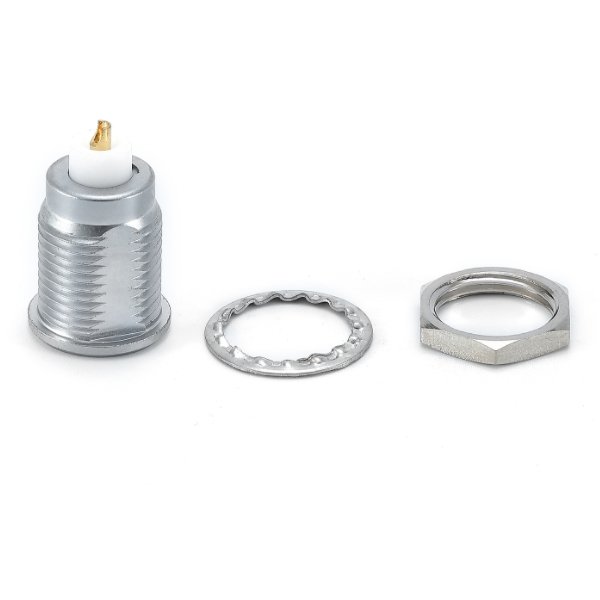

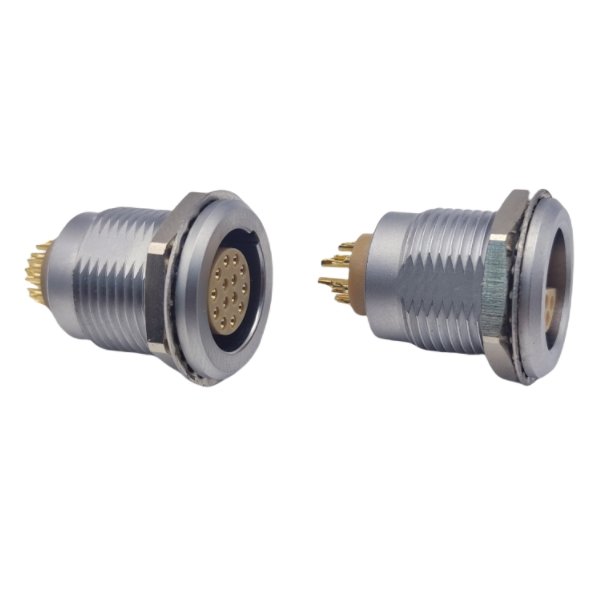

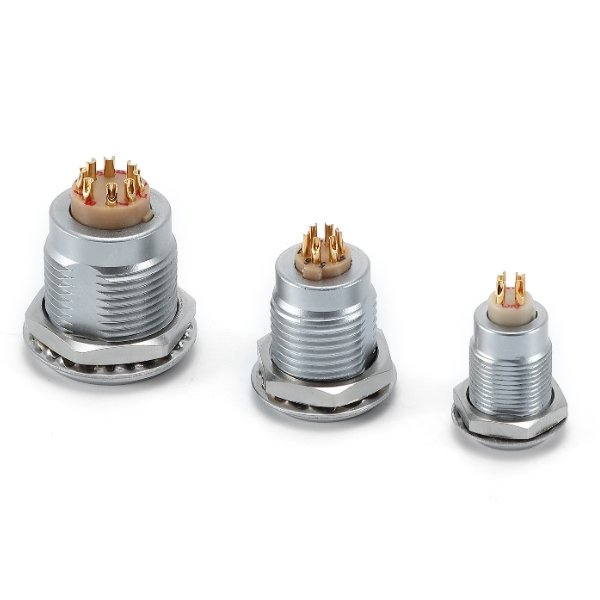

S-type connector-ZRA fixed socket is a high-performance connection solution designed for industrial equipment and electronic equipment. It adopts a fixed single nut structure, supports convenient installation in the chassis, and is equipped with a semi-circular inner interface, which is both stable and convenient. The product has excellent anti-vibration performance and electrical contact reliability, and is suitable for scenarios with high requirements for signal transmission stability, providing an efficient solution for internal cable connections in equipment.
1. Product Features
ZRA fixed socket/female head meets the needs of engineering installation with a simple and efficient design. The main body is made of high-strength metal material and the surface is nickel-plated, which can adapt to a variety of complex environments. The unique semi-circular inner interface design optimizes the feel of wire plugging and unplugging, and is equipped with a single nut locking mechanism to simplify the operation process while ensuring the connection is tight. The product supports fixed installation on the inner wall of the chassis, effectively saving external space and reducing cable exposure loss; the contact parts are made of high-quality conductive materials, combined with precision processing technology to ensure low loss and high stability of signal transmission, and have the characteristics of vibration resistance and impact resistance, providing guarantee for long-term reliable operation of the equipment.

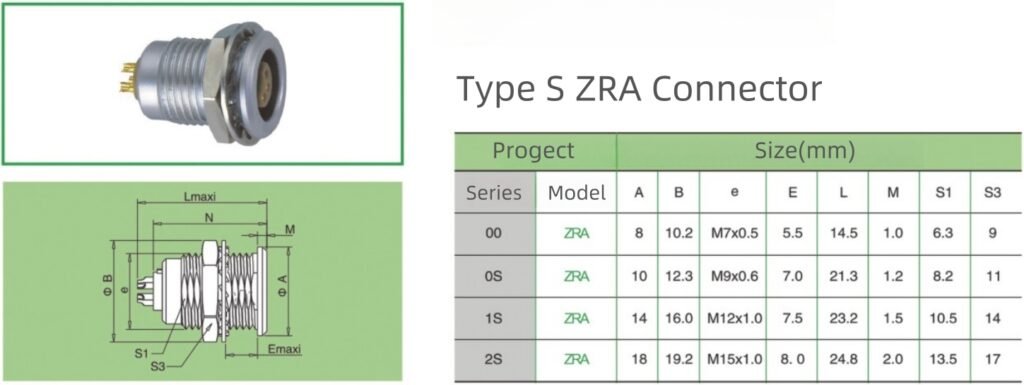

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| S-type connector parameter overview | |
| characteristic | describe |
| Main Features | ●Single nut fixing socket |
| ●Safe push-pull self-locking system | |
| ●2-6 pins | |
| ●High-density installation, space saving | |

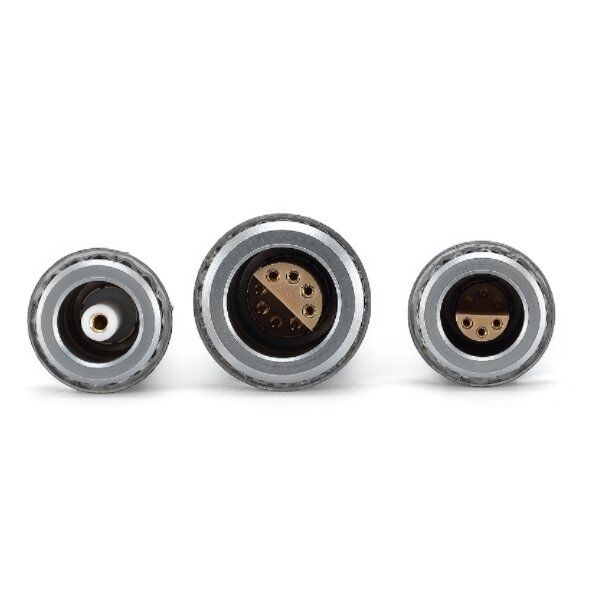

| ●Stepped (half-moon) ferrules are equipped with both male and female contacts, polarity positioning; | |
| ●360-degree shielding provides full range of EMC protection. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
