The S-type connector-ZRD fixed socket is a high-reliability connection solution designed for industrial equipment and chassis systems. It adopts a double-nut locking structure, supports two-way fixation inside and outside the chassis, and is equipped with a semi-circular internal interface to optimize the plug-in experience. The product has excellent anti-loosening performance and anti-vibration capabilities, and is suitable for high-frequency connection requirements under complex working conditions, providing stable and lasting signal transmission guarantees for precision electronic equipment
1. Product Features
The ZRD fixed socket/female connector significantly improves the mechanical stability of the connection through a double-nut collaborative locking mechanism. Its semicircular inner interface adopts an arc-shaped guide design to reduce the friction resistance of plugging and unplugging, avoid pin displacement or wear, and extend the service life of the connector. The main shell adopts a composite structure of high-strength brass and metal shielding layer, with excellent electromagnetic shielding performance, which can effectively suppress signal interference in industrial environments. The double-nut design supports two-way fixation inside and outside the chassis, adapting to the installation requirements of narrow spaces, and is equipped with anti-slip toothed gaskets to enhance the cable clamping force and prevent loose connections caused by vibration. The product is compatible with a variety of cable specifications, supports quick disassembly and maintenance, and is suitable for communication equipment, automation control systems and power transmission scenarios.

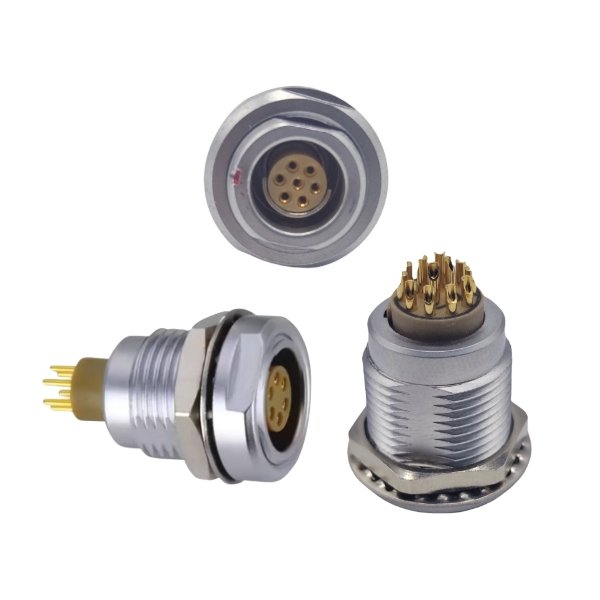

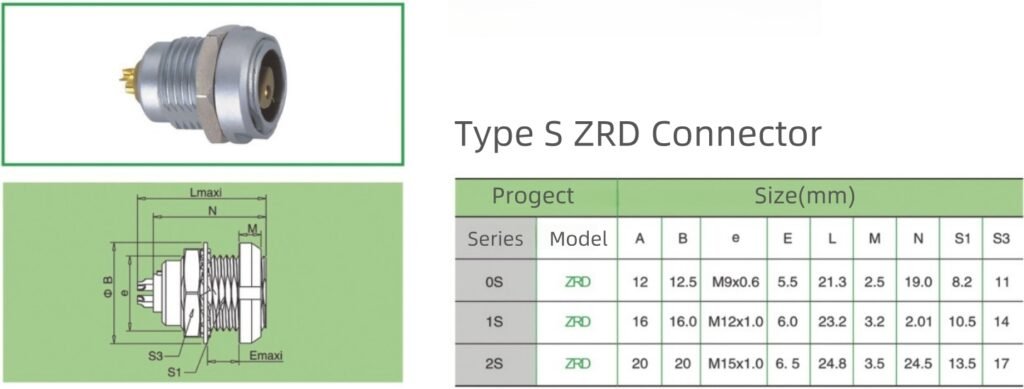

2. Product model size and characteristic parameters
3. Product overview and technical parameters
| S-type connector parameter overview | |
| characteristic | describe |
| Main Features | ●Double nut fixing socket |
| ●Safe push-pull self-locking system | |
| ●2-6 pins | |
| ●High-density installation, space saving | |
| ●Stepped (half-moon) ferrules are equipped with both male and female contacts, polarity positioning; | |
| ●360-degree shielding provides full range of EMC protection. | |
| Mechanical properties and environmental factors | ● Insertion and removal times: >5000 times |
| ● Humidity: Maximum humidity is 95% at 60°C | |
| ● Temperature range: -45°~+125° | |
| ● Vibration: 10-20000Hz, 15g | |
| ● Mechanical shock: 100g.6ms | |
| ● Salt spray service corrosion test: >48 hours | |
| ● Protection level: IP65~68 | |
