RJ45 Connector Basics
What Is an RJ45 Connector?
Meaning of RJ45 and 8P8C Design
When you look at an RJ45 connector, you see the industry standard for connecting Ethernet cables to network devices. The term “RJ45” originally referred to a specific wiring standard, but in modern networking, it describes the 8P8C modular plug you use for Ethernet connections. The “8P8C” stands for “eight positions, eight contacts,” which means the connector has eight slots, each with a metal contact. This design ensures every wire in your Ethernet cable has a dedicated path for data transmission.
The 8P8C configuration is not just about physical fit. It provides secure, reliable electrical connections for all eight wires inside the cable. Gold-plated contacts resist corrosion and maintain signal integrity, even after repeated use. The 8P8C modular plug design supports both stranded and solid cables, giving you flexibility in different networking environments. You benefit from a connector that meets strict standards, ensuring compatibility and performance across a wide range of devices.
Role in Ethernet Networking
You rely on the RJ45 connector for almost every wired network connection. It serves as the physical interface between your Ethernet cable and devices like computers, switches, and routers. The RJ45 connector enables high-speed data transmission, supporting everything from basic web browsing to demanding applications like video conferencing and cloud computing. Because the 8P8C design is standardized, you can trust that your network will function reliably, whether you are setting up a home office or managing a large enterprise network.
Structure of the RJ45 Connector

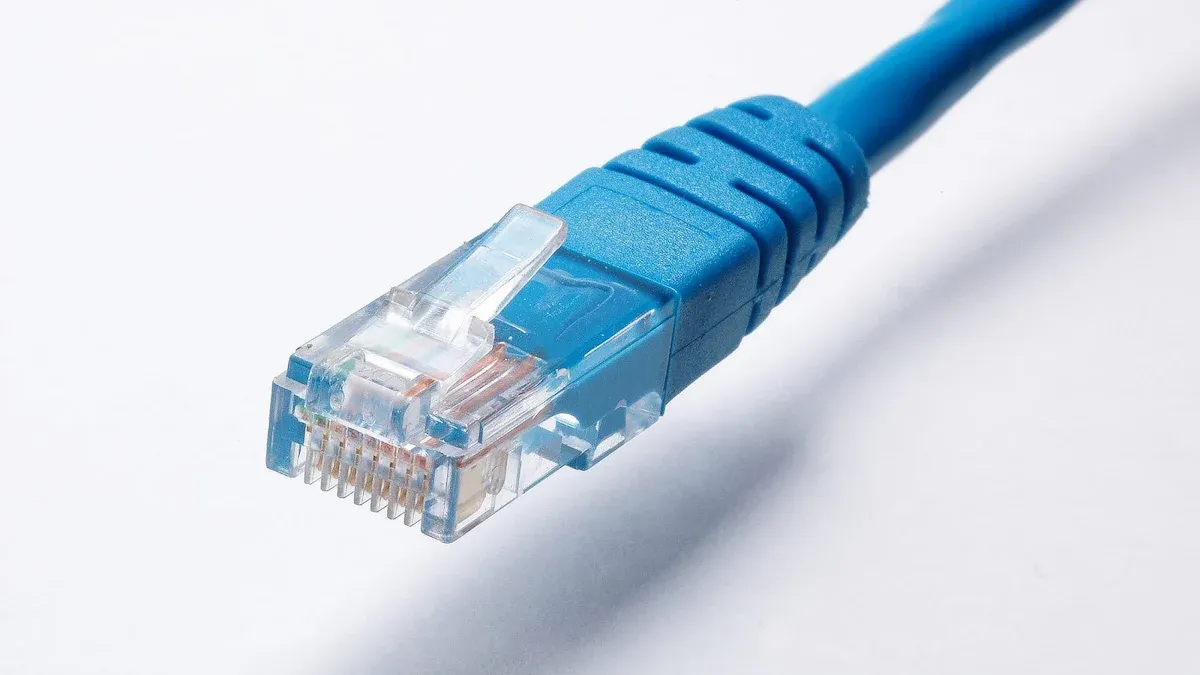

Physical Features and Materials
The RJ45 connector features a transparent plastic housing, usually made from durable materials like polycarbonate or polybutylene terephthalate. This construction provides mechanical strength and resists wear, even in environments with frequent plugging and unplugging. Inside the housing, you find eight gold-plated contacts. These contacts deliver excellent conductivity and resist corrosion, which is essential for maintaining reliable network connections over time.
Some RJ45 connectors include shielding, which adds a layer of metal around the connector. Shielded connectors protect against electromagnetic interference (EMI) and radio frequency interference (RFI), making them ideal for industrial settings or data centers. The latch or tab on the connector secures it in the RJ45 port, preventing accidental disconnection and ensuring stable functionality.
Tip: Always choose connectors with gold-plated contacts for better durability and signal quality, especially in environments with temperature or humidity changes.
Pin Layout and Numbering
The pin layout for RJ45 connectors follows two main wiring standards: T568A and T568B. Each standard specifies the color coding and arrangement of the eight wires inside your Ethernet cable. The pin layout for RJ45 ensures that transmit and receive signals align correctly between devices, which is critical for proper data transmission.
Here’s how the pin layout works:
- Each of the eight pins corresponds to a specific wire in the cable.
- The arrangement prevents crosstalk and signal interference.
- Using the same standard on both ends creates a straight-through cable for connecting different devices.
- Mixing standards on each end creates a crossover cable for connecting similar devices.
| Pin Number | T568A Color | T568B Color |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
This precise pin mapping ensures that your network devices communicate accurately, reducing errors and maintaining high-speed functionality.
How RJ45 Connectors Work
Data Transmission and Electrical Contacts
When you insert an RJ45 connector into an RJ45 port, the eight gold-plated contacts align with the eight wires inside your Ethernet cable. This connection completes the electrical circuit, allowing data signals to flow between devices. The twisted pairs inside the cable reduce electromagnetic interference, preserving signal integrity during data transmission.
The latch on the connector locks it into place, preventing accidental disconnection. This secure fit is essential for consistent network performance, especially in environments where cables may be moved or jostled. The RJ45 connector supports high-frequency signals, enabling efficient and reliable data transmission for activities like streaming, file sharing, and online gaming.
RJ45 Port Compatibility
You can use RJ45 connectors with a wide range of Ethernet ports because they follow strict physical and wiring standards. The 8P8C modular plug design fits universally into Ethernet ports on computers, routers, switches, and industrial equipment. The orientation tab ensures correct insertion, while the latching mechanism secures the connection.
RJ45 connectors comply with standards such as ANSI/TIA 1096-A for mechanical and physical specifications, and T568A/B for wiring pinouts. These standards guarantee that your RJ45 connector will function correctly with any compatible device, maintaining stable and reliable network connections across different environments. Shielded and unshielded variants further enhance compatibility, allowing you to choose the right connector for your specific networking needs.
Types of RJ45 Connectors and RJ45 Cables
Standard vs. Pass-Through RJ45 Connectors
Features and Use Cases
When you select an RJ45 connector for your Ethernet cable, you often choose between standard and pass-through designs. Standard connectors require you to trim each cable wire to the correct length before insertion. This process demands precision and can challenge beginners. In contrast, RJ45 pass-through connectors allow the wires to extend through the front of the connector. You can visually confirm the wiring order before crimping, which reduces errors during termination.
You benefit from RJ45 pass-through connectors in several ways:
- They simplify the termination process, making them ideal for both professionals and DIY users.
- You can use them with shielded or unshielded cables, including Cat5e, Cat6, Cat6a, and Cat7.
- Installation time decreases, and you achieve better wire alignment for improved signal integrity.
- Pass-through connectors require a special crimping tool, while standard connectors work with most common tools.
Pros and Cons
The following table compares the main differences between standard and RJ45 pass-through connectors:
| Aspect | Standard RJ45 Connector | RJ45 Pass-Through Connectors |
|---|---|---|
| Wire Handling | Precise cutting and alignment needed | Wires pass through for easy verification |
| Ease of Use | Challenging for beginners | Easier for novices; reduces wiring errors |
| Performance | Reliable and durable | Better alignment; stable connection |
| Durability | Less wire exposure; more durable | Exposed copper may oxidize over time |
| Tool Requirements | Uses standard crimping tools | Needs special pass-through crimping tools |
| Application Suitability | Preferred for pre-terminated cables | Ideal for quick installs and various cable types |
| Design Variants | One-piece, standard design | Multiple options: shielded, unshielded, staggered |
You should consider RJ45 pass-through connectors if you want to reduce termination errors and speed up installation. Standard connectors remain the best choice for environments demanding maximum durability and a clean finish.
Shielded and Unshielded RJ45 Connectors
When to Use Shielded RJ45
Shielded RJ45 connectors play a critical role in environments with high electromagnetic interference. You should use them when working with shielded twisted pair cables, such as STP, FTP, or S/FTP. These connectors maintain the cable’s shielding and ensure proper grounding. Industrial sites, data centers, and areas with large motors or radio transmitters require shielded connectors to protect signal integrity. Cat6a and Cat7 cables often demand shielded RJ45 connectors due to their design and performance needs.
- Shielded connectors preserve EMI protection and reduce crosstalk.
- Proper installation and grounding are essential for optimal performance.
- Avoid mixing shielded connectors with unshielded cables, as this limits EMI protection.
Unshielded RJ45 Applications
Unshielded RJ45 connectors work well in typical home or small office networks. You can use them with unshielded twisted pair cables, such as Cat5e or Cat6 UTP. These connectors offer cost and installation advantages in environments with low EMI. You should not use unshielded connectors with shielded cables, as this compromises the cable’s protective features.
Ethernet Cable Categories and RJ45 Compatibility
Cat5e, Cat6, Cat6a, and Cat7 Differences

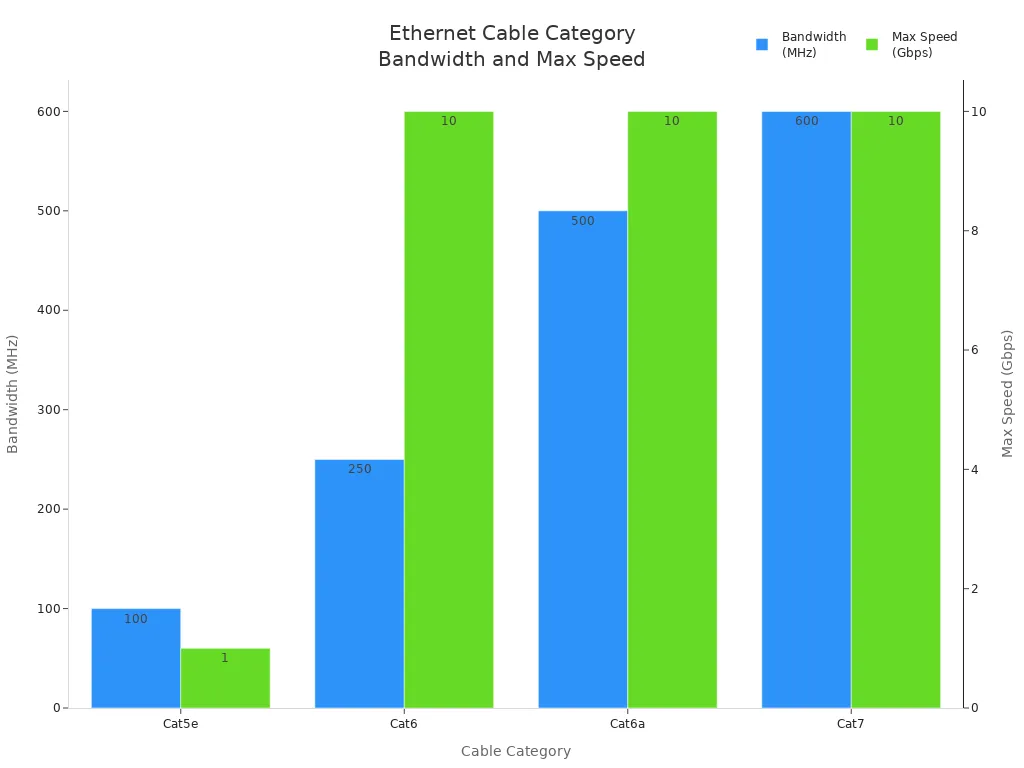

Ethernet cable categories affect both performance and compatibility with RJ45 connectors. Cat5e, Cat6, and Cat6a cables all use the traditional RJ45 connector, supporting backward compatibility and seamless integration. Cat5e supports up to 1 Gbps at 100 meters, while Cat6 increases bandwidth and supports 10 Gbps at shorter distances. Cat6a extends 10 Gbps support to 100 meters and often uses shielded cables. Cat7, however, uses proprietary connectors like GG45 or TERA, which are not compatible with standard RJ45 connectors.
Cat6a is the recommended choice for future-proofing your network if you rely on RJ45 connectors, as Cat7 lacks standardization and compatibility with Ethernet cables using RJ45.
Matching RJ45 Connectors to RJ45 Cables
To ensure optimal performance, you must match the RJ45 connector to the specific Ethernet cable category. Use shielded connectors only with shielded cables to maintain EMI protection. Select connectors based on cable dimensions, such as jacket diameter and conductor insulation, for a secure fit. For Cat6a cables, staggered load bar RJ45 connectors help reduce crosstalk at high speeds. Always follow wiring standards like T568A or T568B and test each termination before deployment. This approach guarantees reliable compatibility with Ethernet cables and stable network performance.
RJ45 and Ethernet Performance
Ensuring Reliable Ethernet Connections
Impact on Data Integrity and Speed
You depend on the RJ45 connector for stable data transmission in every networking environment. The quality of each termination directly affects your network’s data integrity and speed. Improperly terminated connectors can introduce packet loss, increased latency, and reduced throughput. In recent network studies, RJ45 connectors show a failure rate of 5–10% during initial field termination. Most failures result from poor crimping, excessive untwisting of wire pairs, or misaligned conductors. These issues often lead to intermittent connectivity and higher bit error rates, especially as you push your network to higher speeds.
Gold-plated contacts in the RJ45 connector help maintain stable contact resistance, preventing oxidation and ensuring consistent performance. If you use advanced testing tools like Time-Domain Reflectometry (TDR) or cable certification devices, you can detect subtle faults that basic testers might miss. Even minor deviations from best practices can reduce network speeds by over 90%, causing cascading failures as you scale up to Gigabit Ethernet or beyond.
Note: Always follow proper wiring standards and use high-quality connectors to protect your network’s data integrity and maintain optimal speed.
Reducing Signal Loss and Interference
Signal loss and interference can cripple your Ethernet network. You can prevent most issues by following a systematic approach:
- Inspect cables for physical damage, such as cuts or sharp bends.
- Ensure each RJ45 connector is undamaged and properly crimped.
- Test cables with reliable testers to verify continuity and correct wiring.
- Use cables and connectors rated for your required network speed.
- Keep Ethernet cables away from sources of electromagnetic interference, like microwaves or cordless phones.
- Choose shielded cables and connectors in environments with high interference.
- Organize cables to avoid tangling, excessive bending, or strain.
- Replace any worn-out or damaged cables promptly.
Improper crimping, using the wrong plug type, or untwisting wire pairs too much near the connector can degrade signal quality. You should always maintain wire twists until the last millimeter and follow the correct wiring standard, such as T568B. Properly shielded and grounded RJ45 terminations can reduce EMI-induced bit errors by up to 63%, which is critical in noisy environments.
Speed, Bandwidth, and RJ45 Limitations
Supporting High-Speed Ethernet
Modern RJ45 connectors support the high data rates required by today’s networking demands. With advanced strip-line flex designs and differential pairing, these connectors handle frequencies up to 20 GHz. This enables you to achieve significantly higher throughput and improved signal integrity. The table below compares modern RJ45 connectors to older models:
| Aspect | Modern RJ45 Connectors (strip-line flex) | Older RJ45 Connectors (magnetics/ferrites) |
|---|---|---|
| Maximum Data Transmission Frequency | Up to 20 GHz | Up to hundreds of MHz |
| Data Rate Capability | High throughput | Limited by crosstalk and signal issues |
| Design Features | Strip-line flex, reduced power, no magnetics | Ferrites/magnetics, larger size, higher power |
| Signal Integrity | Improved with ground planes | Limited by crosstalk and noise |
| Power Consumption | ~0.031 mA | ~0.212 mA |
You can confidently deploy modern RJ45 connectors in Gigabit and multi-Gigabit Ethernet networks, knowing they will support the required bandwidth and maintain reliable functionality.
Limitations of Older RJ45 Connectors
Older RJ45 connectors, which rely on conventional magnetics and ferrites, limit your network’s speed and reliability. These connectors operate at lower frequencies and suffer from increased crosstalk and noise coupling. As a result, you may experience reduced data rates and higher power consumption. If your network still uses these older connectors, you risk bottlenecking your data transmission and compromising overall performance. Upgrading to modern RJ45 connectors ensures your network can handle current and future speed requirements.
Network Scalability with RJ45
Upgrades and Maintenance
RJ45 connectors play a vital role in the scalability of your Ethernet network. Their standardized design, based on ANSI/TIA wiring schemes like T568A and T568B, guarantees consistent wiring and mechanical characteristics. This standardization allows you to upgrade your network infrastructure—such as moving from Cat5e to Cat6a cables—without changing the RJ45 port or connector. You can also use color-coded connectors to improve cable management, making it easier to identify network segments and reduce downtime during maintenance.
RJ45 connectors support Power over Ethernet (PoE) standards, enabling you to deliver both data and power through a single cable. This simplifies installations, especially in large-scale deployments where you need to connect devices like IP cameras, wireless access points, or VoIP phones.
Tip: Regularly inspect and test your RJ45 connectors and cables to ensure long-term reliability and minimize unexpected network outages.
Universal Compatibility of RJ45 Ports
You benefit from the universal compatibility of the RJ45 port across a wide range of networking devices. Whether you deploy Cat5e, Cat6, Cat6a, or even Cat8 cables, the RJ45 connector remains the standard interface. This compatibility streamlines upgrades and expansions, allowing you to scale your network efficiently. The locking tab and strain relief boot on the connector ensure secure, durable connections, which are essential for maintaining network stability in large deployments.
Although RJ45 connectors are limited to copper cabling and specific maximum distances, their affordability, ease of installation, and broad compatibility make them the preferred choice for scalable Ethernet networking.
Advantages and Drawbacks of RJ45 Connectors
Benefits of Using RJ45 in Ethernet
Standardization and Widespread Adoption
You benefit from the global standardization of the RJ45 connector. This connector serves as the universal interface for Ethernet cables, ensuring compatibility across devices and environments. The 8P8C modular design supports a wide range of Ethernet standards, from 10 Mbps up to 100 Gbps. You can deploy RJ45 connectors in data centers, enterprise networks, and industrial automation without worrying about interoperability. The latch tab and strain relief features help maintain secure connections, reducing accidental disconnections. The widespread adoption of RJ45 simplifies network deployment and maintenance, making it the de facto standard for Ethernet worldwide.
Cost-Effectiveness and Availability
You save costs by choosing RJ45 connectors for your network infrastructure. These connectors are inexpensive to manufacture and purchase, which makes them accessible for both home and business applications. The market offers a variety of RJ45 types, including shielded, unshielded, locking, and industrial-grade options. You can easily find RJ45 connectors and cables at most electronics retailers. Their ubiquity ensures you never face compatibility issues when expanding or upgrading your network. Advances such as gold-plated contacts further improve performance and durability without increasing costs.
Tip: RJ45 connectors support high-speed data transfer up to 10 Gbps, making them suitable for most modern network needs.
Key advantages of RJ45 connectors:
- Ubiquity and standardization for device compatibility
- Cost-effectiveness and wide availability
- Simple installation and troubleshooting
- DIY-friendly for custom cable lengths
- Reliable performance in diverse environments
Common Issues with RJ45 Connectors
Physical Durability Concerns
You may encounter physical durability issues with RJ45 connectors during regular use. Cracked or broken plastic bodies, bent or misaligned pins, and damaged locking tabs are common problems. Frequent plugging and unplugging can lead to wear and tear, especially in high-traffic network environments. These issues often result in intermittent connectivity, slow data speeds, or complete loss of connection. RJ45 connectors are not “fit and forget” components. You must inspect them regularly to prevent minor problems from becoming major failures.
Connection Problems and Troubleshooting
You can resolve most connection problems by following a systematic troubleshooting process. Start with a visual inspection for physical damage, corrosion, or loose wires. Ensure both ends of the cable are securely connected and listen for the click of the latch. Use a cable tester to check for wiring faults or damaged wires. Swap cables and devices to rule out faulty components. Observe link status LEDs for connectivity and speed indications. Employ software diagnostics and network analyzers to identify performance issues like delays or packet loss. If problems persist, advanced testing can help pinpoint subtle faults.
Recommended troubleshooting steps for RJ45 connections:
- Inspect connectors and cables for damage or improper crimping.
- Test with known-good cables and devices.
- Use cable testers and multimeters for continuity checks.
- Check network configuration settings.
- Restart networking equipment to clear temporary glitches.
Note: Addressing physical and connection issues promptly helps maintain stable network performance and reduces downtime.
Maintenance and Care for RJ45 Connectors
Identifying Faulty RJ45 Plugs
You should identify faulty RJ45 plugs by looking for visible damage, bent pins, or broken locking tabs. Symptoms include intermittent connectivity, slow speeds, or complete loss of connection. Use cable testers to verify wiring integrity and signal continuity. Replace any connector showing signs of wear or damage to prevent network disruptions.
Cleaning and Handling Tips
You can extend the lifespan of RJ45 connectors by following proper cleaning and handling practices. Clean connectors with a microfiber cloth and isopropyl alcohol to remove dust and debris. Avoid sharp bends and excessive tension during installation. Store cables using cable ties or Velcro straps to prevent physical damage. Label connectors for easier management and troubleshooting. Schedule regular inspections, especially in high-traffic environments, to detect and address issues early.
Alert: Proper maintenance and handling reduce the disadvantages of rj45 connectors, such as physical wear and connection instability.
How to Choose the Right RJ45 Connector
Assessing Ethernet Network Needs
Home vs. Business Applications
You need to assess your environment before you choose the right rj45 connector. Home networks usually focus on cost-effectiveness and easy installation. Standard connectors work well for most home setups, handling everyday internet and LAN activities. In contrast, business networks demand higher reliability and durability. You often need connectors with advanced features, such as enhanced shielding or integrated magnetics, to support complex and high-speed data transmissions. Business and industrial environments may require ruggedized connectors that comply with strict standards and withstand harsh conditions. You should also consider Power over Ethernet (PoE) support for devices like IP cameras or VoIP phones in business settings. EMI and ESD protection features help maintain network stability in these environments.
Data Speed and Bandwidth Requirements

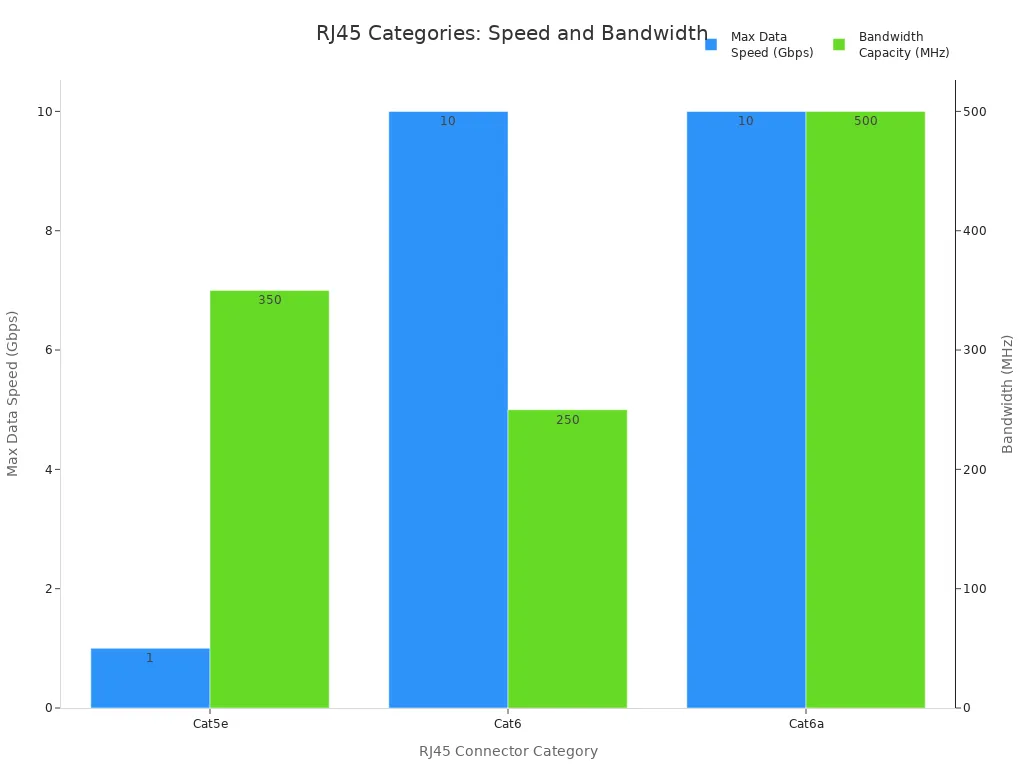

You must match your connector to your data speed and bandwidth needs. The table below shows how different RJ45 connector categories align with network applications:
| RJ45 Connector Category | Maximum Data Speed | Bandwidth Capacity | Typical Network Application |
|---|---|---|---|
| Cat5e | Up to 1 Gbps | 350 MHz | Home networks, small office setups |
| Cat6 | Up to 1 Gbps (short distances), 10 Gbps (limited) | 250 MHz | Business networks, moderate demand |
| Cat6a | Up to 10 Gbps | 500 MHz | Data centers, high-demand environments |
You should select connectors that match or exceed your ethernet cable category. For high-speed business networks, cat6 or cat6a connectors ensure optimal performance and future-proofing.
Matching RJ45 Connectors to RJ45 Cables
Cable Category and Shielding
You must always match the connector to your ethernet cable type. Cat6 and cat6a cables require connectors designed for their larger diameter and tighter twists. Shielded connectors are essential in environments with high electromagnetic interference, such as factories or data centers. Unshielded connectors work well for most home and small office networks. Using the correct connector ensures compatibility with ethernet cables and maintains signal integrity.
Environmental Considerations
You should evaluate your installation environment. In areas with high EMI, shielded connectors and cables protect your network from interference. Outdoor or industrial settings may require ruggedized connectors with dustproof or waterproof features. For home use, standard connectors suffice, but you should still avoid excessive bending or tension on the cable to preserve functionality.
Tip: Always check the connector’s compatibility with your ethernet cable’s diameter and shielding type before installation.
Quality and Brand Selection
Features of Reliable RJ45 Connectors
You should look for connectors that support the latest standards, such as Cat6a or higher, and comply with TIA/EIA-568 or ISO/IEC 11801. Reliable connectors use high-purity phosphor bronze contacts with thick gold plating for durability. Flame-retardant housings and secure locking mechanisms improve safety and longevity. Precision engineering ensures a snug fit and consistent performance, even after many uses.
| Criteria Category | Key Evaluation Points |
|---|---|
| Technical Performance | Support for Cat5e–Cat8, compliance with standards, high durability, industrial features, broad compatibility |
| Materials and Craftsmanship | Gold-plated contacts, flame-retardant housing, precision engineering, secure locking |
| Certifications and Compliance | UL, CE, RoHS/REACH, third-party testing, verified certifications |
| Production and Quality Control | Automated production, 100% testing, factory audits |
| Market Reputation and Service | After-sales support, warranty, technical assistance |
Avoiding Counterfeit or Low-Quality Plugs
You should avoid low-quality or counterfeit connectors. These often lack proper certifications and use inferior materials, leading to poor performance and frequent failures. Always purchase from reputable brands that provide documentation and warranty support. Reliable brands invest in automated production and rigorous quality control, ensuring each rj45 cable and connector meets industry standards.
Alert: Using certified connectors from trusted brands protects your network investment and ensures long-term functionality.
Practical Tips for Using RJ45 Connectors and RJ45 Cables
Proper Installation Techniques
Crimping Tools and Best Practices
You need the right tools and techniques to achieve reliable network cable terminations. Start by selecting the correct RJ45 connector for your environment and cable type. Use shielded connectors in areas with high electromagnetic interference and unshielded connectors for standard office or home networks. Choose solid connectors for structured cabling and stranded connectors for patch cables. Standard connectors require precise wire cutting, while rj45 pass-through connectors allow you to verify wire order before crimping.
Follow these steps for effective termination:
- Strip about an inch of the cable jacket using a cable stripper.
- Untwist and straighten the wire pairs.
- Arrange the wires according to the T568A or T568B wiring standard.
- Trim the wires to a uniform length.
- Insert the wires fully into the RJ45 connector, ensuring each wire reaches the end.
- Use a high-quality crimping tool to secure the connector firmly.
Crimping an rj45 connector with care prevents loose connections and reduces the risk of network failures. Always test the completed cable with a cable tester to confirm proper termination.
Avoiding Common Mistakes
You can avoid common mistakes by paying attention to detail during network installation. Do not untwist the wire pairs too much, as this can cause signal loss. Make sure you insert each wire fully into the connector. Double-check the wiring order, especially when using rj45 pass-through connectors, since visual verification helps prevent errors. Avoid using low-quality connectors or tools, as these increase the risk of poor terminations and unreliable connections.
Tip: Always match the connector type to your cable and environment to minimize connection failures.
Testing and Verifying RJ45 Connections
Using Network Testers
After termination, you should always test your cables. Use high-quality network testers, such as cable testers or specialized Gigabit RJ45 loopback testers, to check for continuity, shorts, and signal quality. Start with near-end loopback tests and progress to far-end tests. This process helps you detect faults early and ensures your network cable terminations meet performance standards.
Signs of a Good RJ45 Connection
A good RJ45 connection shows no visible gaps between the cable jacket and connector. The latch clicks securely into place. All wires align correctly, and the tester confirms proper pinout and signal integrity. You should document test results for future troubleshooting and maintenance. Regular testing and verification keep your network installation reliable and efficient.
Upgrading and Replacing RJ45 Connectors
When to Replace an RJ45 Plug
Replace an RJ45 plug if you notice physical damage, misalignment, or persistent connectivity issues. Regular inspections help you spot worn or dirty connectors. Upgrading to higher category connectors, such as moving from Cat5e to Cat6, can improve speed and reduce interference in your network installation.
Steps for Safe Replacement
- Use high-quality connectors for replacements to ensure secure terminations.
- Clean the cable and connector area before installation.
- Follow proper wiring standards and crimping techniques.
- Test the new connection with a network tester to confirm functionality.
- Train technicians on correct installation and maintenance procedures.
Regular upgrades and careful replacements maintain optimal network performance and reduce downtime.
Myths and Misconceptions About RJ45 and Ethernet
Common Myths About RJ45 Connectors
“All RJ45 Connectors Are the Same”
You might believe that all RJ45 connectors work the same way, but this idea can lead to network issues. Not every connector fits every cable or installation scenario. For example, rj45 pass-through connectors offer a different approach compared to standard connectors. You use rj45 pass-through connectors to simplify wire alignment and reduce termination errors. However, not all rj45 pass-through connectors support every cable category or shielding type. Some rj45 pass-through connectors work best with Cat5e or Cat6 cables, while others are designed for Cat6a or shielded cables. If you choose the wrong rj45 pass-through connectors, you risk poor connections and unreliable performance.
You also need to consider the build quality. High-quality rj45 pass-through connectors use gold-plated contacts and durable housings. Low-quality rj45 pass-through connectors may corrode or break, causing intermittent connectivity. Always match your rj45 pass-through connectors to your cable type and network requirements.
“Higher Cable Category Always Means Better Performance”
You may think that using a higher cable category guarantees better network speed. This is not always true. If you use Cat6a cables with rj45 pass-through connectors that do not support Cat6a, you will not achieve the full performance potential. The connector and cable must match. Rj45 pass-through connectors designed for Cat5e may not handle the larger diameter or tighter twists of Cat6a cables. You need to select rj45 pass-through connectors that fit your cable’s specifications.
A mismatch between cable and connector can cause signal loss or crosstalk. You should always check the compatibility of your rj45 pass-through connectors with your chosen cable category. Upgrading your cable without upgrading your rj45 pass-through connectors will not improve your network.
Misunderstandings About Shielding and RJ45 Ports
When Shielding Is Necessary
You might assume that shielded cables and connectors always provide better protection. In reality, you only need shielding in environments with high electromagnetic interference (EMI). For example, factories, hospitals, or radio stations require shielded cables and rj45 pass-through connectors. In most homes and offices, unshielded twisted pair cables and standard rj45 pass-through connectors resist interference due to their twisted design.
Environmental factors like EMI, temperature, and humidity affect connector performance. Shielded rj45 pass-through connectors prevent data corruption in high-EMI areas. However, using shielded rj45 pass-through connectors in low-EMI environments adds cost and complexity without real benefits. You should match your rj45 pass-through connectors to your environment’s needs.
Tip: Only use shielded rj45 pass-through connectors when you face clear sources of interference.
Overestimating Shielded RJ45 Connectors
Many people overestimate the value of shielded rj45 pass-through connectors. You may hear that shielded connectors always outperform unshielded ones. This belief comes from older analog systems, but modern unshielded twisted pair cables and rj45 pass-through connectors handle most interference in typical settings. If you install shielded rj45 pass-through connectors without proper grounding or termination, you can actually degrade network performance.
Misunderstandings about shielding often lead to unnecessary expenses. You might choose shielded rj45 pass-through connectors for a home office, expecting better results, but you only add complexity. Proper training helps you understand when to use shielded rj45 pass-through connectors and how to install them correctly. Always evaluate your environment before deciding on shielded or unshielded rj45 pass-through connectors.
| Scenario | Recommended Connector Type |
|---|---|
| Home or small office | Unshielded rj45 pass-through connectors |
| Factory floor or radio station | Shielded rj45 pass-through connectors |
| Outdoor or high-humidity areas | Weatherproof rj45 pass-through connectors |
Note: Choose rj45 pass-through connectors based on your actual needs, not on myths or marketing claims.
RJ45 connectors form the backbone of Ethernet networking. You ensure fast, stable connections by selecting high-quality connectors and matching them to the correct cable category.
- Industry research shows that using non-standard connectors or ignoring wiring standards can cause signal loss and crosstalk, especially in high-speed or industrial networks.
- Ruggedized RJ45 connectors withstand harsh environments, supporting both home and industrial applications.
- Following best practices for installation and maintenance helps you avoid common issues and keeps your network running smoothly.
Choose wisely to future-proof your network and maintain optimal performance.
FAQ
What devices use RJ45 connectors?
You find RJ45 connectors on computers, routers, switches, network printers, and IP cameras. Most Ethernet-enabled devices use this connector for wired network connections.
Can you reuse an RJ45 connector after crimping?
You should not reuse RJ45 connectors. Crimping deforms the metal contacts. Reusing them can cause poor connections and unreliable network performance.
How do you know if your RJ45 cable is faulty?
You notice slow speeds, dropped connections, or no network access. Use a cable tester to check for continuity and correct wiring. Replace cables that fail these tests.
Do all Ethernet cables use RJ45 connectors?
Most Ethernet cables, such as Cat5e, Cat6, and Cat6a, use RJ45 connectors. Some specialty cables, like Cat7 or industrial Ethernet, may use different connectors.
What is the difference between shielded and unshielded RJ45 connectors?
Shielded RJ45 connectors block electromagnetic interference. You use them in environments with heavy electrical noise. Unshielded connectors work well in typical home or office networks.
How do you properly dispose of old RJ45 connectors?
You should recycle RJ45 connectors at an electronics recycling center. Do not throw them in regular trash. Proper disposal helps protect the environment.

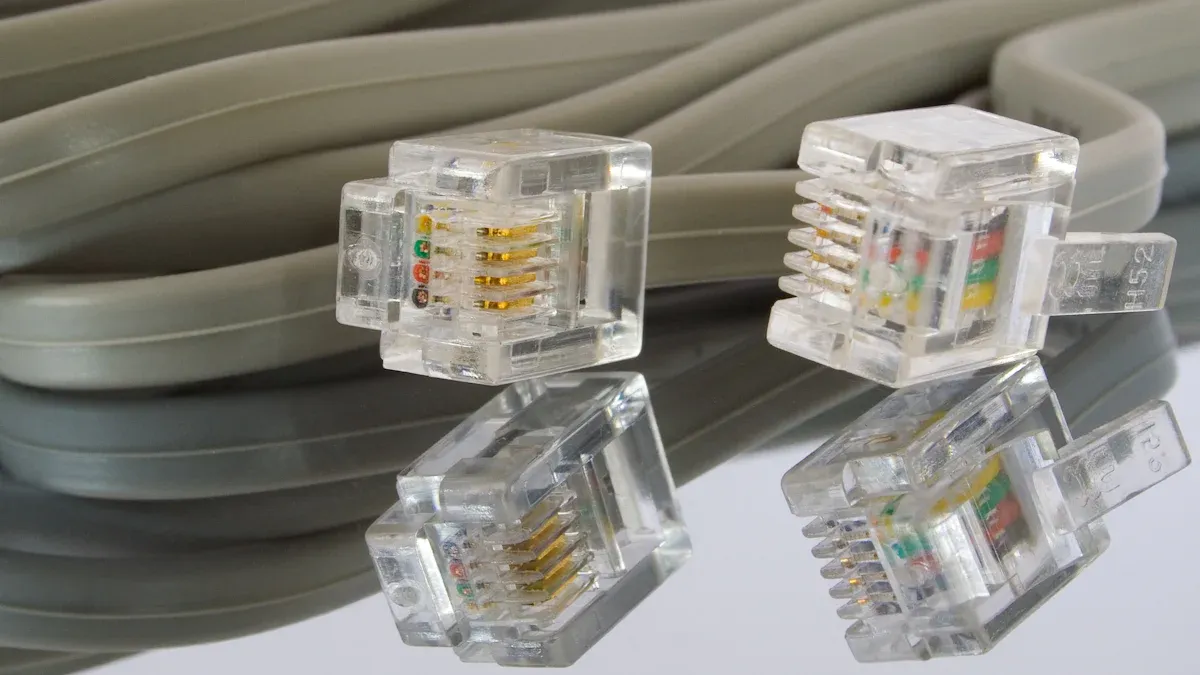

Can you use an RJ45 connector for phone lines?
You should not use RJ45 connectors for standard phone lines. Phone systems use RJ11 connectors, which have a different size and pin layout.
Tip: Always match your connector type to your device and cable for best results.
