Outdoor industrial environments demand reliable waterproof connectors that withstand moisture, dust, and extreme temperatures. Leading connector factory brands have developed advanced ip66-rated connectors for maximum protection. Experts recommend waterproof connectors such as the M8 connector and Type B connector for superior sealing and durability. These ip66-rated connectors stand out due to robust construction, ease of installation, and versatility across applications.
- Waterproof performance ensures long-term reliability.
- Connectors feature corrosion-resistant materials for harsh conditions.
Selecting the right waterproof connectors improves safety and operational efficiency.
What Does IP66 Mean for Waterproof and Sealed Connectors?
IP66 Rating Explained for Waterproof Connectors
IP66-rated connectors represent a high standard for waterproof and sealed protection in industrial environments. The IP rating system, defined by the IEC 60529 international standard, uses two digits to indicate the level of protection. The first digit, “6,” means complete dust-tight sealing, while the second digit, “6,” signifies resistance to powerful water jets from any direction. Manufacturers test waterproof connectors by exposing them to high-pressure water jets for specific durations, ensuring no water ingress occurs when connectors are fully mated.
The waterproof protection standard applies only when connectors are properly sealed and mated. Additional sealing accessories may be necessary at connection interfaces to maintain the rating.
Organizations such as NEMA, SAE, and IEC recognize these ratings, which have equivalents like ANSI 60529 and EN 60529.

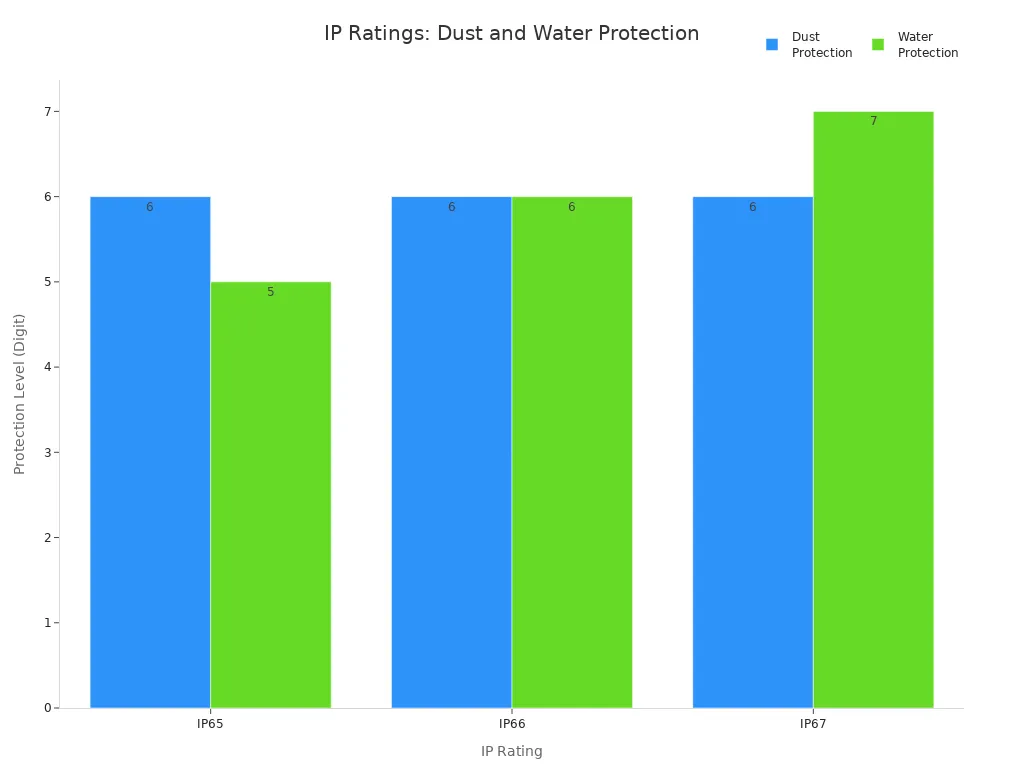

Below is a comparison table highlighting the differences between IP65, IP66, and IP67 ratings:
| IP Rating | Dust Protection (1st digit) | Water Protection (2nd digit) | Description | Test Method |
|---|---|---|---|---|
| IP65 | Dust tight (6) | Water projected from a nozzle | Protection against water projected from a nozzle from any direction | Water projected by a 6.3 mm nozzle |
| IP66 | Dust tight (6) | Powerful water jets | Protection against powerful water jets from any direction | Water projected by powerful jets 12.5 mm nozzle |
| IP67 | Dust tight (6) | Temporary immersion | Protection against immersion in water up to 1 meter for 30 minutes | Immersion under defined pressure and time |
Importance of IP66-Rated Connectors in Harsh Outdoor Environments
IP66-rated waterproof connectors deliver reliable performance in harsh outdoor conditions. These sealed connectors withstand heavy rainfall, strong water jets, and dust, making them ideal for industrial equipment exposed to unpredictable weather.
Waterproof design elements, such as corrosion-resistant housings and robust sealing, help maintain protection against water and dust over time.
Environmental factors like sand, UV exposure, and temperature fluctuations can degrade sealing materials. Regular inspection and maintenance preserve the waterproof performance of connectors.
Industries such as marine, military, and construction rely on IP66-rated connectors for rugged protection. While IP66 offers strong resistance to water jets, ip67-rated connectors provide additional protection for temporary immersion.
IP66-rated connectors support reliable operation in environments where water exposure is frequent but immersion is unlikely.
Common Industrial Applications for IP66 Waterproof Connectors
Waterproof connectors with IP66 ratings serve a wide range of industrial applications.
- Manufacturing facilities use sealed connectors to protect machinery from dust and water ingress.
- Transportation systems rely on rugged connectors for outdoor signaling and control equipment.
- Food processing plants require waterproof connectors to withstand frequent washdowns and chemical exposure.
- Industrial IoT deployments depend on environmentally sealed connectors for reliable data transmission in harsh settings.
- Construction projects utilize waterproof connectors to seal electrical systems in roofs, walls, and underground pipes.
- New energy sectors, including solar and wind, select IP66-rated connectors for durable connections in outdoor installations.
- Lighting systems, especially in coastal or seaside environments, benefit from corrosion-resistant sealed connectors.
The table below summarizes key industries and their reasons for choosing IP66-rated waterproof connectors:
| Industry | Primary Reasons for Selecting IP66-rated Waterproof Connectors |
|---|---|
| Electrical Appliances | Prevent ingress of moisture and dust to protect equipment such as screens, control boxes, cables, and switchboards. |
| Communication | Protect communication equipment including 5G base stations from moisture; connectors adapt to various environments and ease installation. |
| Lighting | Provide corrosion resistance especially for outdoor and seaside lighting using stainless steel materials. |
| New Energy | Suit diverse environments in solar, wind, geothermal, and other green energy sectors requiring waterproof and durable connections. |
| Automation Equipment | Support power, signal, and data transmission in industrial, agricultural, military, and medical automation with customized waterproof connectors. |
| Construction | Seal roofs, walls, basements, and underground pipes to prevent water penetration and protect building materials. |
IP66-rated waterproof connectors offer rugged sealing and reliable protection, making them essential for industrial applications where harsh conditions threaten equipment performance.
How We Selected the Top 10 IP66-Rated Waterproof Connectors
Selecting the best IP66-rated connectors for outdoor industrial use in 2025 required a rigorous and systematic approach. The team focused on real-world demands, technical specifications, and long-term reliability to ensure each connector delivers high-performance protection in harsh environments.
Key Selection Criteria for Sealed Connectors
Durability and Environmental Resistance of Waterproof Connectors
Durability stands as a critical factor for waterproof connectors in industrial settings. The team examined each connector’s ability to withstand temperature extremes, moisture, dust, vibration, and chemical exposure. Connectors with high mating cycle ratings, often between 5,000 and 10,000 cycles, offer extended service life. Materials such as corrosion-resistant metals and robust plastics enhance protection against UV radiation and harsh weather. The selection process prioritized connectors that maintain extreme sealing performance even after repeated use.
Ease of Installation and Maintenance for Sealed Connectors
Ease of installation and maintenance directly impacts operational efficiency. The team favored sealed connectors with user-friendly locking mechanisms, such as threaded, bayonet, or latching systems. These designs simplify assembly and disassembly, reducing downtime during maintenance. Proper sealing features, including O-rings and gaskets, ensure waterproof performance while allowing for straightforward inspection and replacement. The use of waterproof crimping tools and strain reliefs further supports long-term reliability.
Compatibility and Versatility of IP66-Rated Connectors
Compatibility with a wide range of cables, devices, and protocols increases the versatility of IP66-rated connectors. The team assessed each connector’s ability to support various voltage and current ratings, as well as data transmission requirements. Miniaturized connectors were evaluated for their impact on durability and electrical performance. The selection included both circular and rectangular designs to address diverse industrial applications, from automation to renewable energy.
Cost-Effectiveness and Value in Waterproof Connectors
Cost-effectiveness involves more than just the purchase price. The team considered total value, including installation time, maintenance needs, and the availability of technical support. Rugged connectors that offer customization options and comply with international standards, such as IEC and DIN, provide added value. The evaluation also accounted for lead times and the ability to source connectors from trusted suppliers.
Evaluation Process for IP66-Rated Sealed Connectors
The methodology for selecting the top 10 waterproof and sealed connectors followed a comprehensive, multi-step process:
- The team evaluated environmental requirements, including water exposure type, temperature range, and chemical resistance.
- Electrical specifications such as voltage, current, and signal integrity were assessed.
- Mechanical factors like mating cycles, vibration resistance, and installation constraints received careful consideration.
- Compliance with industry standards and safety certifications was verified.
- Practical testing extended beyond standard IP ratings, including mechanical stress and submersion tests.
- Real-world application feedback and direct experience with manufacturers informed the final choices.
- Technical support quality, customization capabilities, and total cost were reviewed.
- Special attention was given to connectors from German manufacturers, known for strict adherence to DIN standards and international participation.
This thorough evaluation ensures that each selected connector delivers reliable waterproof and sealed design, rugged protection, and long-term performance in harsh industrial environments.
The Top 10 IP66-Rated Waterproof Connectors for Outdoor Industrial Use in 2025
HTP Asia IP66 Circular Waterproof Connector
Description and Key Features
HTP Asia Technology Co., Ltd. manufactures the IP66 Circular Waterproof Connector in Taiwan. This connector offers robust protection for industrial equipment exposed to harsh environments. The product supports a wide pin range, from 2 to 37 pins, and handles currents from 0.5A to 20A. Engineers can select from multiple coding options, including A, B, C, D, K, L, M, P, S, T, and X, to match specific applications. The connector meets ISO 9001:2015 and ISO 14001:2015 standards and complies with RoHS requirements. Users deploy these waterproof connectors in signal and data networking, automation, marine, security surveillance, and PoE Ethernet switching.
| Specification / Certification | Details |
|---|---|
| Manufacturer | HTP Asia Technology Co., Ltd. (HOLIN-TECH), Taiwan |
| Certifications | ISO 9001:2015, ISO 14001:2015, RoHS Compliant |
| Connector Type | Waterproof Circular Connectors |
| IP Rating | IP66 to IP68 |
| Pin Range | 2 to 37 pins |
| Current Rating | 0.5A to 20A |
| Coding Options | A, B, C, D, K, L, M, P, S, T, X |
| Application Areas | Signal/Data Networking, Automation, Marine, Security Surveillance, PoE Ethernet Switching |
| Origin | Made in Taiwan |
Pros and Cons
Pros:
- Wide pin range supports diverse industrial applications.
- High current rating enables use in power and signal transmission.
- Multiple coding options improve installation flexibility.
- Certified for quality and environmental management.
- RoHS compliance ensures safe use in sensitive environments.
Cons:
- Circular design may not fit all panel layouts.
- Higher pin counts can increase installation complexity.
Ideal Use Cases
HTP Asia IP66 Circular Waterproof Connector suits industrial equipment in automation, marine, and security surveillance. Engineers select this connector for signal and data networking in outdoor environments. The product also supports PoE Ethernet switching in industrial settings where waterproof protection is critical.
TE Connectivity Heavy-Duty IP66 Sealed Connector
Description and Key Features
TE Connectivity produces the Heavy-Duty IP66 Sealed Connector for demanding industrial applications. The connector features metal housings made from aluminum or stainless steel, providing superior mechanical strength and corrosion resistance. Plastic housings, including nylon, PBT, and PPA, offer good electrical insulation and chemical resistance. Gold-plated contacts deliver excellent corrosion resistance and high reliability, while copper alloy contacts provide cost-effective solutions for controlled environments. Advanced sealing technologies, such as rubber gaskets and O-rings, ensure water and dust ingress protection. The connector withstands temperature extremes from -40°C to 140°C, vibration, shock, chemical exposure, and UV radiation. High mating cycle durability and EMI shielding maintain signal integrity and mechanical robustness.
| Aspect | Advantages | Limitations |
|---|---|---|
| Metal Housings (Aluminum, Stainless Steel) | Superior mechanical strength, corrosion resistance, durability, withstand harsh industrial/outdoor environments | Heavier and more expensive than plastic housings |
| Plastic Housings (Nylon, PBT, PPA) | Good electrical insulation, chemical resistance, cost-effective, lighter weight | Susceptible to heat deformation and UV degradation |
| Contact Materials – Gold-plated | Excellent corrosion resistance, high reliability | Higher cost |
| Contact Materials – Copper alloys | Cost-effective, suitable for controlled environments | Limited corrosion resistance |
Advanced sealing technologies and robust materials make this connector a reliable choice for industrial equipment exposed to water, dust, and environmental stressors.
Pros and Cons
Pros:
- Superior protection against water and dust ingress.
- High resistance to temperature extremes and chemical exposure.
- Durable construction supports long-term use in industrial environments.
- EMI shielding maintains signal integrity.
Cons:
- Metal housings add weight and cost.
- Gold-plated contacts increase overall expense.
- Plastic housings may degrade under heat and UV exposure.
Ideal Use Cases
TE Connectivity Heavy-Duty IP66 Sealed Connector fits outdoor industrial equipment, automation systems, and control panels. Engineers use this connector in environments with frequent exposure to water, vibration, and chemicals. The product excels in applications requiring high-performance waterproof interconnect products and long-term reliability.
Amphenol LTW M12 IP66 Waterproof Connector
Description and Key Features
Amphenol LTW designs the M12 IP66 Waterproof Connector for compact and space-constrained industrial applications. The connector measures only 12 millimeters in diameter, making it ideal for installations with limited space. It supports high ingress protection standards, ensuring resistance to dust and water. The patented Push Pull mechanism allows rapid and secure coupling with a single push, providing audible feedback to confirm connection. This design contrasts with traditional screw coupling, which requires multiple turns. The connector offers backward compatibility with IEC 61076-2-101 compliant M12*1.0 threaded sockets, enabling seamless integration with existing systems. Engineers benefit from easy installation and reliable sealing against water and dust ingress.
Pros and Cons
Pros:
- Compact footprint suits space-limited industrial equipment.
- Push Pull mechanism enables fast and secure installation.
- Backward compatibility enhances versatility.
- High ingress protection ensures reliable waterproof performance.
Cons:
- Limited pin count compared to larger connectors.
- Push Pull design may require specific training for proper use.
Ideal Use Cases
Amphenol LTW M12 IP66 Waterproof Connector serves automation, robotics, and industrial IoT applications. Engineers select this connector for installations where space is limited and waterproof protection is essential. The product integrates easily with existing equipment, supporting high-performance data and power transmission in harsh environments.
Molex IP66 Sealed Power Connector
Description and Key Features
Molex offers the IP66 Sealed Power Connector for demanding industrial environments. This connector features a rugged housing made from high-grade thermoplastic, which resists impact and chemical exposure. The design includes a double-latch locking system that ensures a secure connection even in areas with vibration or movement. The connector supports a wide range of wire gauges and current ratings, making it suitable for both low- and high-power applications. Integrated gaskets and seals provide reliable waterproof protection, preventing dust and water from entering the connection point. The connector meets international standards for safety and performance, including UL and IEC certifications.
Pros and Cons
Pros:
- Robust housing withstands harsh industrial conditions.
- Double-latch system prevents accidental disconnection.
- Wide compatibility with different wire sizes and power requirements.
- Reliable waterproof sealing for outdoor use.
Cons:
- Larger size may limit use in compact installations.
- Specialized tools may be required for assembly and maintenance.
Ideal Use Cases
Molex IP66 Sealed Power Connector fits outdoor machinery, heavy equipment, and renewable energy systems. Engineers often select this connector for power distribution panels, control cabinets, and lighting systems in industrial facilities. The waterproof design makes it a strong choice for applications where exposure to water or dust is frequent.
Phoenix Contact IP66 Circular Sealed Connector
Description and Key Features
Phoenix Contact manufactures the IP66 Circular Sealed Connector to address the needs of modern industrial applications. The connector features a circular design with a robust locking mechanism, ensuring a tight and secure fit. High-quality materials, such as corrosion-resistant metals and UV-stable plastics, extend the connector’s service life in outdoor environments. The sealing system includes precision-molded gaskets that block water and dust, maintaining the IP66 rating even after repeated use. The connector supports a variety of pin configurations and current ratings, allowing for flexibility in system design. Phoenix Contact’s product line meets global safety and performance standards.
Pros and Cons
Pros:
- Durable construction for long-term outdoor use.
- Flexible pin and current options for diverse applications.
- Reliable waterproof and dustproof sealing.
- Easy installation with clear alignment features.
Cons:
- Circular form factor may not suit all panel layouts.
- Higher cost compared to basic waterproof connectors.
Ideal Use Cases
Phoenix Contact IP66 Circular Sealed Connector serves a broad range of industrial sectors. Common applications include:
- E-Mobility: charging infrastructure and electric vehicles
- Infrastructure: building automation, data centers, railway industry, smart city projects, transportation infrastructure, water and wastewater treatment
- Power: battery storage systems, conventional power generation, DC grids, power transmission and distribution, solar and wind power
- Process Industry: marine and offshore, mining, power-to-X, process automation
- Production, Device, and Systems Manufacturing: automotive industry, control cabinet building, device manufacturers, digital factories, electrical installations, machine building
- Other areas: agriculture, smart network data connectors, functional safety, industrial remote communication, industrial security, power reliability, and video surveillance
This connector’s versatility and robust waterproof sealing make it a preferred choice for engineers working in environments where water, dust, and vibration threaten equipment reliability.
Weipu SP13 IP66 Waterproof Aviation Connector
Description and Key Features
Weipu’s SP13 IP66 Waterproof Aviation Connector provides a compact and lightweight solution for outdoor and industrial applications. The connector uses a threaded coupling system that ensures a secure and vibration-resistant connection. The housing, made from high-strength plastic, resists corrosion and UV degradation. The SP13 series supports multiple pin configurations, accommodating both signal and low-power transmission needs. Integrated silicone seals prevent water and dust ingress, maintaining the IP66 rating even in challenging environments. The connector’s design allows for quick assembly and disassembly, which simplifies maintenance in the field.
Pros and Cons
Pros:
- Compact and lightweight for easy integration.
- Threaded coupling resists vibration and accidental loosening.
- Effective waterproof and dustproof sealing.
- Simple installation and maintenance.
Cons:
- Limited current capacity compared to larger connectors.
- Plastic housing may not offer the same durability as metal alternatives in extreme conditions.
Ideal Use Cases
Weipu SP13 IP66 Waterproof Aviation Connector works well in outdoor lighting, security cameras, and portable equipment. Engineers often use this connector in industrial automation, marine electronics, and renewable energy installations. The waterproof and sealed design ensures reliable performance in environments where water and dust exposure are common.
Harting Han-Modular IP66 Heavy-Duty Connector
Description and Key Features
Harting manufactures the Han-Modular IP66 Heavy-Duty Connector for demanding industrial environments. This modular system allows engineers to customize connectors for power, signal, and data transmission within a single housing. The connector features robust metal shells and advanced sealing technology. These features protect against dust, water, and mechanical stress. The modular inserts support a wide range of contact types, including fiber optics, pneumatic, and high-current modules. Engineers can assemble and reconfigure the connector quickly, which reduces downtime during maintenance or upgrades. The locking levers ensure a secure and vibration-resistant connection. The IP66 rating guarantees reliable waterproof performance in outdoor and harsh industrial settings.
Pros and Cons
Pros:
- Modular design offers flexibility for diverse applications.
- Metal housing provides excellent mechanical protection.
- Advanced sealing maintains waterproof integrity.
- Quick assembly and reconfiguration save time.
Cons:
- Larger size may not fit compact installations.
- Modular system can increase initial setup complexity.
Ideal Use Cases
Harting Han-Modular IP66 Heavy-Duty Connector fits heavy machinery, automation lines, and renewable energy installations. Engineers select this connector for outdoor equipment where water and dust exposure threaten reliability. The modular approach supports complex industrial applications that require mixed signal, power, and data connections in a single sealed unit.
Lapp Group Epic® IP66 Sealed Industrial Connector
Description and Key Features
Lapp Group produces the Epic® IP66 Sealed Industrial Connector for rugged outdoor use. The connector features a die-cast aluminum housing with a powder-coated finish. This construction resists corrosion and mechanical impact. The sealing system uses precision-molded gaskets to block water and dust. The connector supports a variety of insert types, including power, control, and signal modules. Engineers can choose from multiple sizes and pin configurations to match specific requirements. The locking mechanism ensures a tight, vibration-proof connection. The Epic® series meets international standards for safety and performance in industrial environments.
Pros and Cons
Pros:
- Durable housing withstands harsh conditions.
- Reliable waterproof and dustproof sealing.
- Versatile insert options for different applications.
- Easy installation with secure locking.
Cons:
- Metal construction adds weight.
- Higher cost compared to basic waterproof connectors.
Ideal Use Cases
Lapp Group Epic® IP66 Sealed Industrial Connector serves outdoor control panels, machinery, and process automation systems. Engineers use this connector in water treatment plants, transportation infrastructure, and energy facilities. The sealed design ensures long-term reliability in environments with frequent water exposure and mechanical stress.
Bulgin Buccaneer IP66 Waterproof Ethernet Connector
Description and Key Features
Bulgin designs the Buccaneer IP66 Waterproof Ethernet Connector for reliable data transmission in outdoor and industrial applications. The connector features a rugged plastic or metal shell with a secure bayonet locking system. This design provides fast, tool-free mating and unmating. The sealing system includes integrated O-rings and gaskets that prevent water and dust ingress. The connector supports standard Ethernet protocols, including Cat5e and Cat6, for high-speed data transfer. Engineers can install the Buccaneer connector in harsh environments without sacrificing network performance. The IP66 rating ensures the connector remains waterproof even during heavy rain or direct water jets.
Pros and Cons
Pros:
- Fast, tool-free installation with bayonet locking.
- Reliable waterproof sealing for Ethernet connections.
- Supports high-speed data transmission.
- Available in multiple shell materials for different environments.
Cons:
- Limited to Ethernet and data applications.
- Plastic shells may offer less mechanical protection than metal options.
Ideal Use Cases
Bulgin Buccaneer IP66 Waterproof Ethernet Connector fits outdoor networking, security systems, and industrial automation. Engineers deploy this connector in smart city infrastructure, surveillance cameras, and remote monitoring stations. The waterproof and sealed design protects critical data connections from water, dust, and environmental hazards.
ILME T-Type IP66 Sealed Rectangular Connector
Description and Key Features
The ILME T-Type IP66 Sealed Rectangular Connector stands out as a robust solution for demanding industrial environments. ILME engineers designed this connector with a focus on hygiene, durability, and safety. The housing uses food-safe, self-extinguishing thermoplastic. This material resists chemicals, cleaning agents, and fats, making the connector suitable for food manufacturing and processing plants. The construction relies on advanced molding technology, which gives the connector structural solidity and long-term reliability.
The sealing system offers two gasket options. HNBR rubber provides resistance to chemicals and fats. Silicone rubber extends chemical and fat resistance and performs reliably at low temperatures, down to -50°C. The connector supports cable entry sizes of M25 and M32 for smaller housings, and M32 and M40 for larger housings. ILME’s T-Type connector meets both IP66 and IP69 ratings, ensuring protection against powerful water jets and high-pressure washdowns. The product holds certification from Ecolab Technical Application Service, confirming its suitability for stringent food industry standards.
Note: The ILME T-Type connector does not have published user feedback or field performance data. However, its certifications and material choices reflect a strong commitment to quality and safety.
Key Performance Metrics Table:
| Key Performance Metrics | Details |
|---|---|
| IP Rating | IP66 and IP69, suitable for harsh washdown procedures |
| Material | Food-safe, self-extinguishing thermoplastic |
| Chemical Resistance | Resistant to cleaning agents, chemicals, and fats |
| Sealing Gasket Options | HNBR rubber (chemical and fat resistance), Silicone rubber (chemical, fat resistance, and low temperature down to -50°C) |
| Application Environment | Food manufacturing and processing, compliant with stringent food industry standards |
| Construction | Robust, structurally solid via unique molding technology |
| Certification | Certified by Ecolab Technical Application Service |
| Cable Entry Sizes | M25, M32 for smaller housings; M32, M40 for larger housings |
| User Feedback | No direct user feedback or field performance data available |
Pros and Cons
Pros:
- High ingress protection with both IP66 and IP69 ratings.
- Food-safe thermoplastic housing supports use in sensitive environments.
- Excellent resistance to chemicals, cleaning agents, and fats.
- Two gasket options allow customization for temperature and chemical exposure.
- Certified for use in food processing by Ecolab Technical Application Service.
- Robust construction ensures long service life.
Cons:
- Lack of published user feedback or field performance data.
- Specialized design may limit use outside food and beverage or similar industries.
- Larger cable entry sizes may not suit compact installations.
Ideal Use Cases
Engineers select the ILME T-Type IP66 Sealed Rectangular Connector for applications where hygiene and chemical resistance are critical. Typical use cases include:
- Food manufacturing and processing plants that require connectors to withstand frequent washdowns and exposure to cleaning agents.
- Beverage production facilities where equipment must meet strict safety and hygiene standards.
- Pharmaceutical environments that demand robust, easy-to-clean connectors.
- Industrial automation systems in environments with aggressive cleaning protocols.
This connector’s combination of high ingress protection, chemical resistance, and food-safe certification makes it a preferred choice for industries that prioritize safety, cleanliness, and durability.
Comparison Table: Top 10 IP66-Rated Waterproof and Sealed Connectors
Selecting the right IP66-rated connector for outdoor industrial use requires a clear understanding of technical specifications. The following comparison table summarizes the most important features and differences among the top 10 connectors. This overview helps engineers and procurement specialists identify the best fit for their specific application.
| Connector Model | Waterproof Rating | Voltage Range | Current Rating | Material(s) | Pin Configurations | Diameter/Size | Temp. Range | Certifications | Special Features | Typical Applications |
|---|---|---|---|---|---|---|---|---|---|---|
| HTP Asia Circular | IP66–IP68 | 10V–400V | Up to 20A | Brass, Plastic, Rubber | 2–37 | 8–40mm | -40°C to 105°C | ISO9001, RoHS | Multiple coding options | Automation, Marine, PoE |
| TE Connectivity Heavy-Duty | IP66 | Up to 1000V | Up to 16A | Aluminum, Stainless Steel | Various | Multiple | -40°C to 140°C | UL, CE, RoHS | EMI shielding, modular | Control panels, Automation |
| Amphenol LTW M12 | IP66 | Up to 250V | Up to 8A | Plastic, Gold-plated Brass | 3–8 | 12mm | -40°C to 85°C | UL, CE, TUV | Push-pull, compact | Robotics, IoT, Sensors |
| Molex Sealed Power | IP66 | Up to 600V | Up to 13A | Thermoplastic, Copper | Various | Multiple | -40°C to 105°C | UL, IEC, RoHS | Double-latch, wide wire range | Power panels, Machinery |
| Phoenix Contact Circular | IP66 | Up to 630V | Up to 16A | Metal, UV-stable Plastic | Multiple | Multiple | -40°C to 125°C | UL, CE, RoHS | Precision gaskets, flexible pins | E-mobility, Infrastructure |
| Weipu SP13 Aviation | IP66 | Up to 250V | Up to 5A | Plastic, Brass | 2–9 | 13mm | -40°C to 85°C | CE, RoHS | Threaded coupling, lightweight | Lighting, Security, Marine |
| Harting Han-Modular | IP66 | Up to 1500V | Up to 16A | Metal, Plastic | Modular | Large | -40°C to 125°C | UL, CE, RoHS | Modular inserts, lever lock | Heavy machinery, Energy |
| Lapp Group Epic® | IP66 | Up to 690V | Up to 16A | Die-cast Aluminum | Multiple | Multiple | -40°C to 100°C | UL, CE, RoHS | Powder-coated, secure locking | Control panels, Process automation |
| Bulgin Buccaneer Ethernet | IP66 | Up to 50V | Up to 2A | Plastic, Metal | 8 (Ethernet) | 19–25mm | -40°C to 80°C | UL, CE, RoHS | Bayonet lock, tool-free | Networking, Surveillance |
| ILME T-Type Rectangular | IP66, IP69 | Up to 400V | Up to 16A | Food-safe Thermoplastic | Multiple | M25–M40 entries | -55°C to 200°C | Ecolab, CE, RoHS | Chemical/fat resistant, hygienic | Food, Pharma, Clean environments |
Note: The table highlights significant differences in waterproof ratings, voltage and current ranges, materials, and certifications. Some connectors, such as the ILME T-Type, offer advanced protection up to IP69 and withstand extreme temperatures down to -55°C or up to 200°C. Others, like the Harting Han-Modular, support high voltage and modularity for complex installations.
Key technical variations include:
- Waterproof ratings range from IP66 to IP69, with some models also certified for IP67 or IP68.
- Voltage and current ratings vary widely, from low-voltage Ethernet connectors to high-voltage, high-current modular systems.
- Materials include brass, stainless steel, thermoplastics, and food-safe compounds, each chosen for specific environmental resistance.
- Pin configurations and diameter sizes accommodate different wiring needs, from compact M12 connectors to large modular housings.
- Certifications such as UL, CE, RoHS, and ISO9001 ensure compliance with international safety and quality standards.
Engineers should match connector specifications to their operational requirements. For example, food processing plants benefit from ILME’s hygienic design, while outdoor networking installations favor Bulgin’s tool-free Ethernet connector. The table provides a quick reference for comparing features and making informed decisions.
🛠️ Tip: Always verify installation requirements and compatibility with existing systems before selecting a connector. Some models require special tools or techniques, while others offer easy, tool-less assembly.
How to Choose the Right IP66-Rated Waterproof Connector for Your Application
Assessing Environmental and Operational Needs for Sealed Connectors
Selecting the right waterproof connector begins with a thorough assessment of the environment and operational requirements. Outdoor industrial settings often expose connectors to extreme temperatures, moisture, dust, and chemicals. High temperatures can soften materials, while low temperatures may cause brittleness and cracking. Thermal cycling, which involves repeated temperature changes, can lead to material fatigue and micro-cracks, reducing sealing performance and overall reliability.
Moisture and humidity present significant risks. Water ingress can corrode metal contacts and degrade insulation, especially in marine or humid environments. Chemical exposure from oils, solvents, or acids may dissolve or weaken connector materials, compromising waterproof protection. Vibration and mechanical stress can loosen contacts, causing intermittent faults. Electromagnetic interference (EMI) also affects signal integrity, making shielding an important consideration.
Tip: Engineers should evaluate all environmental factors, including temperature range, humidity, chemical exposure, and mechanical stress, before selecting sealed connectors for industrial applications.
Matching Waterproof Connector Types to Application Requirements
Different applications demand specific connector types and features. Engineers must identify the electrical load, environmental conditions, and application type before making a selection. Materials such as polycarbonate, nylon, and gold-plated contacts offer resistance to UV, temperature changes, and corrosion. The connector size should match the wire gauge to ensure optimal conductivity and mechanical fit.
Connector types vary, including circular, rectangular, molded, and field-installable designs. Soldered, crimp, or screw-on types each provide unique benefits for installation and reliability. For environments with frequent washdowns or exposure to saltwater, connectors with higher environmental ratings, such as IP68 or NEMA, may offer additional protection. Planning for future changes in the environment helps prevent premature connector failure.
A quick checklist for matching connector types:
- Identify voltage and current requirements.
- Choose materials that withstand environmental stressors.
- Select the appropriate connector type and size.
- Verify compatibility with existing equipment and pin configurations.
- Ensure the connector meets relevant certifications and standards.
Common Mistakes to Avoid When Selecting IP66-Rated Connectors
Many engineers overlook critical factors when choosing waterproof connectors for industrial use. Failing to understand the significance of the IP rating can result in inadequate protection against water and dust ingress. Ignoring compatibility with electronic devices, including electrical specifications and pin configurations, may cause installation issues or unreliable performance.
Some users focus only on the initial cost, neglecting long-term value, warranty, and potential failure costs. Overlooking the importance of durability, reliability, and ease of installation can lead to frequent maintenance and downtime. Inadequate attention to environmental conditions, such as temperature extremes or chemical exposure, often results in reduced connector lifespan.
Note: Proper installation and regular maintenance play a vital role in maintaining extreme sealing performance and ensuring long-term reliability in industrial applications.
Tips for Ensuring Long-Term Reliability of Waterproof and Sealed Connectors
Maintaining the long-term reliability of waterproof connectors in outdoor industrial environments requires a proactive approach. Engineers and technicians can extend the service life of these components by following a set of proven best practices.
-
Select the Right Connector for the Environment
Choose waterproof connectors that match the wire gauge and environmental conditions. For harsh outdoor settings, select models with high IP ratings and corrosion-resistant materials such as stainless steel or nickel-plated metals. -
Prepare Wires and Surfaces Carefully
Strip insulation from wires with precision and inspect for any damage. Clean connectors and mating surfaces thoroughly before assembly to prevent contamination that could compromise the waterproof seal. -
Apply Sealant and Use Proper Installation Techniques
Apply sealant generously inside the connector when recommended. Follow manufacturer instructions closely, ensuring secure twisting and tightening. Avoid over-torquing, which can damage threads or seals. -
Ensure Correct Pin Alignment and Strain Relief
Align pins accurately during assembly. Use strain relief mechanisms to prevent mechanical stress on the connection, especially in areas exposed to vibration or movement. -
Inspect and Test After Installation
Perform both visual and electrical inspections after installation. Look for signs of improper sealing, misalignment, or incomplete connections. Test electrical continuity to confirm proper function. -
Conduct Regular Maintenance and Inspections
Schedule periodic inspections to detect wear, corrosion, or deterioration. Clean connectors using appropriate methods and replace any damaged O-rings or sealing caps. Test electrical performance regularly to catch issues early. -
Minimize Unnecessary Mating Cycles
Limit the number of times connectors are mated and unmated. Frequent cycles can wear out locking mechanisms and reduce waterproof effectiveness. Use locking systems like bayonet or push-lock couplings to secure connections. -
Store and Handle Connectors Properly
Keep unused connectors in dry, controlled environments. Protect them from UV exposure and use protective caps to prevent dust or moisture ingress.
Tip: Investing in high-quality, sealed connectors with anti-vibration features and robust materials can significantly improve long-term performance in demanding applications.
By following these steps, engineers can maximize the reliability of waterproof connectors and reduce the risk of failure in critical outdoor installations.
Additional Resources for Selecting IP66-Rated Waterproof Connectors
Where to Buy IP66-Rated Sealed Connectors and Trusted Suppliers
Engineers and procurement teams often rely on established suppliers to source IP66-rated sealed connectors. Trusted distributors and manufacturers offer a wide range of products that meet strict industrial standards. The table below highlights several reputable sources, their key product series, and notable features:
| Supplier | Product Series | IP Rating(s) | Key Features and Notes |
|---|---|---|---|
| Amphenol LTW | Ceres Series | IP66 – IP68 | Rugged, environmentally sealed circular connectors for harsh environments; cost-effective. |
| JAE | MX80 Series | N/A | Miniature sealed connectors for automotive; strong sealing and vibration resistance. |
| PEI-Genesis | ITT Cannon D-Subminiature | MIL-DTL-24308 | High-reliability, sealed connectors for commercial and industrial use. |
| Smiths Interconnect | REP Series | N/A | Sealed plastic connectors; qualified for rail applications. |
| Amphenol Communications Solutions | Single-pair Ethernet (SPE) | IP67 | Circular M12, push-pull latching; sealed and shielded for industrial Ethernet. |
| Phoenix Contact | M12 Connectors | IP65/IP67 | Push-pull locking, O-ring sealed; protected against dust and water jets. |
These suppliers maintain strong reputations for quality, compliance, and technical support. Their product lines address the needs of industries such as automation, transportation, and energy.
Downloadable Buyer’s Checklist for Waterproof Connectors
A comprehensive buyer’s checklist helps engineers avoid common installation failures and ensures long-term reliability. The following points summarize best practices for selecting and installing waterproof connectors:
Key Steps for Installation and Selection:
- Prepare cables by stripping the jacket to exact specifications and inspecting for damage.
- Terminate contacts using the correct crimping force and perform pull tests.
- Install gaskets and seals carefully, ensuring all surfaces are clean and properly lubricated.
- Assemble connectors by hand-threading and apply torque incrementally with calibrated tools.
- Conduct post-installation tests, including continuity, insulation resistance, pressure testing, and visual inspection.
Additional Considerations:
- Verify that the IP rating and temperature range match the application.
- Confirm voltage and current ratings exceed system requirements.
- Use industrial-rated cables compatible with the selected connectors.
- Maintain installation conditions: temperature between 10°C–30°C, humidity below 60%, and no precipitation.
- Perform industry-standard tests such as submersion, temperature cycling, vibration, and salt spray corrosion.
- Schedule regular inspections based on environmental severity.
- Document all test results and installation details for warranty and maintenance.
Selecting the right waterproof connector prevents costly failures, reduces emergency repairs, and ensures operational continuity. A structured checklist supports measurable ROI and system reliability.
Further Reading and Industry Standards for Sealed Connectors
Understanding industry standards and design requirements is essential for selecting sealed connectors that perform reliably in harsh environments. Connectors used in transportation, military, and industrial sectors must comply with standards such as MIL, IEC, and SAE, which govern design, materials, and environmental performance. Common IP ratings include IP67 for dust and temporary immersion, IP68 for long-term immersion, and IP69K for high-pressure washdowns.
Key design elements include sealing gaskets made from silicone or fluororubber, robust housing materials like polyamide or aluminum, and secure locking mechanisms. Engineers can consult resources such as the TE Connectivity Product Selector, Molex Connector Configurator, and Fischer Connectors manuals for detailed product guidance. Case studies, such as the use of MIL-DTL-5015 connectors in tactical radios or IP68 connectors in marine controls, provide practical insights into real-world applications.
Staying informed about relevant standards and best practices ensures that engineers select connectors that deliver safety, durability, and compliance in every installation.
Selecting IP66-rated waterproof connectors demands attention to several critical factors:
- High product quality with IP66 or higher ratings
- Durable, corrosion-resistant materials tested for harsh conditions
- Secure locking and sealing designs to prevent moisture entry
- Compliance with certifications such as ISO 9001, UL, or CE
- Responsive technical support and customer service
IP66-rated connectors deliver strong protection against dust and water, supporting operational integrity and safety in outdoor industrial environments. Engineers should review product catalogs, follow installation guidelines, and consult trusted suppliers or download the buyer’s checklist to ensure reliable performance.
FAQ
What does the IP66 rating mean for connectors?
The IP66 rating indicates complete protection against dust and strong water jets. Engineers can use these connectors outdoors without worrying about dust or water ingress during heavy rain or cleaning.
Can IP66 connectors be used underwater?
IP66 connectors resist powerful water jets but do not support continuous submersion. For underwater use, engineers should select connectors with IP67 or IP68 ratings.
How often should IP66 connectors be inspected?
Technicians should inspect IP66 connectors at least twice a year. Regular checks help identify wear, corrosion, or seal damage, ensuring long-term reliability in harsh environments.
Are IP66 connectors suitable for food processing plants?
Yes. Many IP66 connectors use food-safe materials and resist cleaning agents. These features make them ideal for food and beverage production environments that require frequent washdowns.
What materials are best for outdoor IP66 connectors?
Stainless steel, brass, and UV-stable plastics provide excellent durability. These materials resist corrosion, temperature changes, and UV exposure, making them suitable for outdoor industrial use.
Do IP66 connectors require special installation tools?
Some IP66 connectors need specific crimping or torque tools for proper sealing. Always check the manufacturer’s guidelines to ensure correct installation and maintain the waterproof rating.
Can IP66 connectors handle both power and data transmission?
Many IP66 connectors support both power and data lines. Engineers should verify voltage, current, and pin configuration requirements before selecting a connector for mixed applications.
Where can engineers buy certified IP66 connectors?
Engineers can purchase certified IP66 connectors from authorized distributors, manufacturer websites, or trusted industrial suppliers. Always verify certifications and product specifications before ordering.
